Tubing Cinch Ring 10-Pack
Used (optionally) to secure instrument tubing onto barbed tubing connectors. They are made of soft latex, but they are so thick that they don't stretch much - they pull strongly - making them great for uniformly holding instrument tubing in-place.
These are not usually required when using soft, fresh tubing. I don't use them in my glider. However, it is not always possible to use new tubing. Older gliders may have existing tubing that that is no longer soft - such as the tubing that runs from the tail of the glider up to the instruments. These work great on old, hard tubing.
Work great with:
- U.S. 3/16" I.D. instrument tubing and connectors
- European 5 mm I.D. instrument tubing and connectors
- All makes and models of soaring instruments
Specifications:
- Material: Latex
- Color: dark green
- Inner Diameter: ~5.5 mm
- Outer Diameter: ~13.5 mm
Included:
- 10 x Tubing Cinch Ring

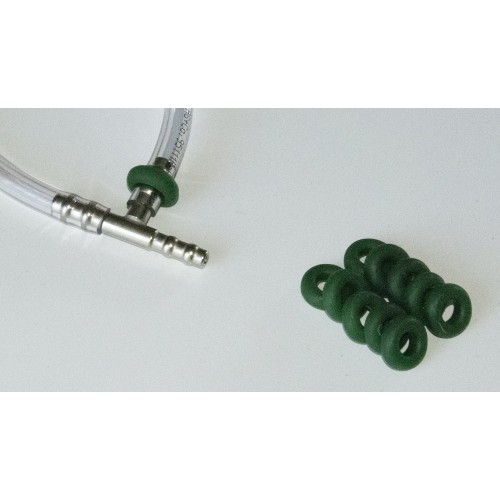

Not included but shown in photo:
- Winter W-9003 T tubing connector
- Winter W-9001 Instrument Tubing
Tubing-Cinch-Ring-10-Pack
- Product Code: Tubing-Cinch-Ring-10-Pack
- Availability: In Stock
-
$2.00
