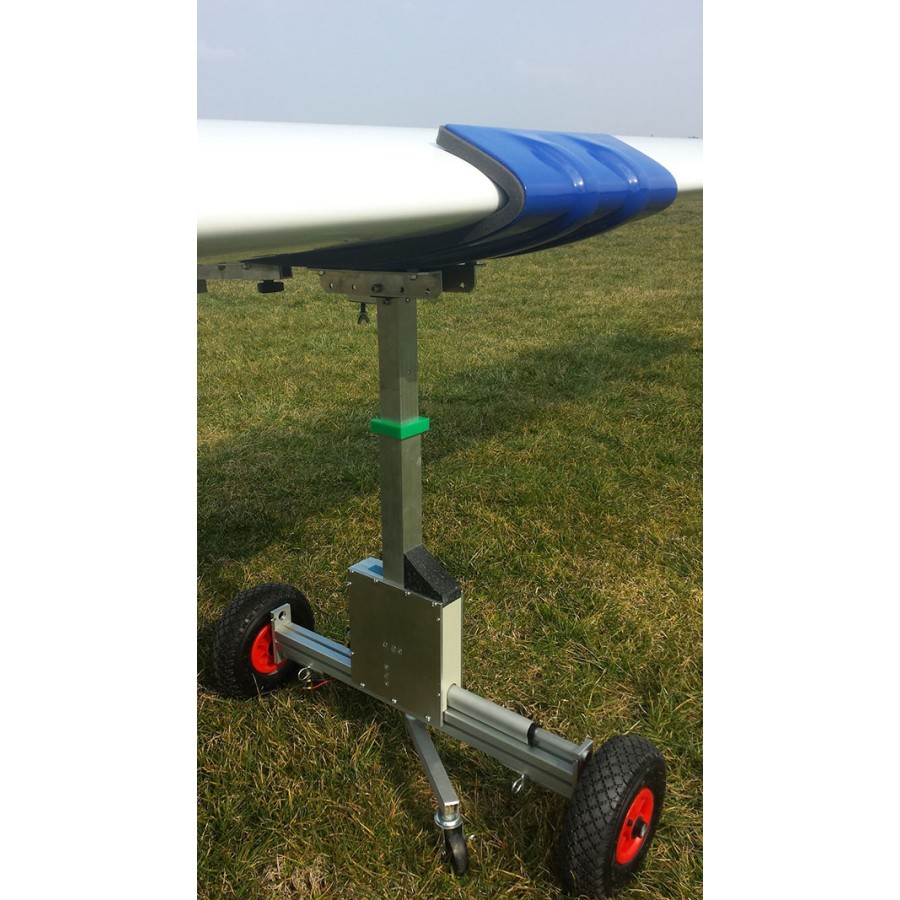

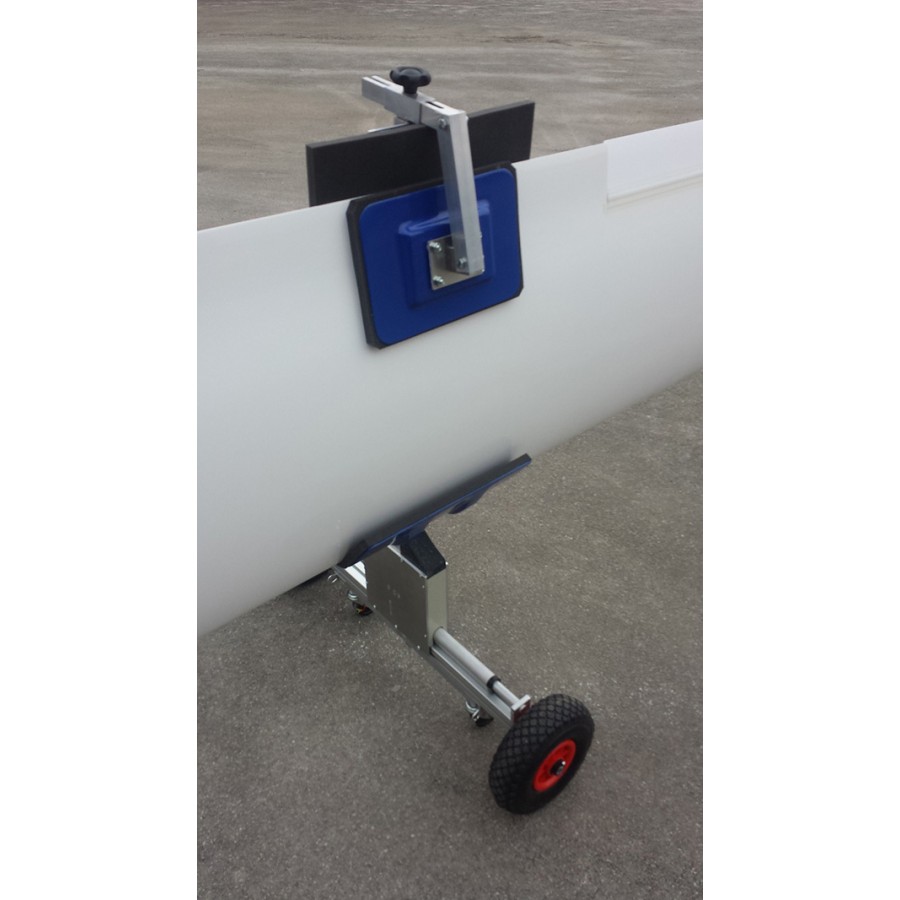

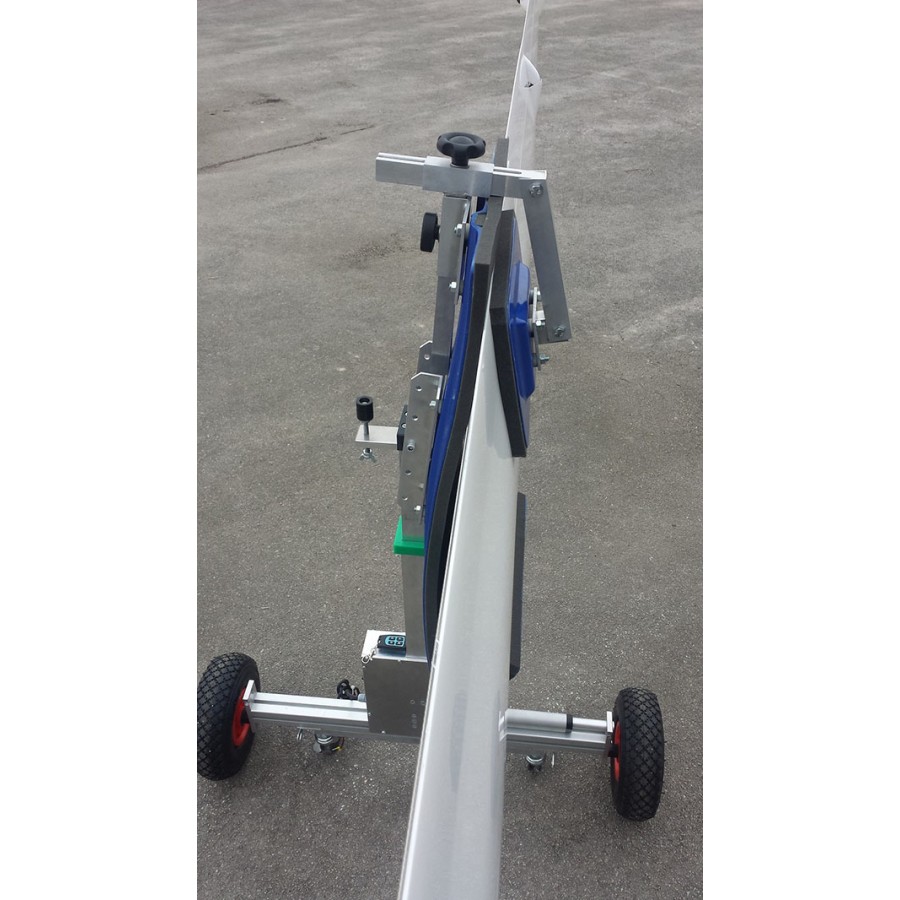

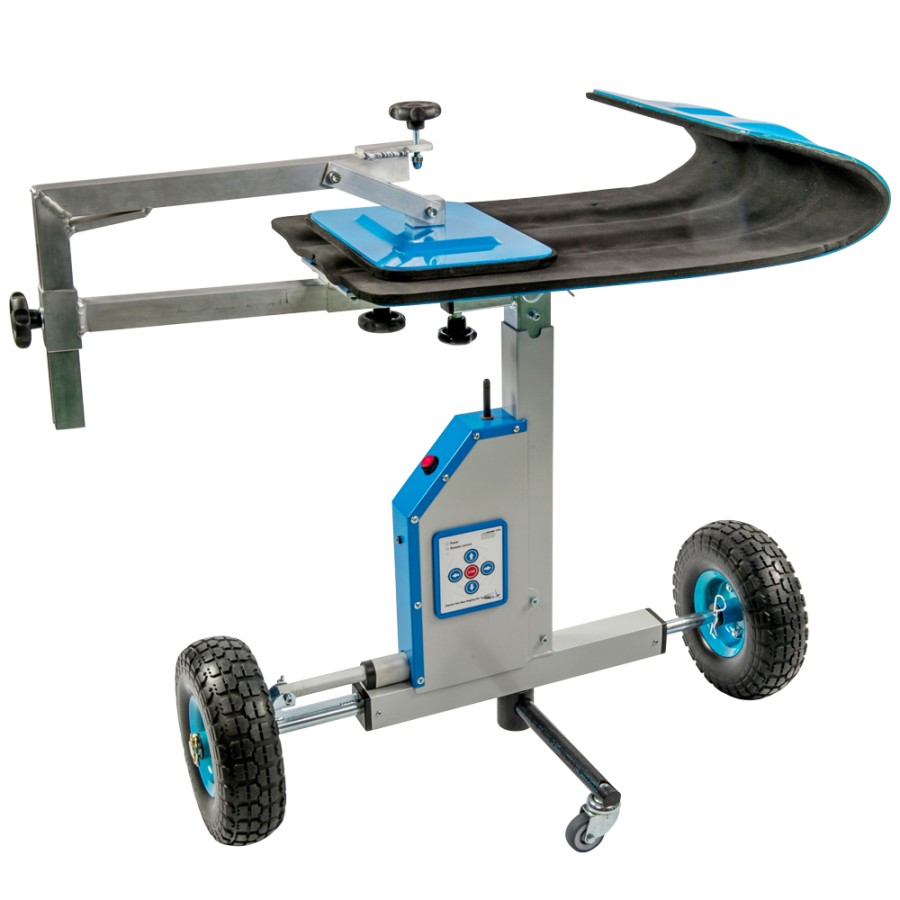

SoaringXX One-Person Rigging Aid

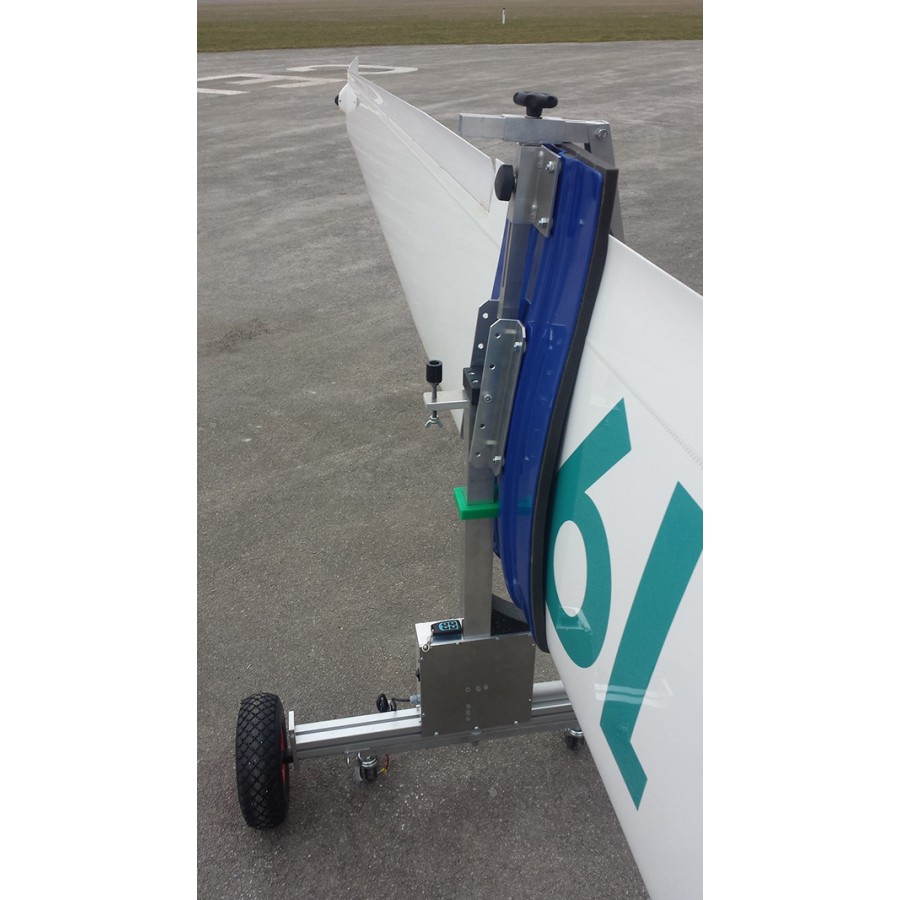

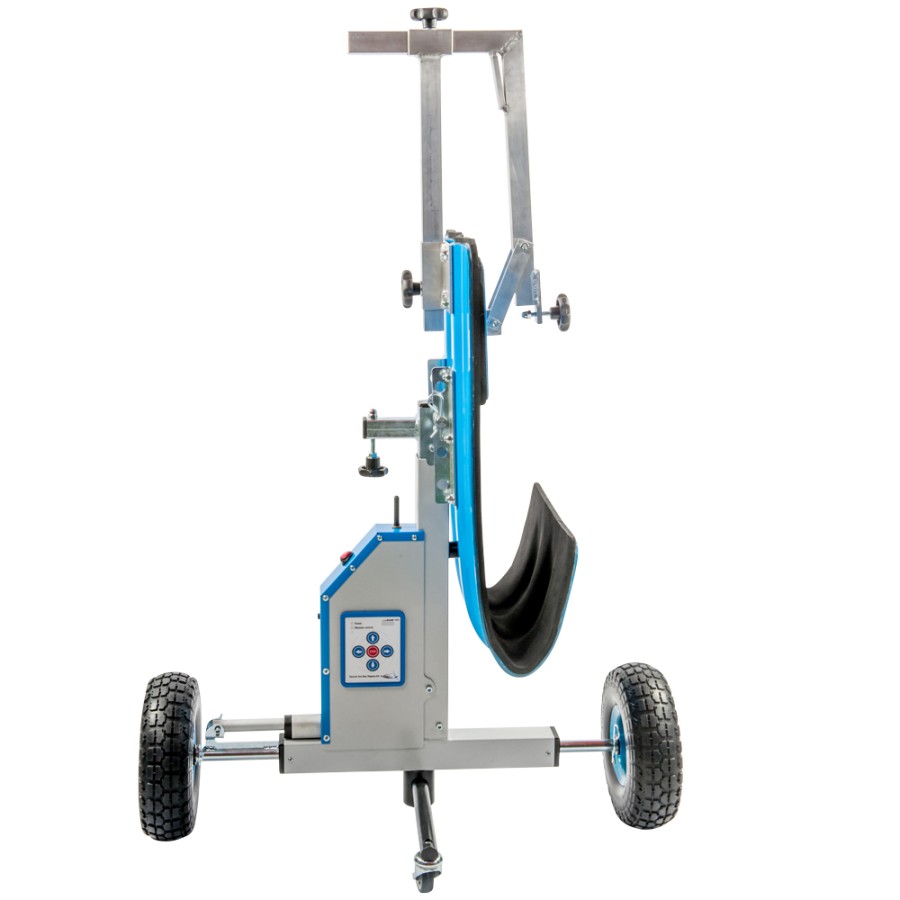

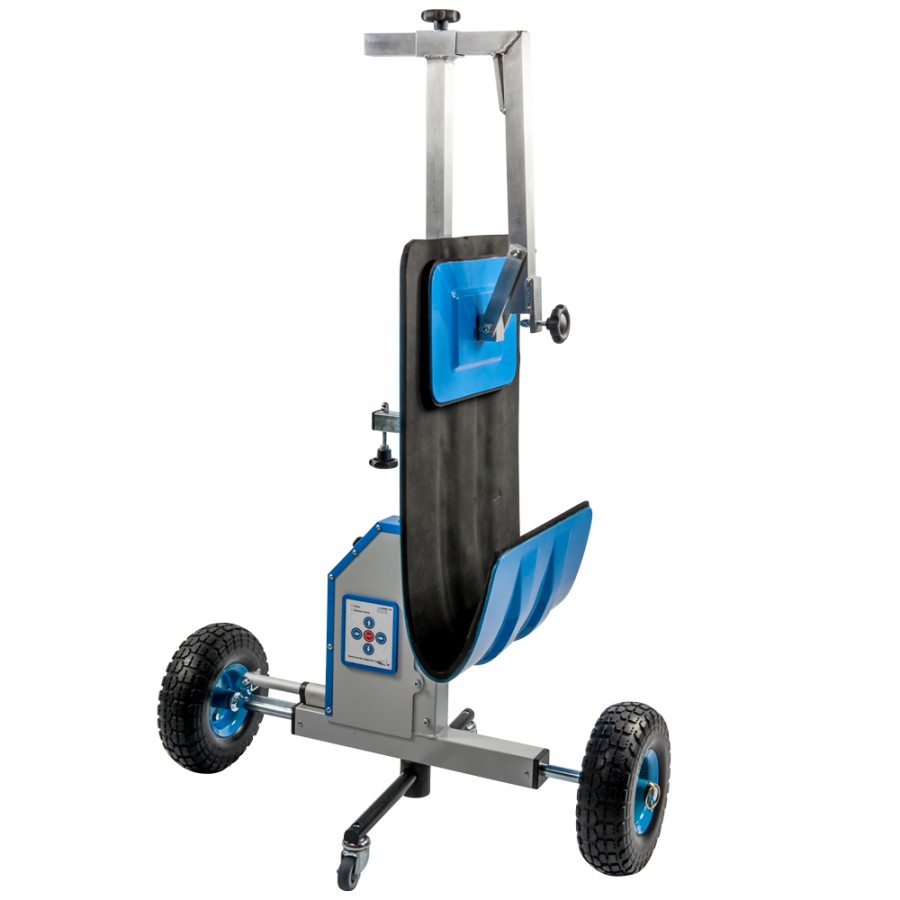

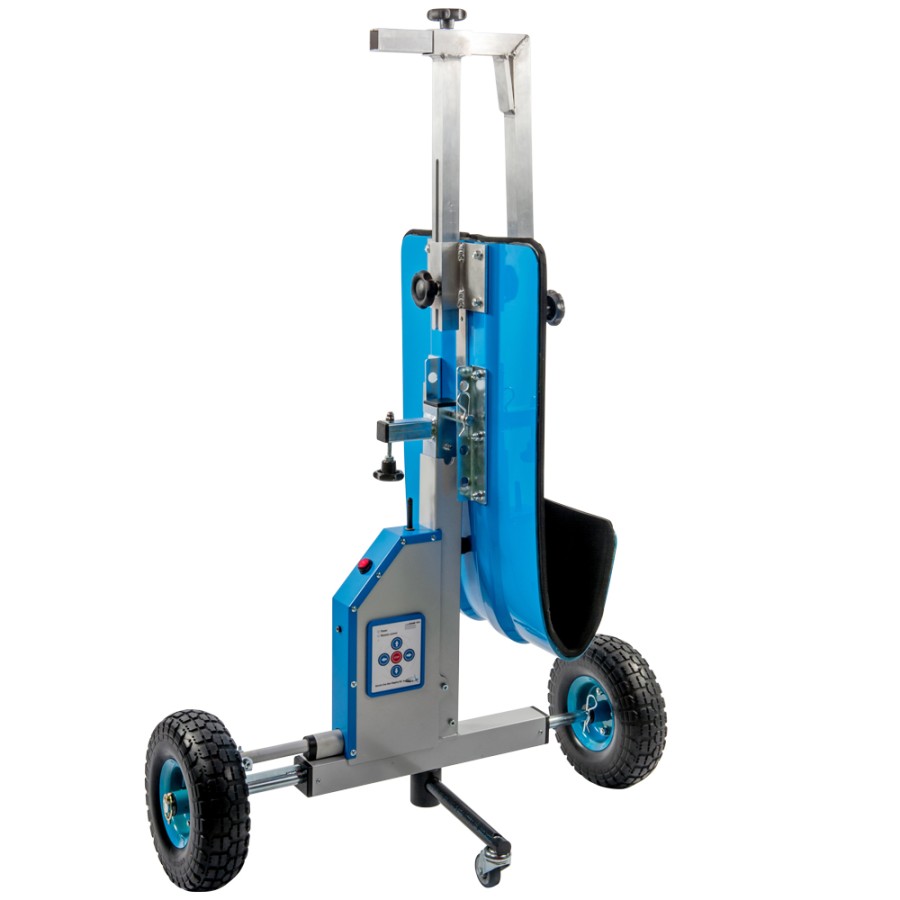

One-person rigging aid with 2 remote-controlled electric linear actuators. Very light and compact system with extremely user-friendly handling. The main part is made of the mixture of aluminum profiles and steel (galvanized steel). Package includes remote controller, battery and free shipping.

Note: The prices at right do NOT include shipping - so our prices can be compared with competitive products.  Shipping from SoaringXX in Slovenia directly to you will cost about $250 using a low-cost shipping method.  The system is somewhat large and heavy to ship.  The shipping cost you see during check-out will not be accurate.  We'll adjust the shipping cost when we enter the order.

Highlights:

• Remote controlled electric driven system (2 linear actuators)
• Linear actuator lifts up to 1500N (2x)

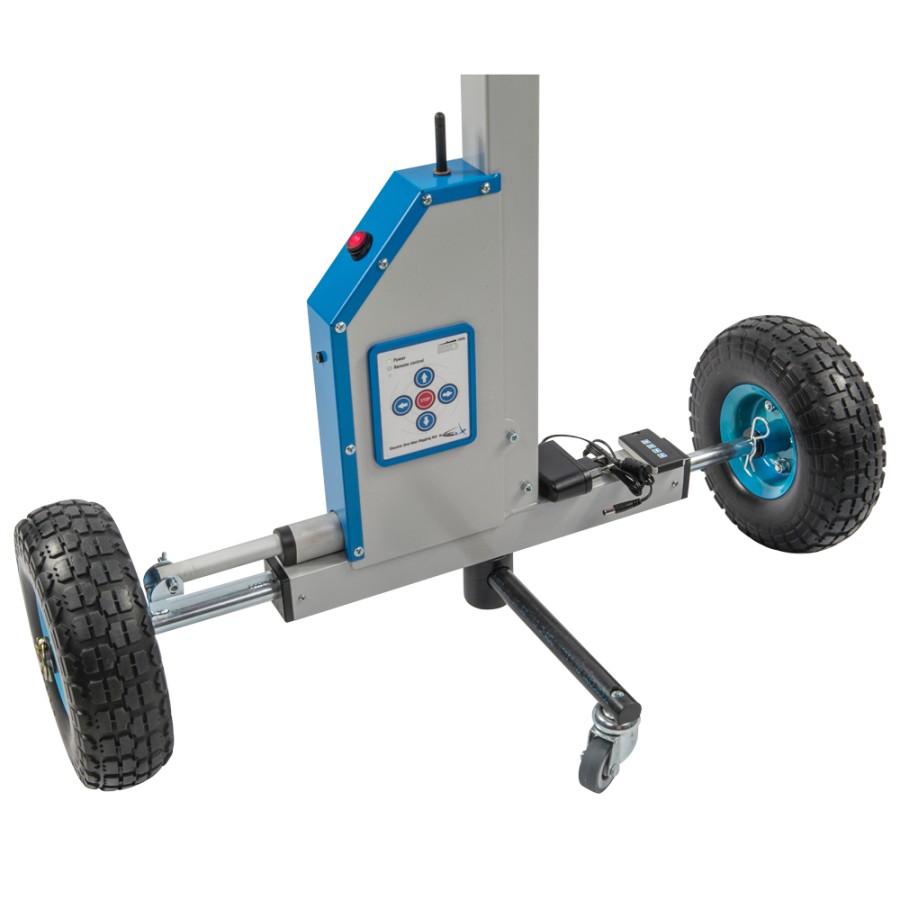

• Digital Voltmeter on unit to easily check battery status
• Frame made out of aluminum and steel (combined)

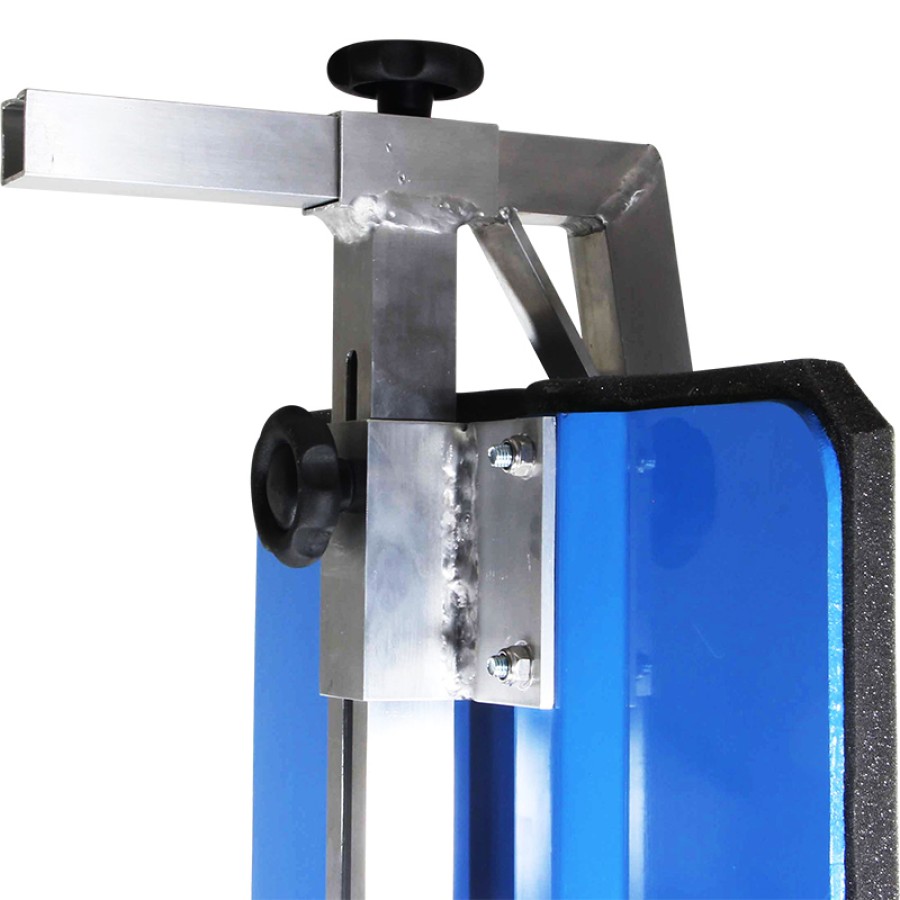

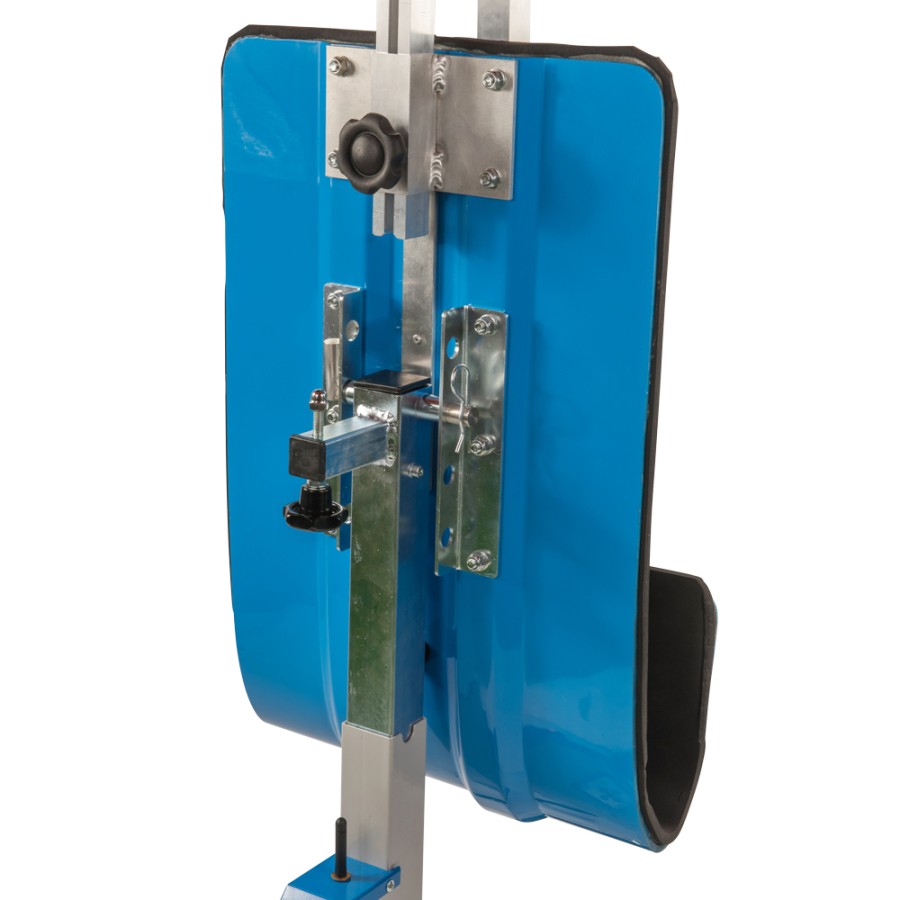

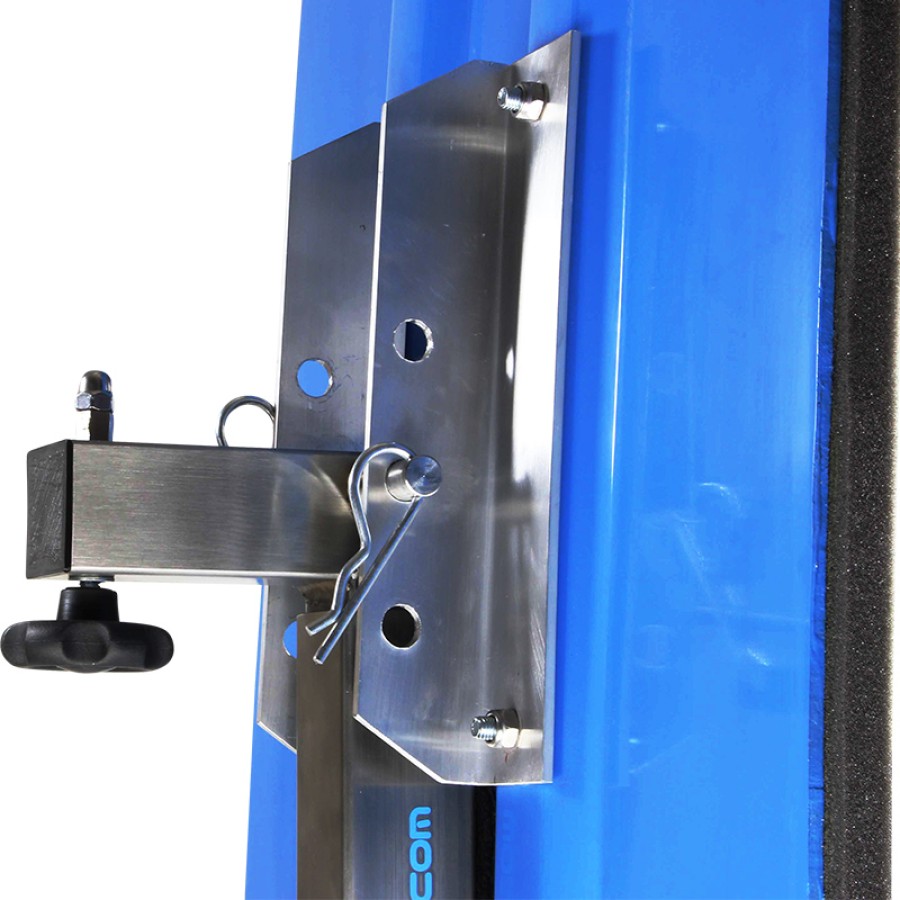

• Wing holder made of Fiberglass
• Height: 80-100 cm
• Width: 80 cm
• Length: 40 cm
• System folds down to be nice and compact
• Universal fitting – to all types of gliders (2 different profiles)
• Lightweight but sturdy design
• Large pneumatic tires - great for use in grass or on uneven surfaces

Notes:

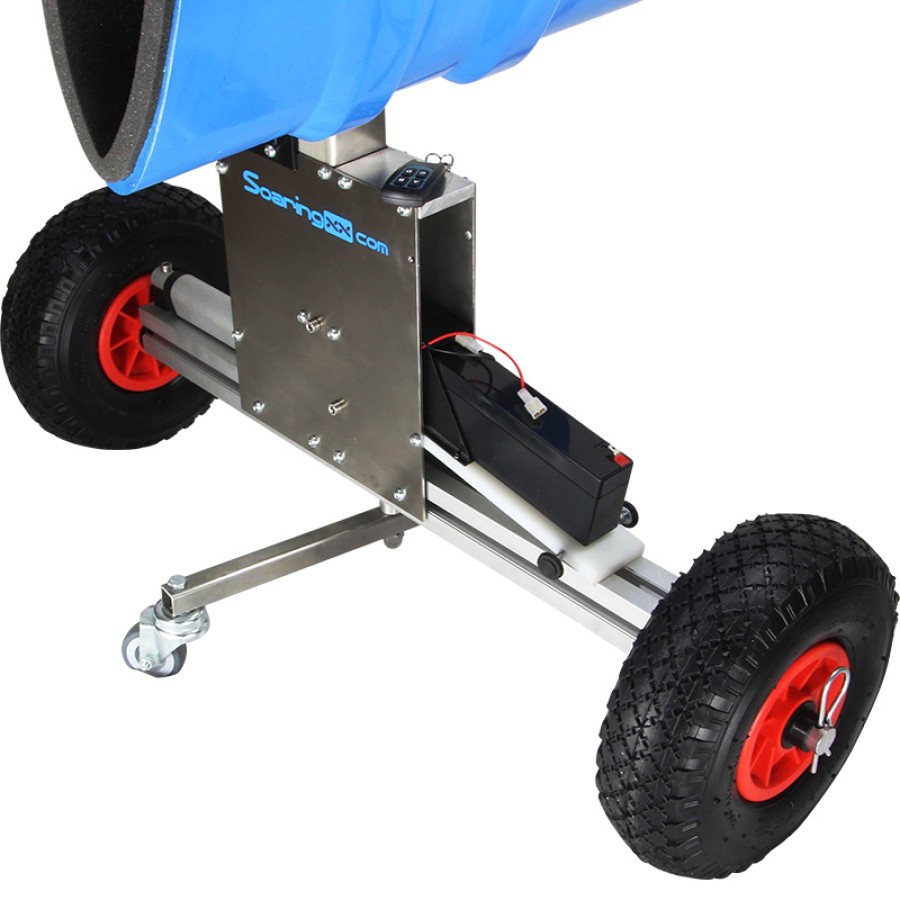

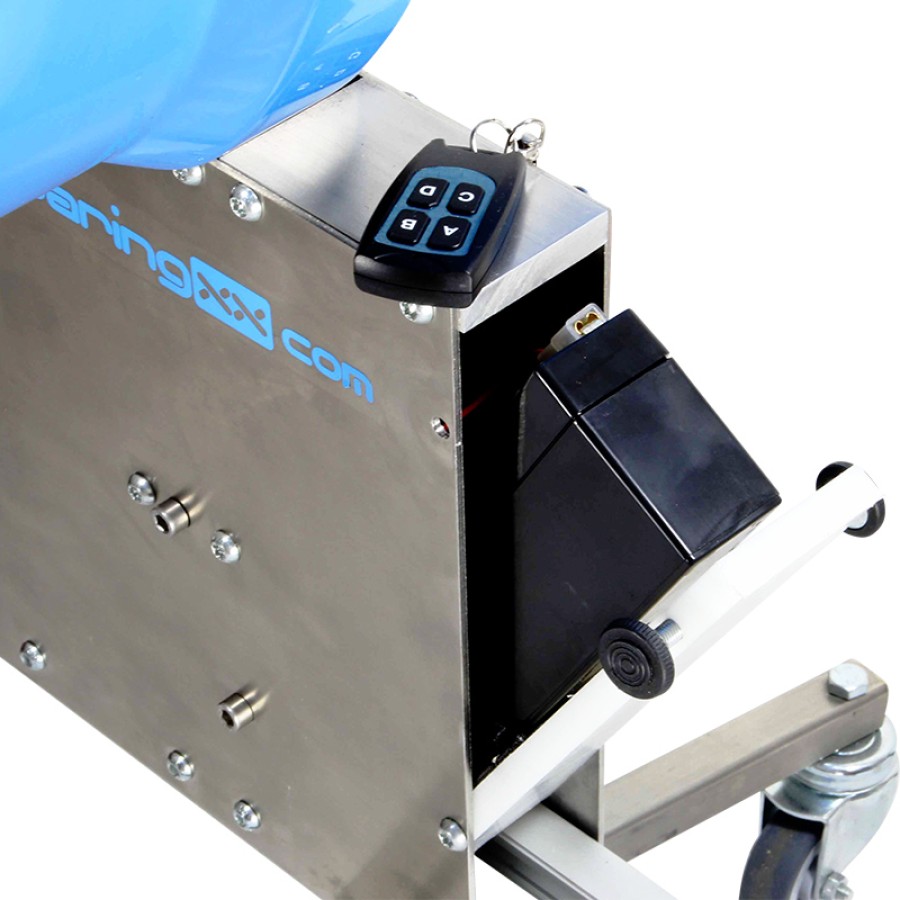

• Battery included, 12V, 2 AHr

• Battery charger included.
• Tire options: "air-filled" or "solid" (full PU rubber) - The air-filled option is lighter and perhaps better at absorbing bumps.  The solid option can't lose air - so you can't have a flat.

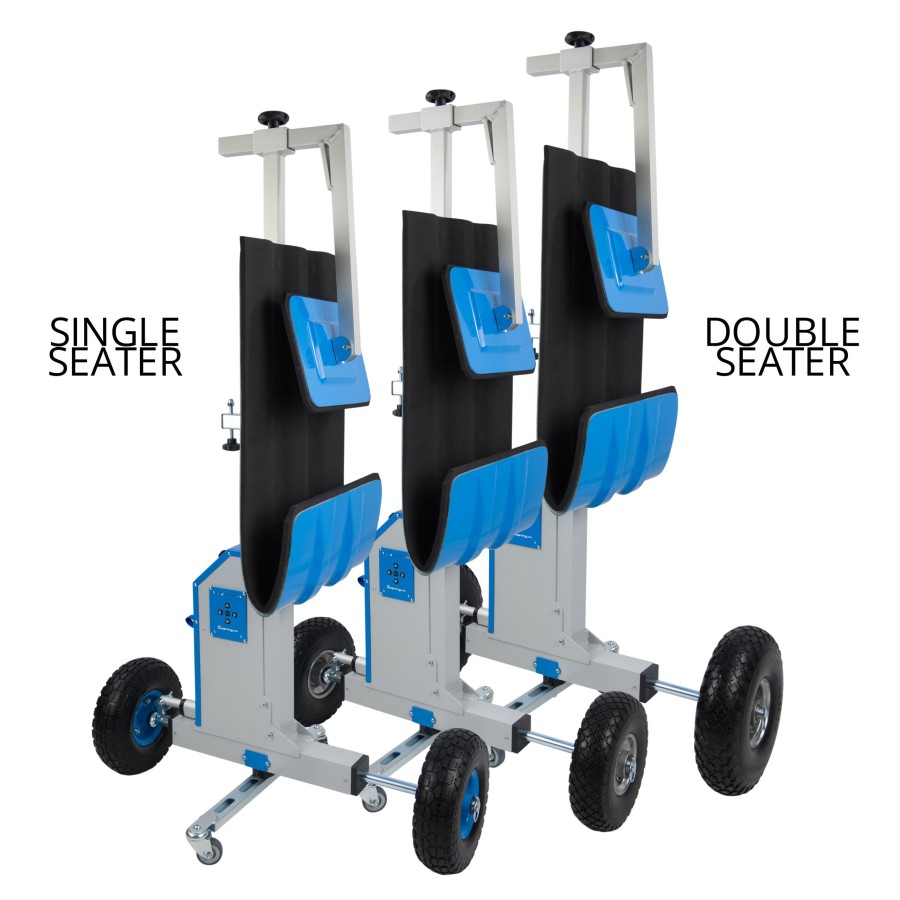

Sizes:

• Single: for Single-Seat Sailplanes
• Double: for Double-Seat Sailplanes

Wing Profile Options
Enter the glider type when ordering and we'll provide the correct wing profile (thickness) version.

• Fast/Thin (Discus, Discus2, ASG-29, Ventus, Arcus, etc.)
• Club/Thick (Junior, Grob 102, etc.)

Specifications:

• Single-Seat Sailplane Version:
  • Minimum Height with Wing Cradle Oriented Horizontally: 81.3 cm (32 inches)
  • Minimum Height with Wing Cradle Oriented Horizontally: 104.1 cm (41 inches)
  • Width of Wing Cradle: 40.6 cm (16 inches)
  • Length of Wing Cradle: 63.5 cm (25 inches)
  • Max. Wing Chord (width) at balance point: 101.6 cm (40 inches)
  • Horizontal actuator travel distance: 6 inches (+/-3 inches from center point)
  • Horizontal actuator travel time from end to end: 34 seconds
  • Horizontal actuator speed: 0.176 inches/second
  • Vertical actuator travel distance (bottom to top): 9 inches
  • Vertical actuator travel time from bottom to top: 49 seconds
  • Vertical actuator speed: 0.187 inches/second
  • Wheel Diameter: 260 mm (10.25")
  • Wheel Thickness: 85 mm (3.4")
  • Total Weight with Battery: 43 pounds (19.5 kg)


• Double-Seat Sailplane Version:
  • Minimum Height with Wing Cradle Oriented Horizontally: ?? cm (?? inches)
  • Minimum Height with Wing Cradle Oriented Horizontally: ?? cm (?? inches)
  • Width of Wing Cradle: ??
  • Length of Wing Cradle: ??
  • Max. Wing Chord (width) at balance point: ??
  • Wheel Diameter: 260 mm (10.25")
  • Wheel Thickness: 85 mm (3.4")
  • Total Weight with Battery: ??
