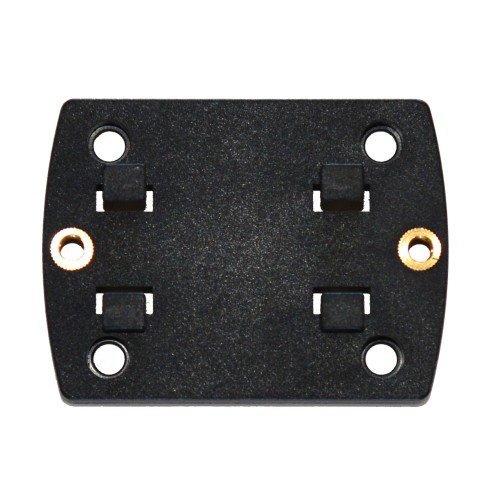

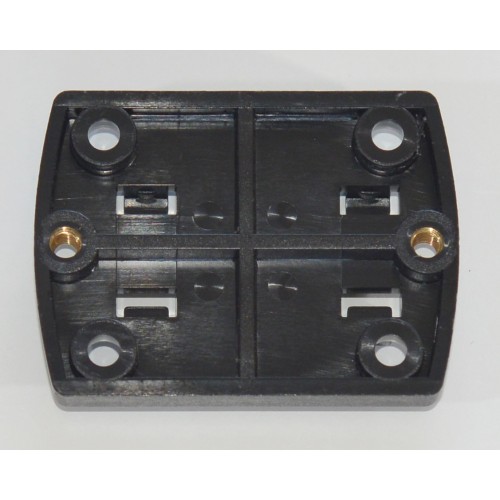

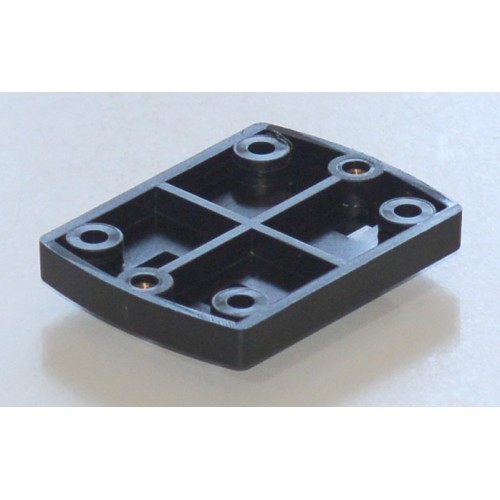

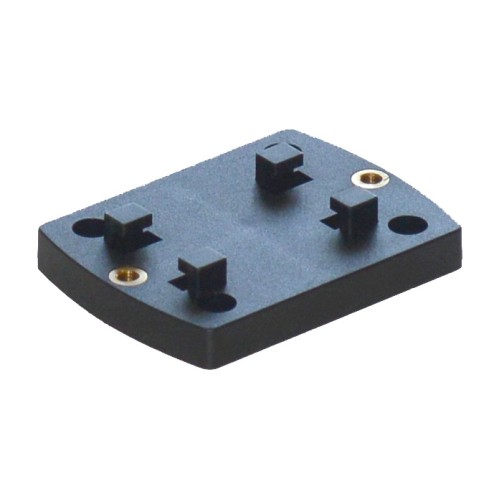

Richter Cradle Adapter

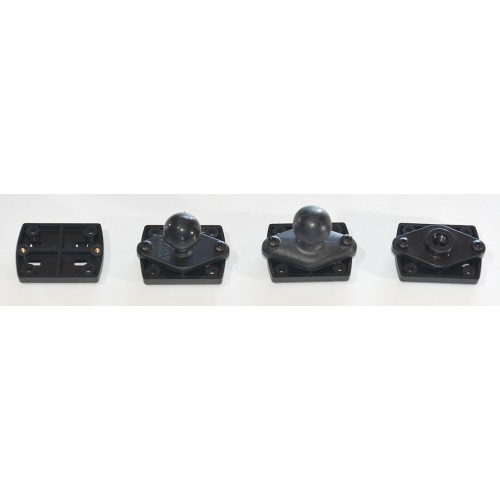

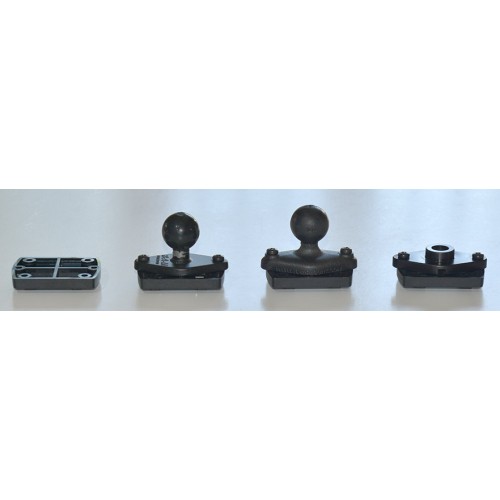

This adapter is used to mount an Oudie cradle on a RAM diamond base or RAM-GN3-238 gooseneck adapter. It is provided with M4 x 16 screws for connection to a RAP-B-238U diamond base or M4 x 12 screws for connection to a RAM-B-238U or RAM-GN3-238 gooseneck adapter.
Specifications:
- Length: 57 mm (2.24 inches)
- Width: 43 mm (1.69 inches)
- Thickness not including prongs: 7 mm (0.28 inches)
- Thickness including prongs: 11 mm (0.43 inches)
- Weight with 2 mounting screws: 0.5 ounces (14 grams)
- Material: black plastic with threaded brass inserts
Richter-Cradle-Adapter
- Brand: Naviter
- Product Code: Richter-Cradle-Adapter
- Availability: In Stock
-
$12.00
