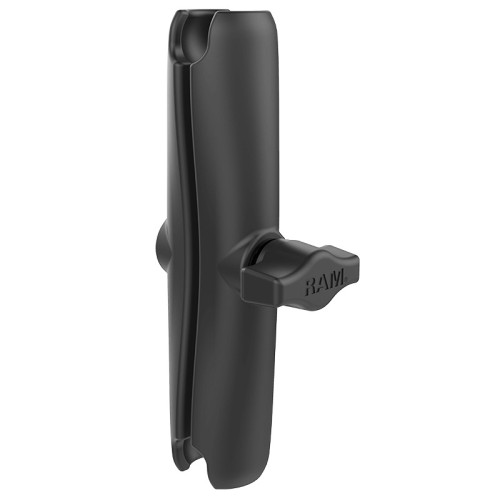

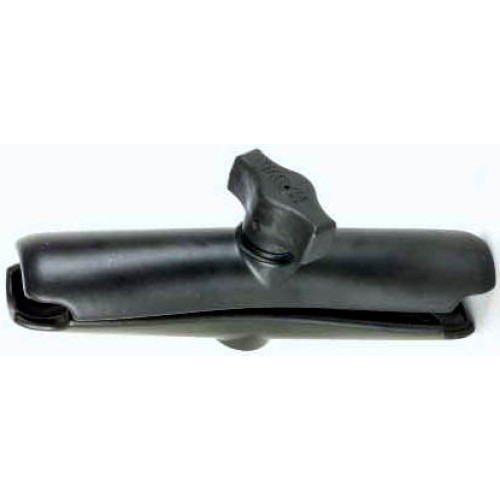

RAM® Double Socket Arm - B Size Long

Double Socket Arm for 1" Ball, Long, Aluminum - HEAVY

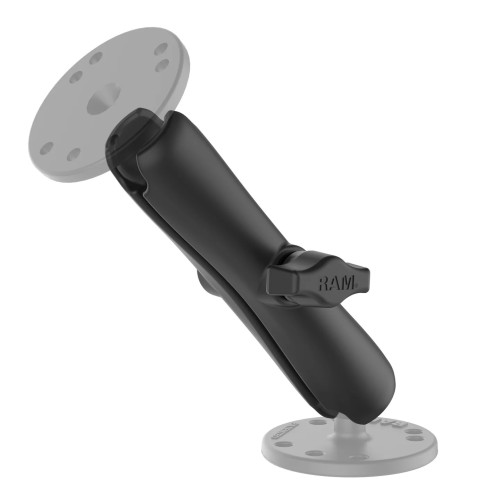

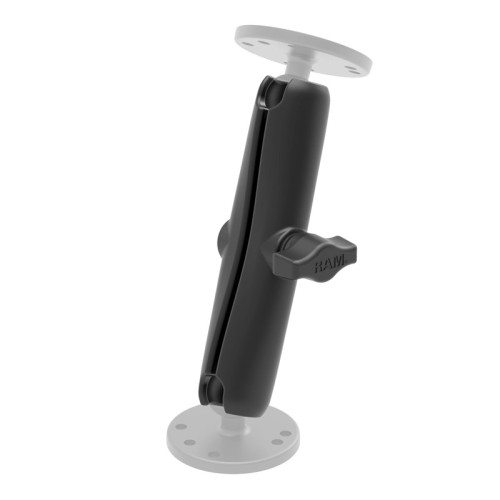

Note: This arm is very heavy.  I recommend the RAP-B-201U arm more this one because it is much lighter.  If weight is not a concern this is a very nice, long arm.  The arm has a socket at either end to allow a 1" diameter ball (size "B") accessories to be connected. A tightening screw on the side of the arm enables the sockets to clamp firmly on a 1" diameter ball.

The RAM-B-201U-C consists of a long double socket arm that accommodates 1" B size ball bases, device holders, and adapters. With an overall length 6", this is the longest B size RAM® double socket arm size and adds more reach to your favorite mounting solution. The easy to adjust knob allows for near-infinite adjustability for your connected device.

FEATURES:

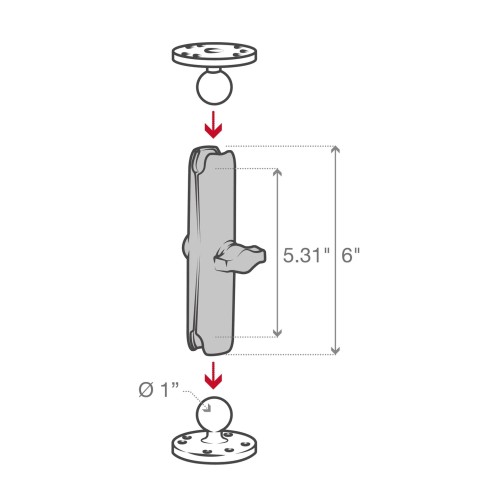

• Provides an extended reach with an overall length of 6" and a socket-to-socket length of 5.31"

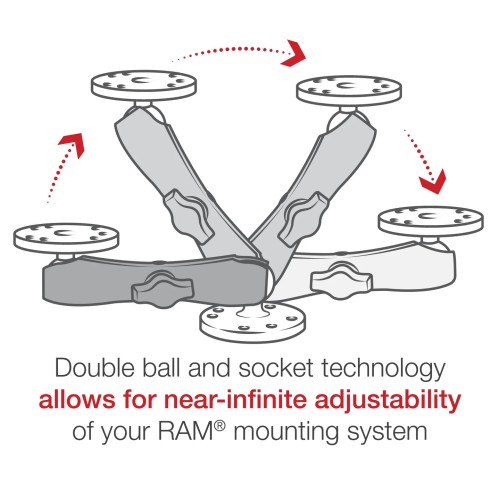

• Attaches to any B size RAM® ball component, including mounting bases and device holders; double ball and socket technology allows for near-infinite adjustability of your RAM® mounting system
• Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
• Backed by a lifetime warranty

SPECS:

Product dimensions:
Overall Length: 6"

Socket to Socket Length:
5.31"

Ball Size:
B Size (1")

Weight Capacity:
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

Materials:
Marine-grade aluminum

Weight:
0.57 lb

Length (center of socket to center of socket): 5.25 inch (133 mm)
Length with 2 x RAM-B-238U bases: 7.4 inches (187 mm)
Length with 2 x RAP-B-238U bases: 7.7 inches (195 mm)

Weight: 8.0 oz (227 g)

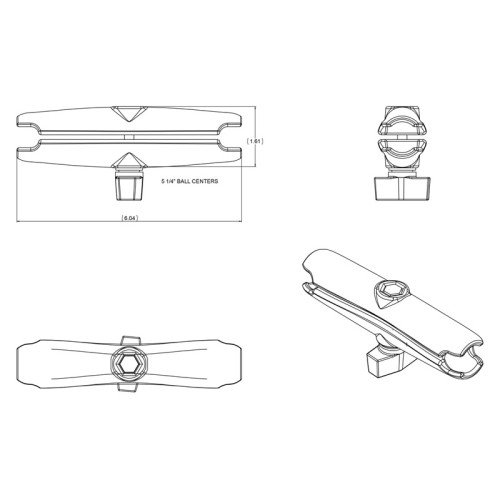

Detailed drawing: ram-b-201-c.pdf

Video: RAM® B Size Long Double Socket Arm

Q&A

Q: Would a 7/8" Ball fit/work?
A: It is designed for a 1" ball, a 7/8" ball would not fit properly.
