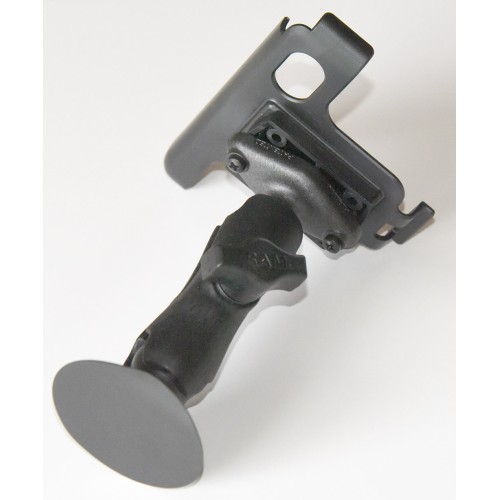

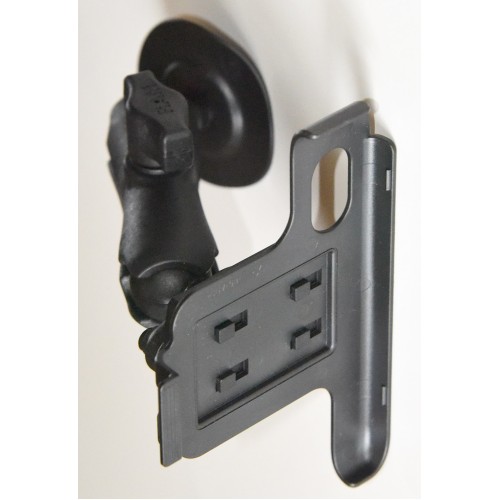

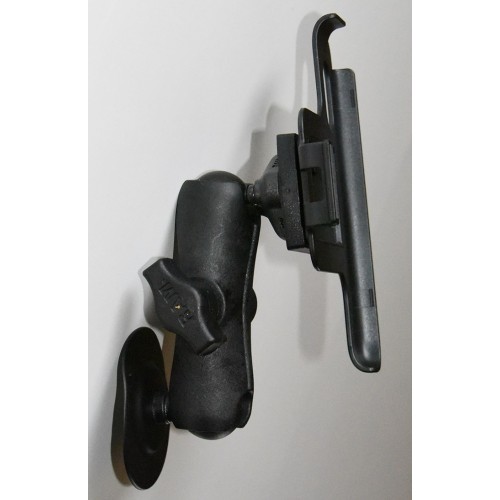

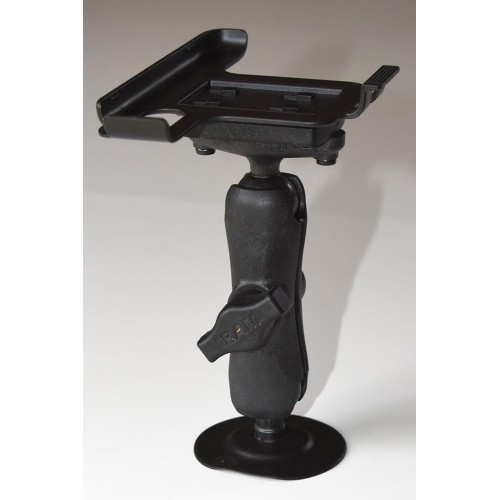

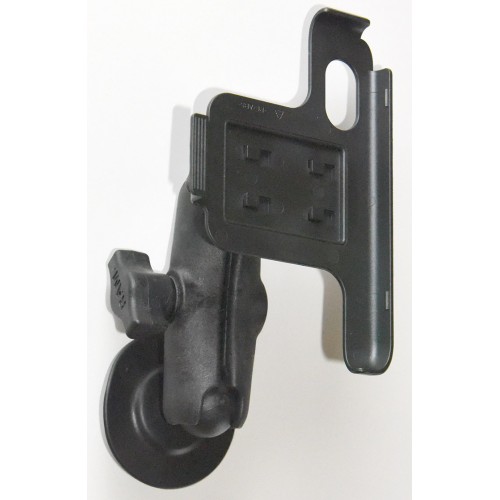

Oudie RAM Mount with Round Adhesive Base

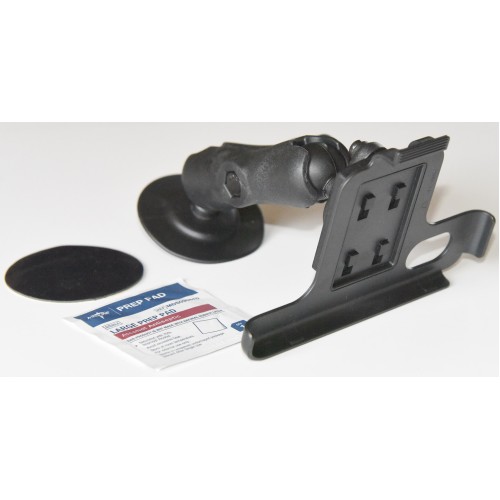

This is a great way to mount your Oudie, Oudie 2 or Oudie IGC to a flat, smooth surface in your glider. The round base is somewhat flexible - so it can conform to surfaces that are slightly curved. A round adhesive disc is included along with an alcohol wipe for cleaning the mounting surface.

Note: A single RAM-202PSAU adhesive discs is included. You may want to order a few extras for future use.

Specifications:

• Lenth of arm from center of ball to center of ball: 3 inches (76 mm)
• Overall length with arm straight out: 5.75" (146 mm)
• Weight: 6.1 ounces (173 grams)

Tip: To assure solid and reliable adhesion:

• Clean the mounting surface and the base of the RAP-B-378U with the provided alcohol wipe immedialy before application
• Remove the plastic from one side of the adhesive disc and apply it to the RAP-B-378U base.
• Remove the plastic from the other side of the adhesive disc and press the base firmly onto the mounting surface for about 1 minute.
• Wait 24 hours before mounting the arm and Oudie on the base. This allows the adhesive to setup.

Components:

• Oudie-Cradle-Richter
• Richter-Cradle-Adapter
• RAP-B-238U - diamond base with 1" ball
• RAP-B-201U - standard length RAM arm
• RAP-B-378U - 2.5" diameter round plastic adhesive base with 1" ball
