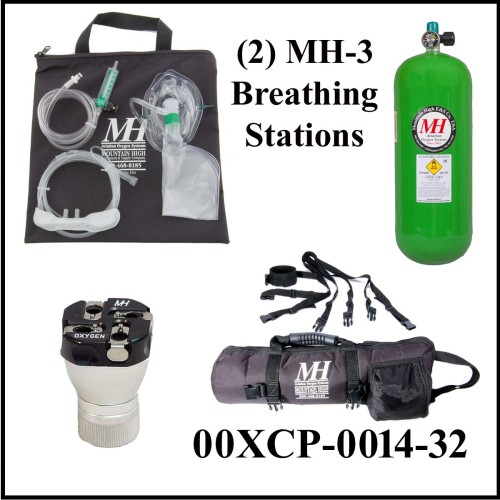

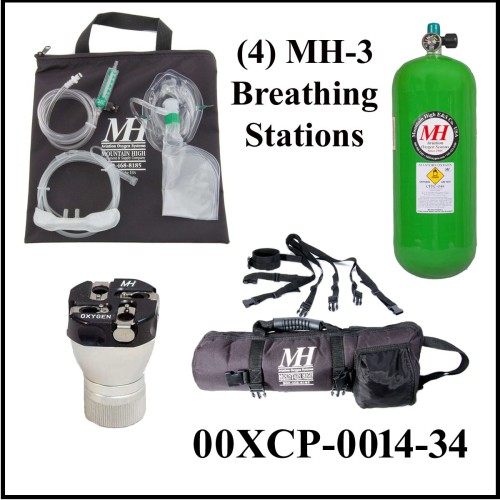

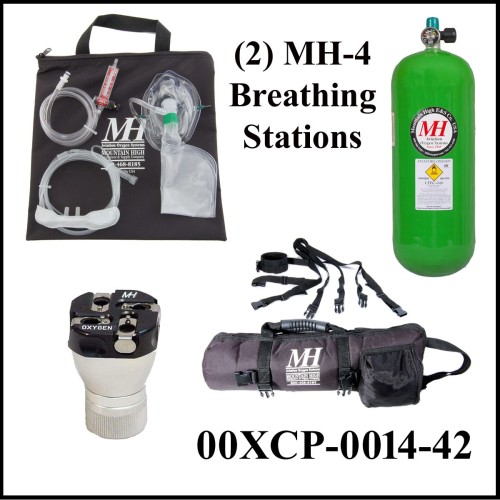

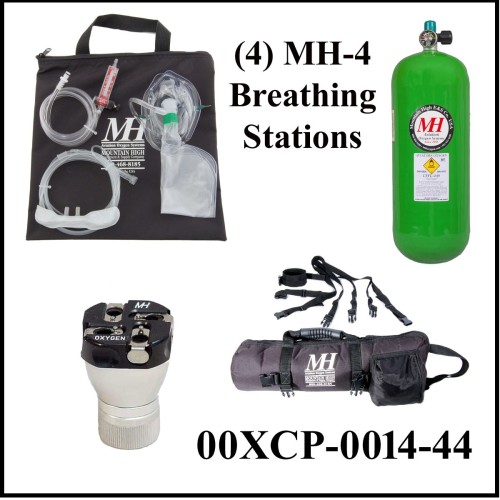

Two or Four Place System with MH3 or MH4 Flowmeter(s), FPR Regulator, CFFC-048 (48 cu. ft.) Carbon Fiber Wrapped Cylinder and Full-Pack

The MH-XCP Constant Flow series is our most economical single and multi-place, portable oxygen system for general aviation. Weight is kept to a minimum by our low profile, light weight regulators, MH-3 or MH-4 Flowmeters and Cylinders. The XCP systems come complete with Cylinder(of your choice), Regulator, Mountain High MH-3 or MH-4 Flowmeter, Oxymizer™ cannula, facemask, tote bag and cylinder carry case for easy transport and seat back mounting. Full-Pack

Choose the MH-3 Flowmeter for flights up to 18,000 ft.
The XCP System can be used up to 30,000 ft. with the MH-4 Flowmeter and Facemask.

Each XCP System Includes:

Instructions
Cylinder with Valve, Gauge and carry case.
Pressure reducing Regulator with self-sealing outlet.

For Each User

MH3 or MH4 Flow-Meter (Your choice when ordering)
Oxymizer® (oxygen conserving) Cannula
Face Mask
Tote Bag

Duration Table (Single Place) For multiple place systems, divide the duration numbers by the number of stations.
Cylinder	Pressure		Volume		Diameter Max.		Length Max.		Weight Empty		MH4 Flowmeter with standard cannula or face mask			MH3 or MH4 Flowmeter with Oxymizer Cannula
											Duration in Hours			Duration in Hours
	bar	PSI	liters	cu. ft.	cm	inch	cm	inch	Kg	lb	10K ft	15K ft	18K ft	10K ft	15K ft	18K ft
CFFC-048	124	1800	309	10.9	17.15	6.75	49.5	19.5	2.90	6.4	15.5	10.7	9.1	46.1	25.3	19.3
CFFC-048	153	2216	1365	48.2	17.15	6.75	49.5	19.5	2.90	6.4	19.1	13.2	11.2	56.7	31.2	23.8

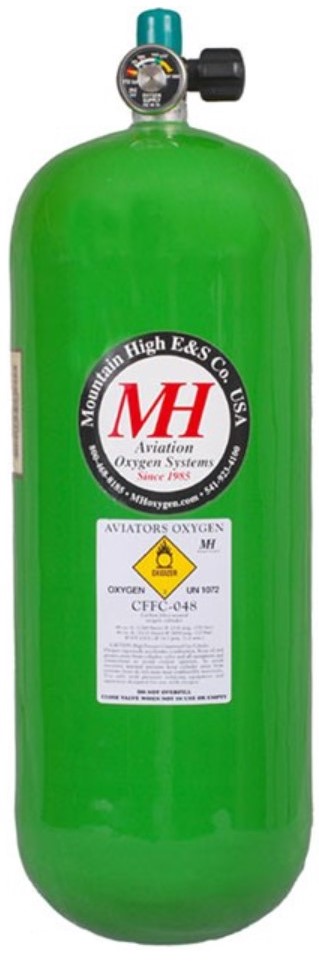

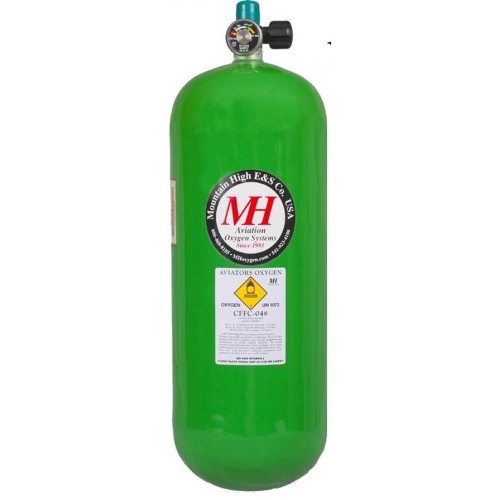

CFFC-048 Carbon Fiber Wrapped Cylinder
FRP(4 Place) regulator (CGA-540 type)
MH3 or MH4 Flowmeter
Full-Pack for Cylinder

Included:

Items included in XCP System Kits with Fiber Wrapped Cylinders Items included in XCP System Kits
			or
Example Complete System	CFFC-048 Carbon Fiber Wrapped Cylinders	FRP Regulator	MH3 or MH4 Flowmeter(s) (select when ordering)


Oxymizer Cannula	XCP-F1 Face Mask	Tote Bag, 12" x 12 (1 for each station)	Tuff-Pack

Not Included:

Oxygen - The oxygen tank is empty.

To add extra flow stations to any of the 2-place O2D2-2G systems below, add $100 for the FPR 4-place regulator upgrade.
See our Full-Pack cylinder harness & carry-caddy for these cylinders. Also see CMK cylinder hold-down kits.

Also, the optional ALPS FaceMask with or without microphone is the perfect addition to any EDS system.

Oxygen Cylinder Dimensions and Duration Table
