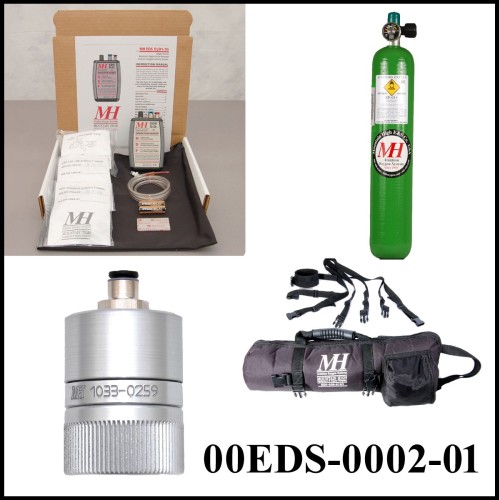

1 Place System with EDS O2D1-2G Kit, XCR-1P-Axial Regulator, KF-011 (11 cu. ft.) Kevlar Wrapped Cylinder and Full-Pack

The system consists of the following items: Oxygen cylinder with Full-Pack or CMK mounting kit, the XCR primary reducing regulator, low-pressure service line, EDS Pulse Demand™ unit, breathing cannulas, face mask and tote bag.
The basic EDS-O2D1-2G is a single place outlet system. Two units may be combined for a two place system such as would be used in a tandem configuration.

CGA-540 Standard North American

• KF-011 Kevlar Cylinder
• Full-Pack padded carrying pack
• XCR-1 regulator (CGA-540 type), MH-00REG-1033-01

The patented MH EDS (Electronic Delivery System) is a one (02D1-2G) aviation oxygen delivery device.  It is designed to deliver aviation oxygen in the most efficient, comfortable and convenient way possible.  With its user-selectable settings, apnea alarm and small size, the MH EDS is the most portable and flexible electronic digital oxygen delivery system in the world.  By providing a measured pulse of oxygen every time you breathe in, the MH EDS supplies the oxygen you need to stay alert and comfortable while flying.  In contrast to constant flow systems that waste oxygen by supplying more than your body can use, the MH EDS provides a short pulse of oxygen as you inhale, ensuring that your oxygen is used most efficiently.  Efficient oxygen delivery means you can fly further on a single oxygen refill or save space and weight with a smaller tank.  It also makes it more feasible to enjoy the advantages of oxygen while flying below the altitude where oxygen is mandated — that can mean fewer headaches, increased alertness, and feeling less exhausted when you reach your destination.  Your actual oxygen usage will be determined by your breathing rate and physiological needs at altitude.  The programmability of the MH EDS means that, unlike constant-flow oxygen systems, you can “set it and forget it”.  By automatically detecting your pressure altitude, the MH EDS can be set to start providing oxygen immediately or at a specified altitude and will automatically adjust the oxygen flow as your altitude changes.  When you’re flying, don’t you have more important things to do than adjust your oxygen flow during altitude changes?

The EDS-O2D1-2G System enables the general aviation pilot to fly at pressure altitudes up to 25,000 feet with safety and comfort.  The EDS-O2D1-2G digital Pulse-Demand™ system reduces Oxygen consumption dramatically.  Different from the “standard” constant flow systems, the EDS-O2D1-2G Pulse-Demand™ system wastes no Oxygen during the breathing cycle when oxygen is not being delivered to the lungs.  The average user will enjoy a duration increase of two to three times compared to the constant flow systems.

The built in Barometer adjusts for Altitude increase while reducing the pilots work load.

Abandoned unit auto shut off:  If you should forget to turn your EDS off after use, it will now go into auto shut-down (drawing very little power) after 3 hours of detecting no use in an attempt to save the batteries for another flight.

Included:

Not Included:

• Oxygen - The oxygen tank is empty.

See our Full-Pack and Tuff-Pack cylinder harness & carry-caddies for these cylinders. Also see CMK cylinder hold-down kits. With the optional EDS to XCP Coupler Kit, the EDS can be used with an XCP system at the same time flow meters are being used. Also, the optional ALPS FaceMask with or without microphone is the perfect addition to any EDS system.

Product Manual:
EDS 02D1-2G and EDS 02D2-2G User Manual Rev. -1

Related Documents:
Oxygen Cylinder Dimensions and Duration Table
EDS Oxygen Information
CAMI Testing of Pulse Oxygen Systems
CAMI Altitude Chamber Profile
Mountain High Documents Page - Manuals, specifications, articles, etc.
EDS O2D1 Specifications
