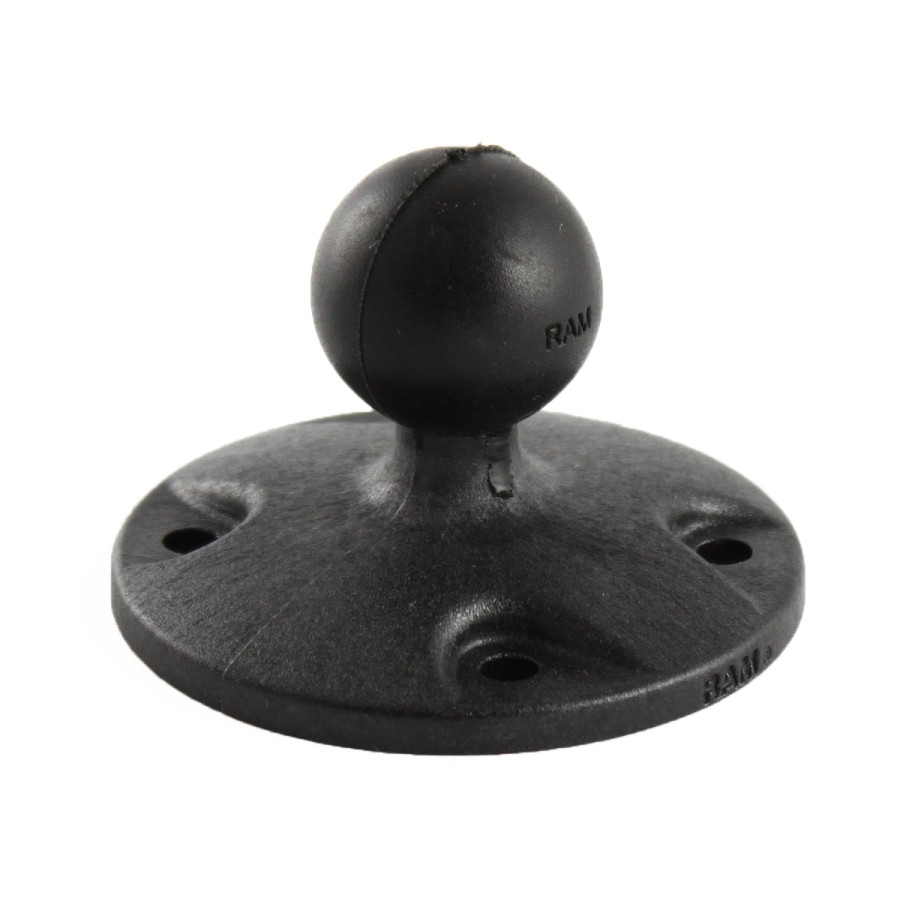

RAM® Composite Round Plate with Ball - B Size
Base Plate, Round, Plastic, with 1" (25.4 mm) "B" Size Ball

2 7/16" (62 mm) diameter plastic base plate.  Could be used with double sided tape to hold a GPS flight recorder such as a Cambridge 302A.  I think the RAM-B-202U would work better though because the bottom of this unit its not completely filled in (see the photo of the RAP-B-202A below) and may not hold to tape as well as the RAM-B-202.  For that application you would also want a RAP-B-201U arm and a RAM-B-224U suction cup (for canopy mounting) or RAM-B-238U base (for instrument panel or cockpit sidewall mounting).

FEATURES:

• 2.5" round plate connects to RAM® device holders containing the universal AMPS hole pattern
• Included B size 1" RAM® rubber ball allows for connection to any B size RAM® double socket arm; ball and socket technology allows for near-infinite adjustability
• Made of high-strength composite for durability and reliability in the most demanding environments
• Backed by a lifetime warranty

SPECS:

Hole Pattern:
4-Hole AMPS: 1.181" x 1.496"

Ball Size:
B Size (1")

Weight Capacity:
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

Materials:
High strength composite

Weight:
0.1 lb

Q&A
Q: What size screws are needed for the holes on this ball plate?
A: The most common screw sizes are #8, #10, M4 and M5 screws. However, if you are pairing this with any RAM® Holder, the holder will come with the necessary hardware to connect to your mount.

DOCUMENTS:

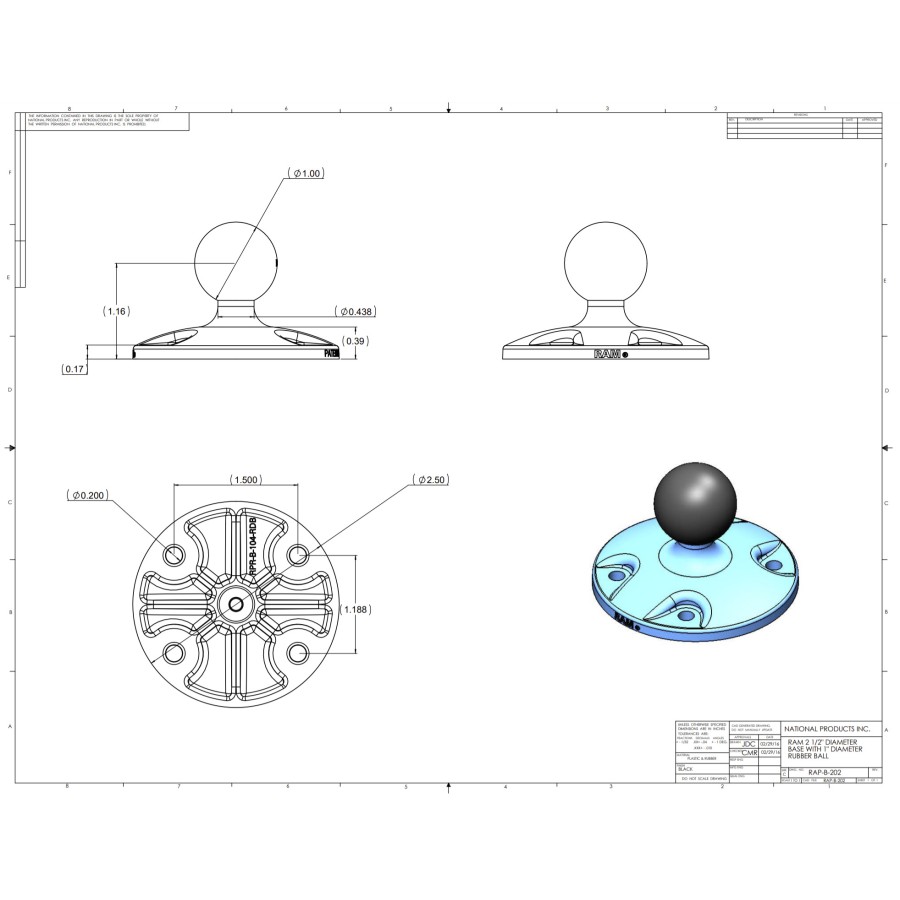

Drawing File - Composite Round Ball Plate
