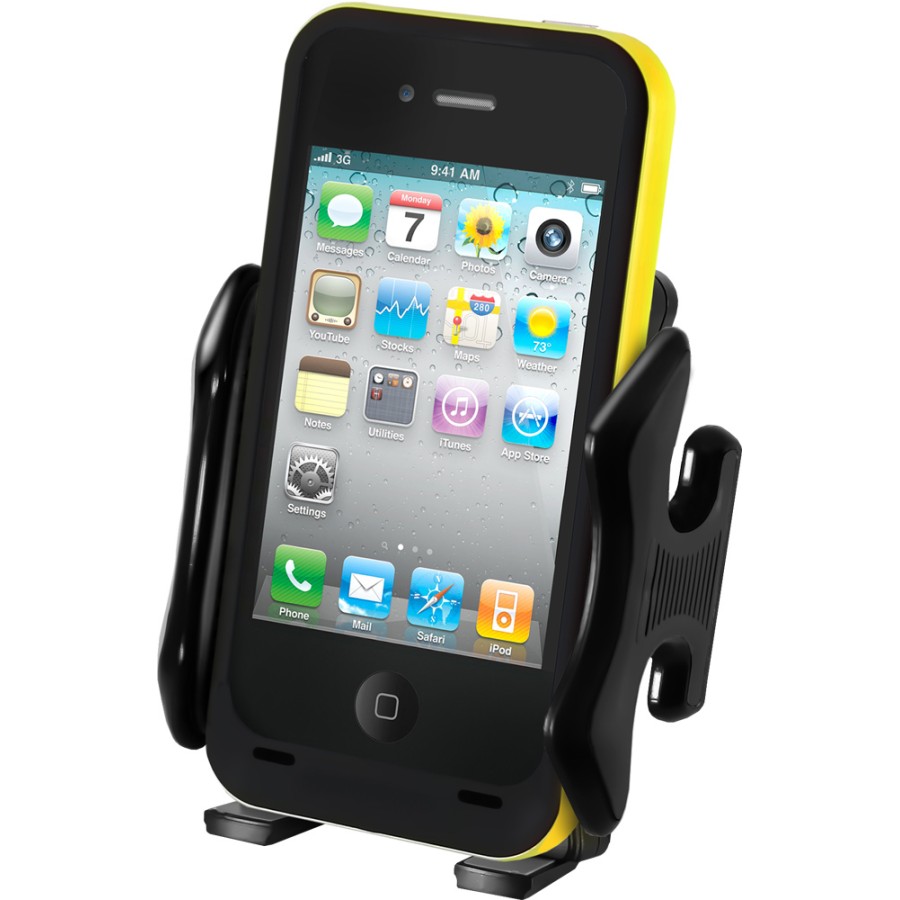

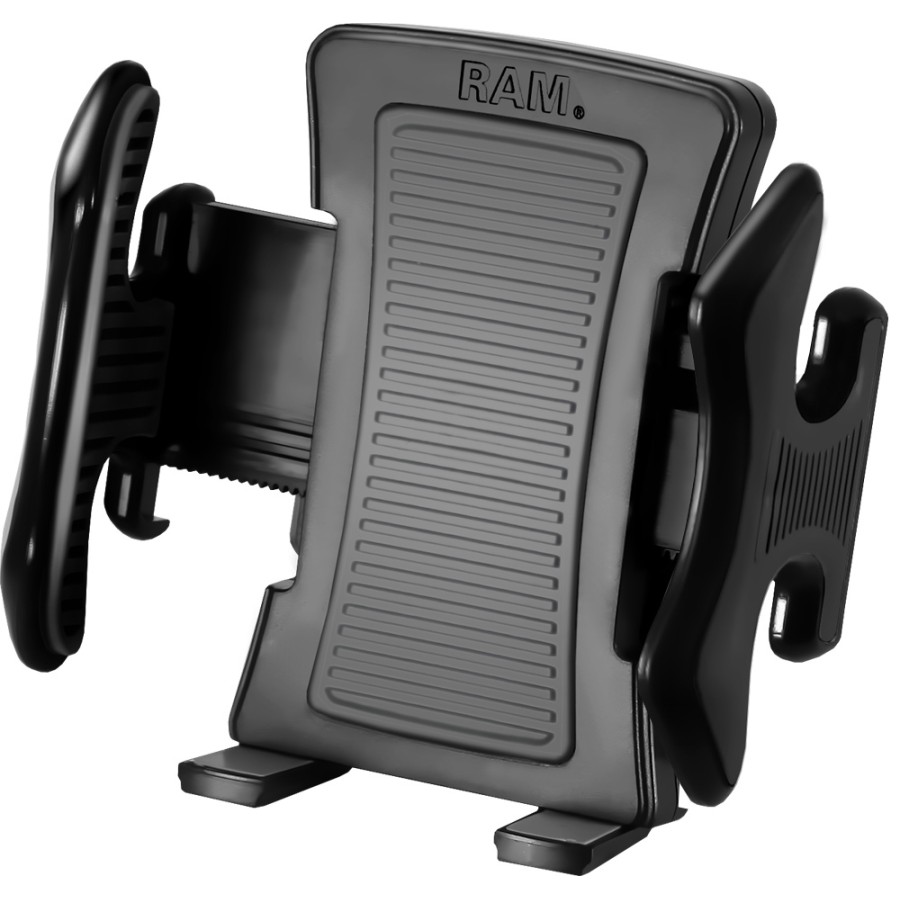

RAM® Universal Large Phone Holder
RAM Medium Size Universal Spring Loaded Clamping Holder with Rubber Clamps for Cell Phones, iPhones & iPods

The RAM universal spring loading clamping cradle includes side clamps with rubber bumpers that adjust accordingly to the width of your device, securing your device in the cradle. The feet at the base of the cradle can pivot and slide, creating an opening for larger devices to be attached. A release button, located on the bottom right side of the cradle, allows for quick release of your device. Also included are two threaded inserts and a set of two nuts/bolts to connect the cradle to any of the RAM compatible mounts. Primary mounting applications for the clamping cradle is in LOW VIBRATION environments including cars, trucks and fleet vehicles. Included is a set of two nuts and bolts to connect the cradle to any RAM components or mounts that contain the universal AMPs hole pattern.

SPECS

Hardware Included:
(2) M4 x 16mm Machine Screws

Holder Dimensions:
Width Range: 1.75" - 3.5"

Hole Pattern:
2-Hole AMPS: 1.912"

Materials:
High strength composite

Weight:
0.24 lb

Common Compatible Devices:

• Apple iPhone 3G, iPhone 3G S, iPhone 4, iPhone 4S phones or devices with or without skins/cases/bumpers

Clamping Holder Dimensions:
Width Range: 1.75" (44 mm) to 3.5" (89 mm)

Material: High Strength Composite (plastic)

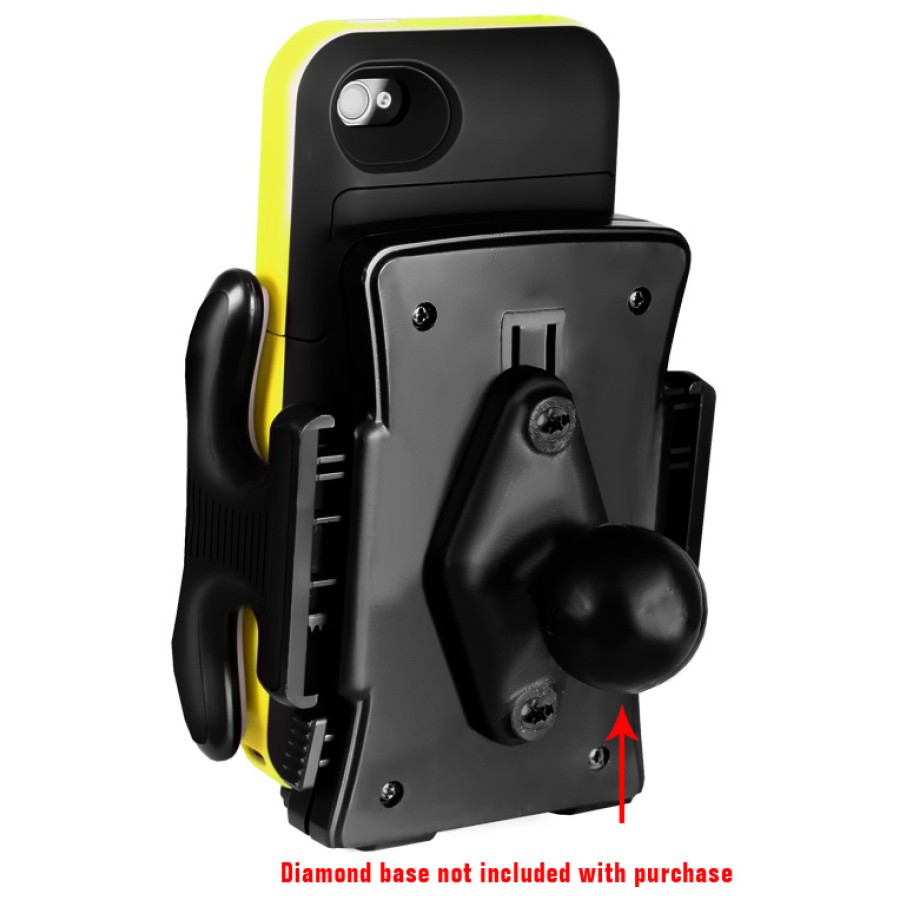

RAM holders do not include the RAM-B-238U (Diamond Base & Ball) or RAP-B-238U (Diamond Composite Base & Ball), required to attach to the holder and RAM mounting system.
