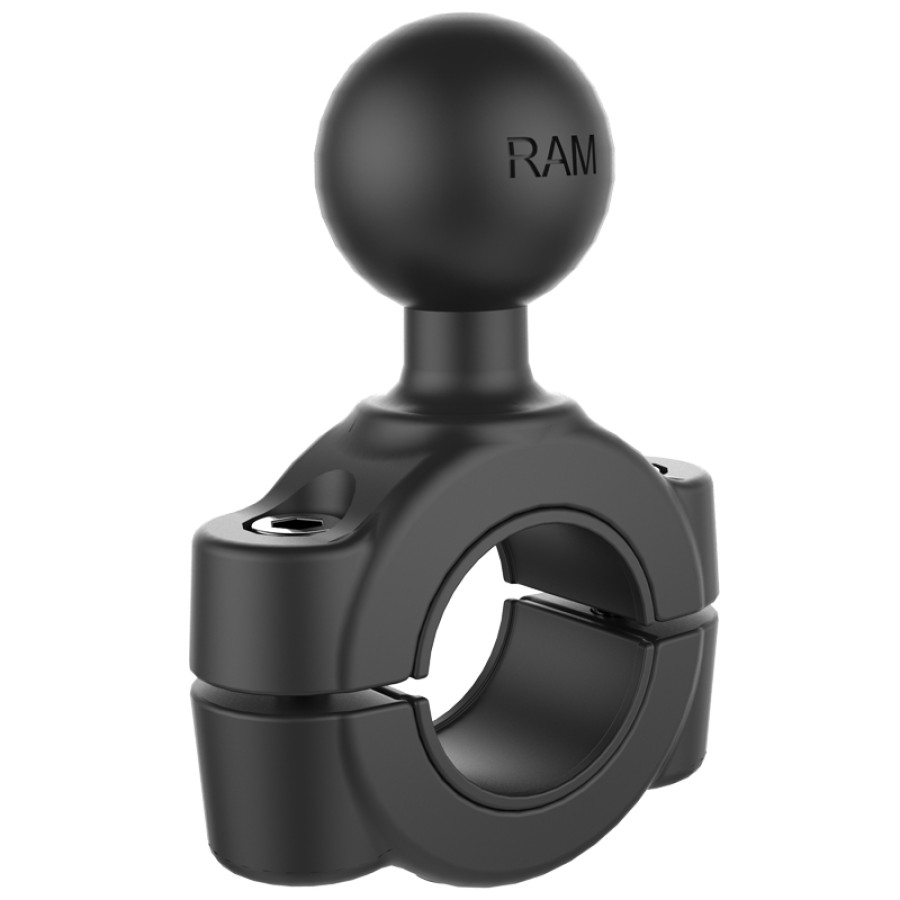

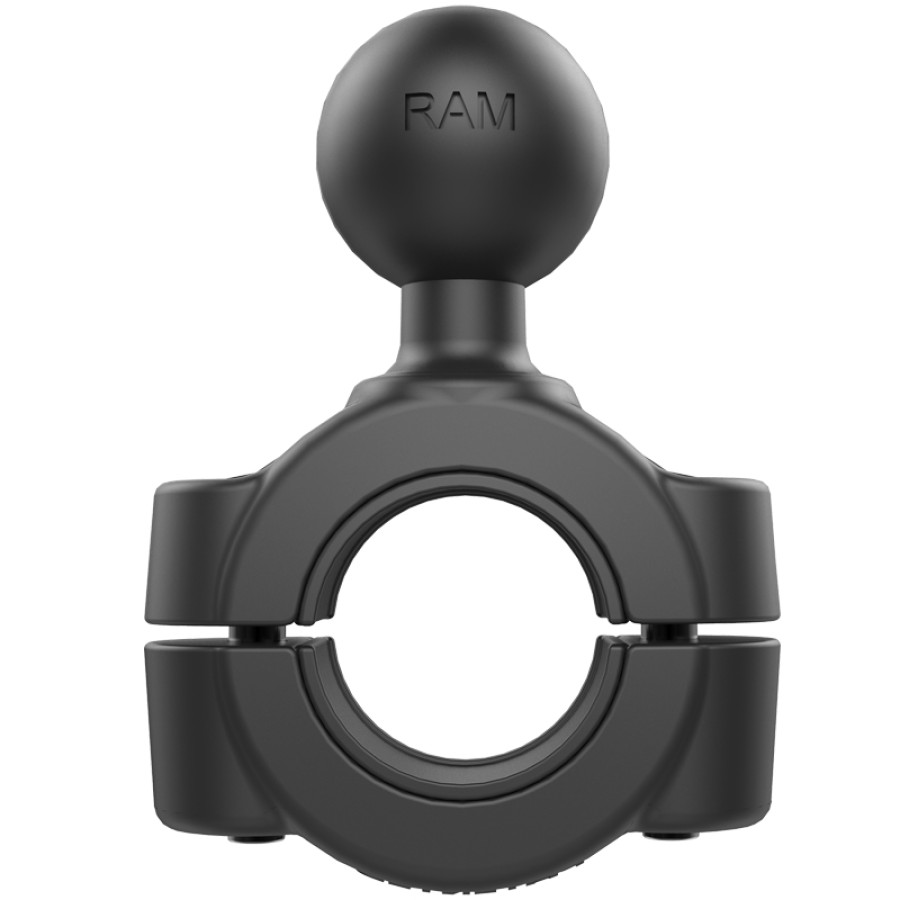

RAM® Torque™ Medium Rail Base - B Size

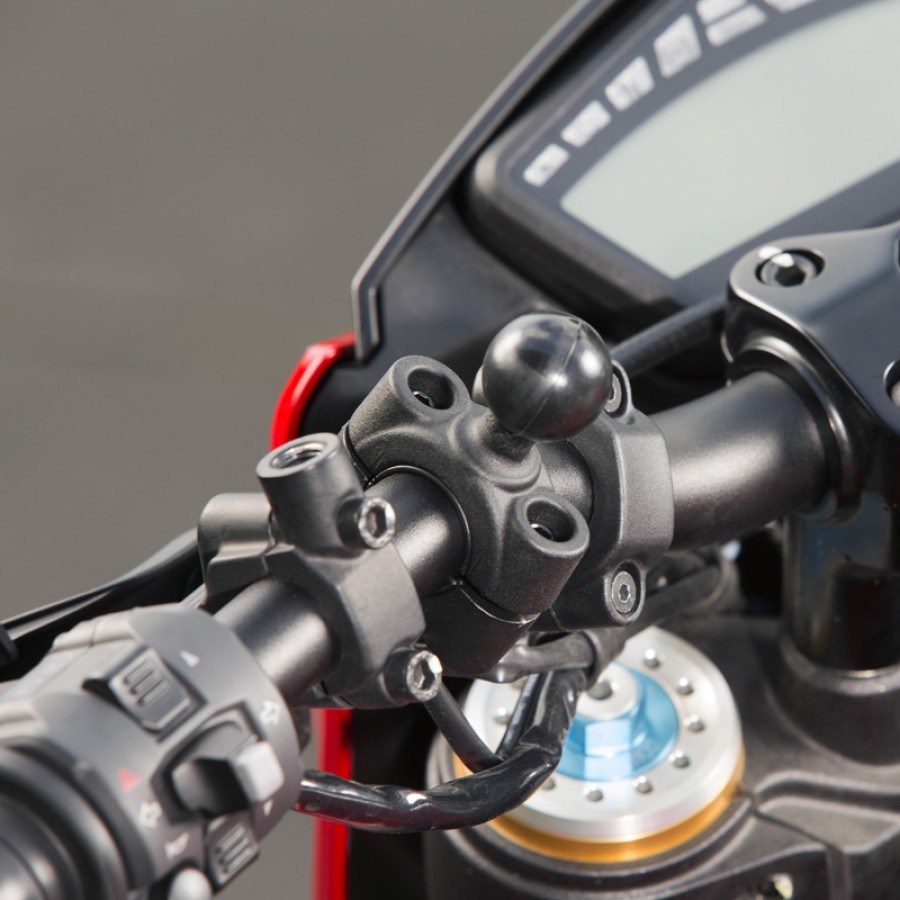

The RAM® Torque™ handlebar mounting base features a 1" B size RAM® rubber ball and is compatible with rails 3/4” to 1” in diameter. Sizing inserts are included to provide a tight fit while also protecting the mounting surface. The RAM® Torque™ mounting base also includes nylon-insert lock nuts to prevent loosening in high vibration environments.

FEATURES:

• Handlebar mounting base with B size 1" rubber ball accommodates rails 3/4" to 1" in diameter
• Includes sizing inserts to provide a tight fit while protecting the mounting surface; mount includes nylon-insert locknuts to prevent loosening
• Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
• Backed by a lifetime warranty

SPECS:

Hardware Included:

(2) #10-24 x 1" Socket Head Cap Screws
(2) #10-24 Nylock Nuts
(2) .75" Composite Bushings
(2) .9" Composite Bushings
(1) 88.9mm Rubber Strip
(1) 5/32" Hex Key Wrench

Clamp
.75" - 1" diameter

Ball Size:
B Size (1")

Weight Capacity:
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

Materials:
Marine-grade aluminum

Weight:
0.26 lb

Q&A

Q: Is this a good choice for oddly shaped or oblong rails?
A: No, this base will work best on a perfectly cylindrical rail.

Instrustions:
Torque Base Installation Guide
