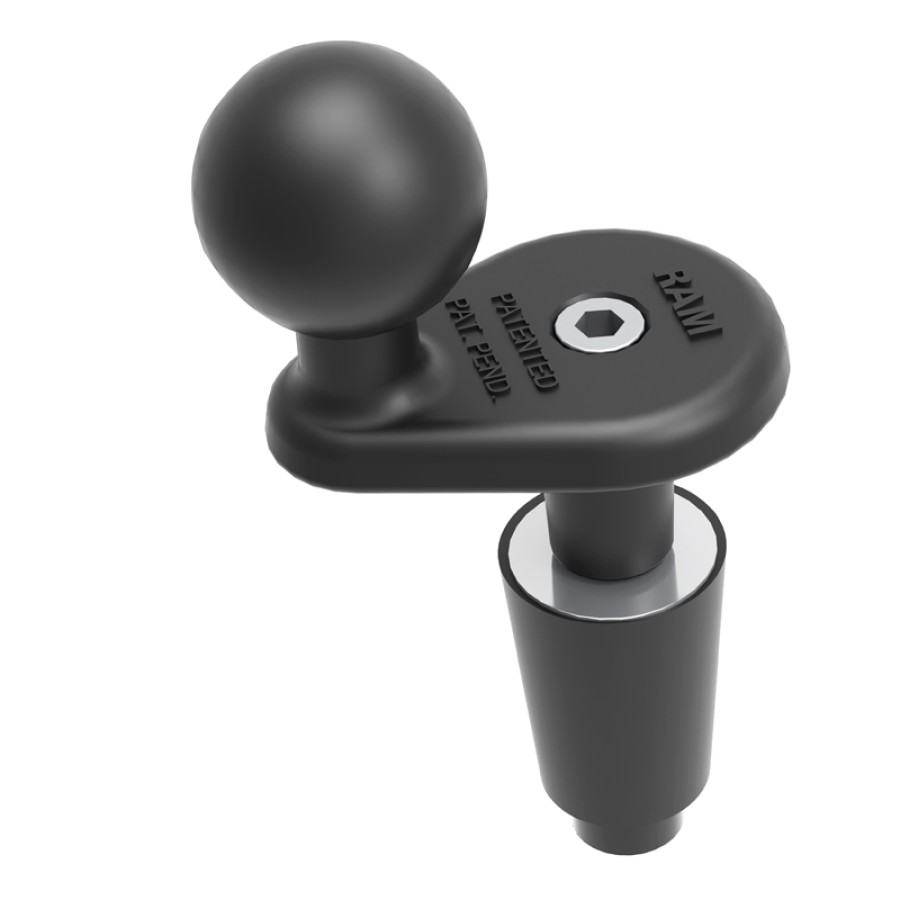

RAM® Motorcycle Fork Stem Ball Base

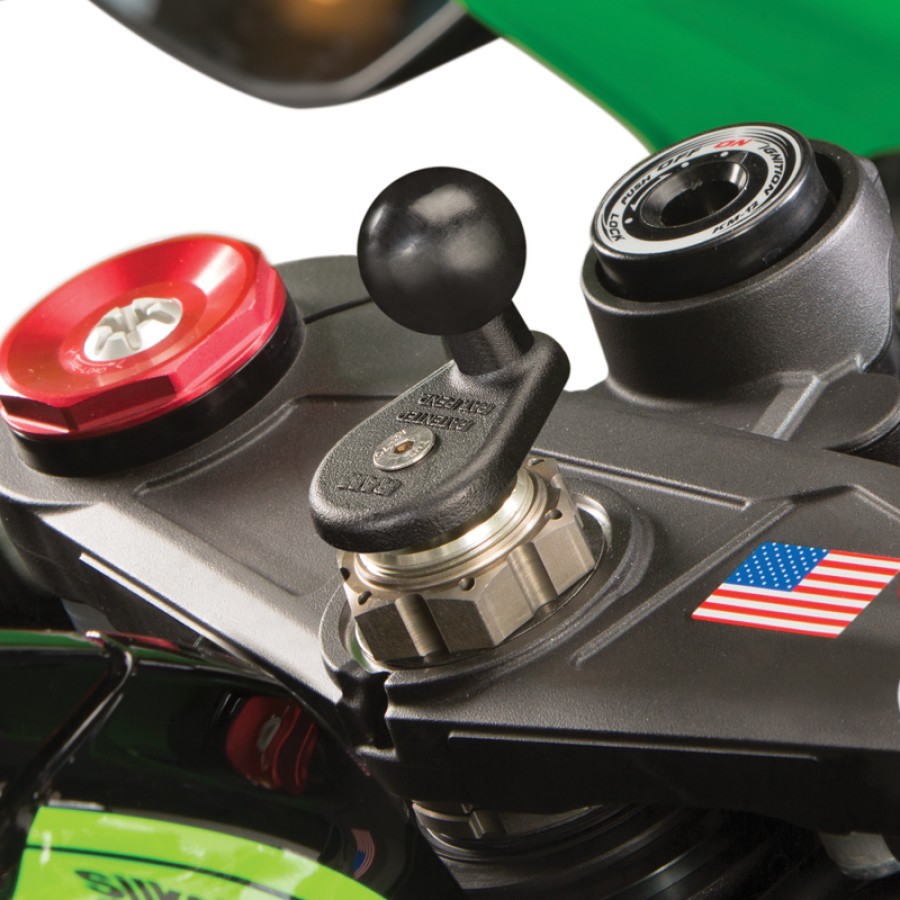

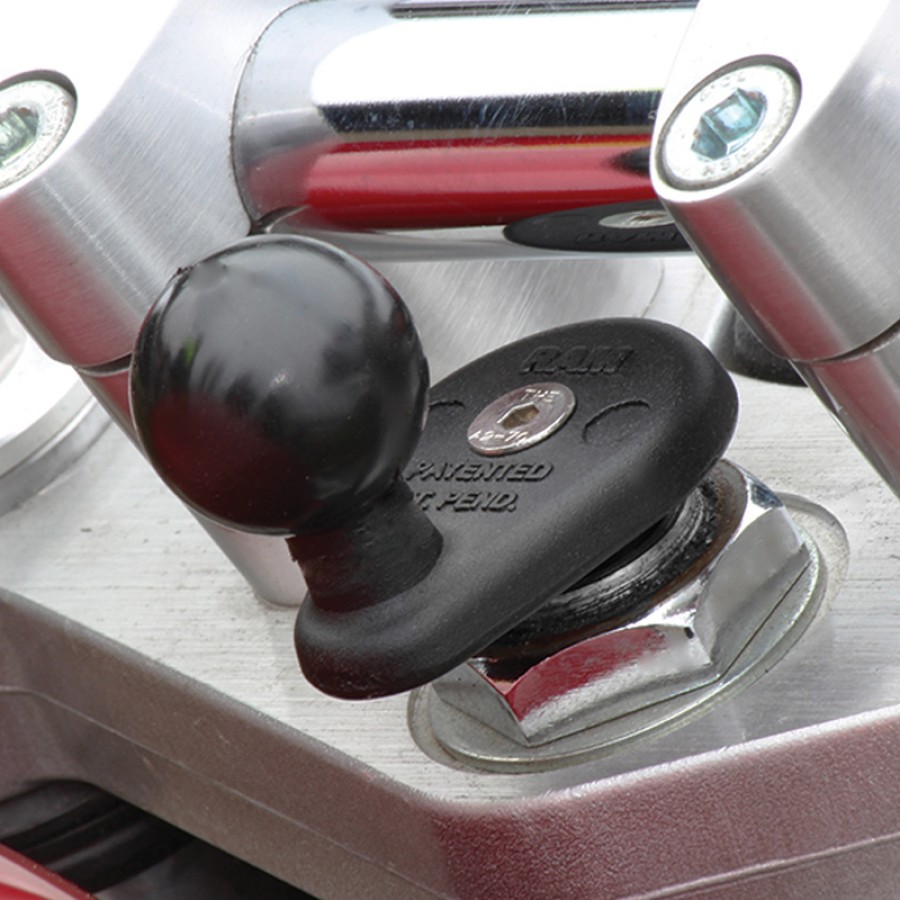

The RAM® motorcycle fork stem base is one of the cleanest and most popular solutions for mounting your favorite device on the center of your bike. Featuring a B size 1" rubber ball, this part is designed to fit into the cylindrical bore wall of fork stems and will work with stems that measure 12mm to 38mm (.5” to 1.49”) in diameter.

FEATURES:

• Designed to fit into the cylindrical bore wall of fork stems

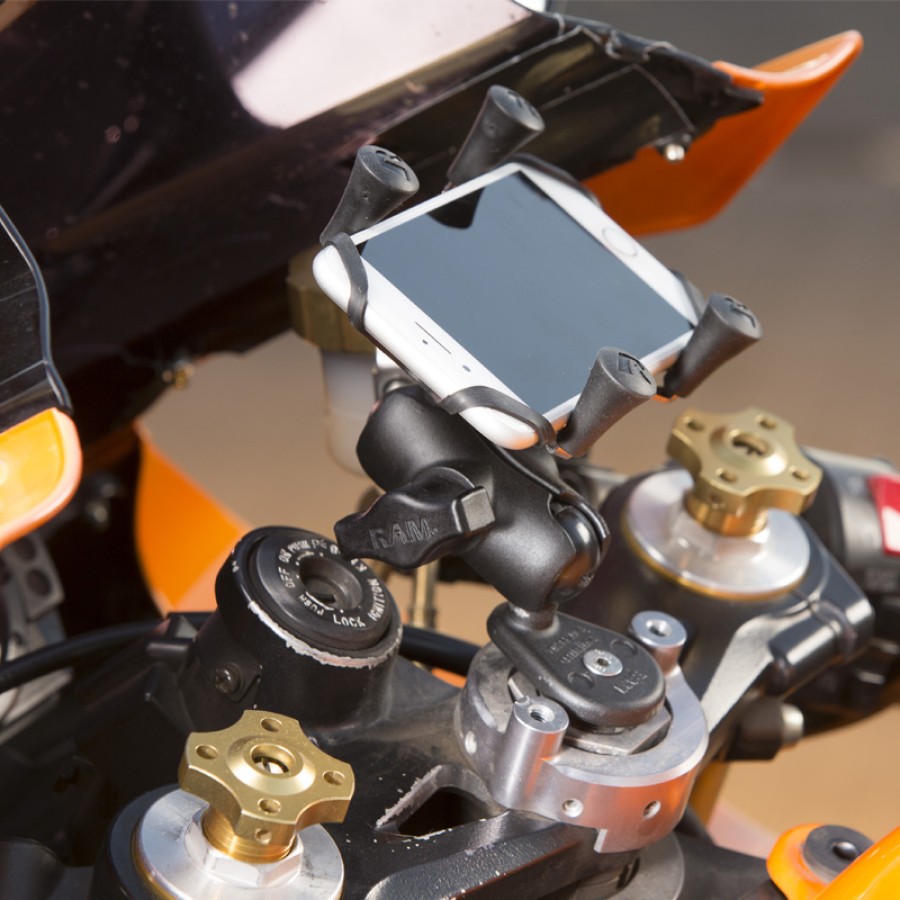

• Included B size 1" RAM® rubber ball allows for connection to any B size RAM® double socket arm; ball and socket technology allows for near-infinite adjustability
• Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
• Backed by a lifetime warranty

SPECS:

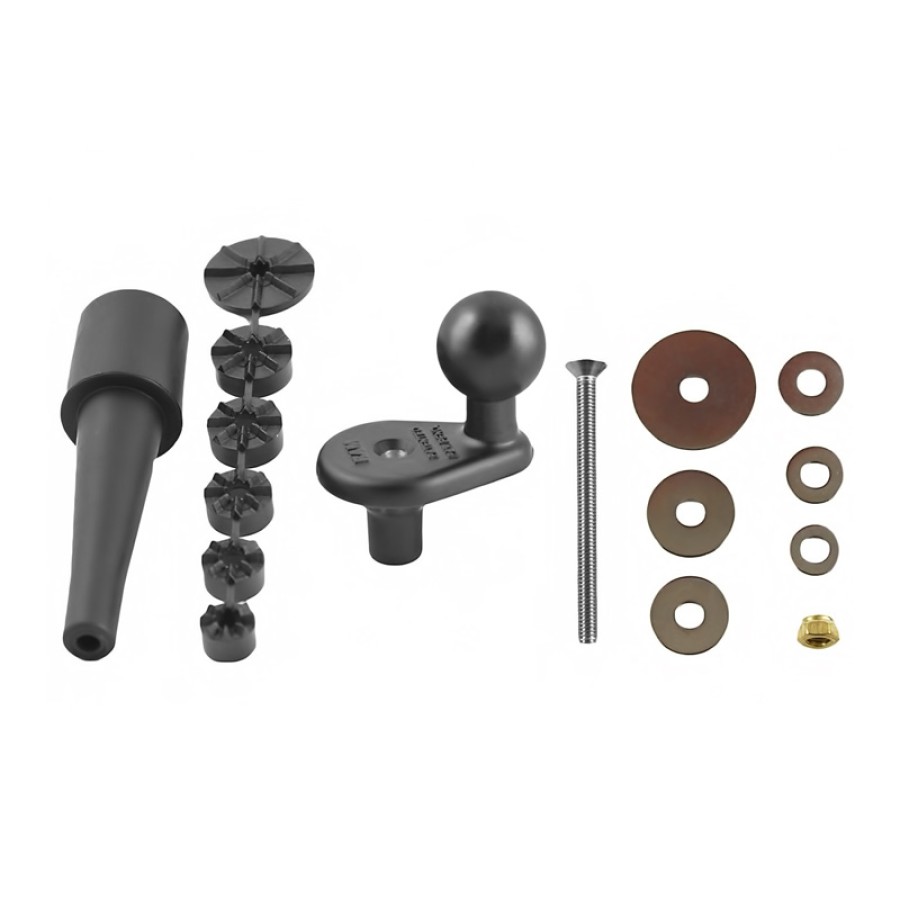

Hardware included:

(1) Expansion Plug for 12mm - 38mm (.5" - 1.49") Fork Stem Holes
(1) M5 x 60mm Machine Screw
(1) Steel Washer Set
(1) Nut Pocket Washer Set
(1) Brass Nylock Nut

Ball Size:
B Size (1")

Weight Capacity:
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

Materials:
Marine-grade aluminum

Weight:
0.28 lb

Q&A

Q: Will this fit on a 2024 street triple rs?
A: The plate of the RAM-B-342U is .25" thick.

Q: How would I REMOVE this from a bike? I took off the ball, but it seems theres still the bottom piece in my stem and I don’t know how to remove it?
A: You would just need to back the screw out the RAM-B-342U.  There can be some resistance from the the nylock nut internally, but it will eventually back the nut off allowing the expansion plug to be removed from the bore hole.

Q: What is the safe Torque when you tighten the screw with 3mm Allen Wrench?
A: There isn't a recommended safe torque for the screw included with the RAM-B-342U, you will want to tighten that until the expansion plug has been squeezed between the washer sets and is secure in the fork stem hole.
