RAM® Tough-Mag™ 88MM Diameter Diamond Ball Base - B Size

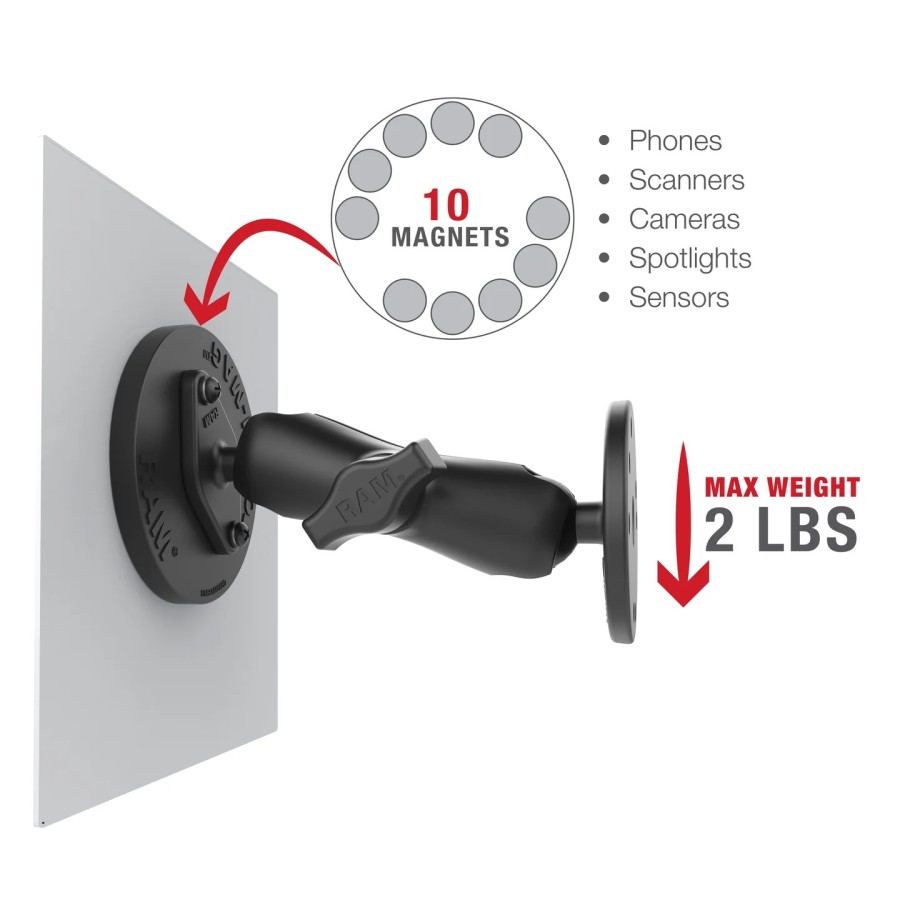

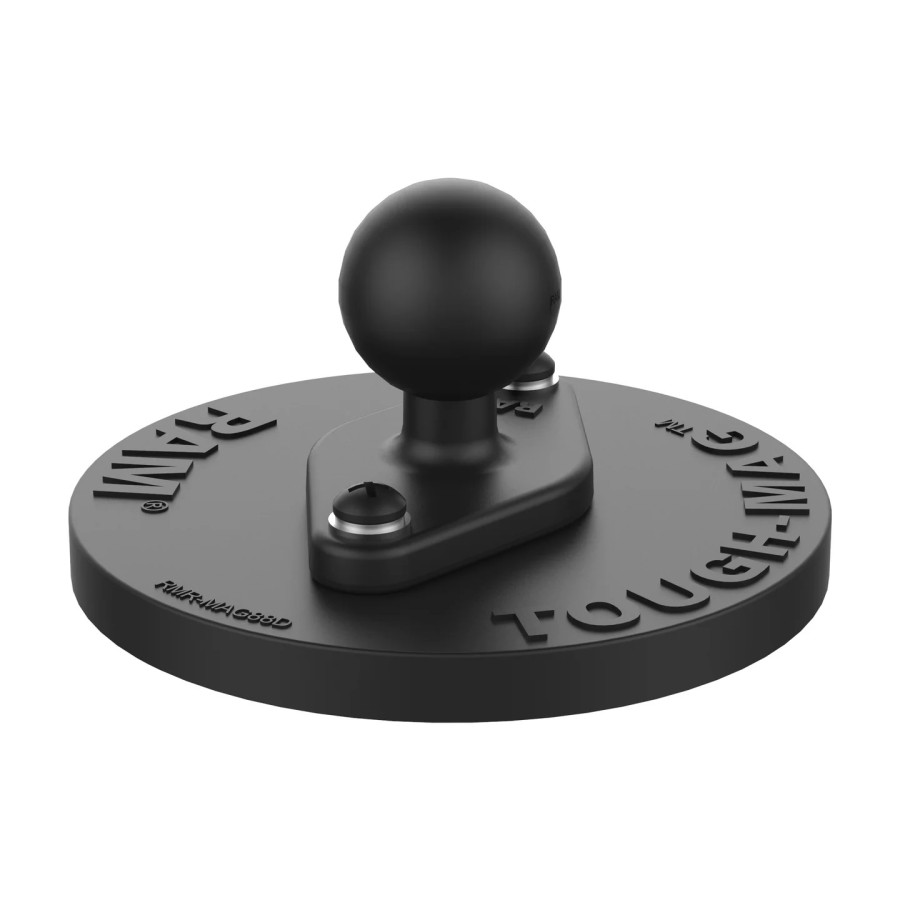

The RAM® Tough-Mag™ base consists of a B size 1" diameter 2-hole AMPS pattern diamond ball base connected to a flat 88mm diameter magnetic base. The magnetic base contains two M4 threaded inserts to attach the included B size diamond base and is designed with a rubber exterior to prevent scratching the mounting surface. Attach any B size double socket arm and your desired holder to complete the magnetic mount.

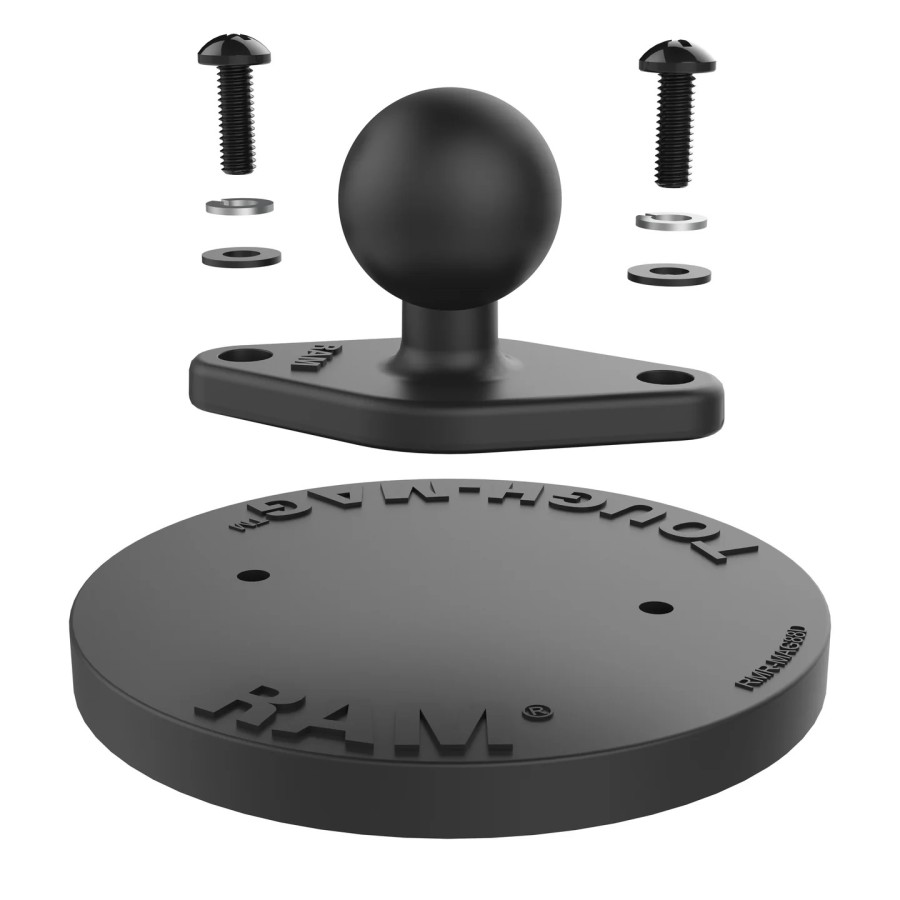

  • Magnetic base contains 2-hole AMPS pattern with M4 threaded inserts for attaching B or C size RAM® 2-hole AMPS diamond ball bases
  • Includes B size (1") RAM® 2-hole AMPS pattern ball base for connection to any B size RAM® double socket arm; ball and socket technology allows for near-infinite adjustability
  • Made of powder-coated, marine-grade aluminum and rubber for durability and reliability in the most demanding environments
  • Backed by a lifetime warranty


HOLE PATTERN
-2-Hole AMPS: 1.912"

PLATE SIZE
-3.46" Diameter

BALL SIZE
-B Size (1")

WEIGHT CAPACITY
-Standard Use: 2 lb
-Heavy-Duty Use: 1 lb

MATERIALS
-Marine-grade aluminum
-Rubber

WEIGHT
-0.71 lb



Write a review

Note: HTML is not translated!
    Bad           Good

RAM-B-238-MAG88U

  • Brand: RAM
  • Product Code: RAM-B-238-MAG88U
  • Availability: In Stock
  • $65.00
