RAM® Double Ball Adapter - B Size
Adapter, 1" (25.4 mm) with 2 x "B" Size Balls

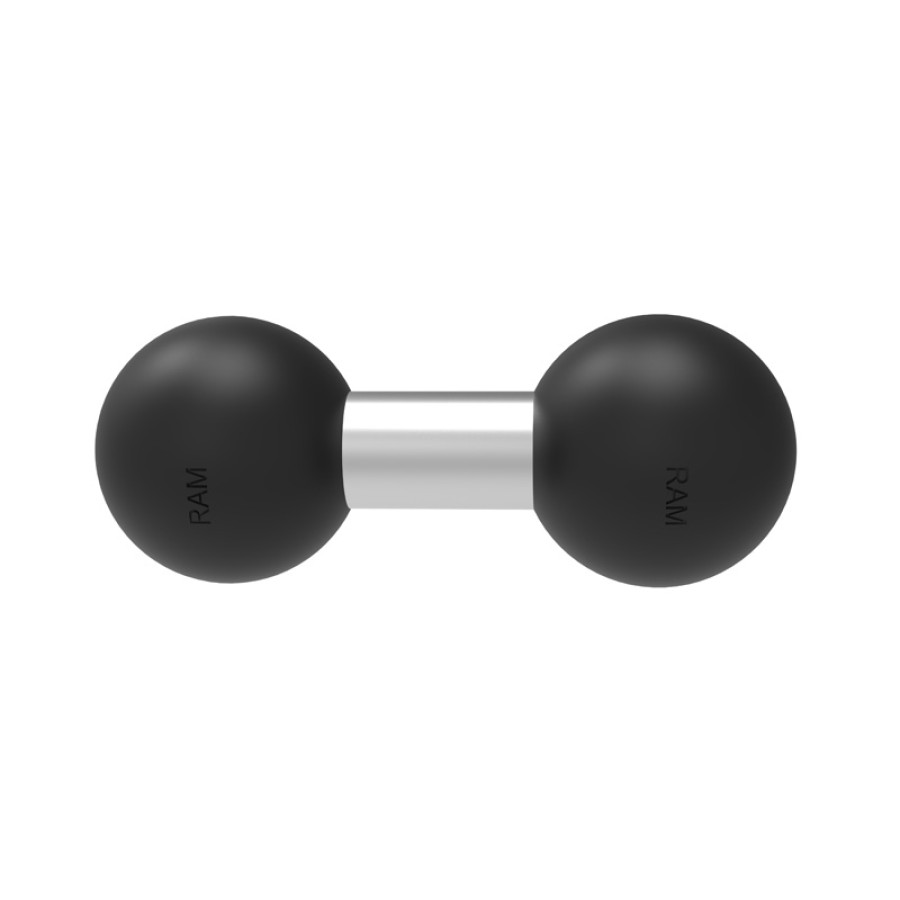

Two B sized (1") balls on an Aluminum rod.  1.75 inches from center of ball to center of ball.  Can be used to connect two RAM arms together.

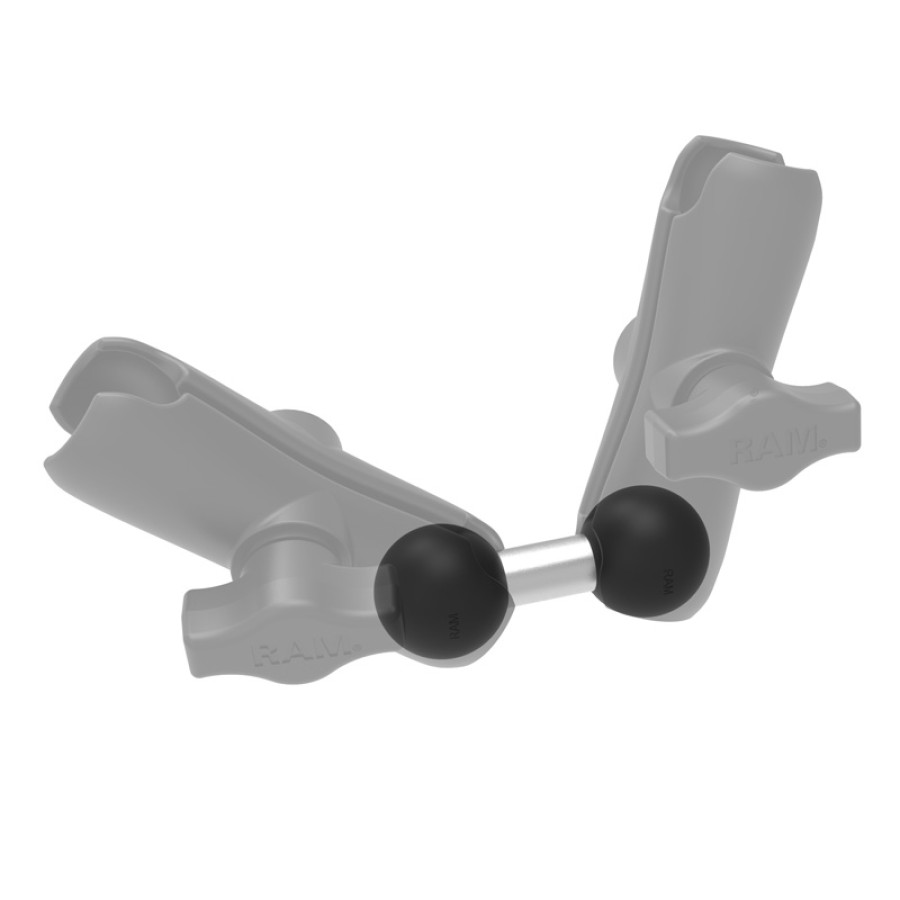

The RAM-B-230U double ball adapter consists of two attached B size 1" rubber balls that allow the connection of two B size double socket arms. When measured from ball center to ball center, the length is 1.75".

FEATURES:

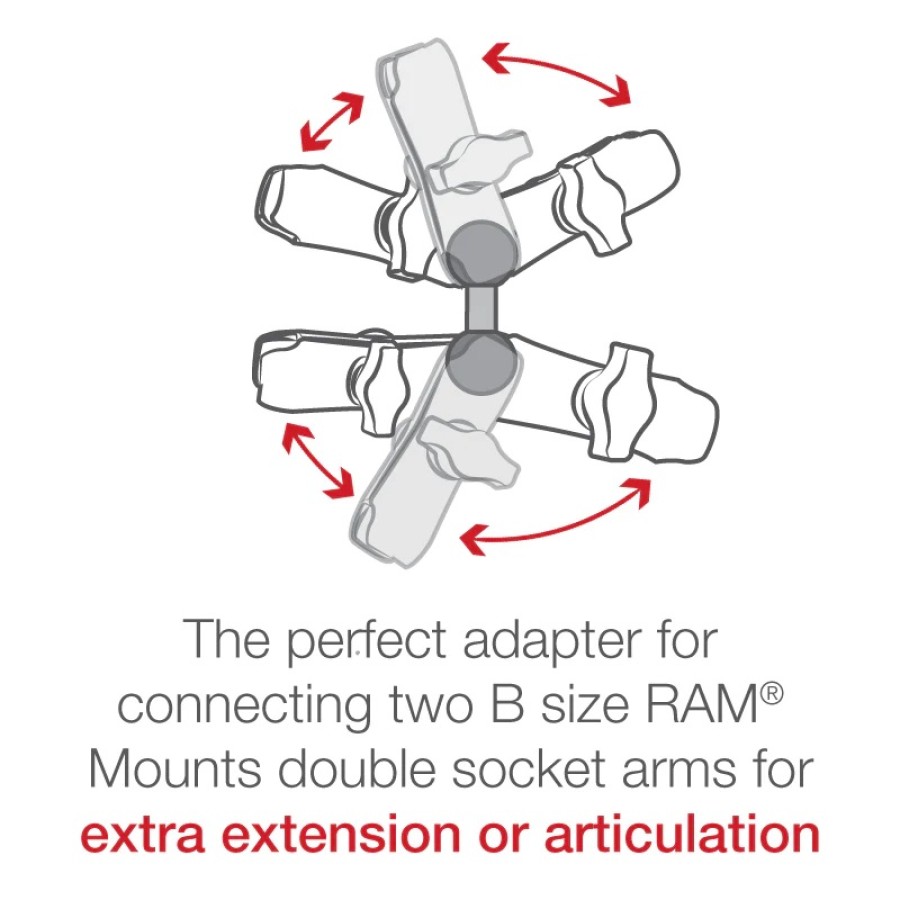

• The perfect adapter for connecting two B size RAM® Mounts double socket arms for extra extension or articulation
• Consists of two B size 1" RAM® rubber balls connected by a .75" length post
• Post is made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
• Backed by a lifetime warranty

SPECS:

Product Dimensions:
Overall Length: 2.54"

Socket to Socket Length:
1.75"

Ball Size:
B Size (1")

Weight Capacity:
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

Materials:
Marine-grade aluminum

Weight:
0.09 lb

Q&A

Q: Will my mount be just as stable as before if I use this double ball adapter to add another arm?
A: No, anytime you make a mount longer or add more adjustment points you will sacrifice some stability. By adding this type of extension, you are increasing the chance that you will see movement such as shaking or vibration in the mount.
