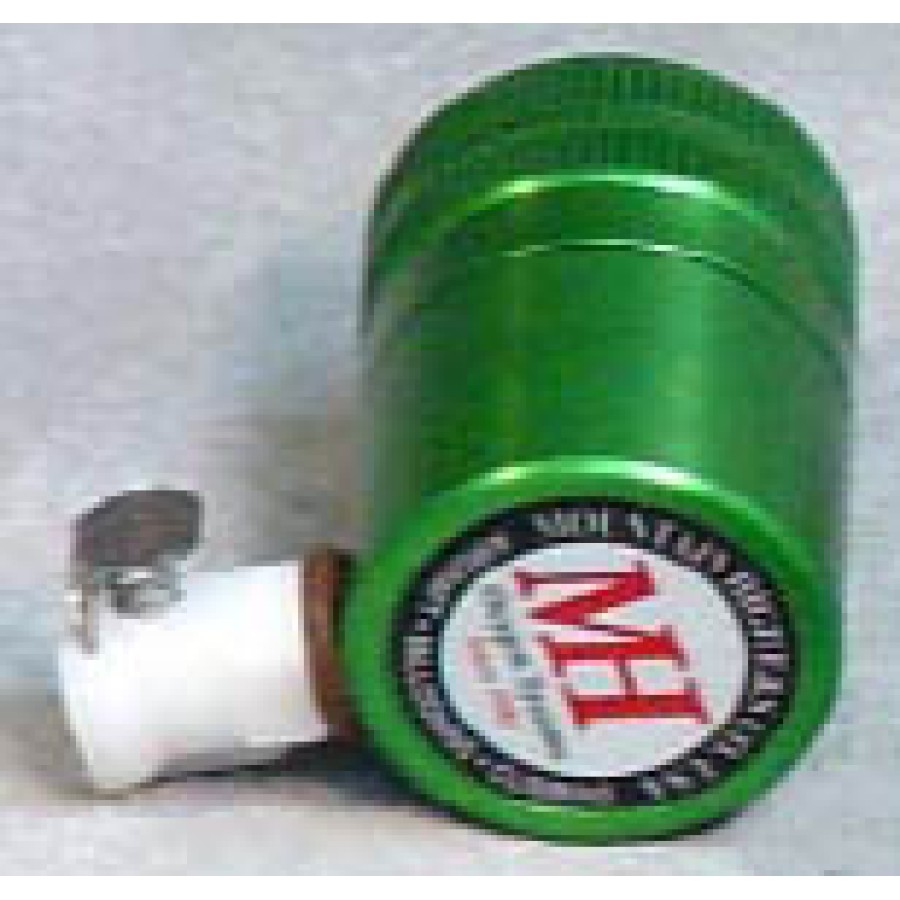

XCP-1P, 1-Place Radial CGA-540 Regulator with CPC Port
XCP-1P 1 place regulator Now smaller, lighter and more compact than ever!
This item has been replaced by the MH-00REG-2100-10.
The XCP series of regulators are essentially single-outlet. This regulator features the CPC quick connect type fitting with a radial outlet. This regulator is used on most of our one person portable constant flow systems. It may also be used with the EDS portable systems using the XCP inlet feed tube. CGA-540 port for oxygen cylinder and female CPC port for connecting to tubing leading to an MH3 or MH4 Flowmeter. This regulator has a different connector than the one found on the XCR regulator. The EDS-XCP-Adapter can be used to connect an EDS-D1 or O2D2 unit to an XCP or FPR regulator. An EDS-XCP-Adapter is included with every EDS system.

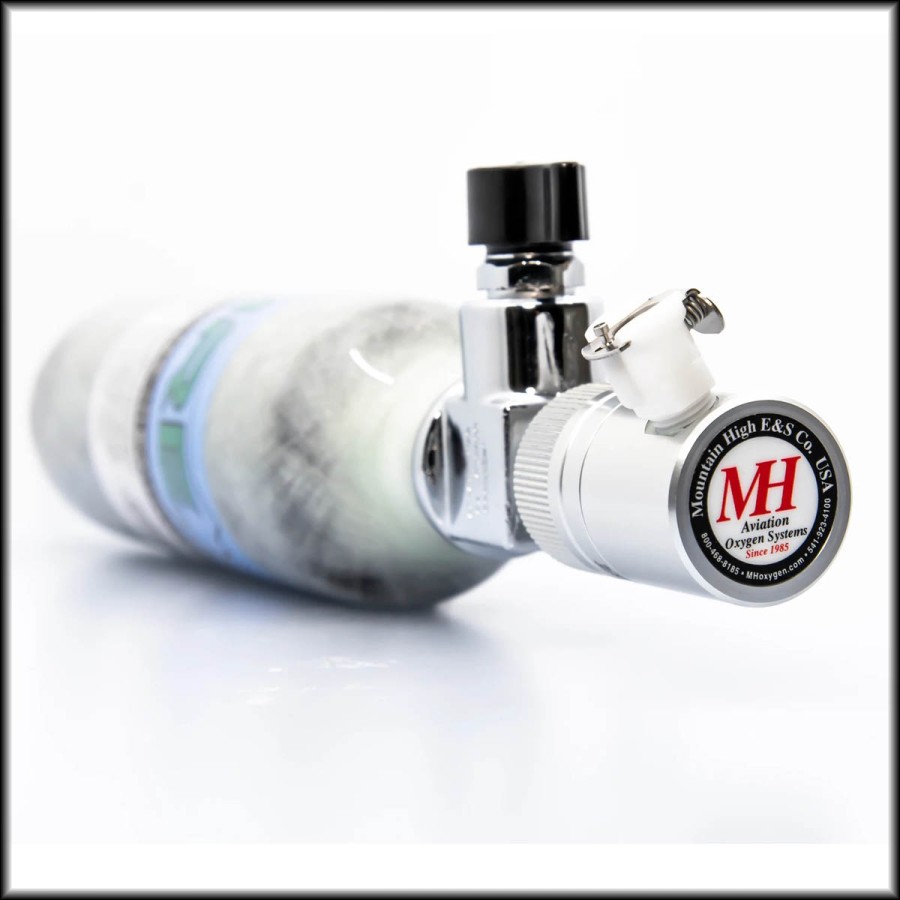

Note: The gauge in the image at right is on the valve, not the regulator.
|
Male CPC Connector |
Mounting and Removing a Mountain High Regulator
Inserts and Related Documents:
General Specifications
MH "3G" Regulator Family Single-Stage, NO-Gauge Regulators
Related Products

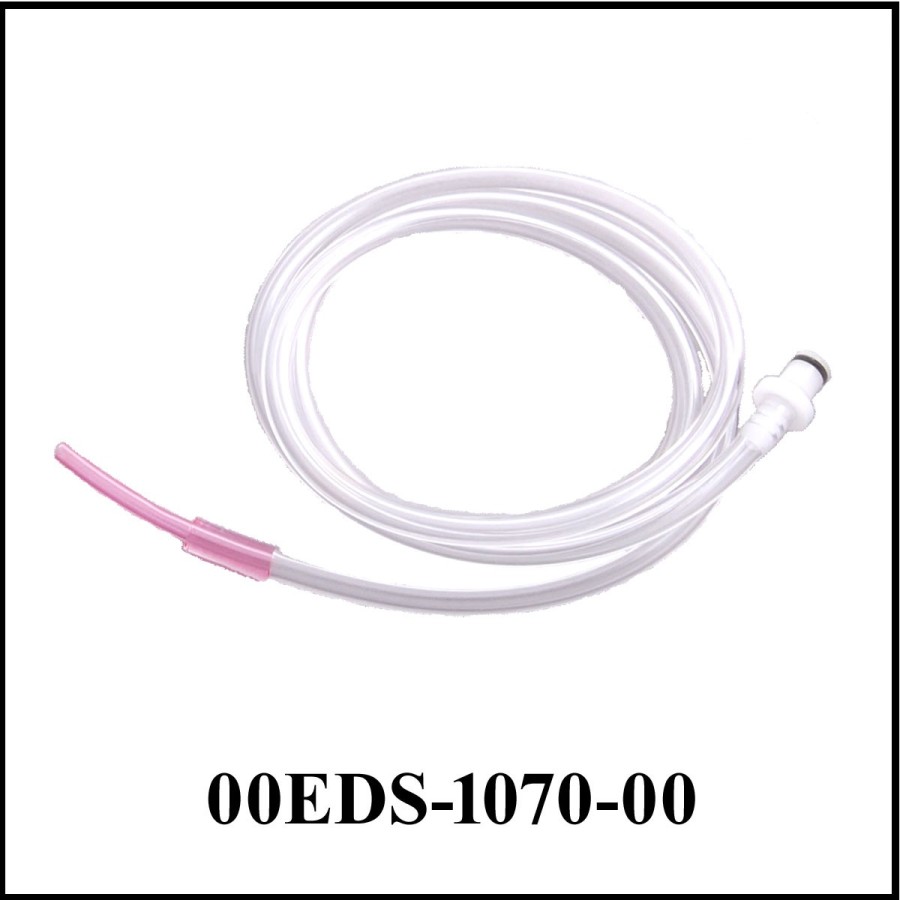

MH-00EDS-1070-00
Adapter to Connect EDS Unit to XCP RegulatorXCP to EDS Feed Tube for CPC type connection.EDS-XCP ada..
$10.00
MH-00EDS-1046-01

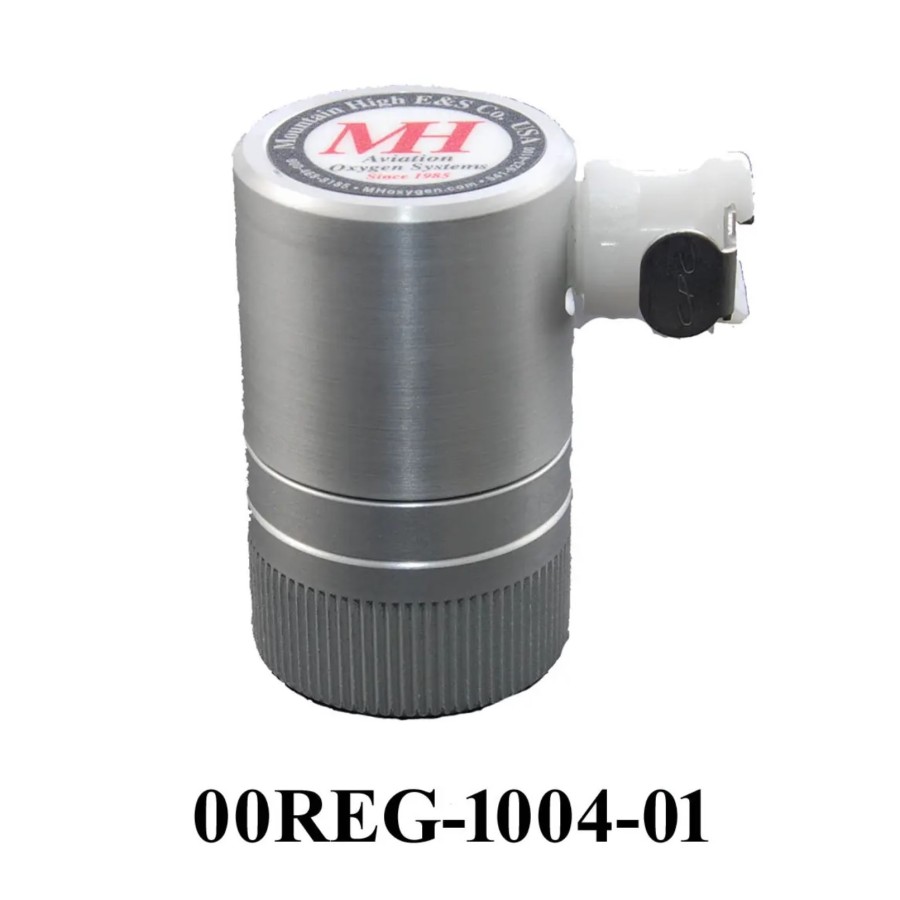

EDS O2D1-2G 1-Place Delivery System with XCP-1P regulator, 00REG-1004-01, CGA-540 typeIf you al..
