Flap Sensor with Display - Stand-Alone

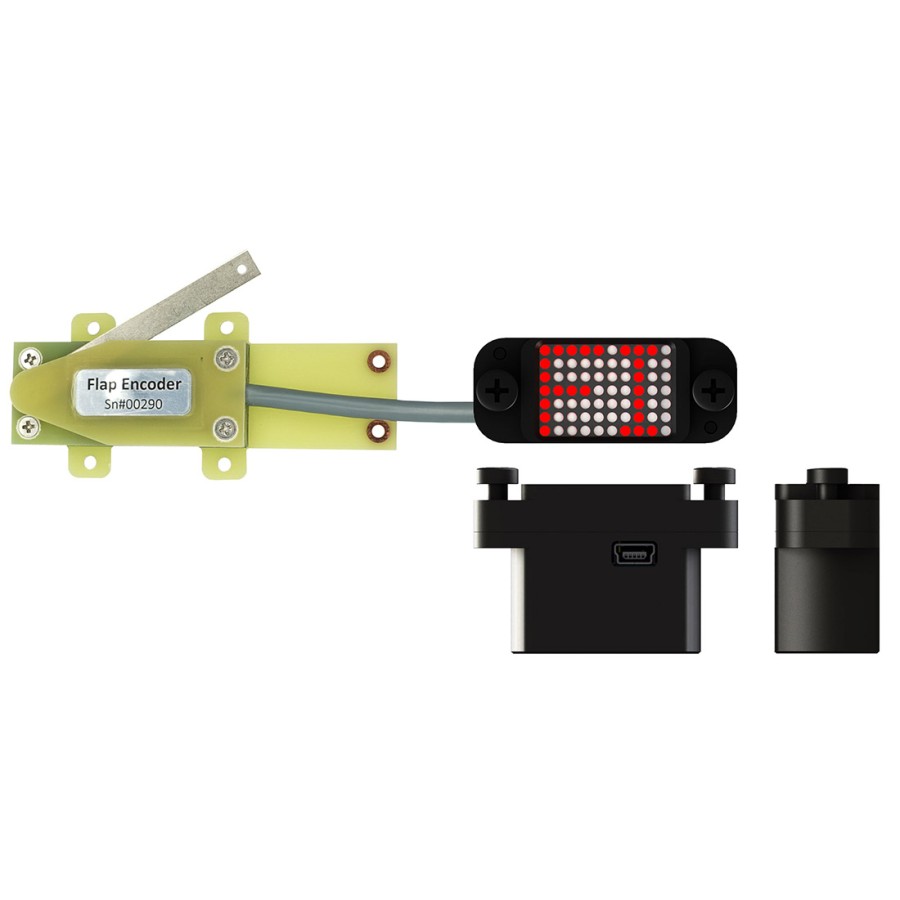

The LXNAV flap sensor is designed to measure and display the position or angle of the aircraft's flaps. The display is to be mounted where the pilot can view it easily and set the flaps with confidence. I have flown flapped sailplanes in which it was difficult to know the flap position accurately because the flap actuator was difficult to see. I would have loved one of these in the Ventus B. The same is true for many sailplanes.

Display Dimensions:

• Length: 5 cm (1.97 inches)
• Height: 2 cm (0.79 inches)
• Depth: 3 cm (1.18 inches)

Sensor Dimensions:

• Base length: 84 mm (3.31 inches)
• Base width (not including mounting feet): 23 mm (0.91 inches)
• Base widtth including mounting feet: 37 mm (1.46 inches)
• Thickness: 9 mm (0.35 inches)
• Radius of rotating arm: ~57 mm (2.24 inches)

Cable Length (estimate): 178 inches (14.83 feet) (4.521 m)

4 week lead time
