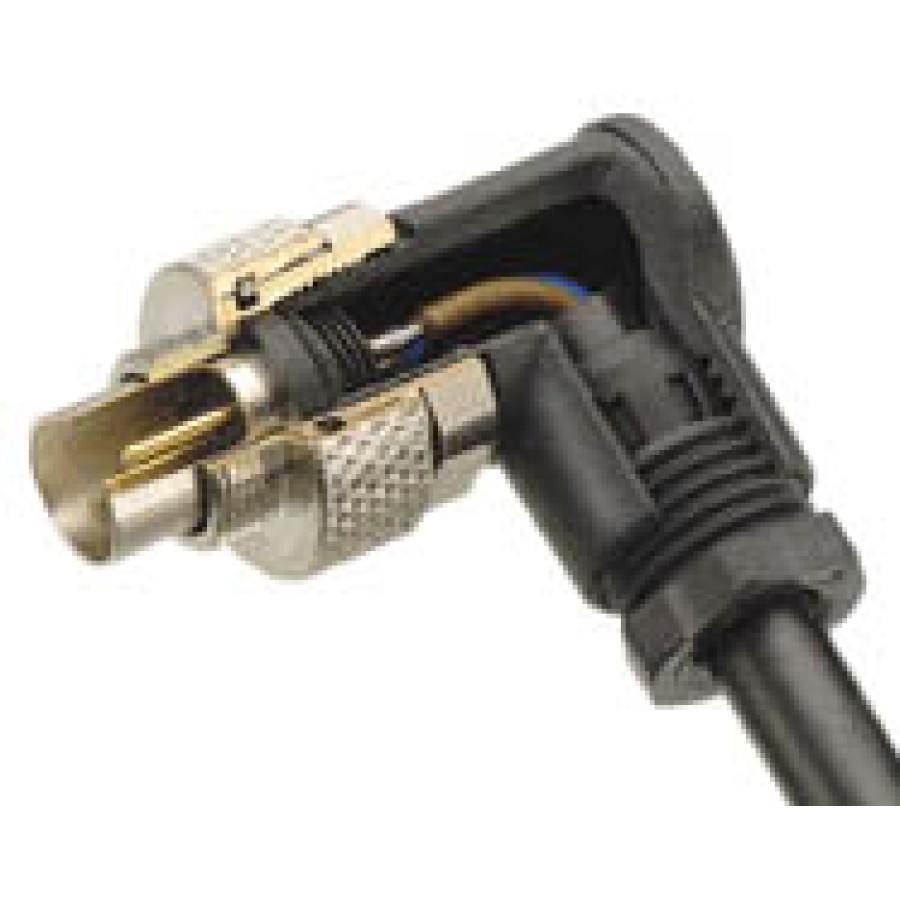

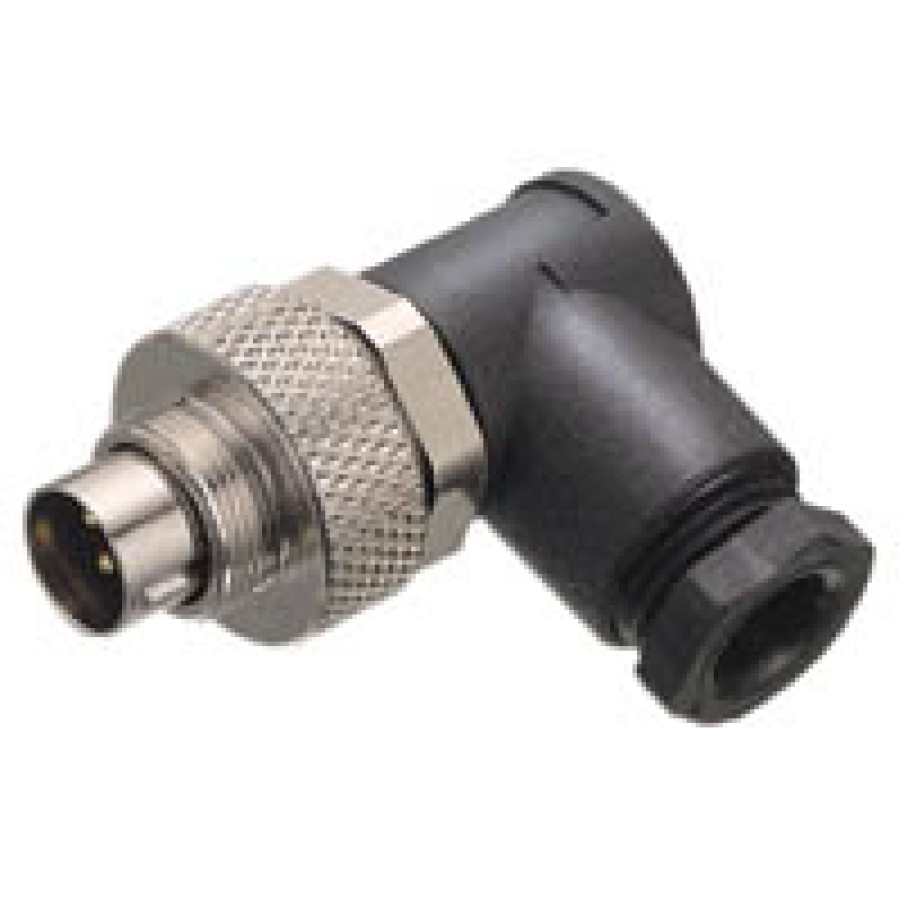

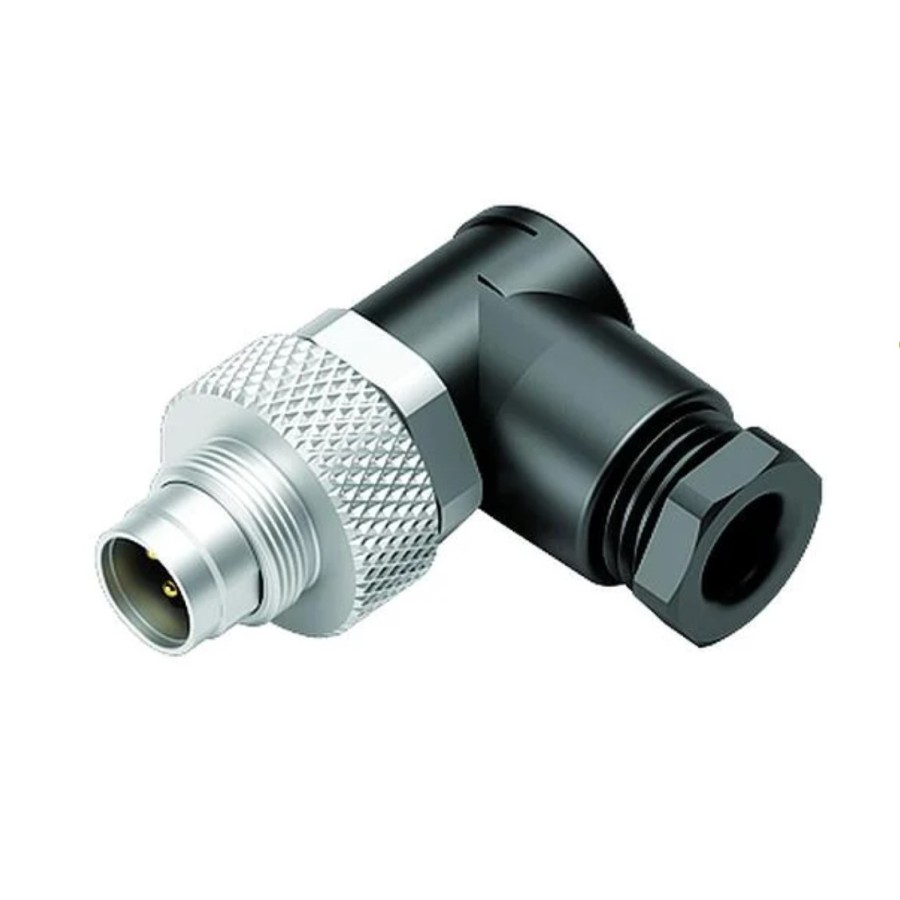

Round 5-pin Binder power/data connector, male, right angle, for use with older Volksloggers
This right angle connector can be used to connect 12V power and GPS data to/from the VL. A wiring diagram is below.
Pin 1: Ground/Common
Pin 2: +12 VDC Power Input
Pin 3:
Pin 4: VL RS-232 Transmit (NMEA Data Output)
Pin 5: VL RS-232 Receive
