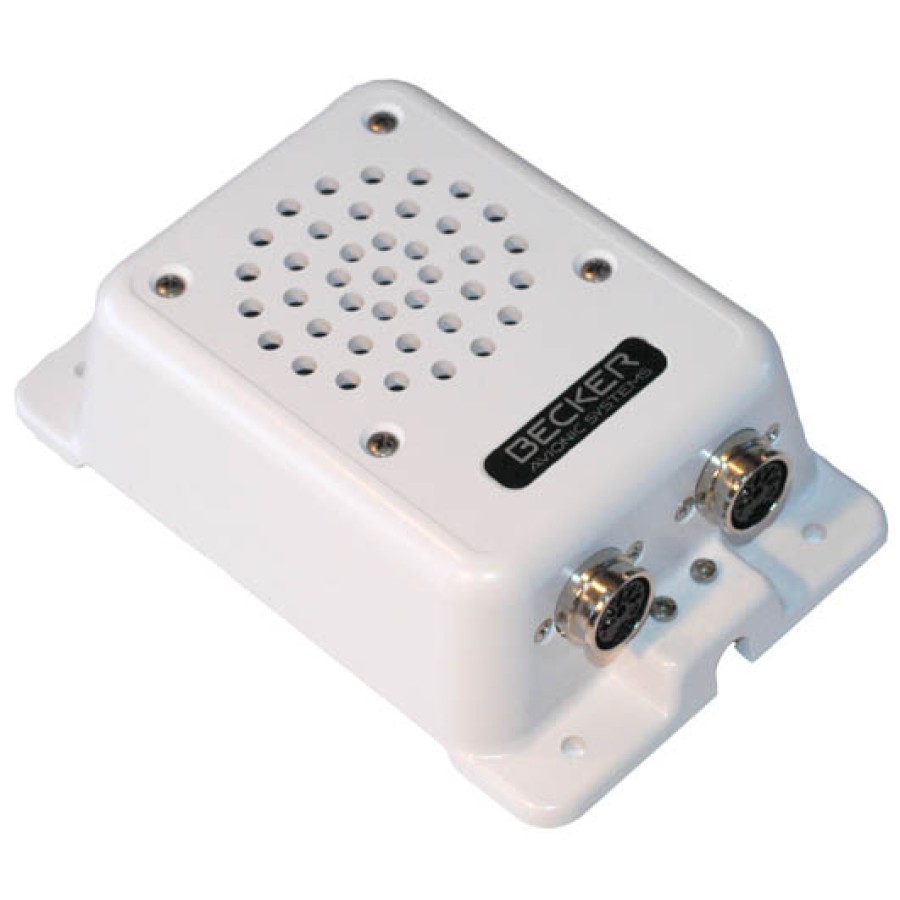

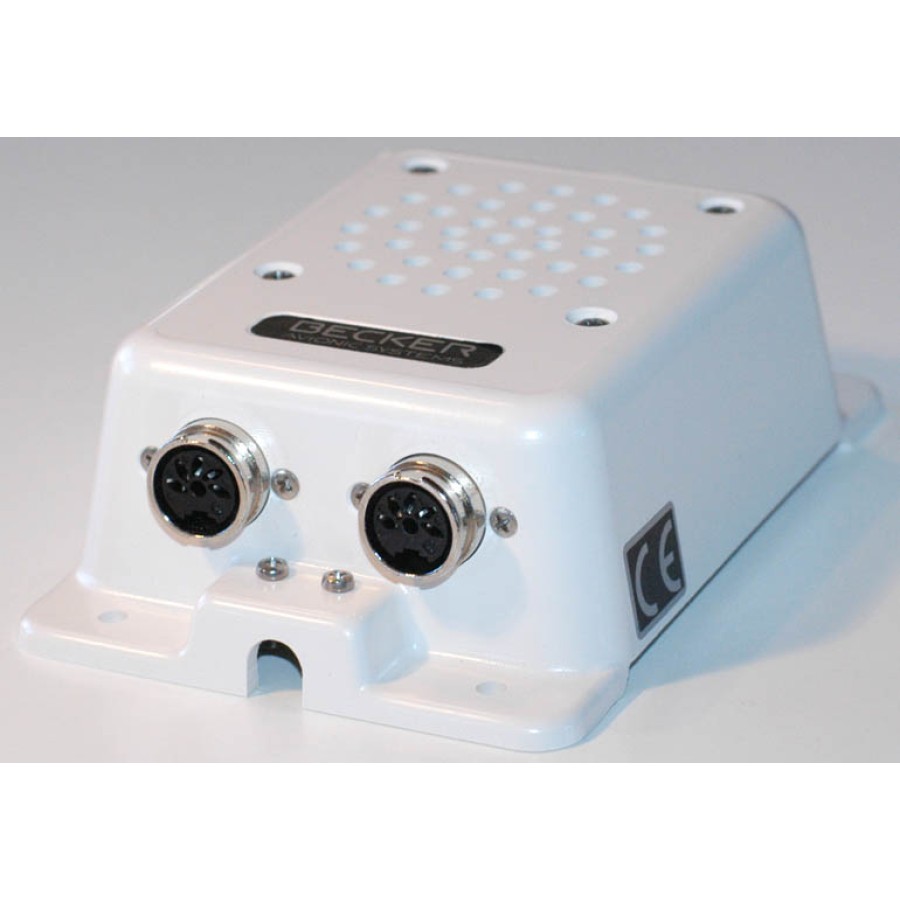

Speaker and Wiring Junction Box - Discontinued

Discontinued Becker has stopped making these nice units. A great alternative is the Dittel F10061 Speaker/Junction Box with the Goddard: Cable-Becker-AR6201-DittelSpkr-3 and a Dittel F10039 Gooseneck Microphone or Peiker TM170-23in with DIN-5m-240. Those work great with Becker AR4201, AR6201, and RT6201 radios.

4 Ohm speaker, 6 Watt
This item is also highly recommended. It makes it extremely easy to install the AR4201 or AR6201 when used with the Becker-1K042 wiring harness.  This not only makes installation fast and error-free, but also makes long term maintenance much easier.
No DIN connectors are included, but the Becker-1PM004 microphone does come with a pre-wired DIN connector that plugs directly into this junction box.  This box makes it very easy to connect a wiring harness, microphone and push-to-talk button to the radio. The two DIN-5m-180 connectors are used to connect 1 or 2 boom microphones or aviation headsets.  Screw terminals are provided for connecting 1 or 2 push-to-talk buttons.

Dimensions
Length: 142 mm (5.59 in)
Width: 93 mm (3.66 in)
Height: 43 mm (1.69 in)

Note: This speaker has a very powerful magnet inside.  Do not mount it anywhere near a compass.  After you install it you should re-swing your compass.  The same is true for all speakers.

Connection Diagram

Write a review

Note: HTML is not translated!
    Bad           Good

Becker-1PL042 - Discontinued

  • Brand: Becker
  • Product Code: Becker-1PL042
  • Availability: Out Of Stock
  • $0.00
