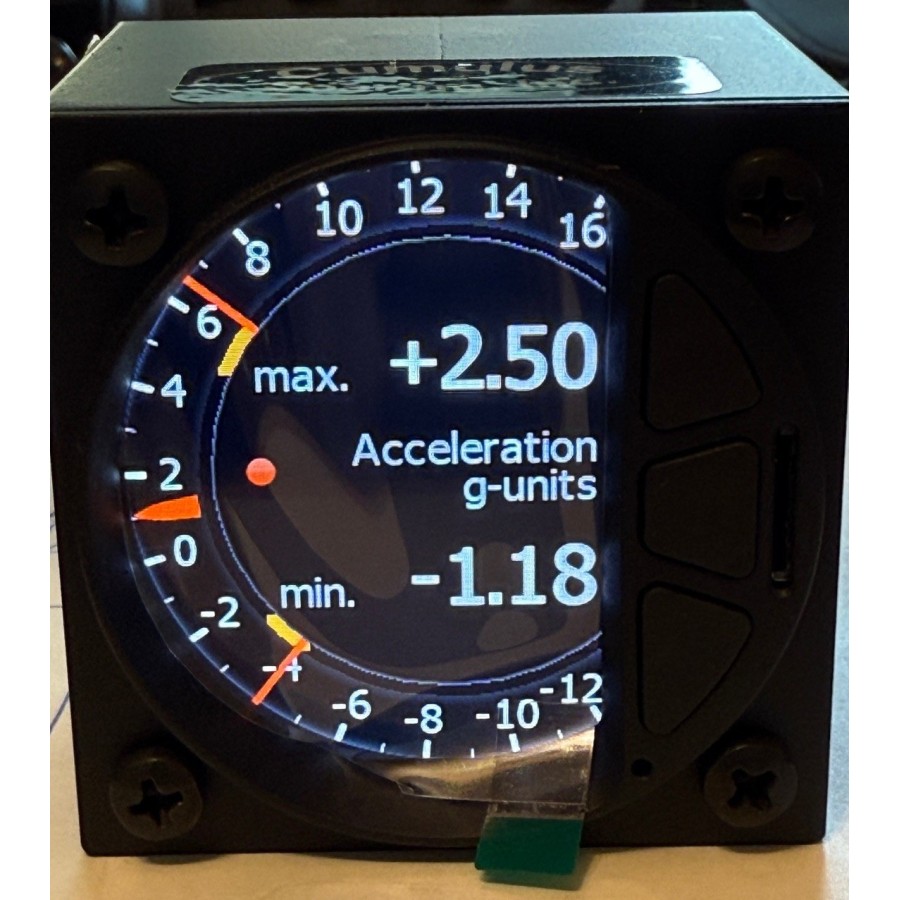

G-meter
Intuitive standalone digital G-meter with built-in Flight recorder!




Standalone G-meter indicates and logs g-forces with an integrated high precision digital pressure sensor and inertial platform. The unit is available in versions for mounting in standard 57 or 80 mm instrument holes.


      2.5”                      100

Very Bright Display                Times Sampled per second

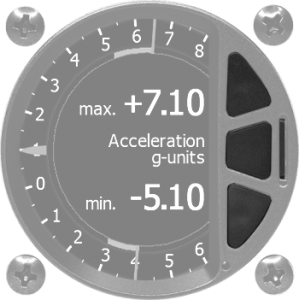

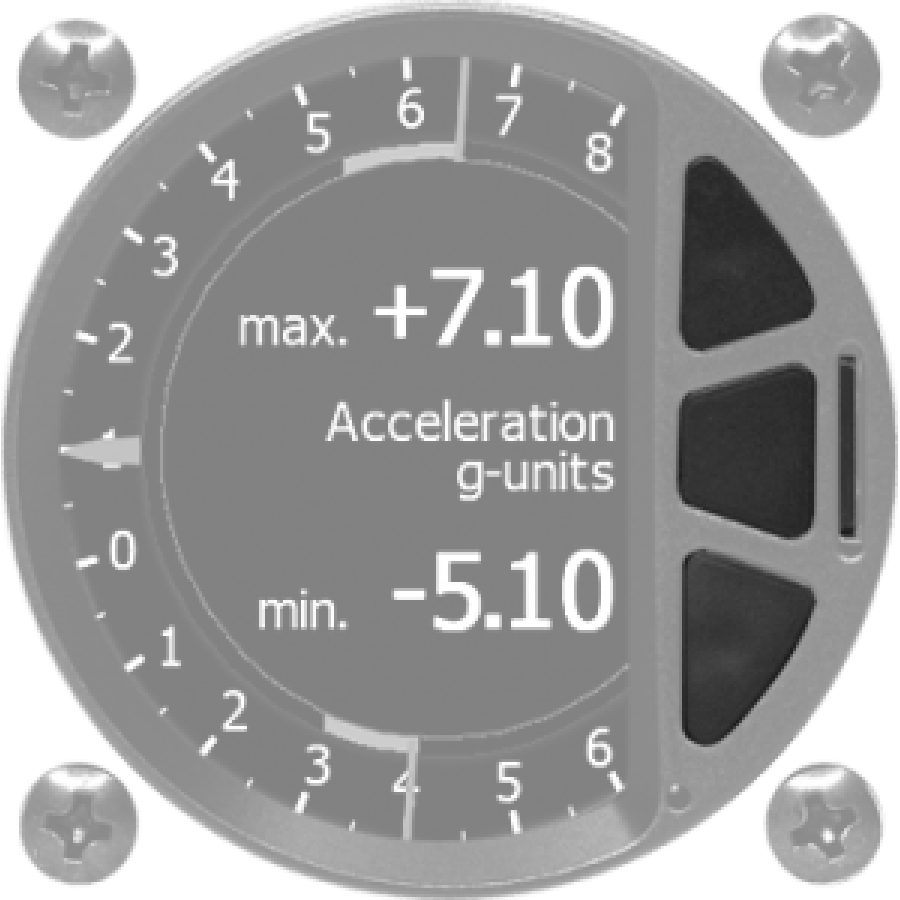

  3 Push Buttons. SD Card.
    Used for a simplified handling during the
    flight or ground operations. Micro SD card
    for data exchange (SW update and
    Flight downloads).

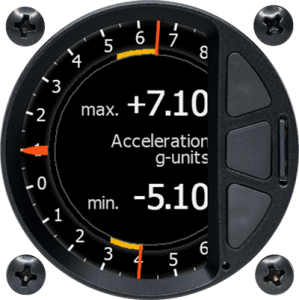

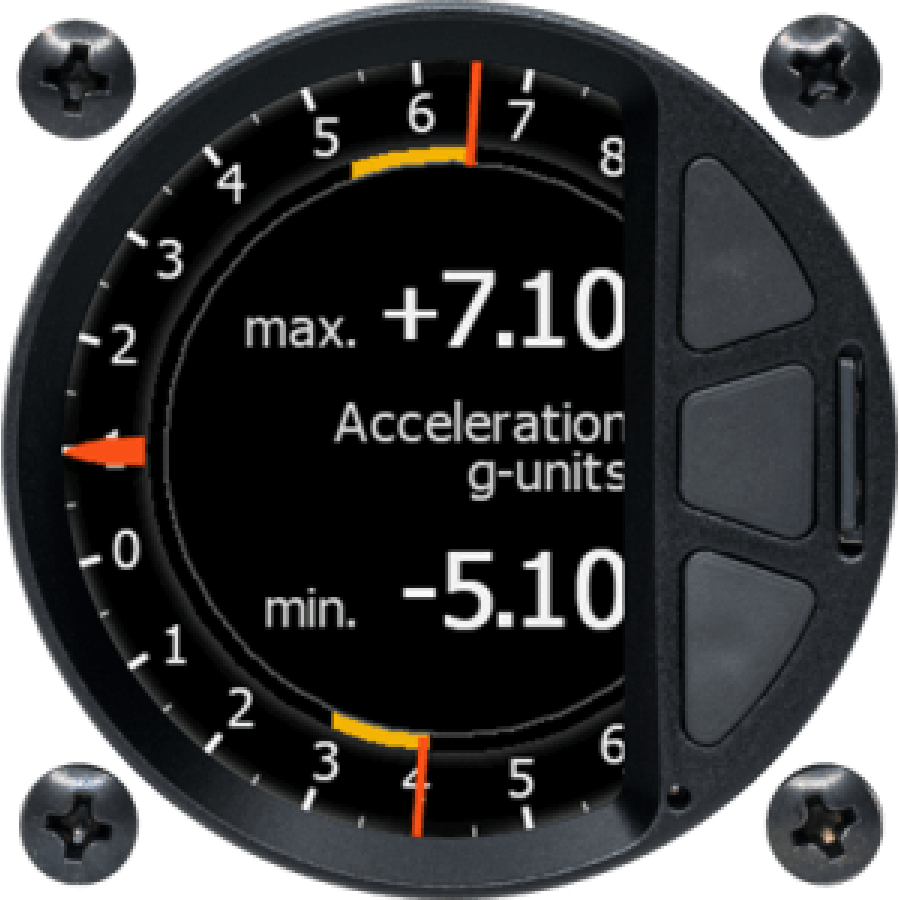

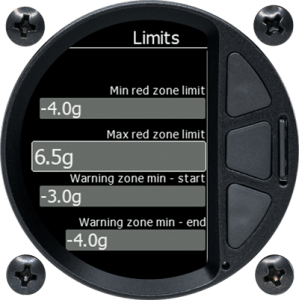

  Internal Platform Limits
    Inertial platform with +-8g accelerometer. Device
    is showing current g-load in navbox/needle and
    it’s min-max values in bar. Last flight min/max
    load navboxes are persistent till next flight.

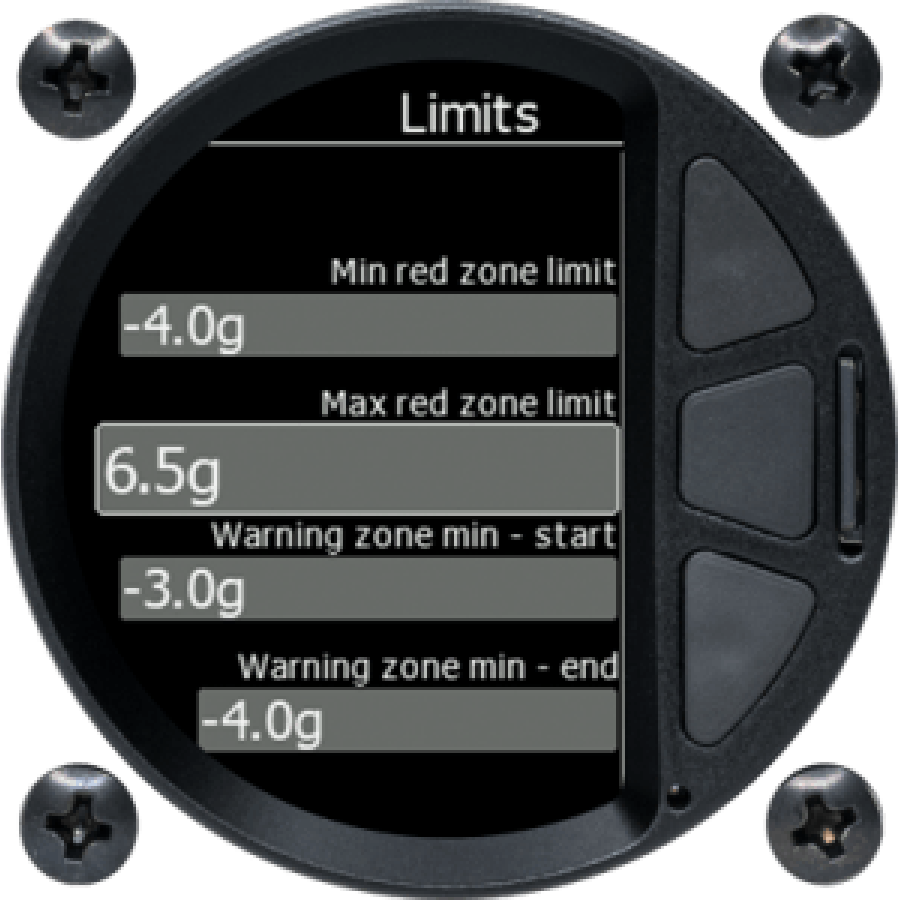

    Min/Max limits with Warning zones can be defined.



MicroSD Card. Ambient Light Sensor



MicroSD card socket for data exchange and ALS for energy saving.



  Display
    Real Time Data is displayed on a QVGA 320×240 pixel
    2.5-inch high brightness colour display.

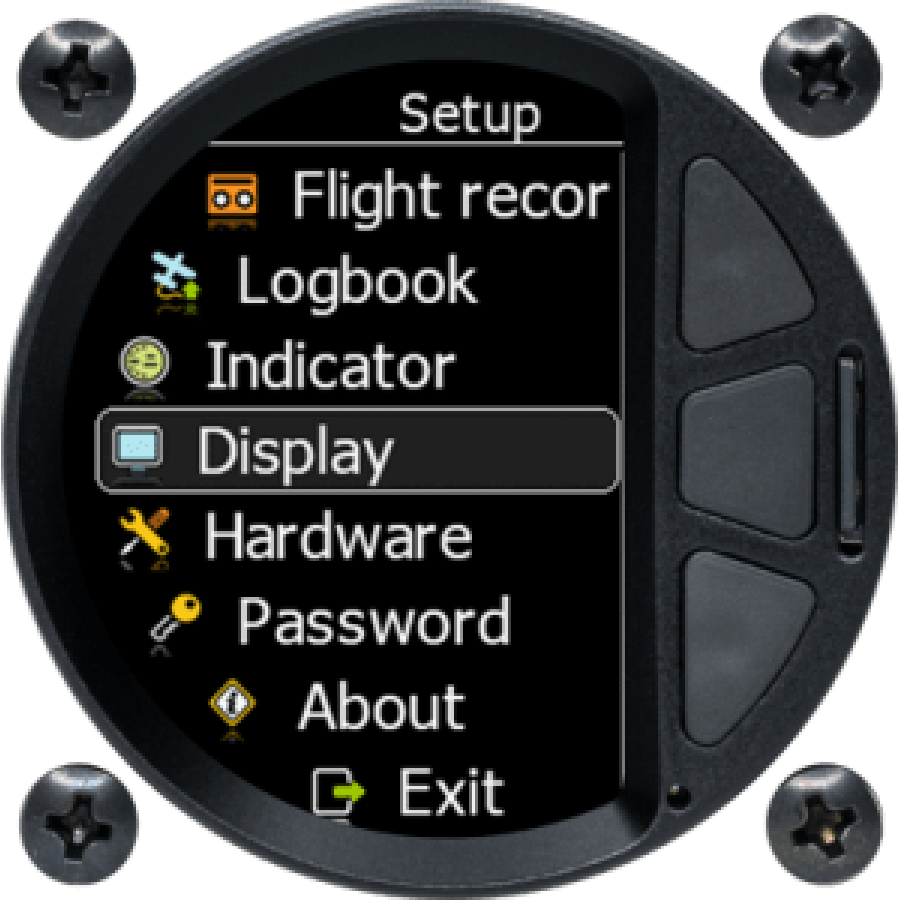

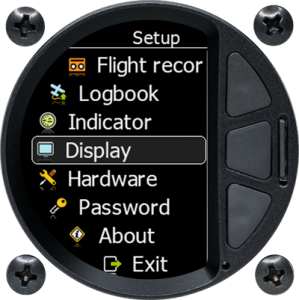

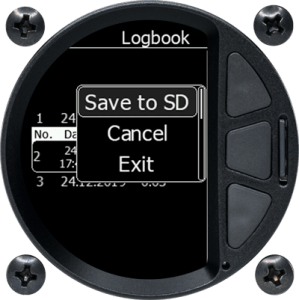

  Logbook
    The logbook menu displays the list of flights.
    If the RTC time is set properly the take-off and
    landing time shown will be correct. Each flight
    item consists of the maximum positive g-load,
    the maximum negative g-load from the flight
    and the maximum IAS. This function is available
    only with “FR” version.

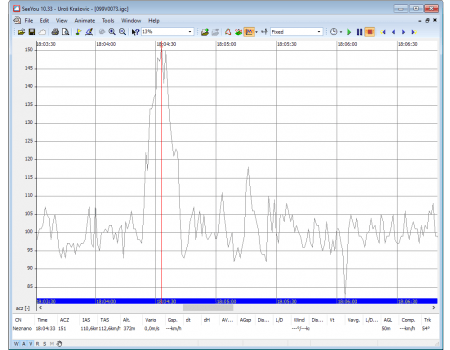

Analyse
Every detail of you flight can be analysed on PC using SeeYou software.

Included:

  • Power Cable with RJ12 connector
  •  Mounting screws (M4)
  • Printed manual (provided by Cumulus Soaring, Inc.)

Options:

Write a review

Note: HTML is not translated!
    Bad           Good

LXNAV-G-meter

  • Brand: LXNAV
  • Product Code: LXNAV-G-meter
  • Availability: In Stock
  • $495.00


Available Options
