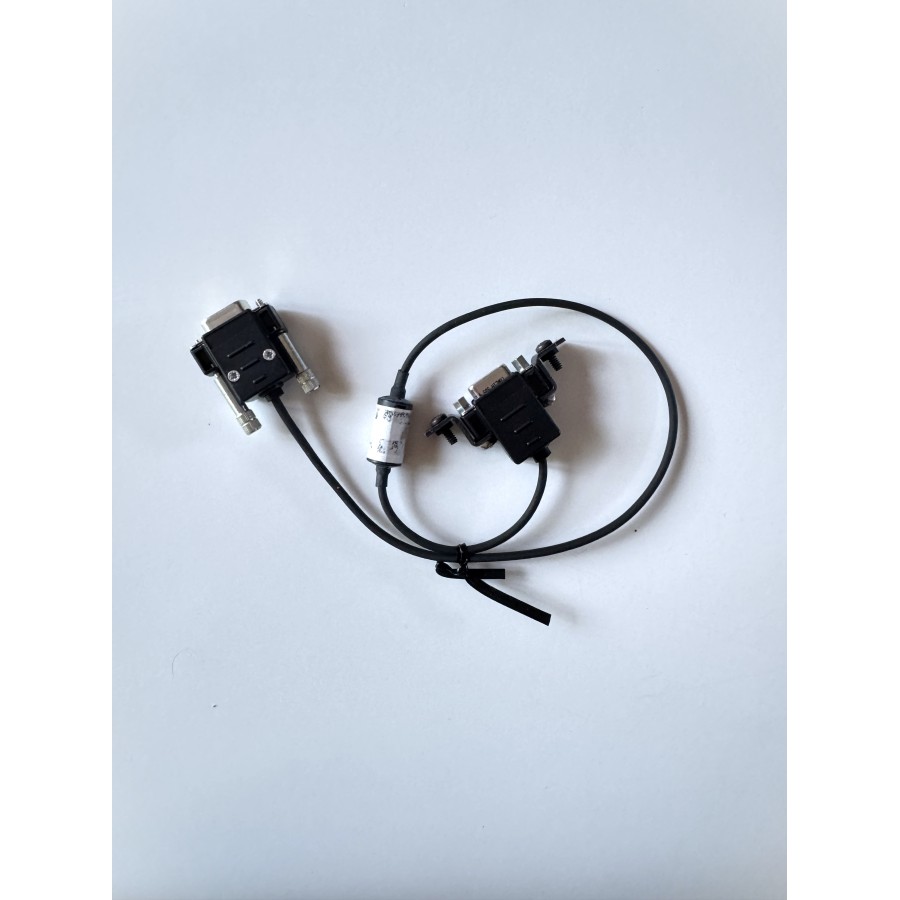

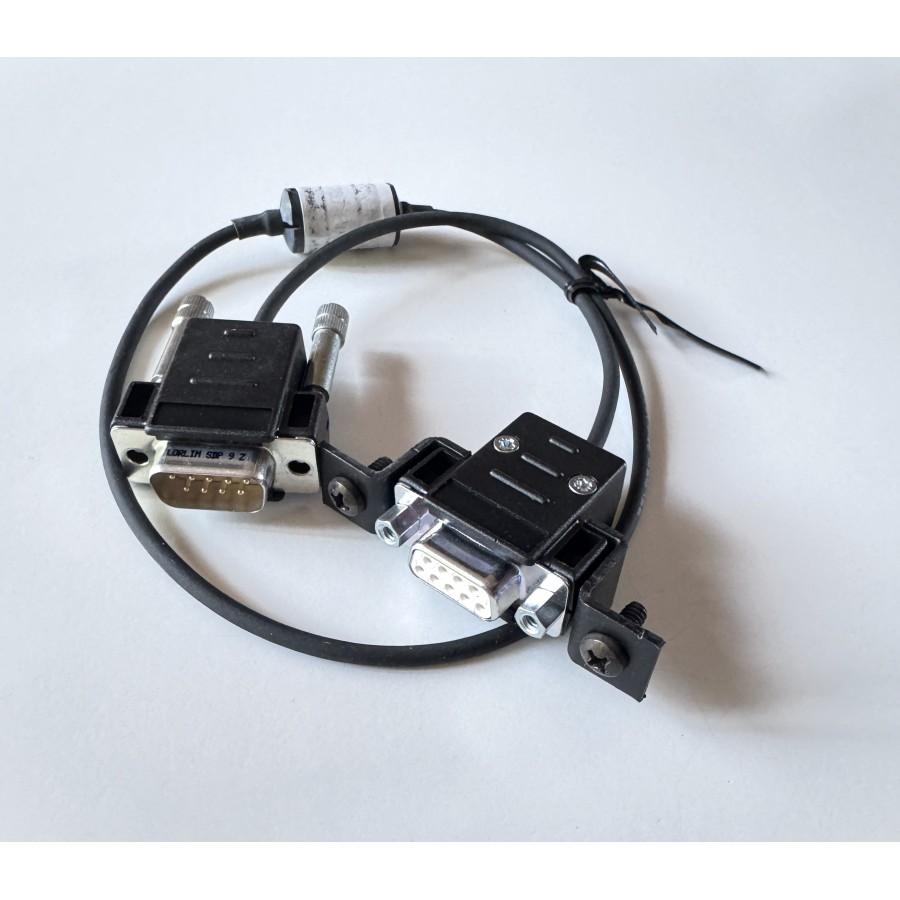

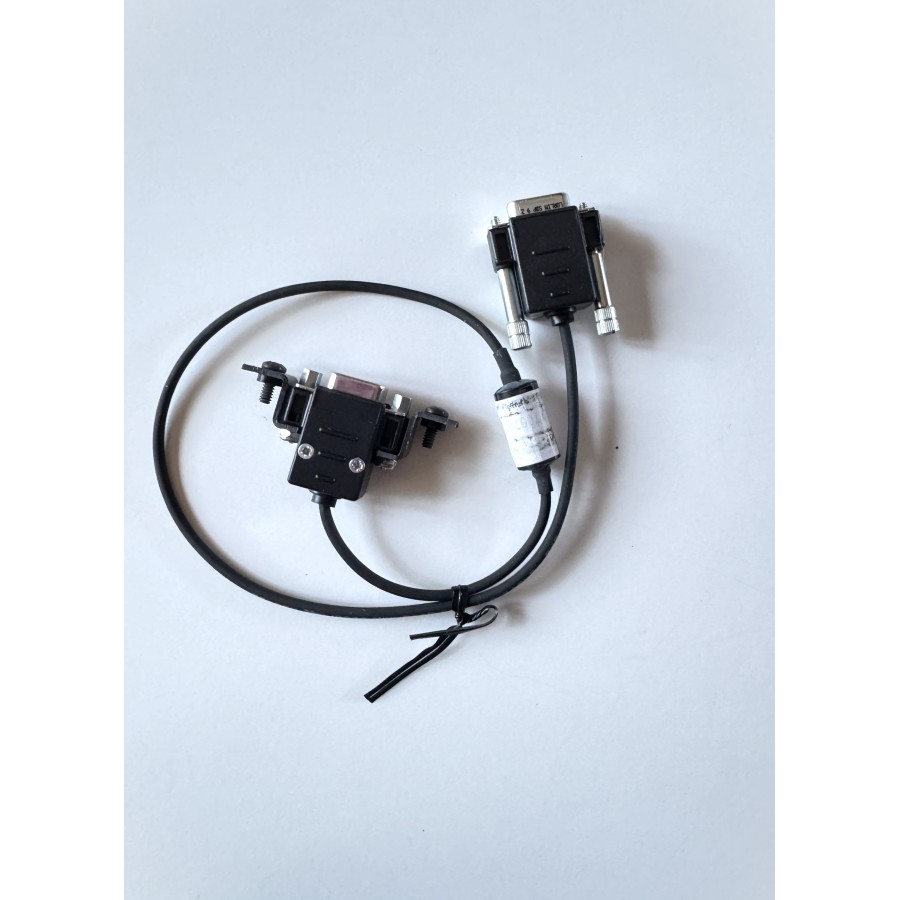

Cable, 0.5 m (19.7 inches), LX Navigation LX7007 Pro IGC to Instrument Panel Mountable DB-9f Connector, This cable is used to bring the connections from the DB-9 on the back of an LX7007 Pro IGC to the instrument panel where they can be more easily accessed. The panel connector has ears for mounting the connector to the back of the instrument panel. A small 15 x 30 mm rectangular hole and 2 small holes (see Panel Hole Drawing in the photos) must be made in the panel to allow access to the DB-9f connector. The panel mounted connector is wired for connection to a standard PDA power/data cable. Includes lines for 5 VDC power and RS-232 data. Any Goddard PDA cable or modified PDA cradle can be connected directly to the panel connector. DB-9m connector for LX7007 and DB-9f at panel.
Gn57mmPlateDB-9 Instrument Hole Plate
The Gn57mmPlateDB-9 is an aluminum plate designed to allow you to mount the LX7007-PNl's panel connector in a small 57 mm instrument hole. The plate also has a hole for a GNeck gooseneck.
Goddard-LX7007-Pnl-0.5
- Brand: Goddard
- Product Code: Goddard-LX7007-Pnl-0.5
- Availability: In Stock
-
$55.00
