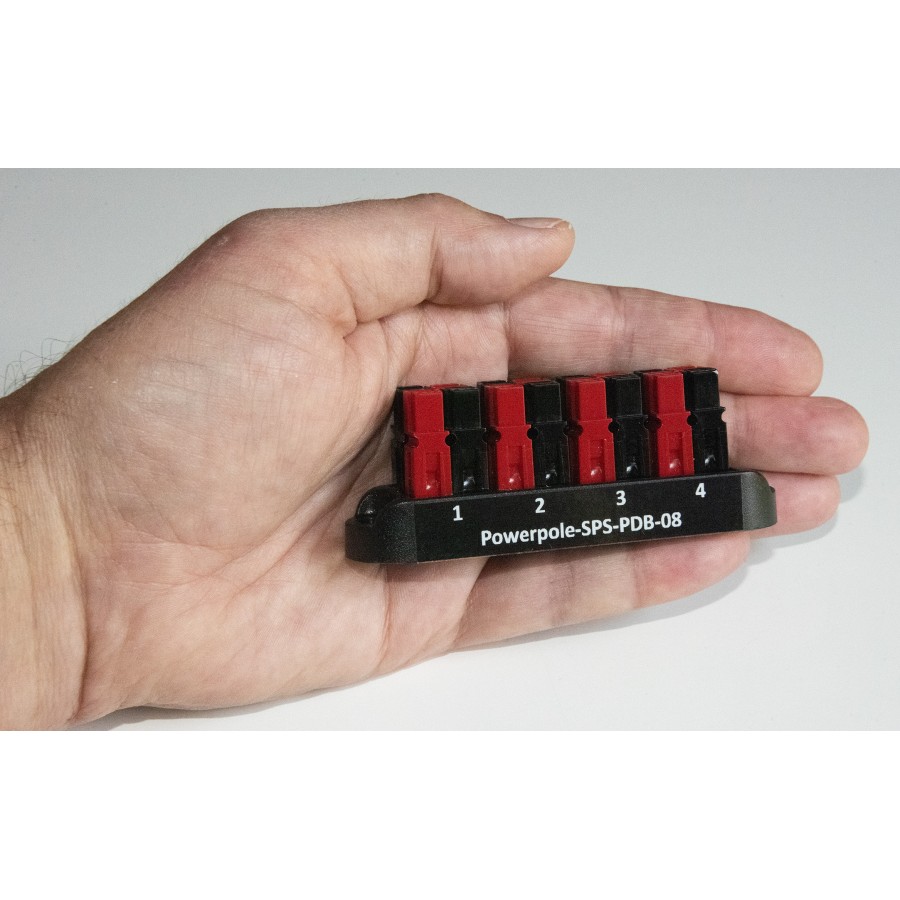

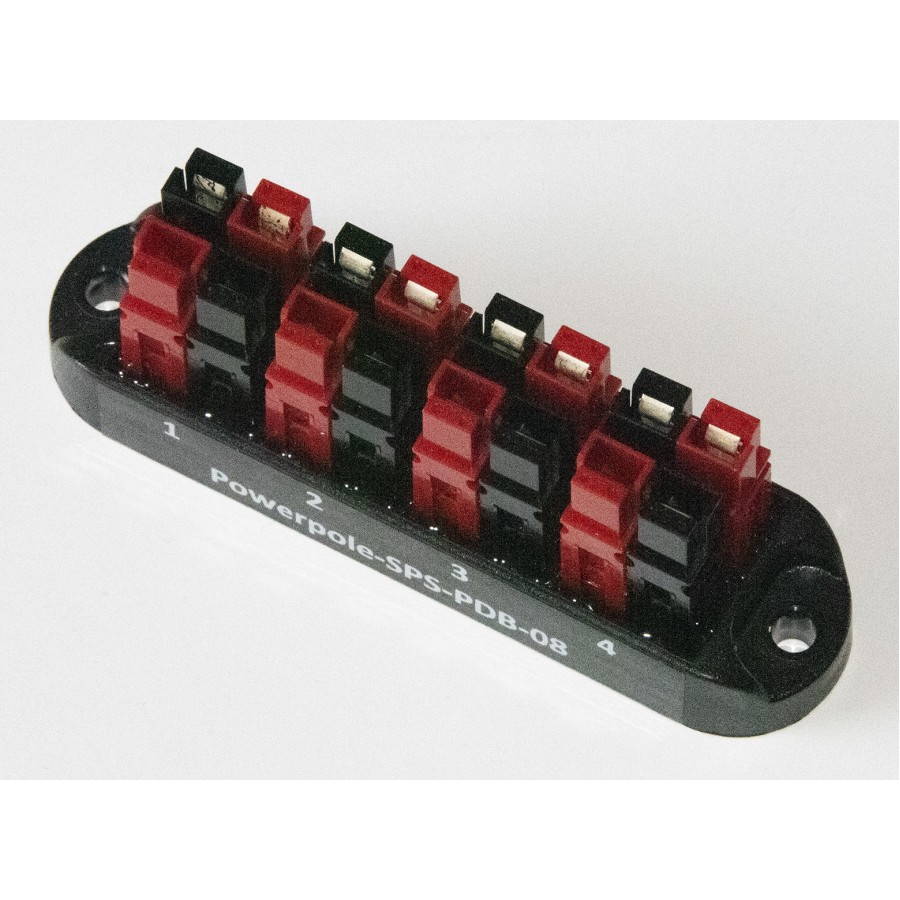

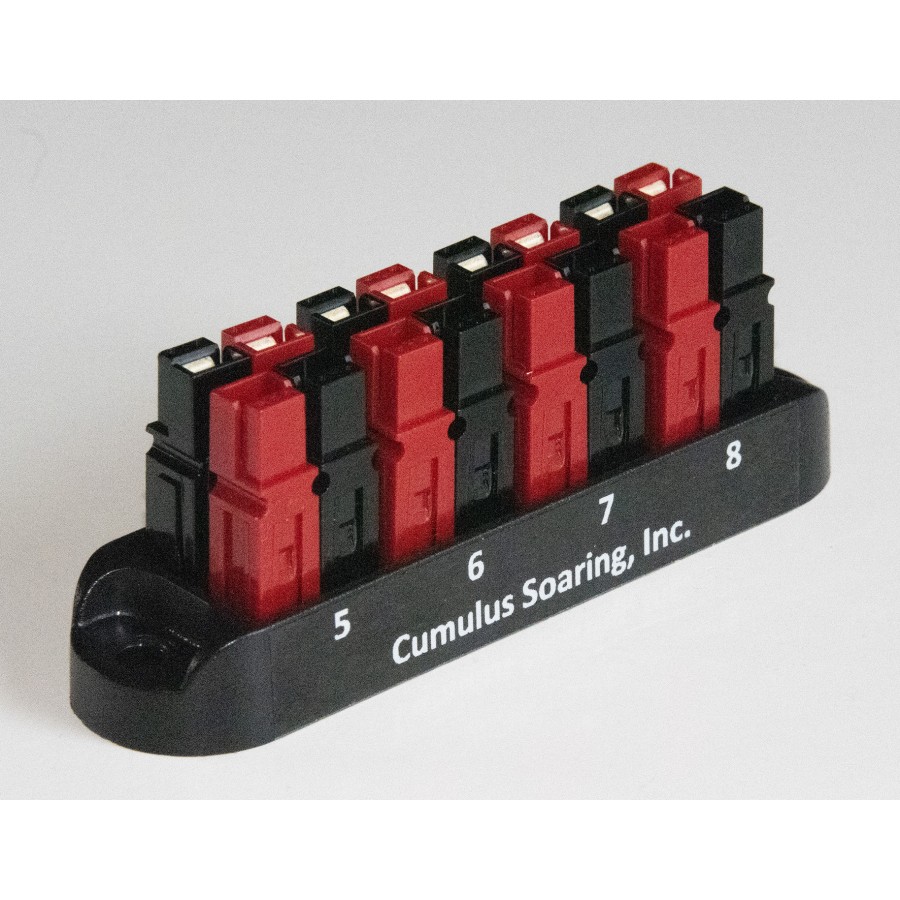

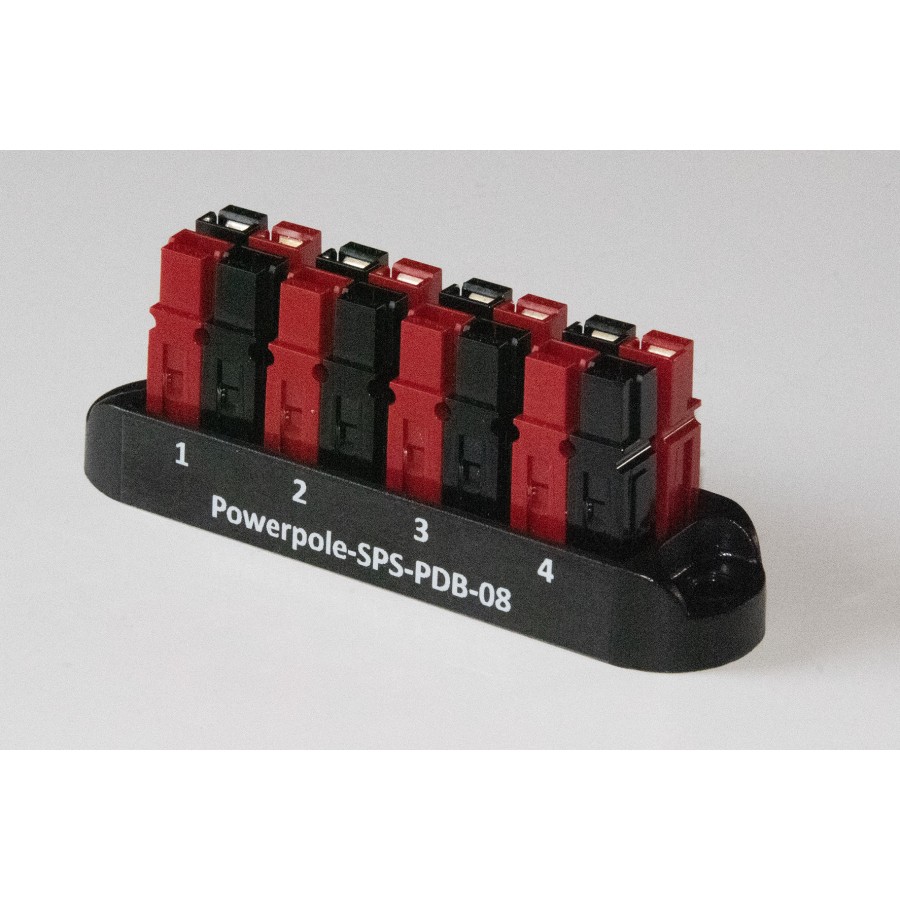

Sailplane Power System, Power Distribution Block, 8-Position, with Powerpole connectors
Any connection can be an input or output as they are all connected together
The ports are numbered - which can help when documenting the connections.
The optional Powerpole-Retention-Clip locking pins can be used on every port. They are not required, but they offer an extra level of connection robustness.
The ports are NOT spaced-out enough to allow for use of the optional Powerpole-Sleeve units.
Tech Specs| Connections | 8 Powerpole Connectors (Any connection can be an input or output as they are all connected together) |
| Compatibility | Mates with all 15, 30 & 45 amp Powerpole Connectors |
| Maximum Voltage | 58VDC |
| Maximum Amperage | 45A (continuous) |
| Mountable | 0.18" diameter mounting holes. Fits #8 screw. |
| Construction | Rugged ABS plastic base. Sealed internal bus bars. |
| Dimensions | 3.75"W x 0.97"D x 1.32"H (95.3mm x 24.6mm x 33.5mm) |
| Weight | 0.18 lb (0.08 kg)c |
Powerpole-SPS-PDB-08
- Brand: Cumulus Soaring
- Product Code: Powerpole-SPS-PDB-08
- Availability: In Stock
-
$55.00
