Statek/Broezel/ST2 - Double Probe
Note: This probe is not in production. The DN/Statek/ST2 below is recommended instead. However, this probe can be made upon request.
This is a nice, rugged double probe with TE and static pressures. However, the TE compensation is probably not quite as good as the DN/Statek/ST2 above. This probe is compatible with ST2 mounting adapters.

Specifications
Type: Double probe, Total Energy, Static
Number of Functions/Ports: 2
Materials:

• Gold anodized aluminum

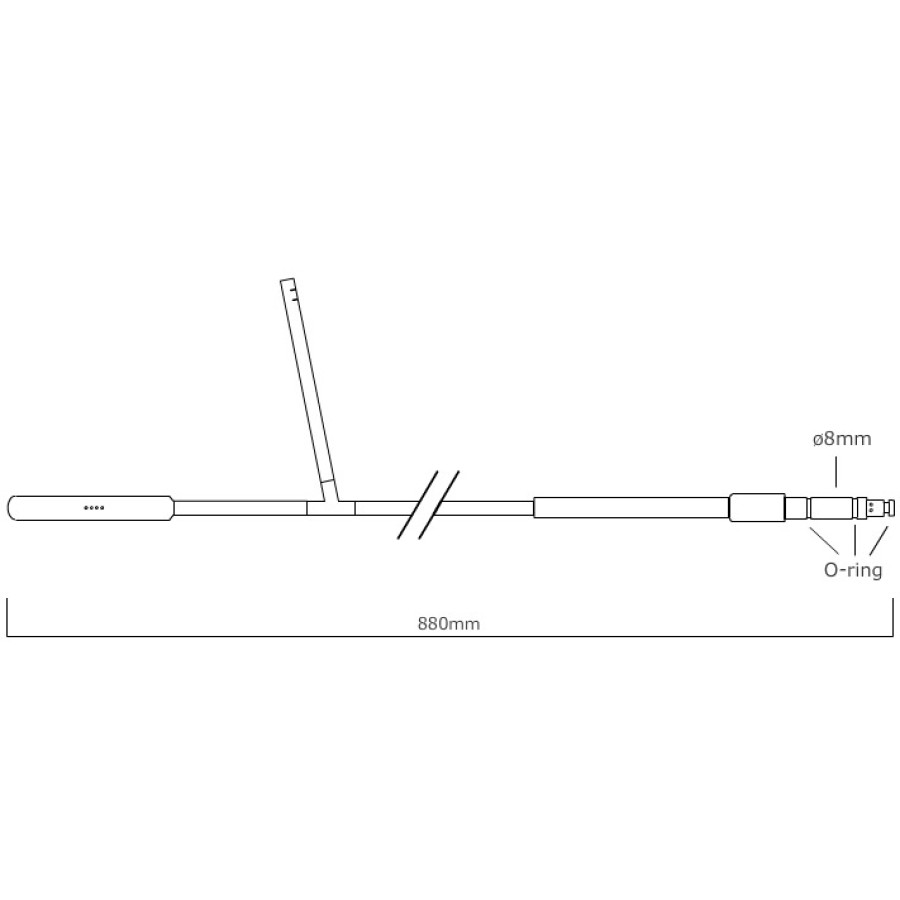

Overall Length: 880 mm (34.65 inches)
Protruding Length: 840 mm (33.07 inches)
Weight: 67 grams (2.36 ounces)

Mounting Tip

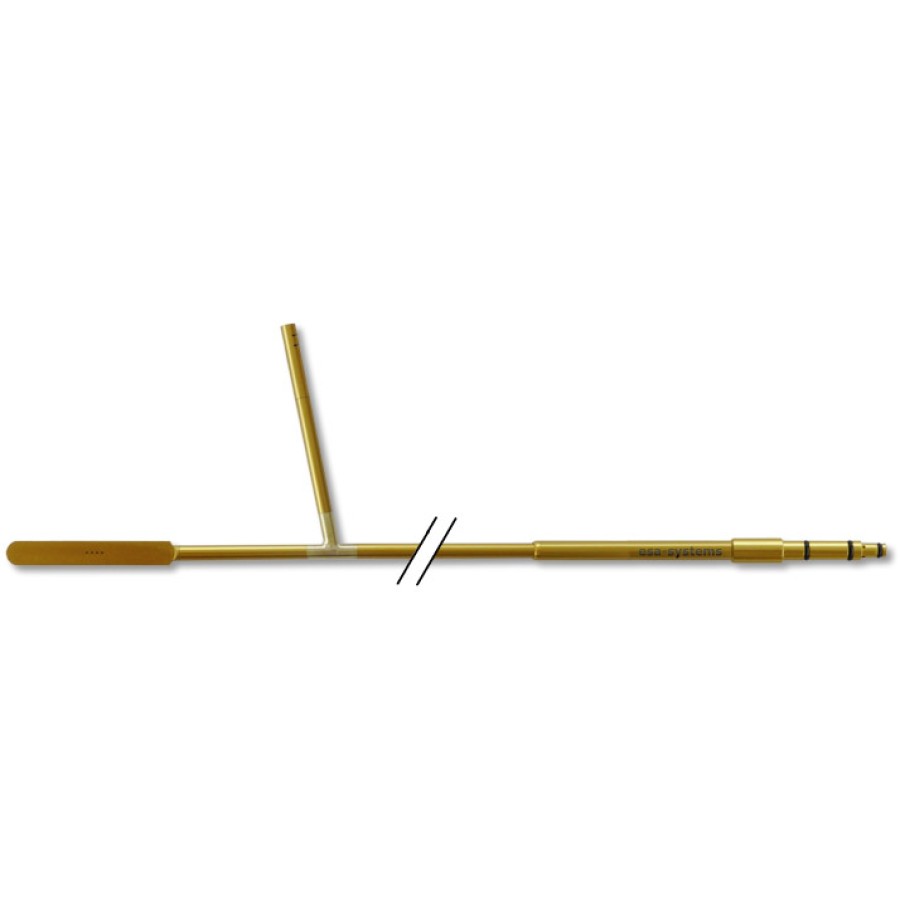

esa-systems recommends mounting this type of probe with the tip pointed up - as shown in the images at right.

Compatibility:

• Works with ST2 mounting adapters
• Does not work with ST1, UN or SUN mounting adapters
