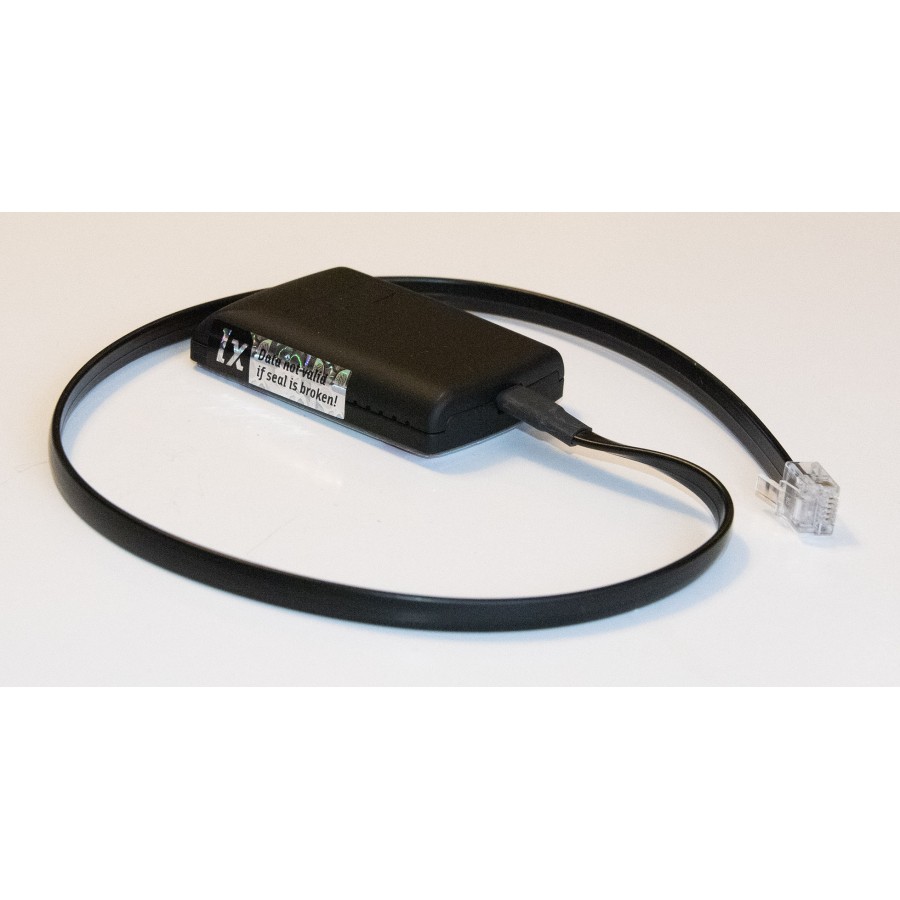

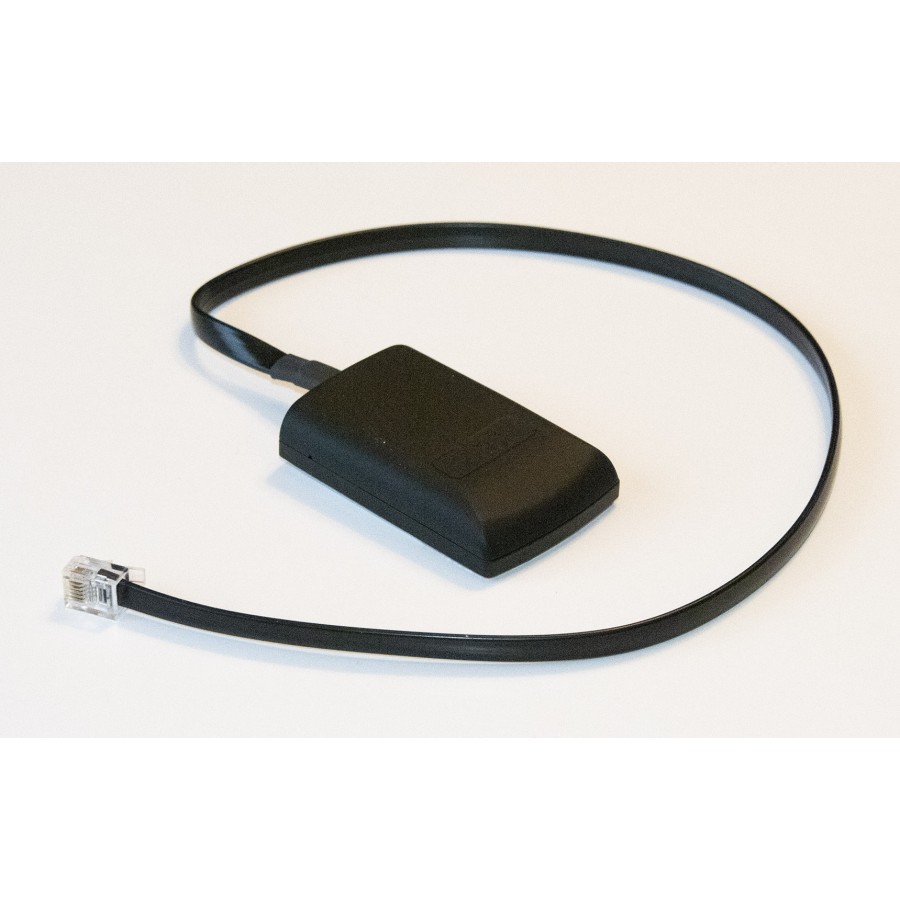

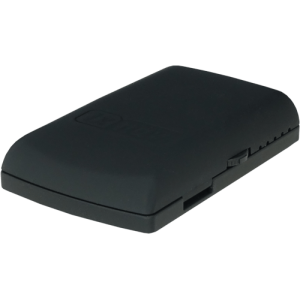

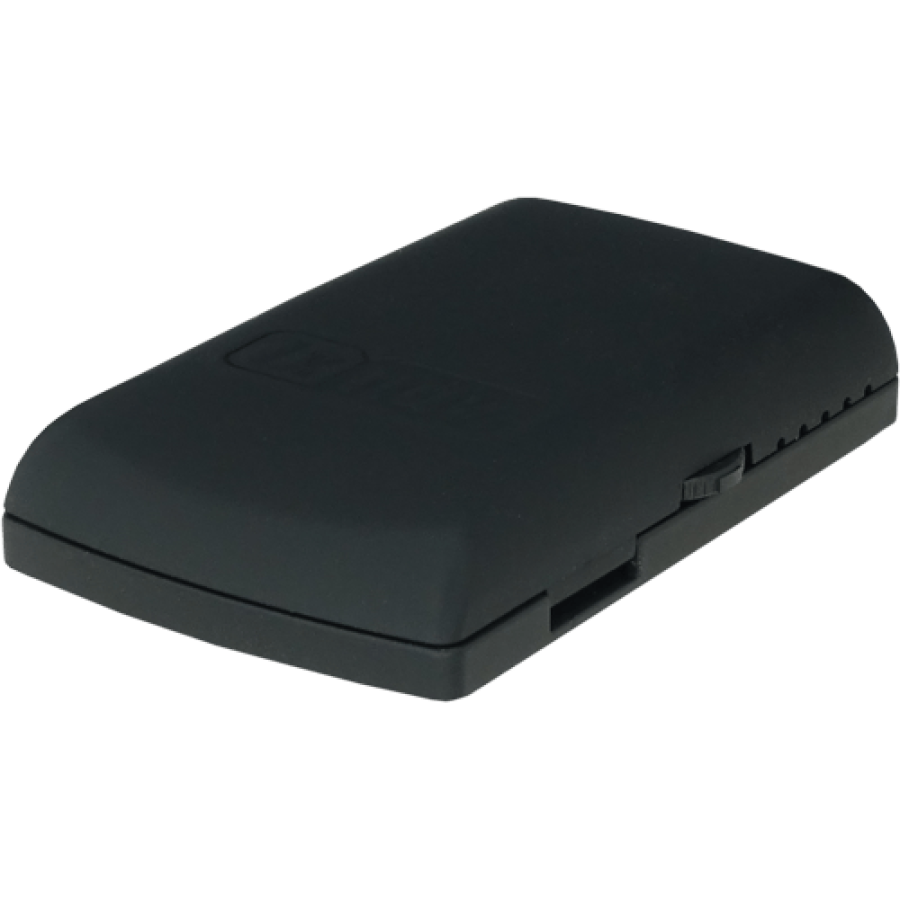

GPSMouse
66 channel GPS engine with built-in GPS antenna, For use with LXNAV S7, S8, and S80, Also works great with Naviter Oudie and Oudie2, and ILEC SN10.

For connection to an Oudie power/data cable, use the RJ45 8-pin coupler that is included with the Oudie Cable Kit and an LXNAV-S7-GPS-PF cable or LXNAV-FlarmView-PF cable and RJ12 6-pin coupler.

Specifications:

  • Input Voltage: 8 to 36 V
  • Baudrate: 9600 baud
  • Cable Length: 45 cm (17.7 inches)
  • Connector: Male RJ12 6-pin connector with IGC standard connections, connects directly to GPS port of LXNAV S7, S8, and S80. The LXNAV variometer's GPS port powers the GPS with 12V. See the LXNAV S8 manual for wiring details for the S8's GPS port.

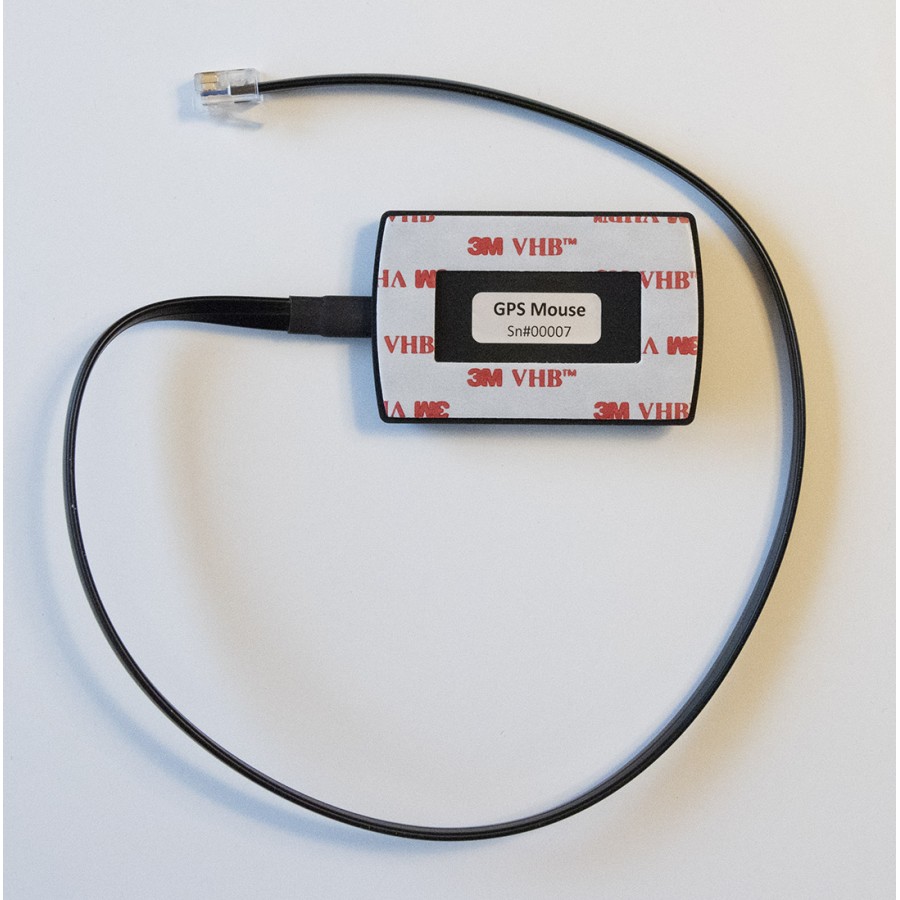

  • Mounting Method: 3M VHB (very high bond) double-sided adhesive tape on bottom of GPS Mouse

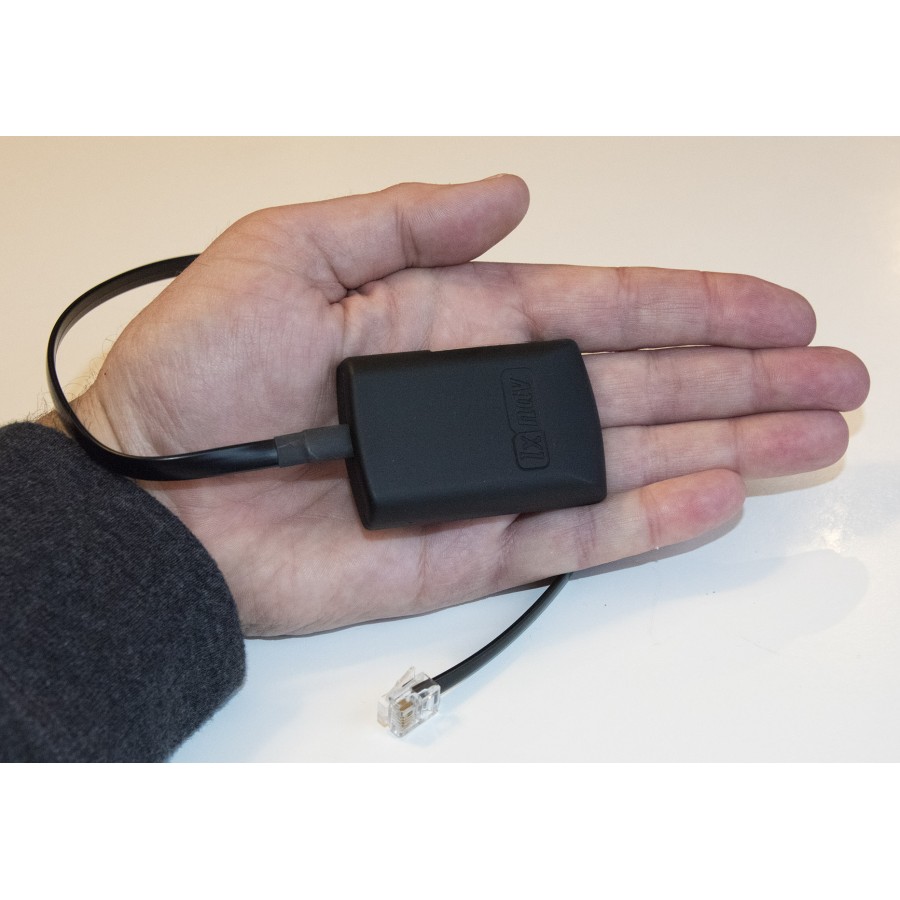

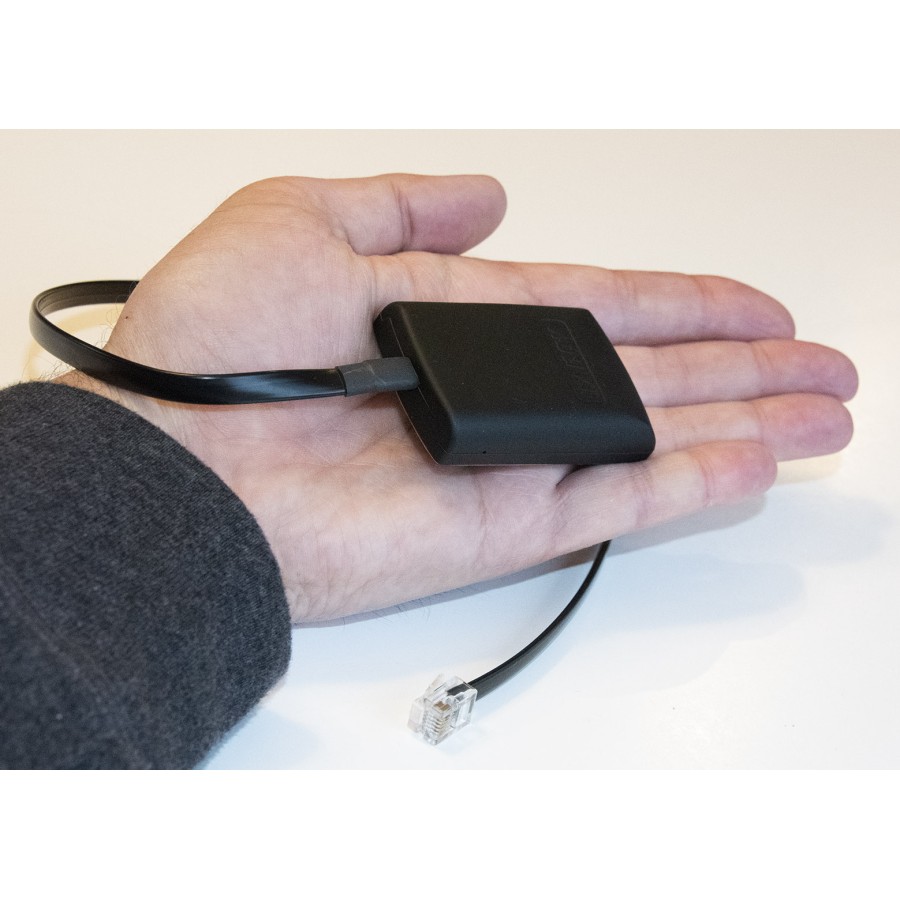

  • Dimensions: 66 x 42 x 14 mm (2.60 x 1.65 x 0.55 inches)
  • Weight: 40 g (1.4 ounces)

Status LEDs:

  • Red LED on right: Power ON
  • Green LED 2nd from the right:
    • ON: 3D GPS Lock
    • Flashing: Acquiring GPS Lock

Write a review

Note: HTML is not translated!
    Bad           Good

LXNAV-GPSMouse

  • Brand: LXNAV
  • Product Code: LXNAV-GPSMouse
  • Availability: In Stock
  • $170.00
