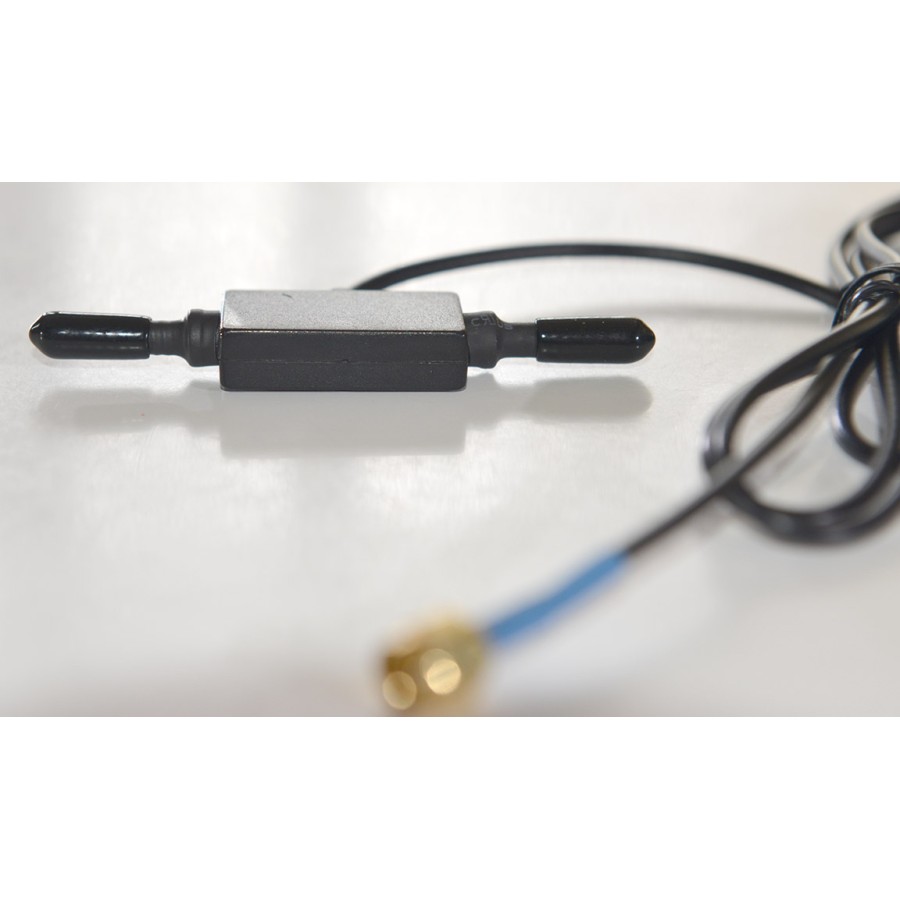

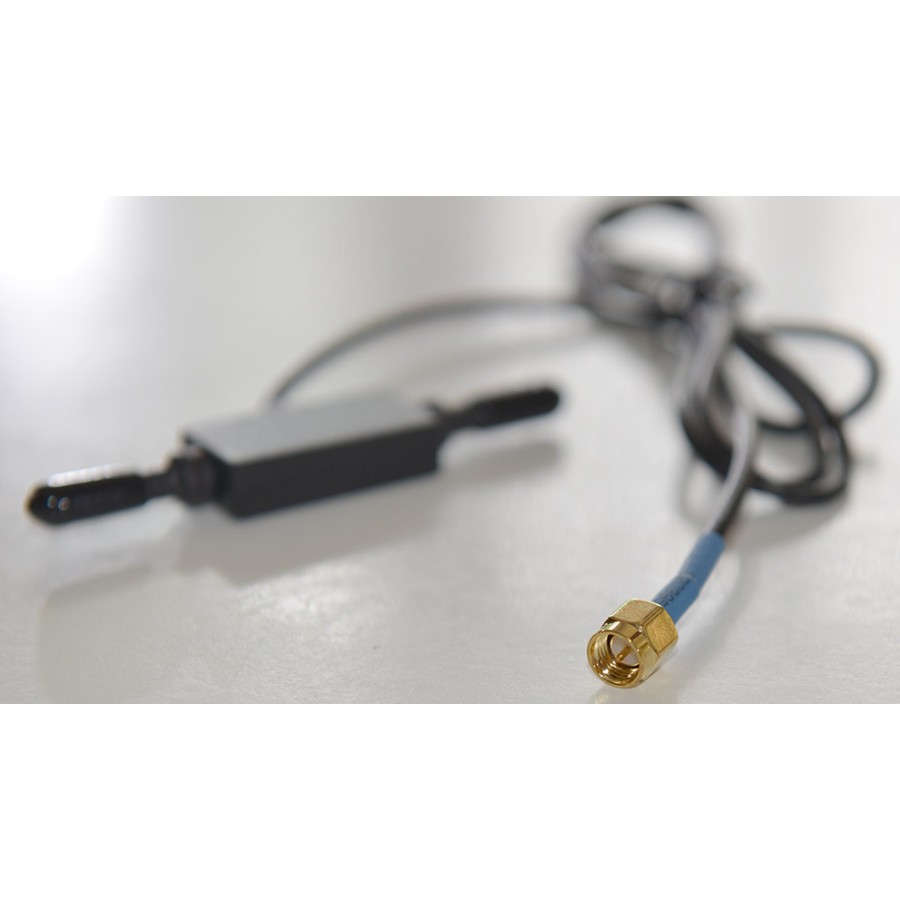

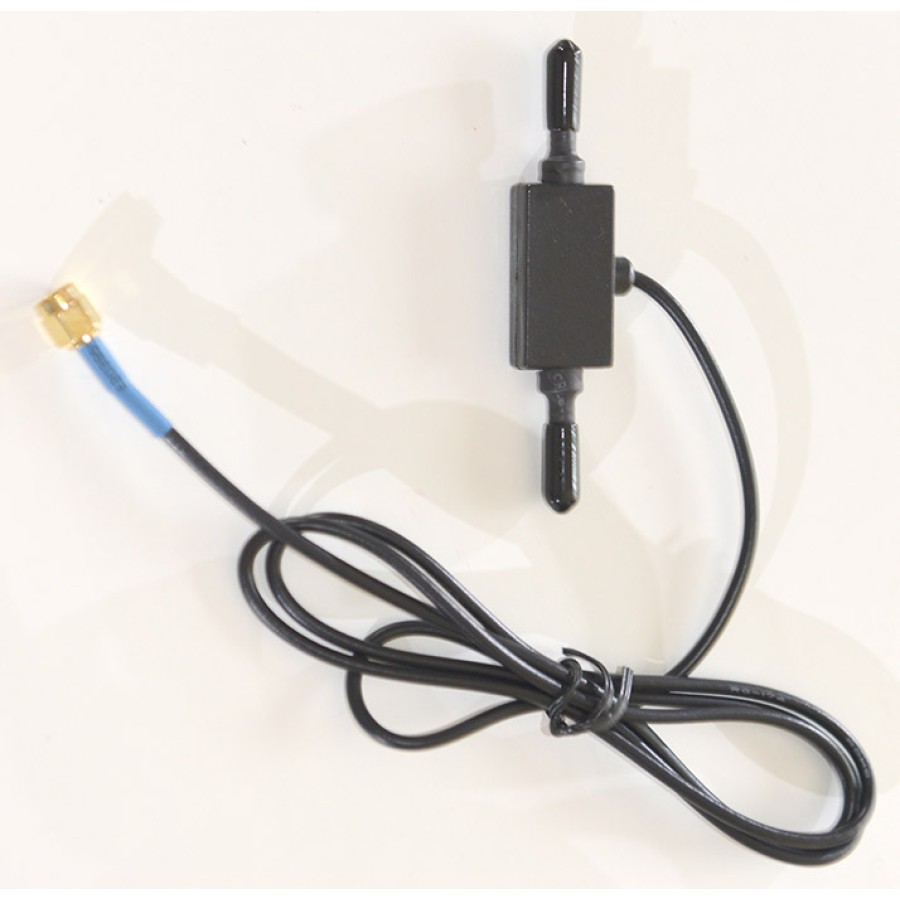

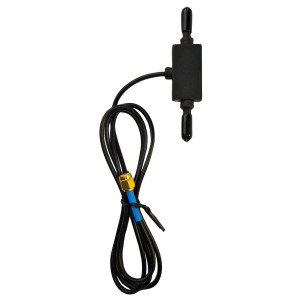

PowerFLARM Dipole ADS-B Antenna with Standard Polarity Connector
Connects directly to a PowerFLARM Fusion or PowerFLARM Core's ADS-B port.
Note: For maximum range, the antenna should be mounted pointing up and down (oriented vertically).
Note: It is important that the antenna does not touch the glider canopy.

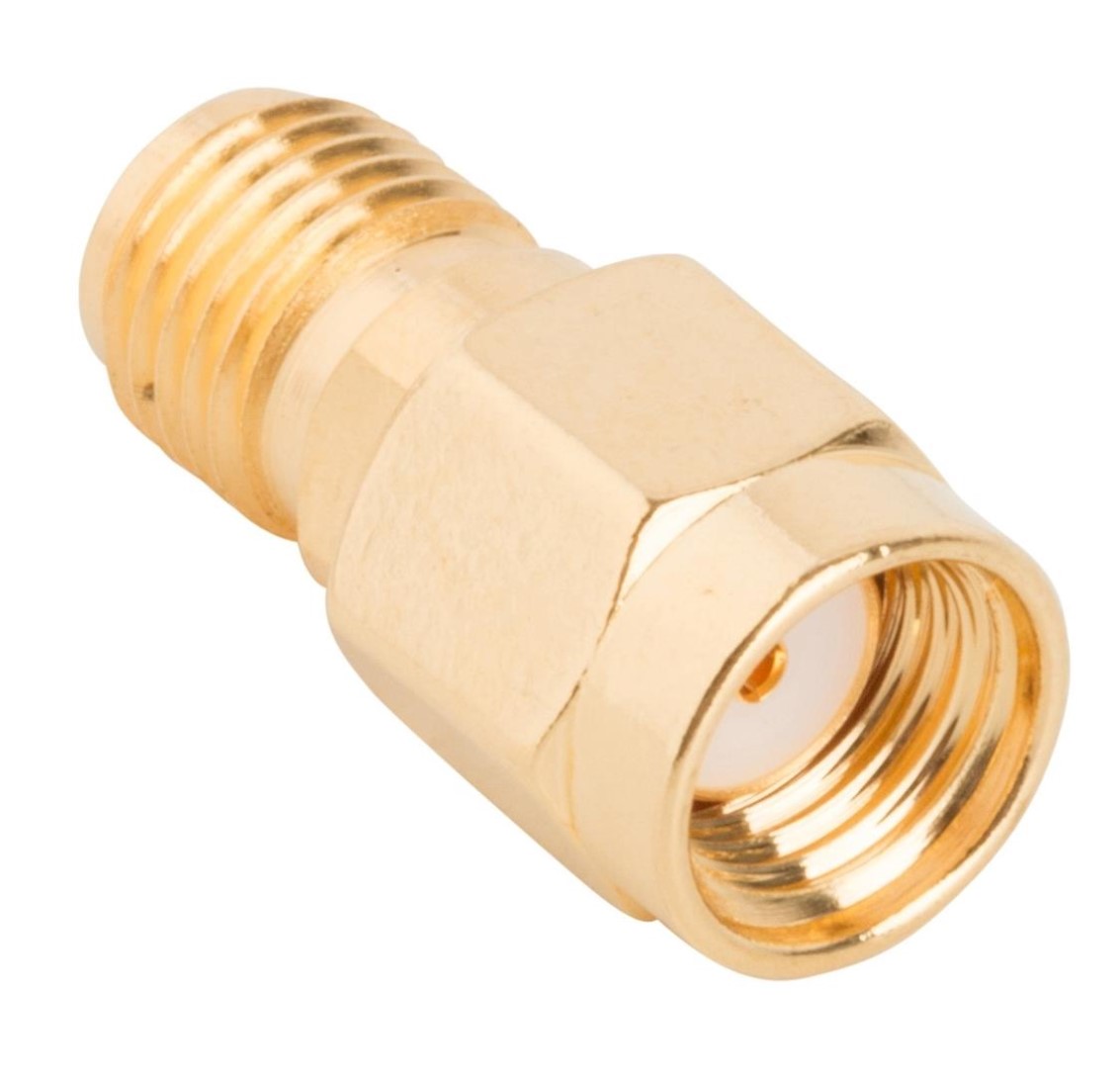

An Adapter-SMA-SMARP is required to connect the antenna cable's connector to a PowerFLARM Portable's ADS-B port.

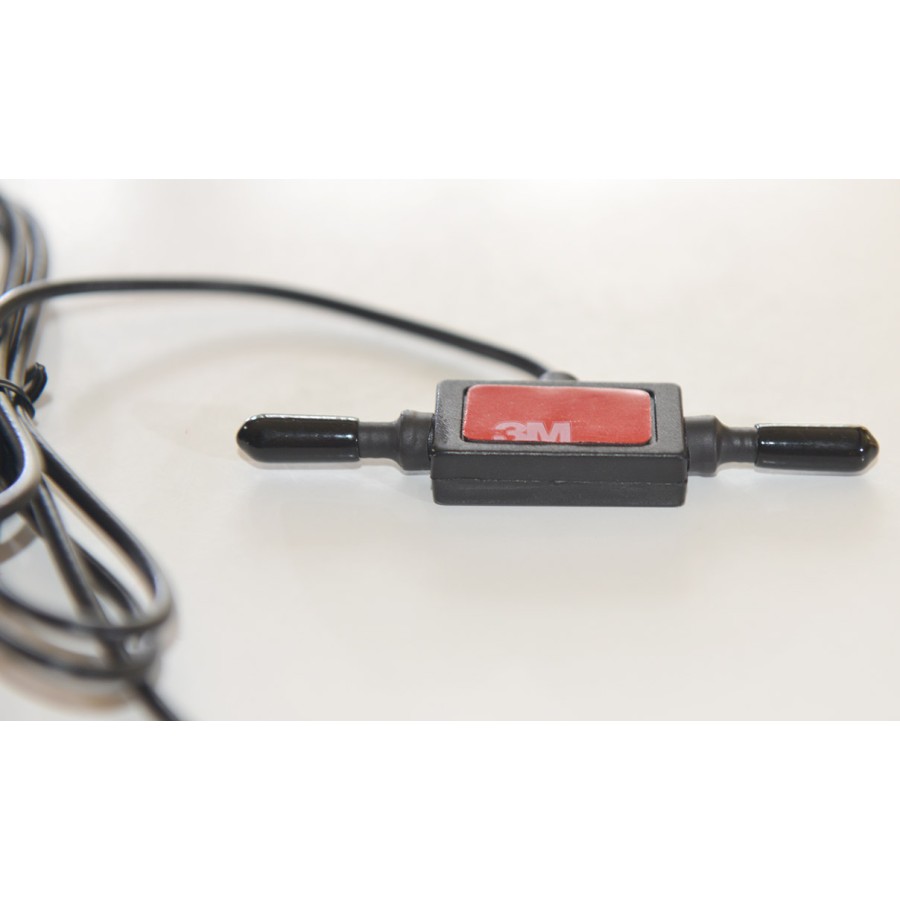

Has a 3M Adhesive strip on one side for easy attachment.
Antenna Length: 85 mm (3.35 inches)
Cable Length: 1 m (39.4 inches)
PowerFLARM Antenna Mounting Tips Application Note
PowerFLARM_Application_Note_ANTENNAS1.pdf
FLARM-Ant-ADSB-Dipole-SMA
- Brand: FLARM
- Product Code: FLARM-Ant-ADSB-Dipole-SMA
- Availability: In Stock
-
$40.00
