Overview
Naviter is a small company in Slovenia which makes high quality soaring products that are extremely popular with sailplane pilots around the world.  Their most popular products are listed below.

  • SeeYou for PC
    Very nice software for viewing flight logs in 2D or 3D on your PC.  It is also useful for waypoint file management and task planning.  SeeYou Overview Video: High Resolution, Low Resolution


  • SeeYou for Android devices and iPhones and iPads
    In late 2012 Naviter announced the new versions of SeeYou flight review software for Android devices and iPhones and iPads. It is free for SeeYou users with a current SeeYou subscription. Note: This is not software for use in flight. You can see details here: http://www.naviter.com/2012/11/seeyou-for-android/

    SeeYou Android

  • SeeYou Mobile for PDA or PNA
    Popular and full-featured soaring flight software.


  • Oudie 2
    The Oudie 2 is a Personal Gliding Assistant with built-in GPS and SeeYou Mobile and ConnectMe software pre-installed.  The Oudie comes ready-to-fly with airports, airspace and maps for most of the world pre-installed.  Also included are power/data cables, mounting cradle, wall charger, car charger - everything you need.  A great portable system with the Oudie, portable battery and glider canopy suction cup mount is shown below


  • Oudie IGC
    The Oudie IGC has the same great screen and processor as the Oudie 2, but adds a 12 hour battery, aviation grade GPS, backup audio variometer, and IGC approved GPS flight recorder. Many pilots are already flying with an Oudie connected to an LXNAV Nano. This great product has the components from a Nano inside the Oudie itself. It is perfect for use in club gliders and rental gliders.


  • ConnectMe
    ConnectMe is a free utility for transferring data between a GPS Flight Recorder and a PDA or PNA.  It can be used to download flight logs, and upload waypoint files and task declarations to many soaring flight recorders and flight computers.

News

Upgrade from Original Version Oudie to Oudie 2
February, 2013
Trade-in your original version Oudie for an Oudie 2 for $375. Send your original version Oudie to me and I'll transfer the Oudie Lifetime SeeYou Mobile license from the original version Oudie to the Oudie 2. You pay $375 for the Oudie 2 Lite and get a fully enabled Oudie 2 with all new accessories which is worth $625.


Please Buy from Me
It is possible to order the software registration keys directly from SeeYou.  I ask that you please order it from me.  I strive to help soaring pilots find and use the right products for their needs.  I have created product comparisons like the Flight Software Comparison to help customers with those decisions.  I also offer support to customers who buy through me.  The best way to thank me for the services I offer is to help support my business by buying from me.
Note: The prices on my web site should be the same or slightly lower than the prices on the SeeYou web site.  If you look at the price in Euro on their site and use an online currency converter it will seem like their price is lower.  However, if you start to place an order through the SeeYou web site you will see that the conversion rate to US$ is such that my price is the same or lower.  If it is not close, please let me know. I will be competitive.


Downloads
The SeeYou and SeeYou Mobile software can be downloaded and tested using the link below.  To enable the software you will need to buy a registration key.

Manuals
There are detailed manuals available for SeeYou and SeeYou Mobile and Oudie on the Naviter web site at www.naviter.si

Tips Documents
I have created some "Tips" documents to help you get up to speed quickly with the SeeYou, SeeYou Mobile and the Oudie.

Waypoint and Airspace Files
These files are great for use in a Naviter Oudie or LXNAV Nano3, Nano4, LXNAV S8, S80, S10, S100, LX80x0 or LX90x0
. The waypoint file contains all public and private airports from an FAA database from here. The airspace data is provided by Naviter. Right-click on the links and select "Save Target As" or "Save Link As" and save them into any directory on the desired soaring device.


SeeYou for PC Screen Captures

3D Flight Review with 3D Glider Model flying
over satellite images draped over 3D topographical data.
2D view with Winter instruments and
photos taken during the flight displayed during flight playback.



SeeYou Mobile Screen Captures

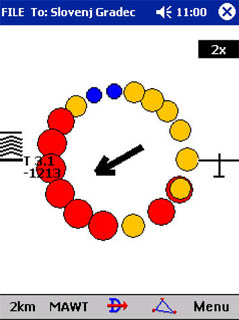

The thermal assistant helps you move your circle to optimize your climb rate.
Larger circles indicate higher climb rates.  The colors indicate whether the lift is stronger than the MacCready setting.  The Arrow points to the best side of the circle.

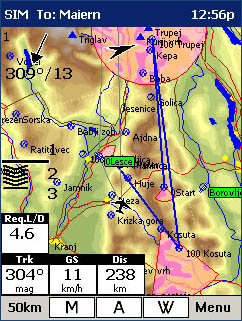

Moving map with tasks, waypoints, and user customizable data windows. Creating or modifying the task is simple with SeeYou Mobile. You can do it either at briefing before takeoff or in cockpit. Use the Menu > Task dialog.

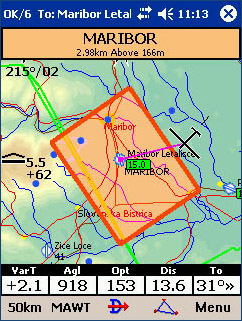

With the airspace getting smaller and smaller for glider pilots, keeping out of forbidden areas is imperative. SeeYou Mobile offers you touch-screen, visual and audio control about the airspace in your vicinity. In-flight statistics like the thermal histogram shown above help you make good in-flight decisions. FLARM traffic can be displayed on the moving map screen.  Their altitude and climb/sink rate is also displayed.
If the traffic's FLARM ID has been registered (it's free) at www.flarmnet.org, and the latest FLARMNET file has been saved on the PDA, then their contest ID or name will be displayed next to their glider on the moving map.




Oudie Comparison Table

Oudie Comparison
Feature Oudie Oudie 2 Lite Oudie 2 Oudie IGC
Screen Size 5" diagonal 5" diagonal 5" diagonal 5" diagonal
Screen Resolution 480 x 272 pixels 480 x 272 pixels 480 x 272 pixels 480 x 272 pixels
Screen Size 2.48" x 4.37"
(63 mm x 111 mm)
2.48" x 4.37"
(63 mm x 111 mm)
2.48" x 4.37"
(63 mm x 111 mm)
2.48" x 4.37"
(63 mm x 111 mm)
Screen Brightness 350 to 400 nits 900 to 950 nits 900 to 950 nits 900 to 950 nits
Dimensions 135 x 86 x 14 mm
(5.3 x 3.4 x 0.55 inches)
135 x 86 x 14 mm
(5.3 x 3.4 x 0.55 inches)
135 x 86 x 14 mm
(5.3 x 3.4 x 0.55 inches)
135 x 86 x 25 mm
(5.3 x 3.4 x 0.98 inches)
Weight 6.4 ounces
(181 grams)
6.4 ounces
(181 grams)
6.4 ounces
(181 grams)
12.3 ounces
(350 grams)
Processor ? ARM 11
500 MHz
ARM 11
500 MHz
ARM 11
500 MHz
Built-in GPS Automotive Grade
(with smoothing)
Automotive Grade
(with smoothing)
Automotive Grade
(with smoothing)
Aviation Grade
(no smoothing)
Audio Variometer (built-in pressure transducer)
(not Total Energy compensated)
No No No Yes
Thermal Assistant Data Source
(Works poorly with GPS data only)
(Works great with vario data from external vario)
(Works great with Oudie 3's internal pressure transducer)
GPS
or
external vario
GPS
or
external vario
GPS
or
external vario
Internal Pressure Transducer
or
external vario

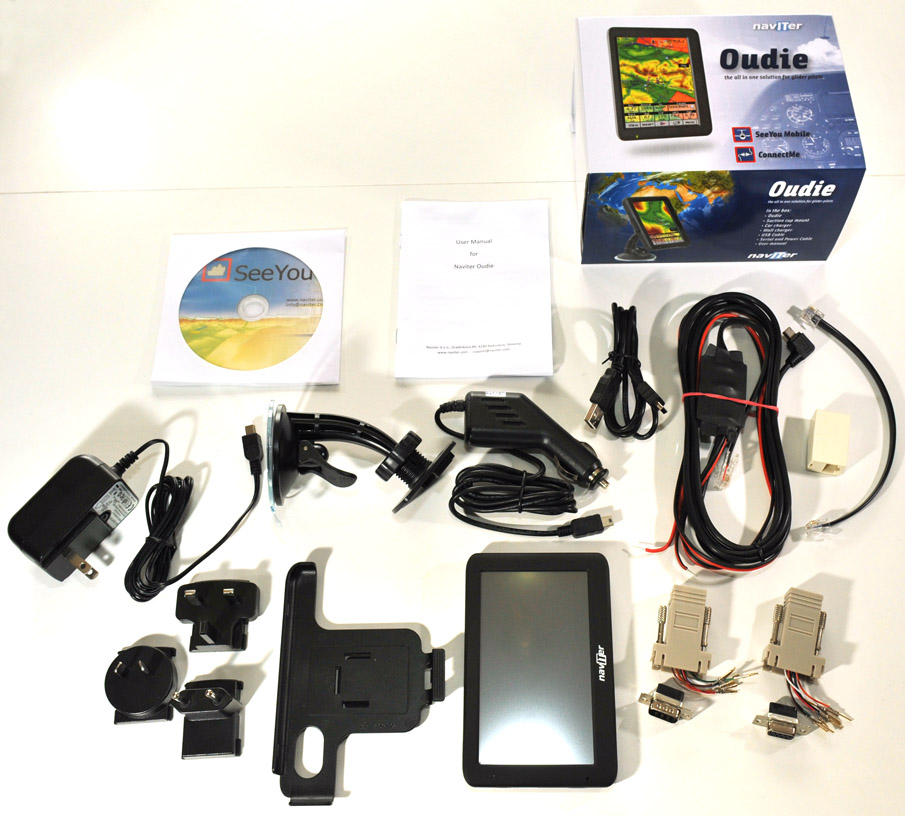

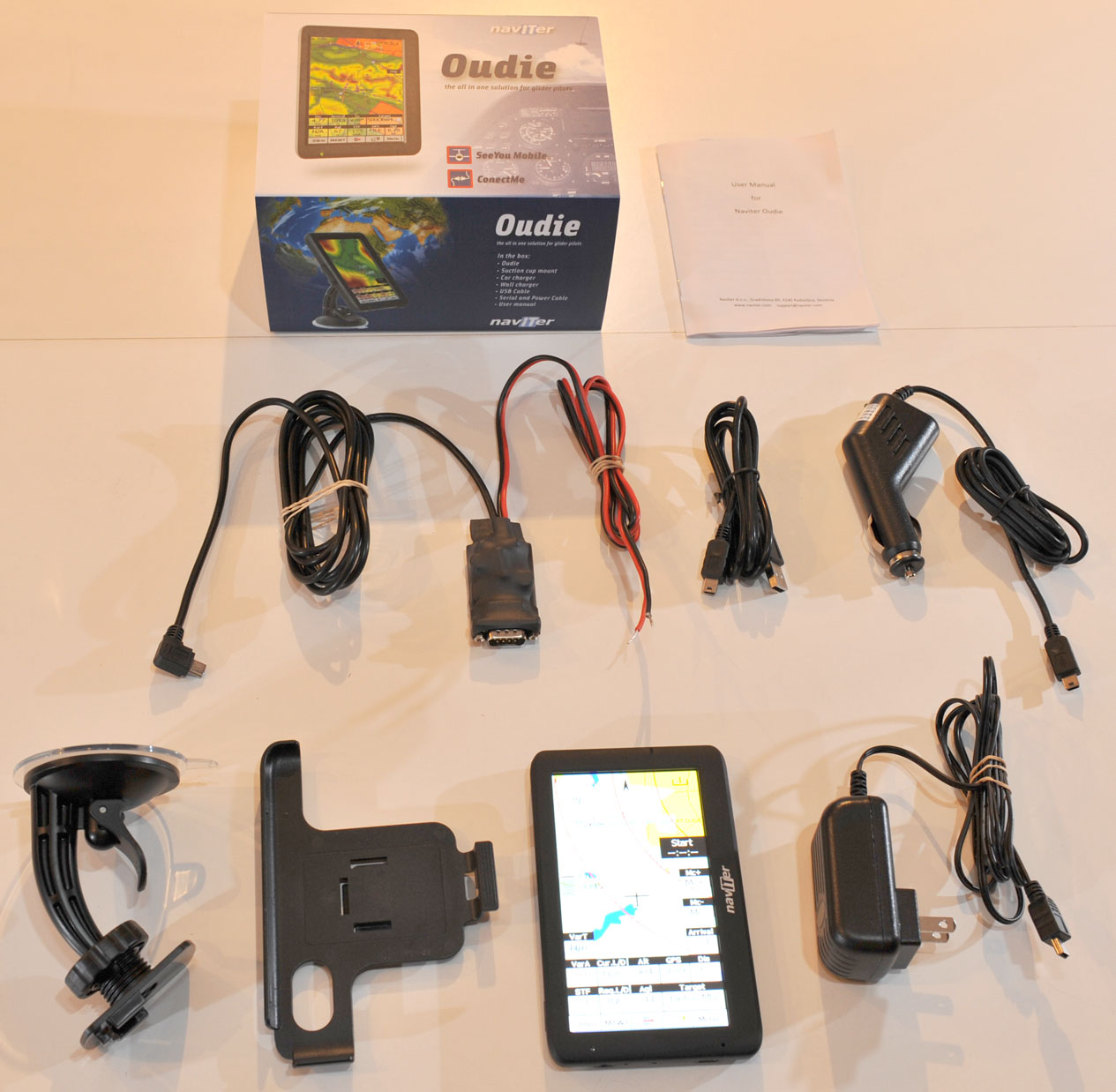

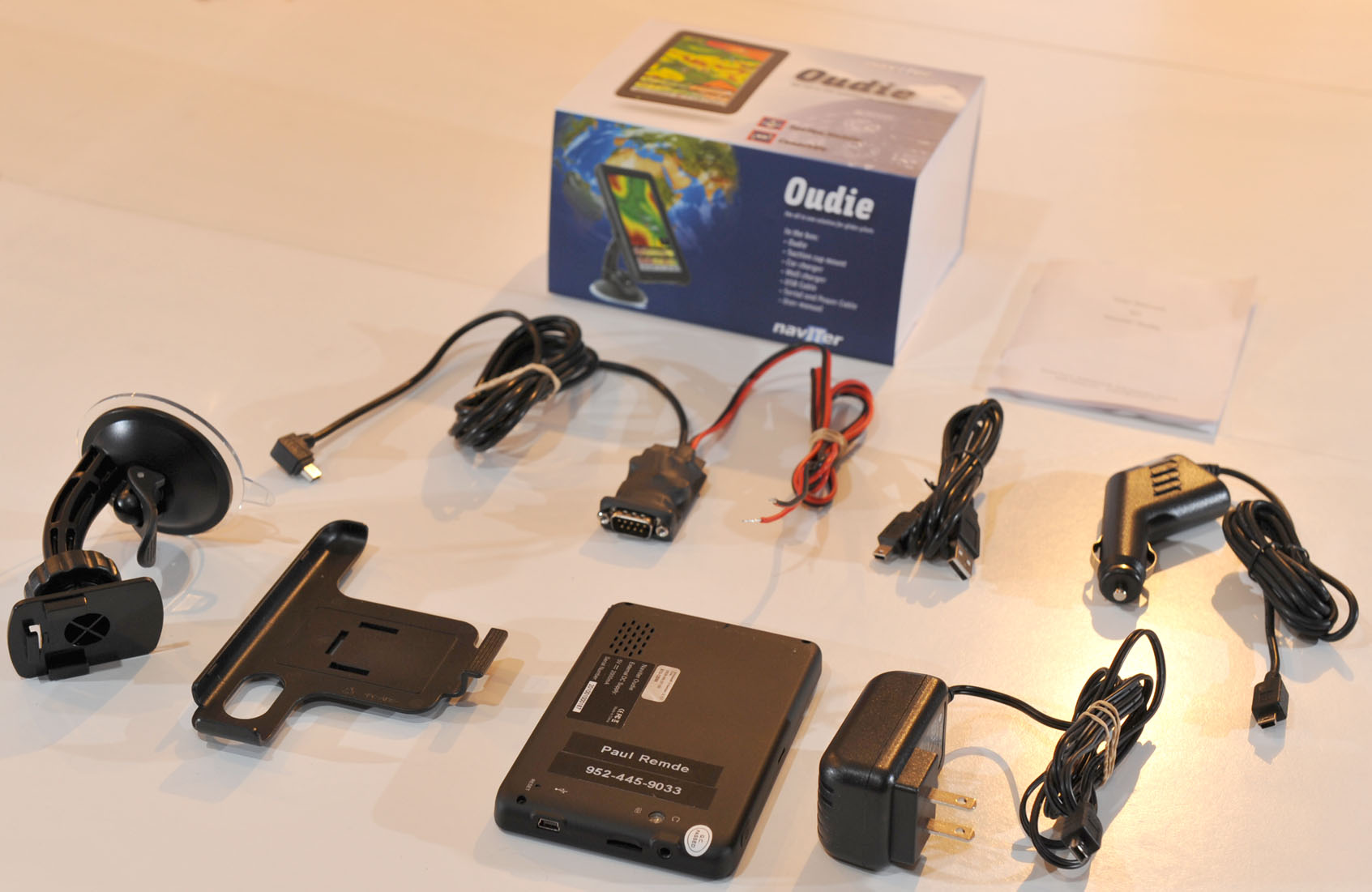

Included Accessories Oudie Cable Kit

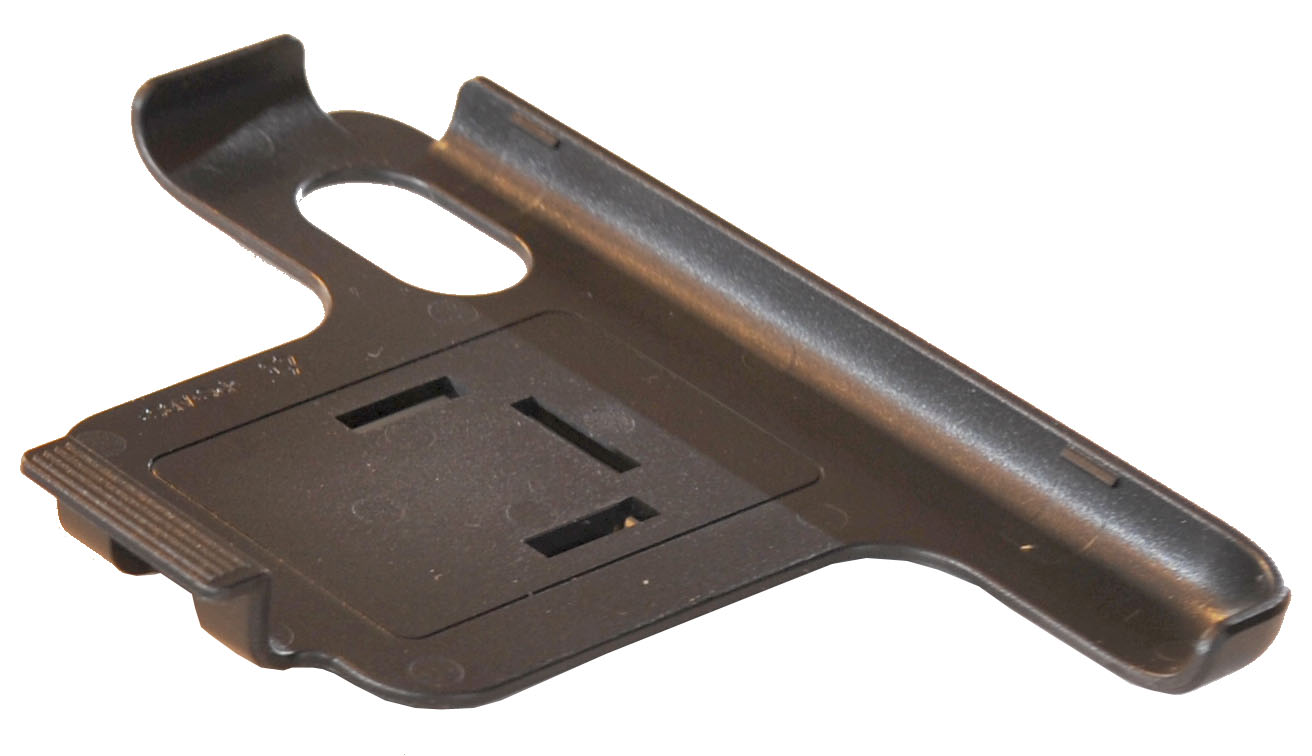

Oudie Cradle
Suction Cup Mount

Getting Started Manual
USB to miniUSB Cable
Car Charger
Wall Charger
SeeYou Trial CD
Oudie Cable Kit
Oudie Cradle
Suction Cup Mount

Getting Started Manual
USB to miniUSB Cable
Car Charger
Wall Charger
SeeYou Trial CD
Oudie Cable Kit
Oudie Cradle
Suction Cup Mount

Getting Started Manual
USB to miniUSB Cable
Car Charger
Wall Charger
SeeYou Trial CD

Oudie Cable Kit
Oudie Cradle
Suction Cup Mount

Getting Started Manual
USB to miniUSB Cable
Car Charger
Wall Charger
SeeYou Trial CD

Battery Life 2+ 2 2 12+
Oudie Lifetime Software License Included Yes No Yes Yes
Pre-installed software SeeYou Mobile
and
ConnectMe
SeeYou Mobile
and
ConnectMe
SeeYou Mobile
and
ConnectMe
SeeYou Mobile
and
ConnectMe
Can receive and display FLARM data FLARM Input FLARM Input

FLARM Input

FLARM Input

Can receive vario, airspeed, and wind data from external vario or flight computer. Comminicates with
external vario or GPS
Comminicates with
external vario or GPS

Comminicates with
external vario or GPS

Comminicates with
external vario or GPS

Can download flight logs from and send task declarations to external GPS flight recorders and flight computers. Communicates with
external GPS flight recorder
Communicates with
external GPS flight recorder

Communicates with
external GPS flight recorder

Communicates with
external GPS flight recorder
Works with Condor soaring flight simulator software with Goddard Condor-Oudie-1p5 cable. Yes Yes

Yes

No
Price No longer available $375
($495 with SeeYou for PC)

$625
($745 with SeeYou for PC)

$1160
($1280 with SeeYou for PC)

Example Systems

Naviter Oudie IGC with Suction Cup Mount - The Ultimate Portable System
This is a great portable system that can log flights for the OLC (Online Contest) and is fully IGC approved for all badges and records and soaring contests.  The Oudie IGC has a built-in aviation grade GPS and comes with SeeYou Mobile soaring flight software.  The Oudie IGC's built-in battery can power it for over 12 hours. The Oudie IGC also has a built-in variometer (not Total Energy compensated) which works great as long as you keep the airspeed relatively constant.
This system does everything that was previously done with an Oudie 2, 5V external battery and LXNAV Nano flight recorder.

Example System with Naviter Oudie IGC and Suction Cup Mount
Naviter Oudie IGC
System
Naviter Oudie IGC
with
SeeYou Mobile

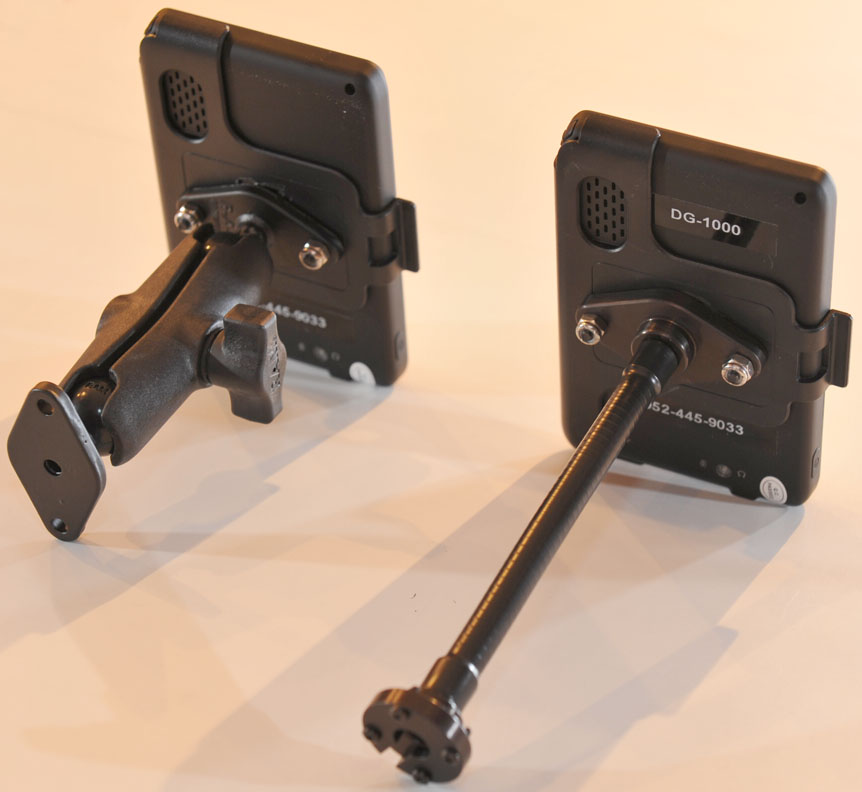

Oudie-Mount-RAM-SCM
RAM Suction Cup Mount with Oudie cradle

Total: $1219.85

Optional

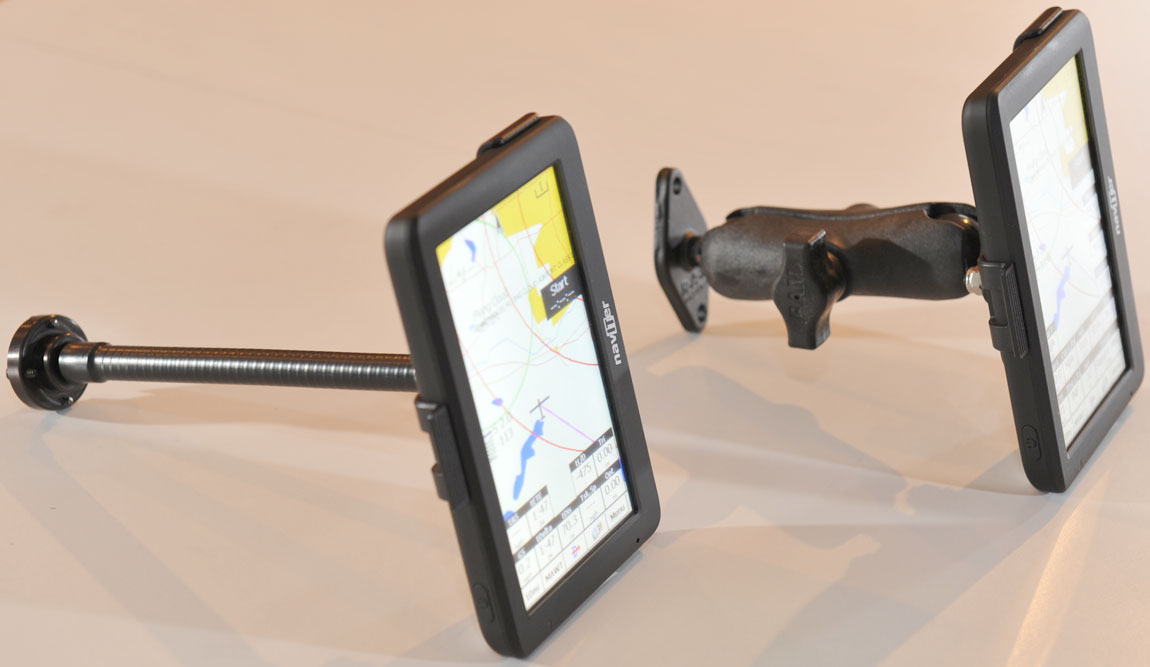

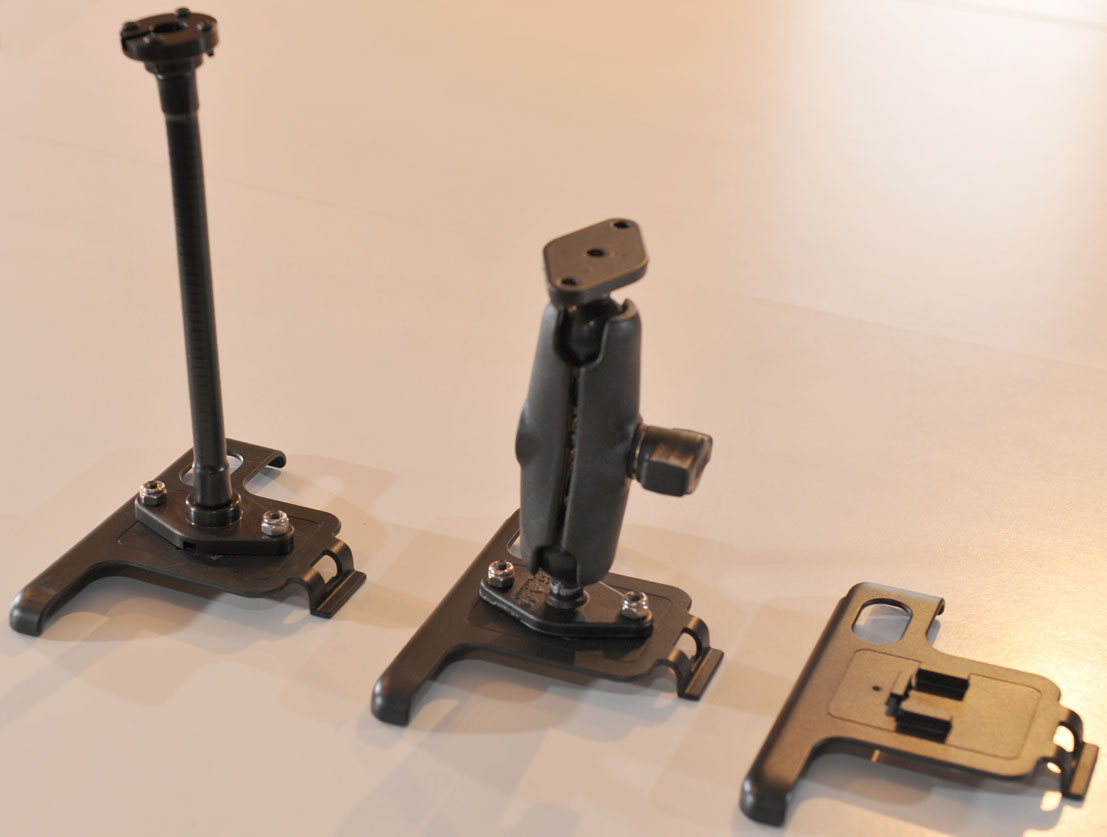

If you want to mount this PNA more permanently, I recommend the Oudie-Mount-RAM-Arm-Std or a Oudie-Mount-GNeck-Panel or Oudie-Mount-GNeck-RA or Oudie-Mount-RAM-Adhesiv
or or or


Naviter Oudie 2 with Suction Cup Mount and 5V Battery Pack
This is a great portable system that can log flights for the OLC (Online Contest).  The Oudie has a built-in GPS and comes with SeeYou Mobile soaring flight software.  The 5V Battery Pack can power the Oudie for over 14 hours.  The Oudie can log flights which are accepted by the OLC (Online Contest).  However, the Oudie's "PDA Logger" is not approved by the IGC and therefore can't be used for badges or records.  The new sunlight readable version of the Oudie is easy to read even in bright sunlight.

Example System with Naviter Oudie, Suction Cup Mount and 5V Battery Pack
Naviter Oudie2
System
Naviter Oudie2
with
SeeYou Mobile
Oudie-Mount-RAM-SCM
RAM Suction Cup Mount with Oudie cradle

Battery-5V-8000mAh-w-charger
The USB to mini-USB cable used to connect
the battery pack to the Oudie
is included in the box with the Oudie.

Total: $743.85

Optional
If you want to mount this PNA more permanently, I recommend the Oudie-Mount-RAM-Arm-Std or a Oudie-Mount-GNeck-Panel or Oudie-Mount-GNeck-RA or Oudie-Mount-RAM-Adhesiv
or or or


LXNAV S8 or S80 Variometer with and Naviter Oudie IGC
This is a fantastic complete flight computer system.  The Oudie IGC provides GPS data to the S8 or S80 variometer.  The S8 or S80 adds vario, airspeed and wind data and sends it all to the Oudie IGC. The S8 or S80 powers the Oudie IGC with 5V. Ths S8 or S80 can display waypoints and airspace and tasks for navigation. The Oudie IGC has a built-in battery good for 12 hours - so you can take it with you when flying club or rental gliders. The Oudie IGC is a very bright color navigation display with detailed maps and final glide calculations - and a built-in IGC approved GPS flight recorder.

Example System -  S8 or S80 Variometer with Naviter Oudie IGC

or
LXNAV S8 or LXNAV S80
Speed-to-fly variometer
LXNAV CC-NP-Oudie
Cable from the S8 or S80's RJ45 PDA
connector to the Oudie2's mini-USB connector
The S8 or S80 powers the Oudie2 with 5V.

Naviter Oudie IGC
with
SeeYou Mobile

Oudie-Mount-RAM-Arm-Std
RAM Arm Mount with Oudie cradle

Total Price with S8: $2539
Total Price with S80: $2669

Optional


LXNAV S8 or S80 Variometer with PowerFLARM Core and Naviter Oudie2
This is a fantastic complete flight computer system.  The PowerFLARM provides GPS and FLARM traffic data to the S8 or S80 variometer.  The S8 or S80 can display FLARM traffic, waypoints, tasks and final glide calculations. The S8 or S80 adds vario, airspeed and wind data to the FLARM and GPS data and sends it all to the Oudie2.  The SeeYou Mobile software on the Oudie can send an official task declaration through the S8 or S80 to the PowerFLARM Core.  The S8 or S80 powers the Oudie with 5V and the PowerFLARM Core with 12V. The Oudie2 is a very bright color navigation display with detailed maps and final glide calculations.

Example System -  S8 or S80 Variometer with PowerFLARM Core and Naviter Oudie2


or


or
PowerFLARM Core

LXNAV-S7-GPS-PFCore
Cable from the S7's RJ11 connector to the
PowerFLARM's DB-9 connector
The S8 or S80 powers the
PowerFLARM Core with 12V.
or
Cable-PFLARM-Pwr-DB9m-S7-0p5
Cable for connecting a S7, S8 or S80's
GPS port to a PowerFLARM Core's DB-9
port. 12V power leads are also provided
for powering the PowerFLARM Core with
12V. This cable does not pass 12V power
from the S7, S8 or S80 to the
PowerFLARM Core.

LXNAV S8 or LXNAV S80
Speed-to-fly variometer
LXNAV CC-NP-Oudie
Cable from the S8 or S80's
RJ45 connector to the
Oudie2's mini-USB connector
The S8 or S80 powers the
Oudie2 with 5V.
Naviter Oudie2
with
SeeYou Mobile
Oudie-Mount-RAM-Arm-Std
RAM Arm Mount with Oudie cradle

Total Price with S8: $3633
Total Price with S80: $3763

Optional


Currency Issues
Since the products below are from Slovenia, the prices are subject to change with fluctuations in exchange rates.  I keep the prices on this web page lower than purchasing directly from SeeYou.

How to Order
To order a product, click on the
button next to the product.
When you are ready to complete your order, click on the
button.
Click on the small images to view larger versions.

Part # Description Photo
Click on image to view larger version

Price

Lead-time

Naviter-Oudie2Lite

Naviter Oudie2 Lite
The Oudie 2 Lite has the same hardware and bright display as an Oudie 2 and has SeeYou Mobile software pre-installed, but does not include a license for SeeYou Mobile. Oudie 2 Lite owners can use their existing PDA or PNA SeeYou Mobile license, or install free soaring flight software such as XCSoar, or they can purchase a license for SeeYou Mobile in the future - with free upgrades for the life of the Oudie 2 unit.

The Oudie 2 and Oudie 2 Lite units are a delivered with an extensive set of accessories (see below) - including a power/data cable and adapters for connection to most any soaring instrument, mounting cradle, suction cup mount, car charger, wall charger, and PC USB cable. The extremely bright display and included accessories make the Oudie 2 and Oudie 2 Lite exceptional values.

The Oudie 2 (below) is still available with the Oudie Lifetime License for SeeYou Mobile for sailplanes with free software upgrades for the life of the unit.

Improvements in the latest Oudie 2 versions shipped after September of 2012
All new Oudie 2 and Oudie 2 Lite units shipped after September 2012 have the following advantages over earlier Oudie and Oudie 2 units.
Since the Oudie 2 Lite units were introduced in December or 2012, all Oudie 2 Lite units have these new features.

  • Slightly faster processor (faster than similar competitive products)
  • Faster screen updates - it is especially noticeable when moving from screen to screen
  • Lower power consumption (about 30% less than competitive products)
$375 In Stock
Naviter-Oudie2 Naviter Oudie2
Note: See also the Naviter-Oudie2-Bundle below.  It includes the Oudie with brighter screen and SeeYou for the PC.  You save $35 when you order them together.
The original Oudie was a revelation when it was first released.  It offered a very nicely packaged combination of PNA, GPS and soaring flight software - complete with cables, chargers, mounting cradle, etc.  When released it was slightly brighter than any existing PDA or PNA.  Even so, like all color PDAs and PNAs at the time, it was only "OK" in sunlight.  Turning off the display of terrain data made it acceptable, but not great in bright sunlight.  In every other respect it was (in my opinion) the perfect "Personal Gliding Assistant".  The Oudie proved to be a huge success.  I sold over 400 of them over 2 years.  They would not have been so popular if pilots didn't agree that they were acceptable in sunlight.  Yet we all wished for a much brighter screen.  The only bright alternatives were much more expensive large displays that needed to be mounted in the instrument panel (requiring the re-layout of the instrument panel).

The New Brighter Oudie
The great news is that Naviter has now introduced a new, brighter version of the Oudie.  How much brighter is it?  You can see for yourself in the photos above.  Click on them to view larger versions.  They were taken in bright sunlight.  The original Oudie is on the left and the new Oudie is on the right in each photo.  The display of terrain data is turned off in the left image.  The brightness of the new Oudie is in the 900 to 950 nits range.  That is very bright.  The original version Oudie had a brightness in the 350 to 400 nits range.  The Oudie is now the perfect soaring tool.

The Oudie is a "Personal Gliding Assistant" that is nearly perfect for use in gliders.  Many current model PDAs and PNAs suffer from some "gotcha" issue such as the lack of a serial port, or low resolution, screen too small or too large, etc.  The Oudie is the perfect size for use in a glider and offers a built-in GPS and built-in RS-232 serial port - so it can talk to soaring flight computers and flight recorders.  The 5" diagonal screen is a little larger than a PDA, but the overall footprint is much smaller than the existing "high end" soaring navigation displays.  The screen resolution is 480 x 272 pixels.  That is more than an iPAQ h3900, the same as the Bendix King AV8OR and less than iPAQ 310, iPAQ hx4700 or ClearNav.  I have flown many hours with an Oudie I have been very satisfied with its screen resolution.  The price is very reasonable considering it includes a built-in GPS, suction cup mount, power/data cable with built-in 12V to 5V power converter and a license for SeeYou Mobile that is tied to the Oudie.  The Oudie (with its built-in GPS) has been popular both for pilots looking for a portable system in club and rental gliders, and pilots looking for a semi-portable mounted system wired into a glider's electrical system and connected to a soaring GPS or flight computer.  One major advantage that the Oudie has over all other PDAs/PNAs is that it has non-volatile memory.  It does not lose any data when the battery dies.  You just re-charge the battery and go fly. Another cool feature is that when using an external GPS, the Oudie will automatically switch from external GPS input to using its internal GPS in the event that the external GPS stops sending data. It also automatically switches back to the external GPS when it starts receiving data from it again.

Improvements in the latest Oudie 2 versions shipped after September of 2012
All new Oudie 2 and Oudie 2 Lite units shipped after September 2012 have the following advantages over earlier Oudie and Oudie 2 units.
Since the Oudie 2 Lite units were introduced in December or 2012, all Oudie 2 Lite units have these new features.

  • Slightly faster processor (faster than similar competitive products)
  • Faster screen updates - it is especially noticeable when moving from screen to screen
  • Lower power consumption (about 30% less than competitive products)

What's in a Name?
I am often asked how to pronounce "Oudie".  I don't have an exact answer.  At first I suspected OwDee (as in the way "ou" is pronounced in the words "out" and "loud").  But now I suspect it is OhDee (as in O.D.).  My theory is that Oudie it is a play on words just like the name of their PC software - SeeYou.  SeeYou could be a play on the abbreviation C.U. (or Cu) (get it... CU = SeeYou) often used as a shorthand way to say Cumulus.  Likewise Oudie just may be a play on the abbreviation O.D. (over development - what happens when there is too much moisture in the air and strong lift such that the clouds grow too big and cover too much of the sky).  What do you think?  Am I right, or is it just late and am I "reaching" a bit...?  Regardless of how you pronounce it, it is a great product and a huge hit with soaring pilots around the world!

It is a "Personal Gliding Assistant" which runs SeeYou Mobile natively. What makes it different than any other device on the market is the ability to perform all of the most important tasks for glider pilots right out of the box.

Features:

  • Screen brightness: 900 to 950 nits (extremely bright - sunlight readable)
  • Large 5" screen
  • Landscape and Portrait screen orientations
  • Integrated GPS for stand-alone operation
  • Non-volatile memory - all data is retained if the battery gets low.  (Most PDAs lose all their memory and must be re-setup when their battery gets low.)
  • Automatic GPS input switching - When receiving data from an external device, if the Oudie stops receiving data from that device it automatically switches over to using its internal GPS.  It also automatically switches back to the external data source when it starts working again.
  • GPS Data Output - The Oudie can be configured to send GPS data out to another device.  For example, the Oudie can send GPS data and "distance to target" data to a Cambridge L-NAV or S-NAV.  For details see the required cable here: Cable-Oudie-LNav-0p3. It can also send GPS data to an LXNAV S7 variometer.

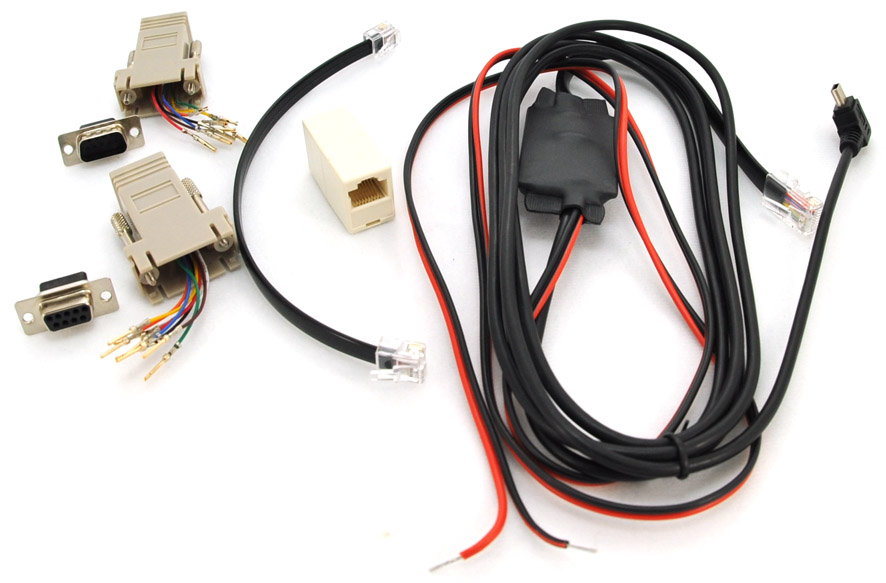

  • Oudie Cable Kit- It connects to the unit's mini-USB connector and includes a built-in 12V to 5V power converter and an RS-232 voltage level converter.  This supplied Oudie cable can be connected directly to a FLARM or PowerFLARM unit.  RJ45 (female) to DB-9f and DB-9m adapters are included which can be configured for connection to most soaring GPS and flight computer types.
  • Bluetooth serial communication
  • SeeYou Mobile soaring flight software is pre-installed
  • Vector maps for the world are pre-installed
  • Airport and Airspace files for much of the world are pre-installed.  Below is a list of the included files.  To select the airport and airspace files for your region, in SeeYou Mobile, go to Menu > Settings > Files.
    It is also easy to generate airport and airspace files for your area using the Mobile Wizard in SeeYou on the PC.  The Mobile Wizard is shown in my SeeYou Training video number 46 here.

    Pre-installed Airport and Airspace files:
    • Africa
    • Alps
    • Australia
    • BeNeLux
    • The Czech Republic, Slovakia, and Poland
    • France
    • Germany
    • Hungary
    • New Zealand
    • Scandinavia
    • Spain
    • UK
    • USA (divided into files for "USA West", "USA Central" and "USA East"

    I can provide airport and airspace files for other countries or regions upon request.  I charge $20 for that service.

Specifications
Screen Size: 5" diagonal
Screen brightness: 900 to 950 nits (extremely bright - sunlight readable)
Screen Dimensions: 2.48" x 4.37" (63 mm x 111 mm)
Screen Resolution: 480 x 272 pixels
Overall Size: 135 x 86 x 14 mm (5.3 x 3.4 x 0.55 inches)
Weight: 6.4 ounces (0.4 pounds) (181 grams)
Processor: ARM 11, 500 MHz
Current: 200 to 220 mA (plus about 150 to 200 mA when battery is being charged)
Battery Duration with backlight at full brightness: about 2 hours, 45 minutes - However, the unit has a light sensor and can dim the backlight when inside (such as in the hanger) - which will extend the battery life quite a lot.

Included:
The Oudie comes with a complete set of accessories.

  • Oudie unit
  • SeeYou Mobile Software and maps and airspace and waypoints for most of the world pre-installed
  • SeeYou Mobile Lifetime software license
    The SeeYou Mobile software license includes free upgrades to the SeeYou mobile software for the life of the Oudie unit. The license key is tied to the serial number of the Oudie and can be sold with the Oudie.
  • User Manual for Naviter Oudie
    Actually more of a short "Getting Started" manual. A full Oudie 2 manual is available on the Naviter web site at www.naviter.com - then go to the Products menu and select Oudie 2.
  • Program Installation CD
    Contains installation programs for SeeYou for PC, SeeYou Mobile and ConnectMe.  Note: A license for SeeYou for PC is not included with the Oudie.  If you do not already own a license for SeeYou for PC, I highly recommend buying the Naviter-Oudie2-Bundle.  You save $35 when you order them together in the bundle.
  • Cable, USB to mini-USB
    For connecting the Oudie to a PC or Socket Mobile Power Pack, This is a standard USB to mini-USB cable.  If you lose it you can buy another at Radio Shack or Best Buy or Target, etc.
  • Wall Charger
    With 4 exchangeable plugs (for use in different countries) - supplies 5V power to the Oudie.
  • Car Charger
    male cigarette lighter plug to mini-USB connector, includes a 12V to 5V voltage reducer and provides 5V power to the Oudie.

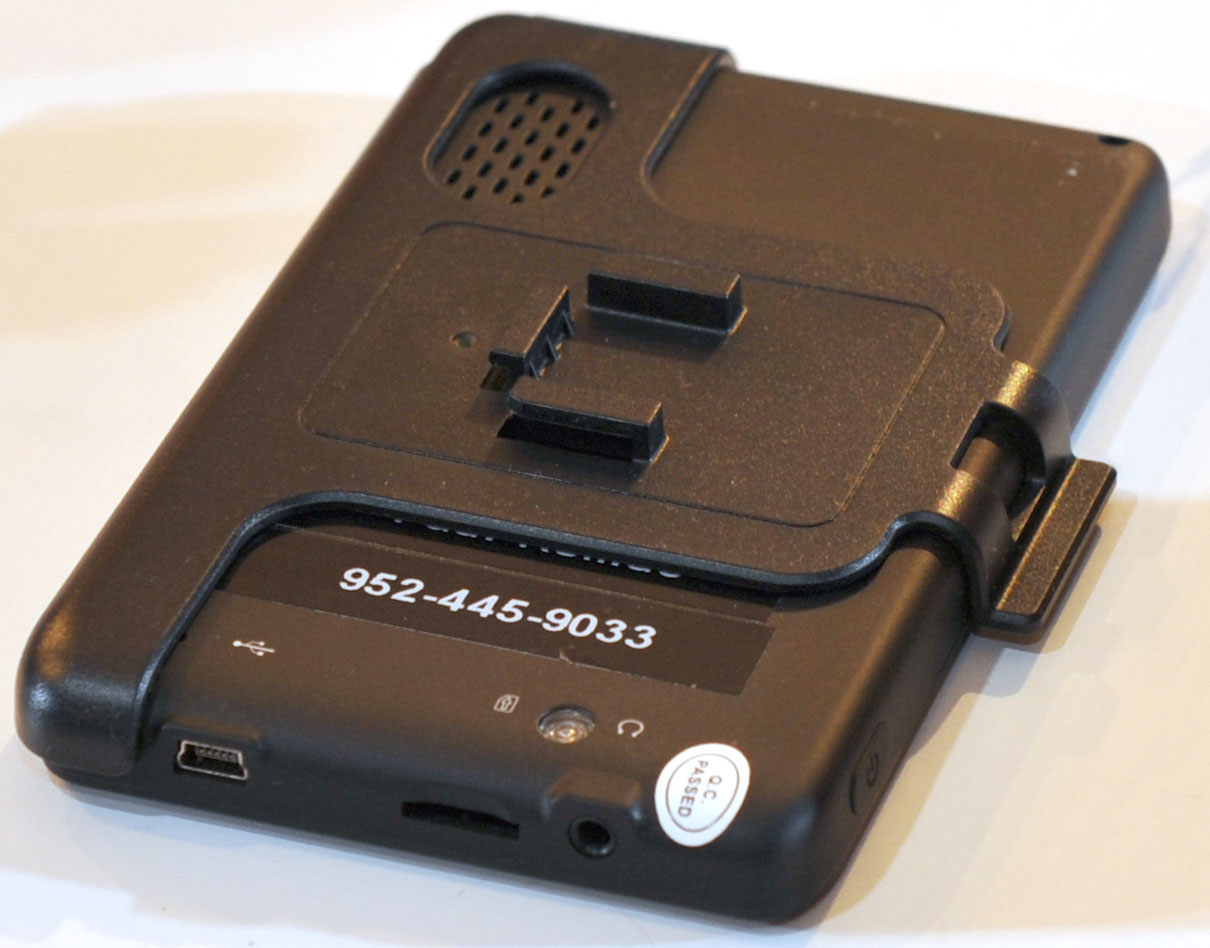

  • Oudie Cradle
    Simple plastic cradle for use with supplied suction cup mount.  The cradle works great with a RAM arm or gooseneck arms using the optional Richter-Cradle-Adapter.  Extra cradles are available for $5.  I have them in stock.
  • Suction Cup Mount
    This is designed for use on a glass window in a car.  Since it has a mechanism for pulling a strong suction it may or may not be ideal for use on an expensive and flexible glider canopy.  I don't recommend using similar devices in gliders because they "dimple" the canopy when in use and may cause crazing over time.  I recommend using the Oudie's cradle with the Richter-Cradle-Adapter and a RAM arm or GNeck2 gooseneck or RAM suction cup mount.
  • Oudie Cable Kit (see details here)
    • Oudie Power/data cable
      Includes: 12 V power leads, mini-USB connector for Oudie, and RJ45 connector.  The RJ45 connector can be connected directly to a FLARM or PowerFLARM unit or Volkslogger.  This cable will provide the 12V power to the FLARM, PowerFLARM or Volkslogger.  The pins connections are to the "IGC Standard".
    • Adapter, RJ45 to DB-9m
      This is a configurable adapter that can be used to connect the Oudie Power/data cable to a variety of soaring instruments.  Simply push the pins into the receptacles on the DB-9m connector and snap the connector into the housing.
    • Adapter, RJ45 to DB-9f
      This is a configurable adapter that can be used to connect the Oudie Power/data cable to a variety of soaring instruments.  Simply push the pins into the receptacles on the DB-9f connector and snap the connector into the housing.
    • 20 cm cable extension with RJ12 connectors and RJ45 Coupler
      For connecting to LX Colibri, Colibri II Power/data cable, LX20/2000, MiniBox, RedBox

Recommended Accessories

Memory Expansion: microSD card, It accepts either standard or high-density (greater than 2 GB) cards . It also has 4 GB or internal memory (of which 2GB will be used by pre-installed world wide vector maps).  The remaining memory can be used to store waypoint and airspace files.  The Oudie looks like a USB Flash Drive when connected to a PC using a standard USB cable.  Therefore, the Mobile Wizard (in SeeYou on the PC) can be used to send waypoint and airspace files directly to the Oudie memory.

With Oudie there will be no more empty batteries, lost data, re-installations and re-registrations. All the data is kept in flash memory so even if the battery goes dead all you have to do is refill the battery and everything is there. No setup, no installation, nothing.  Since it comes with SeeYou Mobile and worldwide Vector Maps installed, initial setup is greatly reduced.  You still need to transfer waypoint and airspace files to the device through the microSD card, or to the internal memory using a USB cable, but that is about it.

Question: Is a microSD memory card required?
Answer: The Oudie has a microSD slot, but does not include a microSD card.  A customer supplied microSD card may be used to transfer flight logs from the Oudie to your PC and to transfer waypoint and airspace files from the PC to the Oudie.  However, and SD card is not necessarily required because you can also transfer data by connecting the Oudie to a PC using a standard USB cable.  There is plenty of memory (about 2 GB) in the Oudie which can be used for storing waypoint and airspace files and flight logs.  When you connect the Oudie to the PC the Oudie looks like a USB Flash Drive.  You can then use Windows File Explorer to transfer the files between the PC and Oudie.  However, some pilots (especially pilots in a syndicate in which many pilots use the glider and Oudie) may want to use a microSD card to transfer flight logs home and leave the Oudie at the gliderport.

Question: Can I run WinPilot or pocket*StrePla or Glide Navigator II on the Oudie?
Answer: No.  Those software products have not been upgraded to run on devices like this one.

External Power
I imagine that the internal battery will power the unit for only an hour or 2.  Therefore it will probably be necessary to power the unit either with an external portable battery such as the Battery-5V-8000mAh-w-charger or Battery-5V-11200mAh-w-charger, or to power it with 12V using its supplied Oudie power/data cable.  The Oudie works great with the Battery-5V-8000mAh-w-charger or Battery-5V-11200mAh-w-charger and a standard USB to mini-USB cable (included with the Oudie) can be used to connect them together. The Battery-5V-8000mAh-w-charger powers the Oudie 2 for 14 hours and the Battery-5V-11200mAh-w-charger powers the Oudie 2 for 18 hours.

Power/Data Cables
The Oudie is supplied with an Oudie Cable Kit with a built-in 12V to 5V power converter and an RS-232 voltage level converter.  It will work great for connection to 12V power but the built-in 12V to 5V connector is not required for connection to a Cambridge 302 or LX1600 or LX7007 or Goddard PS-5a power converter - since those products can supply the required 5V power for the Oudie.  Therefore, the cables below are recommended for use with a Cambridge 302, IMI Erixx, LX1600, LX7007 or Goddard PS-5a power converter.
Oudie-PS5a-1 (several other lengths are also available)
Oudie-LX1600-1
Oudie-Erixx-1

Oudie-EWmicroRec-0.3 - Important Note: If you connect the Oudie power/data cable's RJ45 connector directly to an EW microRecorder, it will probably kill the EW microRecorder.  It is important that you use this adapter cable.

Mounting Options
The unit includes a suction cup mount designed for use on a glass window in a car.  Since it has a mechanism for pulling a strong suction it may or may not be ideal for use on an expensive and flexible glider canopy.  I don't recommend using similar devices in gliders because they "dimple" the canopy when in use and may cause crazing over time.  I recommend using the Oudie's cradle with the Richter Cradle Adapter and a RAM arm or GNeck2 gooseneck or RAM suction cup mount.  Details are shown below.

Tip
Rotate the screen
I recommend rotating the Oudie screen 180 degrees so the power/data cable connects to the top of the Oudie.  That gets it out of the way so it can't be bumped by your leg in flight.  To rotate the screen, in SeeYou Mobile on the Oudie, go to Menu > Settings > User Interface (UI) and select screen orientation 90 at the top of the screen.  the change takes effect when you exit (saving your changes) and re-start SeeYou Mobile.

Manuals and Tips Documents

$625 In Stock
Naviter-Oudie-IGC

Naviter Oudie IGC
Note: See also the Naviter-Oudie-IGC-Bundle below.  It includes the Oudie IGC, SeeYou Mobile for use in flight and SeeYou for the PC for viewing and analyzing your flight at home.  You
save $35 when you order them together.

Overview
The Oudie IGC is a Personal Gliding Assistant with built-in aviation grade GPS, IGC approved flight recorder, 12 hour battery, audio variometer (not Total Energy compensated) and SeeYou Mobile and ConnectMe software pre-installed.  The Oudie comes ready-to-fly with airports, airspace and maps for most of the world pre-installed. A great portable system with the Oudie IGC, and glider canopy suction cup mount is shown above
The Oudie helps you navigate around a soaring task or directly to any waypoint. Landing sites that are within gliding range are highlighted in green on the moving map. The Oudie calculates wind speed and direction while circling in thermals and can display arrival altitudes at nearby airports or landing sites. The large built-in battery makes it the ultimate portable soaring flight computer to take with you in rental or club gliders. Over 5000 Oudie units have been sold around the world since it was introduced a few years ago - so it is likely you'll see several of them at your local gliderport.

Works great with external data from FLARM and Vario Units
With the release of SeeYou Mobile 6.0 the Oudie IGC is able to receive vario data and FLARM data from external devices - making it the ultimate Oudie. It works great in your glider - connected to your vario or soaring flight computer. It also works great all by itself when you fly a club or rental glider.

Features:

  • Screen brightness: 900 to 950 nits (extremely bright - sunlight readable)
  • Large 5" screen
  • Built-in variometer (not Total Energy compensated, but it works fine as long as you keep your airspeed relatively constant)
  • Built-in aviation grade GPS for stand-alone operation
  • Built-in IGC approved flight recorder with ENL (engine noise level) recording capability
  • Landscape and Portrait screen orientations
  • mini-USB power/data connector located on the top of the unit - so a connected data cable won't stick out below the unit and get bumped and abused by your leg in flight
  • Non-volatile memory - all data is retained if the battery gets low.  (Most PDAs lose all their memory and must be re-setup when their battery gets low.)
  • Oudie Cable Kit- It connects to the unit's mini-USB connector and includes a built-in 12V to 5V power converter and an RS-232 voltage level converter.  This supplied Oudie cable can be connected directly to a FLARM or PowerFLARM unit.
  • SeeYou Mobile soaring flight software is pre-installed
  • Vector maps for the world are pre-installed
  • Airport and Airspace files for much of the world are pre-installed.  Below is a list of the included files.  To select the airport and airspace files for your region, in SeeYou Mobile, go to Menu > Settings > Files.
    It is also easy to generate airport and airspace files for your area using the Mobile Wizard in SeeYou on the PC.  The Mobile Wizard is shown in my SeeYou Training video number 46 here.

    Pre-installed Airport and Airspace files:
    • Africa
    • Alps
    • Australia
    • BeNeLux
    • The Czech Republic, Slovakia, and Poland
    • France
    • Germany
    • Hungary
    • New Zealand
    • Scandinavia
    • Spain
    • UK
    • USA (divided into files for "USA West", "USA Central" and "USA East"

    I can provide airport and airspace files for other countries or regions upon request.  I charge $20 for that service.

Oudie IGC vs. the Oudie 2
The Oudie IGC has the same bright screen as the Oudie 2 and is supplied with a Lifetime License for SeeYou Mobile. The horizontal and vertical dimensions and screen size are the same on the Oudie IGC and Oudie 2. However, while the Oudie 2 is only thick enough for a battery that lasts about 2 hours, the Oudie IGC is much more thick - accommodating a battery that will run the device for over 12 hours. The larger battery makes the unit much more deep (thick) (25 mm for the Oudie IGC vs. 14 mm for the Oudie 2) and heavier (12.3 ounces for the Oudie IGC vs. 6.4 ounces for the Oudie2). The Oudie IGC also has a built-in pressure sensor which provides a precision altimeter and uncompensated (not Total Energy) variometer. Another benefit the Oudie IGC offers is an aviation grade GPS and an IGC Approved GPS flight recorder. The Oudie 2's GPS is setup for use in a car and the GPS does some smoothing to the position and path which make it a little less precise in the air. That said, many, many Oudie 2 users have found its built-in GPS to be fine for soaring. I suspect that the Oudie IGC's GPS will allow the unit to calculate wind speed and direction more precisely than the Oudie 2's GPS. The Oudie 2 and Oudie IGC are supplied with the same accessories. The Oudie 2 has been used quite often with an external battery and LXNAV Nano flight recorder. The Oudie IGC combines all those items into a single, compact device. The task that is entered into the Task screen is declared into the Oudie IGC's built-in GPS flight recorder at take-off.

Note: The Oudie IGC cannot receive data from Condor soaring flight simulator software.

Please see the Oudie Comparison Table

Photos Showing the Oudie 2 and Oudie IGC Thickness Difference
Click on the images below to view larger versions.

Does the Oudie IGC replace the Oudie 2?
Not necessarily - Customers that can power the Oudie 2 with 12V from the glider battery and receive GPS data from a soaring flight computer will be very happy with the Oudie 2. it is significantly smaller and lighter than the Oudie IGC. The Oudie IGC will be popular with customers that would have needed to use an external battery with the Oudie 2 while flying in club or rental gliders. The Oudie IGC does everything the Oudie 2 does - and more. It works great in your glider - connected to your vario or soaring flight computer. It also works great all by itself when you fly a club or rental glider.

Oudie IGC Variometer
The Oudie IGC has a built-in pressure transducer which is the precision source for the unit's variometer and altimeter. As you can see in the video below, the variometer is very sensitive. Sailplane pilots may or may not find it useful - since it cannot be connected to a Total Energy probe it is not TE compensated and will show "stick thermals" (climb when you pull back on the stick to slow down and sink when you push forward on the stick to speed-up). Sailplane pilot will find it to be a great backup variometer - the Oudie IGC's large battery assures that it will be ready if you need it. That said, many glider pilots learned to fly without TE compensated variometers. A non-TE compensated variometer works fine as long as you keep the airspeed relatively constant. When connected to an external vario, the Thermal Assistant uses the vario data from the external vario - which is great.

Specifications
Screen Size: 5" diagonal
Screen brightness: 900 to 950 nits (extremely bright - sunlight readable)
Screen Dimensions: 2.48" x 4.37" (63 mm x 111 mm)
Screen Resolution: 480 x 272 pixels
Overall Size: 135 x 86 x 25 mm (5.3 x 3.4 x 0.98 inches)
Weight: 12.3 ounces (0.77 pounds) (350 grams)
Processor: ARM 11, 500 MHz
RAM: 128 MB
Built-in Flash memory: 8 GB

Current: 200 to 220 mA (plus about 150 to 200 mA when battery is being charged)
Battery: 9600 mAh
Battery Duration with backlight at full brightness: about 12 hours

Variometer: High-sensitivity
Pressure Altitude: High-Precision
Flight Recorder: Yes. Fully IGC approved for all badges and records and contests - to the highest level of approval available

Included:
The Oudie comes with a complete set of accessories.

  • Oudie IGC unit
  • SeeYou Mobile Software and maps and airspace and waypoints for most of the world pre-installed
  • SeeYou Mobile Lifetime software license
    The SeeYou Mobile software license includes free upgrades to the SeeYou mobile software for the life of the Oudie unit. The license key is tied to the serial number of the Oudie and can be sold with the Oudie.
  • User Manual for Naviter Oudie
    Actually more of a short "Getting Started" manual. A full Oudie 2 manual is available on the Naviter web site at www.naviter.com - then go to the Products menu and select Oudie 2.
  • Program Installation CD
    Contains installation programs for SeeYou for PC, SeeYou Mobile and ConnectMe.  Note: A license for SeeYou for PC is not included with the Oudie.  If you do not already own a license for SeeYou for PC, I highly recommend buying the Naviter-Oudie2-Bundle.  You save $35 when you order them together in the bundle.
  • Cable, USB to mini-USB
    For connecting the Oudie to a PC or 5V battery pack, This is a standard USB to mini-USB cable.  If you lose it you can buy another at Radio Shack or Best Buy or Target, etc.
  • Wall Charger
    With 4 exchangeable plugs (for use in different countries) - supplies 5V power to the Oudie.
  • Car Charger
    male cigarette lighter plug to mini-USB connector, includes a 12V to 5V voltage reducer and provides 5V power to the Oudie.
  • Oudie Cradle
    Simple plastic cradle for use with supplied suction cup mount.  The cradle works great with a RAM arm or gooseneck arms using the optional Richter-Cradle-Adapter.  Extra cradles are available for $5.  I have them in stock.
  • Suction Cup Mount
    This is designed for use on a glass window in a car.  Since it has a mechanism for pulling a strong suction it may or may not be ideal for use on an expensive and flexible glider canopy.  I don't recommend using similar devices in gliders because they "dimple" the canopy when in use and may cause crazing over time.  I recommend using the Oudie's cradle with the Richter-Cradle-Adapter and a RAM arm or GNeck2 gooseneck or RAM suction cup mount.
  • Oudie Cable Kit (see details here)
    • Oudie Power/data cable
      Includes: 12 V power leads, mini-USB connector for Oudie, and RJ45 connector.  The RJ45 connector can be connected directly to a FLARM or PowerFLARM unit or Volkslogger.  This cable will provide the 12V power to the FLARM, PowerFLARM or Volkslogger.  The pins connections are to the "IGC Standard".
    • Adapter, RJ45 to DB-9m
      This is a configurable adapter that can be used to connect the Oudie Power/data cable to a variety of soaring instruments.  Simply push the pins into the receptacles on the DB-9m connector and snap the connector into the housing.
    • Adapter, RJ45 to DB-9f
      This is a configurable adapter that can be used to connect the Oudie Power/data cable to a variety of soaring instruments.  Simply push the pins into the receptacles on the DB-9f connector and snap the connector into the housing.
    • 20 cm cable extension with RJ12 connectors and RJ45 Coupler
      For connecting to LX Colibri, Colibri II Power/data cable, LX20/2000, MiniBox, RedBox

Recommended Accessories

Memory Expansion: microSD card, It accepts either standard or high-density (greater than 2 GB) cards . It also has 8 GB or internal memory (of which 2GB will be used by pre-installed world wide vector maps).  The remaining memory can be used to store waypoint and airspace files.  The Oudie looks like a USB Flash Drive when connected to a PC using a standard USB cable.  Therefore, the Mobile Wizard (in SeeYou on the PC) can be used to send waypoint and airspace files directly to the Oudie memory.

With Oudie there will be no more empty batteries, lost data, re-installations and re-registrations. All the data is kept in flash memory so even if the battery goes dead all you have to do is refill the battery and everything is there. No setup, no installation, nothing.  Since it comes with SeeYou Mobile and worldwide Vector Maps installed, initial setup is greatly reduced.  You still need to transfer waypoint and airspace files to the device through the microSD card, or to the internal memory using a USB cable, but that is about it.

Question: Is a microSD memory card required?
Answer: The Oudie has a microSD slot, but does not include a microSD card.  A customer supplied microSD card may be used to transfer flight logs from the Oudie to your PC and to transfer waypoint and airspace files from the PC to the Oudie.  However, and SD card is not necessarily required because you can also transfer data by connecting the Oudie to a PC using a standard USB cable.  There is plenty of memory (about 6 GB) in the Oudie which can be used for storing waypoint and airspace files and flight logs.  When you connect the Oudie to the PC the Oudie looks like a USB Flash Drive.  You can then use Windows File Explorer to transfer the files between the PC and Oudie.  However, some pilots (especially pilots in a syndicate in which many pilots use the glider and Oudie) may want to use a microSD card to transfer flight logs home and leave the Oudie at the gliderport.

Question: Can I run WinPilot or pocket*StrePla or Glide Navigator II on the Oudie?
Answer: No.  Those software products have not been upgraded to run on devices like this one.

Question: Can I run XCSoar or LX8000 on the Oudie?
Answer: Yes. However, I highly recommend SeeYou Mobile.

Manuals and Tips Documents


(RAM suction cup not included)


(RAM suction cup not included)



$1160 In Stock


SeeYou

SeeYou for PC Registration Key

Please download the software from the Downloads area above.  Your registration key will be e-mailed to you in 0 to 24 hours. Nothing will be shipped to you, so please select "Free Shipping" at checkout.  If you want a program CD you must order one below.

SeeYou Tips
SeeYou Training Video Script (Used to create the SeeYou Training Videos)

SeeYou Overview Video
The overview video below is 1 part of 47 in the SeeYou Training.


SeeYou Overview Video (Low Resolution | Full Resolution)

SeeYou 3D View Training Session (Low Resolution | Full Resolution)

SeeYou Training CDs
Now Available as FREE Online Videos (low resolution)

I have created training CDs with 3 hours of training on SeeYou for the PC.  You can see details on the Training page.



$155 In Stock
Naviter-Oudie2-Bundle Bundle with Oudie 2 and SeeYou for PC
This bundle includes a registration key for SeeYou for the PC and an Oudie 2 (with SeeYou Mobile pre-installed) at a reduced price.  The reduced price only applies if you buy them both at the same time.  You save $35.  Please download the software from the Downloads area above.  Your SeeYou registration key will be e-mailed to you in 0 to 24 hours.  SeeYou Mobile is pre-installed on the Oudie 3.  It is assumed that you will download the SeeYou for PC software from the Downloads area above.   If you want a program CD for SeeYou for the PC, you must order one below.

and
$745 In Stock
Naviter-Oudie-IGC-Bundle Bundle with Oudie IGC, SeeYou Mobile and SeeYou for PC
This bundle includes a registration key for SeeYou for the PC and an Oudie IGC at a reduced price.  The reduced price only applies if you buy them both at the same time.  You save $35.  Please download the software from the Downloads area above.  Your SeeYou registration key will be e-mailed to you in 0 to 24 hours.  SeeYou Mobile is pre-installed on the Oudie IGC.  It is assumed that you will download the SeeYou for PC software from the Downloads area above.   If you want a program CD for SeeYou for the PC, you must order one below.

and
$1280 In Stock
SeeYou-Mobile- SeeYou Mobile Registration Key
Please download the software from the Downloads area above.  The Registration Key allows unlimited use of SeeYou Mobile with no time restriction. The License also includes 12 months of free software upgrades for SeeYou Mobile. Your registration key will be e-mailed to you in 0 to 24 hours. Nothing will be shipped to you, so please select "Free Shipping" at checkout.  If you want a program CD you must order one below.
$239 In Stock
Oudie-Lifetime-License Oudie Lifetime License for SeeYou Mobile - Registration Key
This option is for customers who purchased an Oudie 2 Lite without a SeeYou Mobile license. The combination of this license together with an Oudie 2 Lite makes an Oudie 2. Oudie, Oudie 2 and Oudie 3 customers do not need to purchase this license because it is already included and entered into the unit. The Registration Key allows unlimited use of SeeYou Mobile on a Naviter Oudie with no time restriction. The License also includes free software upgrades for SeeYou Mobile for the life of the Oudie. Your registration key will be e-mailed to you in 0 to 24 hours. Nothing will be shipped to you, so please select "Free Shipping" at checkout. Please download the software from the Downloads area above.
$250 In Stock
SeeYou-Bundle SeeYou for PC & SeeYou Mobile Bundle Registration Keys
This bundle includes registration keys for both SeeYou and SeeYou Mobile at a reduced price.  The reduced price only applies if you buy them both at the same time.  You save $35.  Please download the software from the Downloads area above.  Your registration keys will be e-mailed to you in 0 to 24 hours. Nothing will be shipped to you, so please select "Free Shipping" at checkout.  If you want a program CD you must order one below.

and
$359 In Stock
SeeYou-Upgrade

SeeYou Upgrade - One Year Subscription

Included:

  • Customers who previously purchased SeeYou get 1 free year of free upgrades to the latest version of SeeYou
  • Customers who previously purchased SeeYou Mobile get 1 free year of upgrades to the latest version of SeeYou Mobile
  • Full use of SeeYou for Android devices
  • Full use of SeeYou for iPhone and iPad and iPod devices
  • SeeYou Recorder for Android, iPhone and iPad
  • ConnectMe - For downloading flight logs, transferring waypoints,and uploading task declarations using a PDA or PNA
  • 1 year of full access to the SeeYou Cloud - which links all the items above together very nicely. Upload your flights to the SeeYou Cloud and access them from your PC or Android device or iPhone or iPad.

If you are a registered SeeYou owner already, this is your option for upgrading to the latest version. You will need to enter your serial number during the order process. Don't order this if you have not previously purchased a SeeYou license.  Please download the software from the Downloads area above.  Your new registration key will be e-mailed to you in 0 to 24 hours. Nothing will be shipped to you, so please select "Free Shipping" at checkout.   If you want a program CD you must order one below.

Naviter has introduced a new subscription plan for their products. In the past, users of SeeYou and SeeYou Mobile could buy upgrades for $83 U.S. (each) which would entitle them to free upgrades for 1 year. The new subscription plan costs $59 U.S./year and entitles customers with SeeYou and/or SeeYou Mobile licenses to use the full-featured versions of SeeYou for Android and iPhone and iPad and also gets you free upgrades for both SeeYou (for PC) and SeeYou Mobile (for PDAs and PNAs) for the year. Of course, only customers that have purchased licenses for SeeYou can upgrade their copy of SeeYou using the subscription plan. Likewise, only customers that have purchased licenses for SeeYou Mobile can upgrade their copy of SeeYou Mobile using the subscription plan. The new SeeYou subscription also enables full use of the SeeYou Cloud - for sharing your flight logs between devices online. Customers using an Oudie that was delivered with a SeeYou Mobile Lifetime license are entitled to free upgrades for the life of the Oudie.

$59 In Stock
SeeYou-CD Program CD with SeeYou, SeeYou Mobile and Vector Maps
By ordering SeeYou CD you don't have to download any maps from the internet. The CD contains maps for Europe, North and South America, South Africa, Australia, New Zealand, Japan and India. All the vector maps on this CD may be downloaded from here for free.  The program installation is available here. Most customers do not order the CD because it will be out of date very quickly as new versions of the software become available.  If you have a high-speed internet connection I recommend that you download the files.  Shipping is extra.
  $9.95 In Stock
Oudie-Case Oudie Case
By far the most common reason for repairing an Oudie this year was a broken screen. Oudies were either dropped from altitude to concrete or squashed by the weight of a pilot who did not expect the Oudie to be where it was. Naviter has therefore set out and designed a tough carry case for your Oudie.  It is made out of tough rubber-like material which is there to protect the screen. It also includes a carabiner for easy attachment to your pilot bag in order to keep it at the top of the bag rather than down below.  A nice, classy touch is the inclusion of the Naviter logo - to help you remember which of your toys is stored inside. It works great with Oudie, Oudie 2, Oudie IGC, and Oudie 3 (for paragliders and handgliders) units.

Dimensions: 155 x 105 x 27 mm (6.1 x 4.1 x 1.1 inches)

Note: The case also works great with an iPAQ hx4700 or just about any other PDA or PNA.



$25 In Stock
Oudie-Cradle-Old Oudie Cradle - Original Version
This cradle shipped with Oudies in the past. New Oudie's use the new "Richter" version below. It is designed for use with the suction cup that is included with previous versions of the Oudie.
It does not work with the Richter-Cradle-Adapter or with the suction cup mounts that are supplied with Oudie 2 or Oudie IGC units. It works with Oudie, Oudie 2 and Oudie IGC units.



$5 In Stock

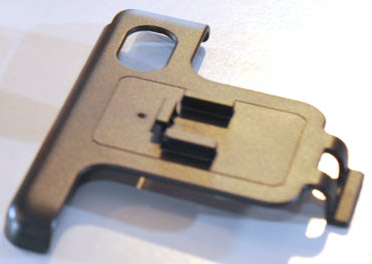

Oudie-Cradle-Richter Oudie Cradle - Richter
This cradle is provided in the box with Oudie 2 and Oudie IGC units. It is designed for use with the suction cup that is included with the Oudie 2 and Oudie IGC.
It works great with the Richter-Cradle-Adapter for easy mounting to any RAM diamond base or RAM-GN3-238 gooseneck adapter. It works with Oudie, Oudie 2 and Oudie IGC units.



$5 In Stock
Richter-Cradle-Adapter

Richter Cradle Adapter
This adapter is used to mount an Oudie cradle on a RAM diamond base or RAM-GN3-238 gooseneck adapter. It is provided with M4 x 16 screws for connection to a RAP-B-238U diamond base or M4 x 12 screws for connection to a RAM-B-238U or RAM-GN3-238 gooseneck adapter
.

Specifications:

  • Length: 57 mm (2.24 inches)
  • Width: 43 mm (1.69 inches)
  • Thickness not including prongs: 7 mm (0.28 inches)
  • Thickness including prongs: 11 mm (0.43 inches)
  • Weight with 2 mounting screws: 0.5 ounces (14 grams)
  • Material: black plastic with threaded brass inserts

$12 In Stock

Oudie-Mount-RAM-Arm-Std

Oudie RAM Arm Mount Kit
This is a great way to mount your Oudie, Oudie 2 or Oudie IGC to your glider's instrument panel or cockpit sidewall.

Overall Length: 6.10 inches (155 mm)

Components:

$39 In Stock
Oudie-Mount-RAM-SCM

Oudie RAM Suction Cup Mount Kit
This is a great way to mount your Oudie, Oudie 2 or Oudie IGC to your glider canopy. Unlike suctions cup mounts that have a clamping or locking action, this simple and reliable 4" diameter rubber suction cup will not damage your glider canopy.
Be sure to clean the canopy and suction cup and wet the suction cup to assure a secure application.

Components:

$58 In Stock
Oudie-Mount-RAM-Adhesiv

Oudie RAM Mount with Round Adhesive Base
This is a great way to mount your Oudie, Oudie 2 or Oudie IGC to a flat, smooth surface in your glider. The round base is somewhat flexible - so it can conform to surfaces that are slightly curved. A round adhesive disc is included along with an alcohol wipe for cleaning the mounting surface.

Note: A single RAM-202PSAU adhesive discs is included. You may want to order a few extras for future use.

Specifications:

  • Lenth of arm from center of ball to center of ball: 3 inches (76 mm)
  • Overall length with arm straight out: 5.75" (146 mm)
  • Weight: 6.1 ounces (173 grams)

Tip: To assure solid and reliable adhesion:

  • Clean the mounting surface and the base of the RAP-B-378U with the provided alcohol wipe immedialy before application
  • Remove the plastic from one side of the adhesive disc and apply it to the RAP-B-378U base.
  • Remove the plastic from the other side of the adhesive disc and press the base firmly onto the mounting surface for about 1 minute.
  • Wait 24 hours before mounting the arm and Oudie on the base. This allows the adhesive to setup.

Components:

$46 In Stock
Oudie-Mount-GNeck-Panel

Oudie Gooseneck Mount with Panel Adapter
This is a great way to mount your Oudie, Oudie 2 or Oudie IGC to your glider's instrument panel.
It is more elegant than a RAM arm, but more expensive and not quite as rugged, secure and reliable.

Overall Length: 7.44 inches (189 mm)
Length of gooseneck: 6 inches (152 mm)

Components:

$72 In Stock
Oudie-Mount-GNeck-RA

Oudie Gooseneck Mount with Right-Angle Adapter
This is a great way to mount your Oudie, Oudie 2 or Oudie IGC to your glider's cockpit side-wall, or to the side of the instrument panel cover.
It is more elegant than a RAM arm, but more expensive and not quite as rugged, secure and reliable.

Overall Length: 8.39 inches (213 mm)
Length of gooseneck: 6 inches (152 mm)

Components:

$72 In Stock
Naviter-Oudie-Thigh-Mount

Oudie Thigh Mount
This is a good way to mount your Oudie, Oudie 2 or Oudie IGC to your thigh.
It is less elegant than a RAM arm or gooseneck arm, but it is inexpensive and portable. It is great for use in rental or club gliders. Velcro strips (with hooks) are included for attaching to the back of the Oudie. The mounting surface has the soft Velcro surface built-in. The mounting surface is angled and slightly adjustable to allow for easy viewing in flight.

The long strap with the loop at the end can be used by running your belt through it - to keep it from sliding down when standing. It is attached with a snap connector so it is easy to remove if you don't want to use that feature.

$36 In Stock
Oudie-Cable-Kit Oudie Cable Kit
This is the 2nd generation Oudie cable kit.  It is included in the box with the Oudie.  It must be powered with 12V.  The cable includes a circuit board with 12V to 5V power converter for powering the Oudie with 5V.  It also includes an RS-232 signal level converter.  It can also power the connected soaring instrument with 12V.

It includes:
  • Oudie Power/data cable
    Includes: 12 V power leads, mini-USB connector for Oudie, and RJ45 connector.  The RJ45 connector can be connected directly to a FLARM or PowerFLARM unit or Volkslogger.  This cable will provide the 12V power to the FLARM, PowerFLARM or Volkslogger.  The pins connections are to the "IGC Standard".
    • RJ45 Wiring
      • Pin 1 (red wire): +12V
      • Pin 2 (blue wire): +12V
      • Pin 3 (pink wire): not used
      • Pin 4 (grey wire): not used
      • Pin 5 (yellow wire): receive at Oudie
      • Pin 6 (green wire): transmit from Oudie
      • Pin 7 (brown wire): ground
      • Pin 8 (white wire): ground

  • Adapter, RJ45 to DB-9m
    This is a configurable adapter that can be used to connect the Oudie Power/data cable to a variety of soaring instruments.  Simply push the pins into the receptacles on the DB-9m connector and snap the connector into the housing.

    Important Note: Make sure the unused wires cannot short together.  Cutting them off is not good enough.  I recommend putting shrink tubing over the connectors on the unused pins.  That way they can't short and will be available for future use.


    • RJ45 to DB-9m Adapter Wiring
      • White or Grey wire (1): +12V
      • Brown wire (2): +12V
      • Yellow wire (3): not used
      • Green wire (4):  not used
      • Red wire (5): receive at Oudie
      • Black wire (6): transmit from Oudie
      • Orange wire (7): ground
      • Blue wire (8): ground

    • Connections for Cambridge 302 or GPS-NAV

      Note: The 12V power leads on the cable must be powered.  The 5V power from the 302 or GPS-NAV is not used.
      • Red wire > Pin 2 (GPS transmit, Oudie receive)
      • Black wire > Pin 3 (GPS receive, Oudie transmit)
      • Blue or Orange wire > Pin 5 (ground)

    • Connections for PowerFLARM Core

      Note: The Oudie power/data cable's RJ45 connector can be connected directly to the PowerFLARM Core.  However, the RJ45 port will probably used for connection to the remote FLARM display.
      Note: The 12V power leads on the Oudie power/data cable must be powered.
      • Red wire > Pin 2 (GPS transmit, Oudie receive)
      • Black wire > Pin 3 (GPS receive, Oudie transmit)
      • Orange wire > Pin 5 (ground)
      • Brown wire > Pin 7 (+12V for powering the PowerFLARM Core - IMPORTANT: Provide power to the Core through either the RJ45 connector or the DB-9f connector - not both.  If the Core is powered using the RJ45 port, do not connect this wire.)

    • Connections for LX160si or LX1600 or LX1606 or LX7007

      Note: The 12V power leads on the cable must be powered.  The 5V power from the LX160si or LX1600 or LX7007 is not used.

      • Red wire > Pin 3 (GPS transmit, Oudie receive)
      • Black wire > Pin 4 (GPS receive, Oudie transmit)
      • Orange wire > Pin 1 (ground)

  • Adapter, RJ45 to DB-9f
    This is a configurable adapter that can be used to connect the Oudie Power/data cable to a variety of soaring instruments.  Simply push the pins into the receptacles on the DB-9f connector and snap the connector into the housing.

    Important Note: Make sure the unused wires cannot short together.  Cutting them off is not good enough.  I recommend putting shrink tubing over the connectors on the unused pins.  That way they can't short and will be available for future use.


    • RJ45 to DB-9f Adapter Wiring
      • White or Grey wire (1): +12V
      • Brown wire (2): +12V
      • Yellow wire (3): not used
      • Green wire (4):  not used
      • Red wire (5): receive at Oudie
      • Black wire (6): transmit from Oudie
      • Orange wire (7): ground
      • Blue wire (8): ground

    • Connections to PC for use with Condor

      Note: The 12V power leads on the cable must be powered.  Most current PCs don't have an RS-232 port, so a USB to serial adapter is required.  I highly recommend the FTDI Chip USB Serial Adapter.  Most others I've tried don't work.
      Note: The Oudie also has a built-in Bluetooth radio, so it may be possible to connect it to a Bluetooth enabled PC without any cables.
      • Black wire > Pin 2 (PC Receive, Oudie transmit)
      • Red wire > Pin 3 (PC Transmit, Oudie receive)
      • Orange wire > Pin 5 (ground)
    • Connections for LX5000 or LX7000 or DX50 (to wiring harness)

      Note: The 12V power leads on the cable must be powered.  The soaring instrument does not provide 5V power for the Oudie.
      • Red wire > Pin 3 (GPS transmit, Oudie receive)
      • Black wire > Pin 2 (GPS receive, Oudie transmit)
      • Orange wire > Pin 5 (ground)
  • 20 cm cable extension with RJ12 connectors and RJ45 Gender Changer
    For connecting to LX Colibri, LX20/2000, MiniBox, RedBox
$66 In Stock
Adapter-RJ45-DB9f Adapter, RJ45 to DB-9f
This is a configurable adapter that can be used to connect the Oudie Power/data cable to a variety of soaring instruments.  One is included in the box with the Oudie.  Simply push the pins into the receptacles on the DB-9f connector and snap the connector into the housing.  Female RJ45 connector connects to the Oudie Power/data cable.DB-9f (female) connector for soaring instrument,

Important Note: Make sure the unused wires cannot short together.  Cutting them off is not good enough.  I recommend putting shrink tubing over the connectors on the unused pins.  That way they can't short and will be available for future use.

RJ45 to DB-9f Adapter Wiring

  • White or Grey wire (1): +12V
  • Brown wire (2): +12V
  • Yellow wire (3): not used
  • Green wire (4):  not used
  • Red wire (5): receive at Oudie
  • Black wire (6): transmit from Oudie
  • Orange wire (7): ground
  • Blue wire (8): ground

Connections to PC for use with Condor

Note: The 12V power leads on the cable must be powered.  Most current PCs don't have an RS-232 port, so a USB-to-Serial adapter is required.  I highly recommend the FTDI Chip USB Serial Adapter.  Most others I've tried don't work.
Note: The Oudie also has a built-in Bluetooth radio, so it may be possible to connect it to a Bluetooth enabled PC without any cables.

  • Black wire > Pin 2 (PC Receive, Oudie transmit)
  • Red wire > Pin 3 (PC Transmit, Oudie receive)
  • Orange wire > Pin 5 (ground)

Connections for LX5000 or LX7000 or DX50 (to wiring harness)

Note: The 12V power leads on the cable must be powered.  The soaring instrument does not provide 5V power for the Oudie.

  • Red wire > Pin 3 (GPS transmit, Oudie receive)
  • Black wire > Pin 2 (GPS receive, Oudie transmit)
  • Orange wire > Pin 5 (ground)
$5 In Stock
Adapter-RJ45-DB9m Adapter, RJ45 to DB-9m
This is a configurable adapter that can be used to connect the Oudie Power/data cable to a variety of soaring instruments.  One is included in the box with the Oudie.  Simply push the pins into the receptacles on the DB-9m connector and snap the connector into the housing.  Female RJ45 connector connects to the Oudie Power/data cable.DB-9m (male) connector for soaring instrument, This adapter can be used to connect the Oudie to a Cambridge GPS-NAV or 302 (see details below).

Important Note: Make sure the unused wires cannot short together.  Cutting them off is not good enough.  I recommend putting shrink tubing over the connectors on the unused pins.  That way they can't short and will be available for future use.

RJ45 to DB-9m Adapter Wiring

  • White or Grey wire (1): +12V
  • Brown wire (2): +12V
  • Yellow wire (3): not used
  • Green wire (4):  not used
  • Red wire (5): receive at Oudie
  • Black wire (6): transmit from Oudie
  • Orange wire (7): ground
  • Blue wire (8): ground

Connections for Cambridge 302 or GPS-NAV or Borgelt PDA_PS

Note: The 12V power leads on the cable must be powered.  The 5V power from the 302 or GPS-NAV is not used.

  • Red wire > Pin 2 (GPS transmit, Oudie receive)
  • Black wire > Pin 3 (GPS receive, Oudie transmit)
  • Orange wire > Pin 5 (ground)

Connections for LX160si or LX1600 or LX1606 or LX7007

Note: The 12V power leads on the cable must be powered.  The 5V power from the LX160si or LX1600 or LX7007 is not used.

  • Red wire > Pin 3 (GPS transmit, Oudie receive)
  • Black wire > Pin 4 (GPS receive, Oudie transmit)
  • Orange wire > Pin 1 (ground)

Connections for PowerFLARM Core

Note: The Oudie power/data cable's RJ45 connector can be connected directly to the PowerFLARM Core.  However, the RJ45 port will probably used for connection to the remote FLARM display.  This adapter makes it possible to connect to the PowerFLARM Core's DB-9f port.
Note: The 12V power leads on the Oudie power/data cable must be powered.
This adapter and he connections below can also be used to connect an LXNAV S7 to the PowerFLARM using an LXNAV S7-GPS-PF cable.

  • Red wire > Pin 2 (FLARM transmit, Oudie receive)
  • Black wire > Pin 3 (FLARM receive, Oudie transmit)
  • Orange wire > Pin 5 (ground)
  • Brown wire > Pin 7 (+12V for powering the PowerFLARM Core - IMPORTANT: Provide power to the Core through either the RJ45 connector or the DB-9f connector - not both.  If the Core is powered using the RJ45 port, do not connect this wire.)

Connections for LX8000, LX8080 and LX9000 PC Cable

These connections make it possible to connect the Oudie power/data cable to
an LXNAV LXNAV-LX5PC cable that is connected to the round, 5-pin Binder connector that is on the wiring harness of an LX8000, LX8080 or LX9000.

  • Red wire > Pin 2 (LX9000 transmit, Oudie receive)
  • Black wire > Pin 3 (LX9000 receive, Oudie transmit)
  • Orange wire > Pin 5 (ground)

Connections for PowerFLARM Core and Butterfly FLARM Display
Below are the connections for using this adapter to connect a Butterfly FLARM Display to a PowerFLARM Core's DB-9f port

  • Red wire > Pin 2 (FLARM transmit, Oudie receive)
  • Black wire > Pin 3 (FLARM receive, Oudie transmit)
  • Green wire > Pin 5 (ground for Butterfly FLARM Display)
  • Yellow wire > Pin 9 (+3V power for Butterfly FLARM Display)

Connections for Borgelt B50

Note: The 12V power leads on the cable must be powered. The cable will not communicate if it is not powered.

  • Red wire > Pin 4 (B50 transmit, Oudie receive)
  • Black wire > Pin 6 (B50 receive, Oudie transmit)
  • Orange wire > Pin 5 (ground)
$5 In Stock

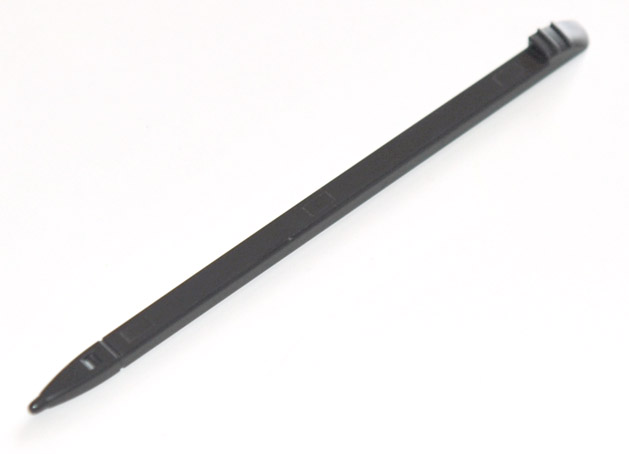

Oudie-Stylus Oudie Stylus
This is the stylus that is included with the Oudie.  Order a spare stylus here.
$2 In Stock
Cable-USB-miniUSB

Cable, USB to mini-USB
This is a standard USB to mini-USB cable. It can be used to connect an Oudie or Nano or Nano 3 to a PC. It can also be used to connect a Nano or Nano3 to a NanoPower Adapter or an LXNAV-S7-GPS-Nano cable.
One is supplied with Nano, Nano3 and Oudie products. There is nothing specialy about the USB to mini-USB cable. You can get one at Radio Shack, Target, Best Buy, etc.

Lenth: 29 inches

$5 In Stock
Support-Phone Support Over the Phone or Web With Free Web Conferencing - One-on-one - Very Popular

Accelerate your learning curve!  Get up-to-speed on your new soaring software or instrument in an hour or 2 - with help from an expert.

I offer training over the phone on the soaring software topics listed below for $60/hour.  What we cover is up to you.  It includes free web conferencing features as described below.  I will bill you for the minimum time period of 1 hour ($60) and if we don't use it all I will make a note of the amount of time remaining for you to use in future support calls.  1 hour is usually plenty to get most people on the right track.  Phone charges are not an issue as I will call you.  After you place the order, please call to schedule a time for the training.  The best time for me is usually between 9 AM and 5 PM, or between 9 PM and 11 PM U.S. Central Time, Monday through Friday, but other times can be arranged.

Customer Feedback

"Thank you, Paul, for your marvelous support.  Not only is your website a fabulous source of information for glider pilots, but you've been unfailingly responsive to my hardware and software needs.  Last but not least, I've gotten much more out of my equipment as a result of our remote-tutoring sessions by cell phone and computer hook-up.  Thanks again!"

Mitch Polinsky
DG-400 "SUN"

Paul,

"Now that the soaring season is over, I wanted to thank you for another wonderful year of support from you in connection with my soaring activities.  It's been wonderful knowing that you are there to help with technical problems, and I love the opportunity to have remote tutoring sessions with you.  Thanks again, very much."

Mitch Polinsky (currently in 2nd place in the USA FAI-OLC Contest, 11th in the worldwide contest)
DG-400 "SUN"

Skype
If you want to call me for free you can reach me using Skype.  It is a free internet phone service that requires only a high-speed internet connection and a microphone and speaker for your computer.  You can download it free here: http://www.skype.com.

Web Conferencing - Included - Free of Charge
I include free web conferencing with all technical support calls.  I use a free service called Join.me.  It makes it easy to connect our computers and (with your permission) view your screen.  I have been using web conferencing a lot lately for one-on-one training/support sessions.  I can talk you though a software download or soaring software feature and you learn from the experience because you do the work while I watch.  I can also take control of your machine (only with your permission) to do complex tasks more quickly.  The web conferencing is amazing.  It is as if I am in the same room with the you, looking over your shoulder (at the PC screen only - no need to comb your hair or get out of your pajamas).  There is no need to install software at your end.  I use this service during nearly every phone support session I do - several times a week.

Supported Products
The list below is a start.  I am familiar with many other products as well.

  • EW microRecorder
  • Glide Navigator II
  • SeeYou
  • SeeYou Mobile
  • StrePla
  • pocket*StrePla
  • Cambridge 302, 302A and 303
  • LX Navigation Colibri
  • LX7000, LX7007, LX8000
  • NK ClearNav
  • Garrecht Volkslogger

Example Support Topics

  • Downloading waypoint or airspace files from the internet to your PC or PDA or flight computer
  • Transferring files from your PC to your PDA or vice-versa
  • Install soaring software on your PDA and get it ready to fly
  • Download flight logs from your flight recorder
  • Setup pilot name and glider ID in your flight recorder
  • Upload waypoint and airspace files to your GPS flight recorder or flight computer
  • Generate waypoint and airspace files for your region
  • Upload flight logs to the OLC

Pocket PC Training CD
I have created a training CD that is great for anyone that is new to using Pocket PCs.  It sells for only $19.95.  You can see details here: Training

SeeYou Training CDs
I have created training CDs with 3 hours of training on SeeYou for the PC.  You can see details on the Training page.

$60/hour
(1 hour
Minimum)

Scheduled


Cumulus Soaring, Inc.
Paul E. Remde

8661 Connelly Place
Savage, Minnesota 55378
USA


Home | Contact | Customer Service | How to Order | Privacy | Technical Support | View Cart


Phone: 1-952-445-9033
FAX: 1-952-445-8954
