Vertical Card Compasses

Overview
Vertical card compasses are much easier to read than a traditional compass.  Pilots that have flown with them say they will never go back to any other kind of compass.  They are available with 14V and 28V lights built-in.  The compass does not require any power to operate.

Approvals
The PAI-700 Vertical Card Compass is manufactured exclusively by Precision Aviation, Inc. under authorization by the U.S. Department of Transportation, Federal Aviation Administration, citing FAR-21 and TSO C7c Type 1 Directional Instrument, Non-Stabilized.

Installation and Compensation Documents
Bulletin_MCCI-102.pdf

Bulletin_IC-102.pdf

How to Order
To order a product, click on the
button next to the product.
When you are ready to complete your order, click on the
button.
Click on the small images to view larger versions.

Part # Description Photo
Click on image to view larger version

Price

Lead-time

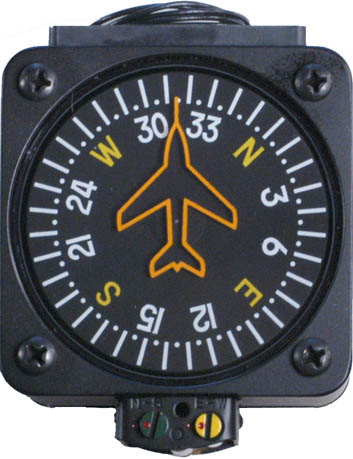

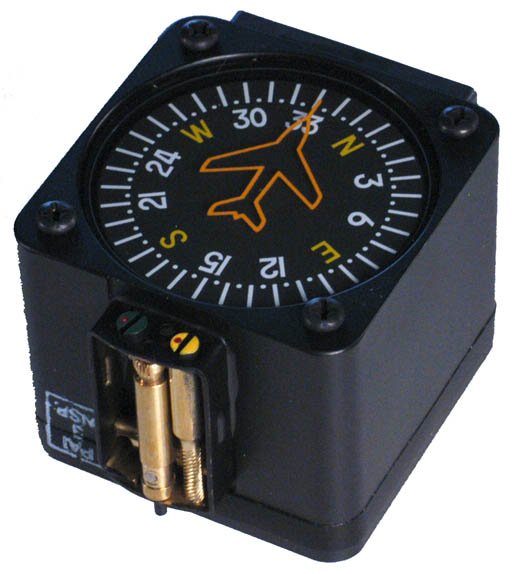

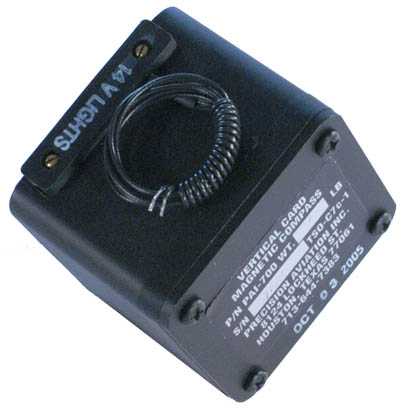

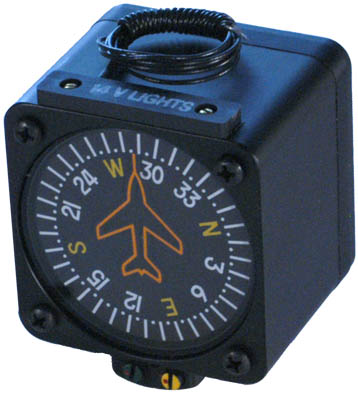

PAI-700-14V Vertical Card Compass, Instrument Panel Mount, 14V
Fits in a 57 mm (2 1/4") instrument hole.  Mounting screws included.  The light is designed to be powered by 14V but power is not required for the compass to operate.

 - Note: This unit is compensated for use in the USA.  Versions for other parts of the world are available upon request.  The price is $30 extra to cover shipment of the custom product to my office. I don't stock versions for the southern hemisphere. The lead-time is 4 to 6 weeks for southern hemisphere versions.

Dimensions of Compass:

  • Total height including adjustment screws on bottom and light on top: 73 mm (2.87 inches)
  • Width: 60 mm (2.36 inches)
  • Depth: 53 mm (2.09 inches)
$395 In Stock
PAI-700-28V Vertical Card Compass, Instrument Panel Mount, 28V
Fits in a 57 mm (2 1/4") instrument hole.  Mounting screws included.  The light is designed to be powered by 28V but power is not required for the compass to operate.

 - Note: This unit is compensated for use in the USA.  Versions for other parts of the world are available upon request.  The price is $30 extra to cover shipment of the custom product to my office. I don't stock versions for the southern hemisphere. The lead-time is 4 to 6 weeks for southern hemisphere versions.

Dimensions of Compass:

  • Total height including adjustment screws on bottom and light on top: 73 mm (2.87 inches)
  • Width: 60 mm (2.36 inches)
  • Depth: 53 mm (2.09 inches)
$395 In Stock
PAI-PACMG-2 Mounting Bracket for PAI-700, Glareshield
Simple right angle bracket for mounting the PAI-700 on the glare shield.

Dimension of Mounting Bracket

  • Height (not including foam on bottom which is very compressible): 76 mm (2.99 inches)
  • Width: 63 mm (2.48 inches)
  • Depth: 50 mm (1.97 inches)
$35 In Stock

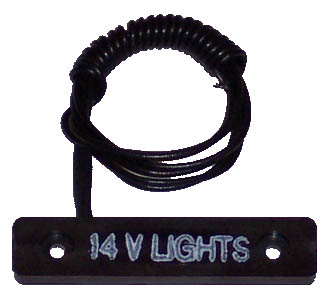

PAI-14V Light assembly for PAI-700 vertical card compass, 14V
This is a replacement part for the light that is included in the PAI-700-14V.
$35 In Stock

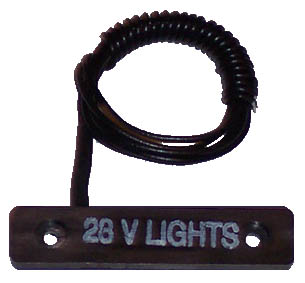

PAI-28V Light assembly for PAI-700 vertical card compass, 28V
This is a replacement part for the light that is included in the PAI-700-28V.
$35 In Stock
