Home > Microphones / Speakers > Peiker Acustic




How to Order
To order a product, click on the
button next to the product.
When you are ready to complete your order, click on the
button.
Click on the small images to view larger versions.

Part # Description Photo
Click on image to view larger version

Price

Lead-time

KL-1-4

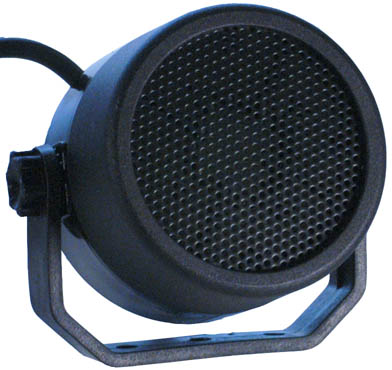

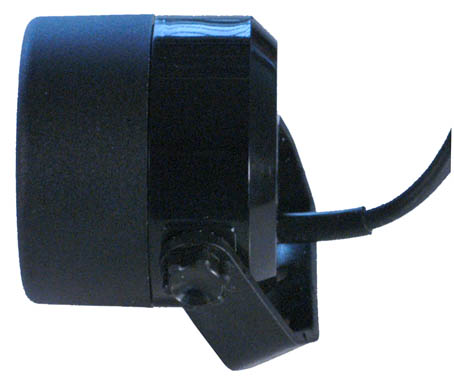

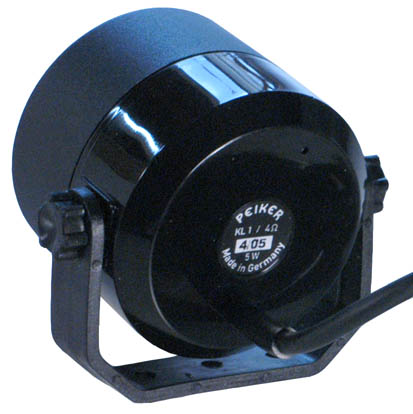

KL-1-4 Speaker, 4 Ohm, 5 Watt
Nice small speaker for use with an aircraft radio or variometer or flight computer.

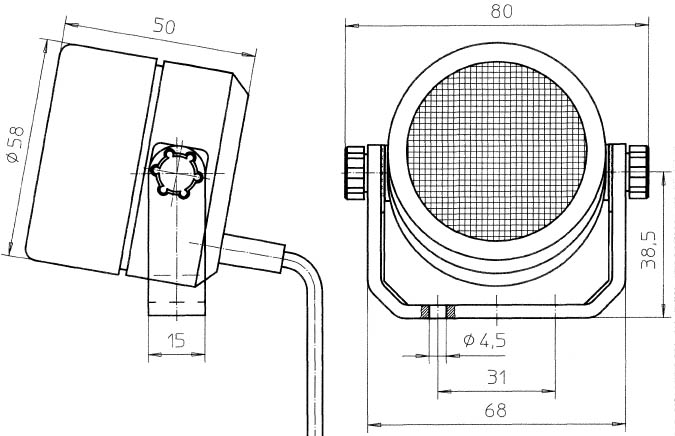

Dimensions
Diameter of housing: 58 mm (2.28 in)
Width including bracket knobs: 80 mm (3.15 in)
Height including mounting base: 78.5 mm (3.09 in)
Depth: 50 mm (1.97 in)
Cable Length: 2 m (80 in)



$40 In Stock
KL-1-8

KL-1-8 Speaker, 8 Ohm, 5 Watt
Nice small speaker for use with an aircraft radio or variometer or flight computer.
Dimensions
Diameter of housing: 58 mm (2.28 in)
Width including bracket knobs: 80 mm (3.15 in)
Height including mounting base: 78.5 mm (3.09 in)
Depth: 50 mm (1.97 in)
Cable Length: 3 m (120 in)



$40 In Stock
ME510

ME510 Electret Microphone Head
This is a great electret microphone for use with Trig, XCOM, Flightline, and Microair aircraft radios. The sound quality is excellent.

This electret microphone works with Becker or Walter Dittel radios, but the TM170 dynamic microphone is a better value.

Value Added
The cable supplied by the manufacturer with this microphone head is too short and too thick to fit through a gooseneck, so I have Larry Goddard replace the cable with a 12 foot long shielded cable.

Specifications:
Operating voltage: 1.5 V to 10 V
Frequency range: 100 Hz to 8 kHz at -10 dB
Sensitivity: 24 mV/Pa (-32 dBV/Pa ± 3 dB) at 3 V/2.2 kΩ
Impedance: 1.9 kΩ ± 20 % at 1 kHz/RL = 2.2 kΩ
Directivity: Cardioid (at 1 kHz; 180° -15 dB)

Dimensions:
Length: 86 mm (3.39")
Maximum Head Diameter: 29 mm (1.14")
Body Diameter: 24 mm (0.94")
Color: Flat Black

Connections:
- Blue/White: Mic+
- White Wire: Mic- or Mic Ground
- Braid: Shield (connect to Mic- or Mic Ground)

Cable length (from base of microphone head): 12 feet (3.66 m)

Microphone Technical Specifications

$180.00

In Stock



ME510-19in

ME510 Gooseneck Electret Microphone Assembly - 19 in
Note: This version is quite short with a gooseneck length of only 12 inches. Because of that - the 25 inch version (below) is much more popular than this 19 inch version.
This is a great electret microphone for use with Trig, XCOM, Flightline, and Microair aircraft radios.
It is very rugged and classy looking. The right-angle mounting base and microphone adapter are black anodized machined aluminum parts - custom made for Cumulus Soaring, Inc. This gooseneck is a great value, yet it looks and works great in even the most expensive sailplanes. The sound quality is excellent.

Value Added
The cable supplied by the manufacturer with this microphone head is too short and too thick to fit through a gooseneck, so I have Larry Goddard replace the cable with a 12 foot long shielded cable. Also, the base of the microphone head is much wider than the end of the gooseneck, so I have a custom, black anodized, machined aluminum adapter made. It adds a lot. The right-angle mounting base is also a custom, black anodized, machined aluminum part.

This electret microphone works with Becker or Walter Dittel radios, but the TM170 dynamic microphone is a better value.

Color: All items are black in color to minimize reflections in the cockpit.

Specifications:
Operating voltage: 1.5 V to 10 V
Frequency range: 100 Hz to 8 kHz at -10 dB
Sensitivity: 24 mV/Pa (-32 dBV/Pa ± 3 dB) at 3 V/2.2 kΩ
Impedance: 1.9 kΩ ± 20 % at 1 kHz/RL = 2.2 kΩ
Directivity: Cardioid (at 1 kHz; 180° -15 dB)

Dimensions:
Length: 86 mm (3.39")
Maximum Head Diameter: 29 mm (1.14")
Body Diameter: 24 mm (0.94")

Cable length (from base of microphone head): 12 feet (3.66 m)
Gooseneck Length: 12 inches (30.5 cm)
Overall Length: 18.5 inches (47 cm)
Weight (not including mounting screws): 9.7 ounces (275 grams)

Connections:
- Blue/White: Mic+
- White Wire: Mic- or Mic Ground
- Braid: Shield (connect to Mic- or Mic Ground)

Microphone Technical Specifications

  • Peiker-ME510-19in-01
  • Peiker-ME510-19in-03
  • Peiker-ME510-19in-02
  • Peiker-ME510-25in-06
  • Peiker-ME510-25in-07
  • Peiker-ME510-25in-03



$230

In Stock
ME510-25in

ME510 Gooseneck Electret Microphone Assembly - 25 in
This is a great electret microphone for use with Trig, XCOM, Flightline, and Microair aircraft radios.
It is very rugged and classy looking. The right-angle mounting base and microphone adapter are black anodized machined aluminum parts - custom made for Cumulus Soaring, Inc. This gooseneck is a great value, yet it looks and works great in even the most expensive sailplanes. The sound quality is excellent.

Value Added
The cable supplied by the manufacturer with this microphone head is too short and too thick to fit through a gooseneck, so I have Larry Goddard replace the cable with a 12 foot long shielded cable. Also, the base of the microphone head is much wider than the end of the gooseneck, so I have a custom, black anodized, machined aluminum adapter made. It adds a lot. The right-angle mounting base is also a custom, black anodized, machined aluminum part.

This electret microphone works with Becker or Walter Dittel radios, but the TM170 dynamic microphone is a better value.

Color: All items are black in color to minimize reflections in the cockpit.

Specifications:
Operating voltage: 1.5 V to 10 V
Frequency range: 100 Hz to 8 kHz at -10 dB
Sensitivity: 24 mV/Pa (-32 dBV/Pa ± 3 dB) at 3 V/2.2 kΩ
Impedance: 1.9 kΩ ± 20 % at 1 kHz/RL = 2.2 kΩ
Directivity: Cardioid (at 1 kHz; 180° -15 dB)

Dimensions:
Length: 86 mm (3.39")
Maximum Head Diameter: 29 mm (1.14")
Body Diameter: 24 mm (0.94")

Cable length (from base of microphone head): 12 feet (3.66 m)
Gooseneck Length: 18 inches (45.7 cm)
Overall Length: 24.5 inches (62.2 cm)
Weight (not including mounting screws): 11.9 ounces (337 grams)

Connections:
- Blue/White: Mic+
- White Wire: Mic- or Mic Ground
- Braid: Shield (connect to Mic- or Mic Ground)

Microphone Technical Specifications

  • Peiker-ME510-25in-04
  • Peiker-ME510-25in-01
  • Peiker-ME510-25in-02
  • Peiker-ME510-25in-08
  • Peiker-ME510-25in-05
  • Peiker-ME510-25in-06
  • Peiker-ME510-25in-07
  • Peiker-ME510-25in-03



$235

In Stock
TM170

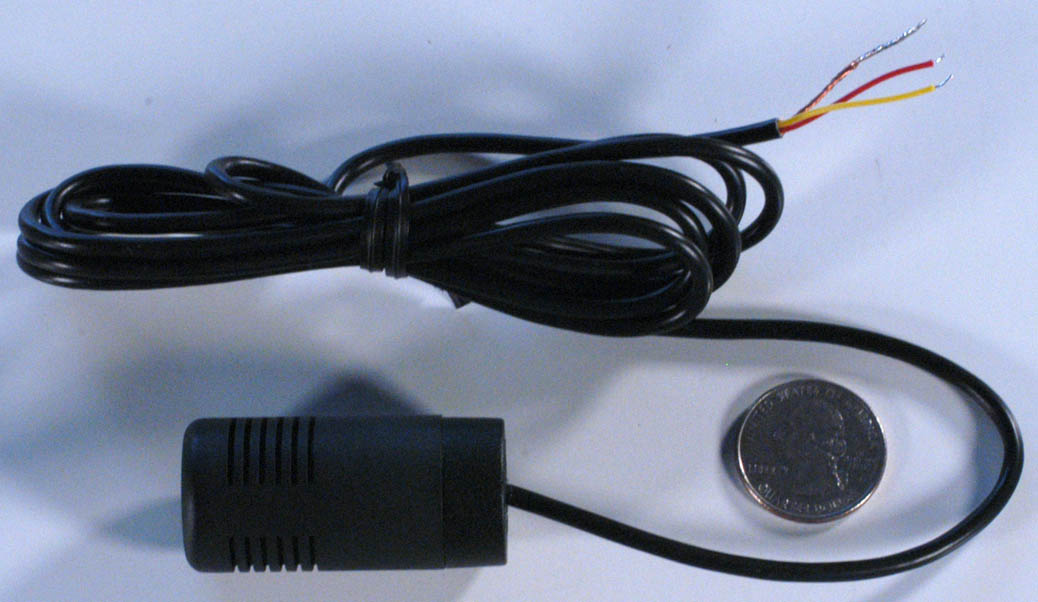

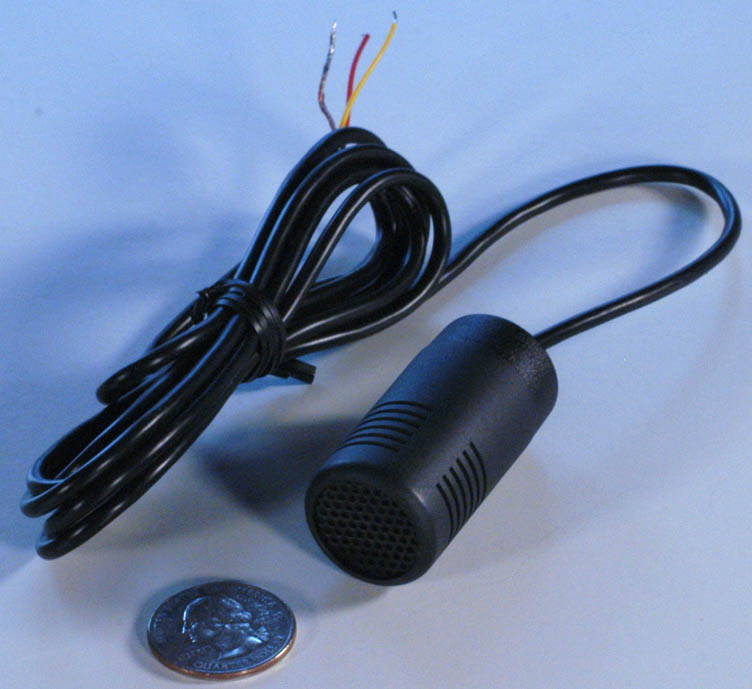

TM170 Microphone Head
This is a great dynamic microphone for use with Becker, and Walter Dittel aircraft radios.
The sound quality is excellent.

This microphone does not work with XCOM, Flightline, Microair or Trig radios. The ME510 works with those radios.

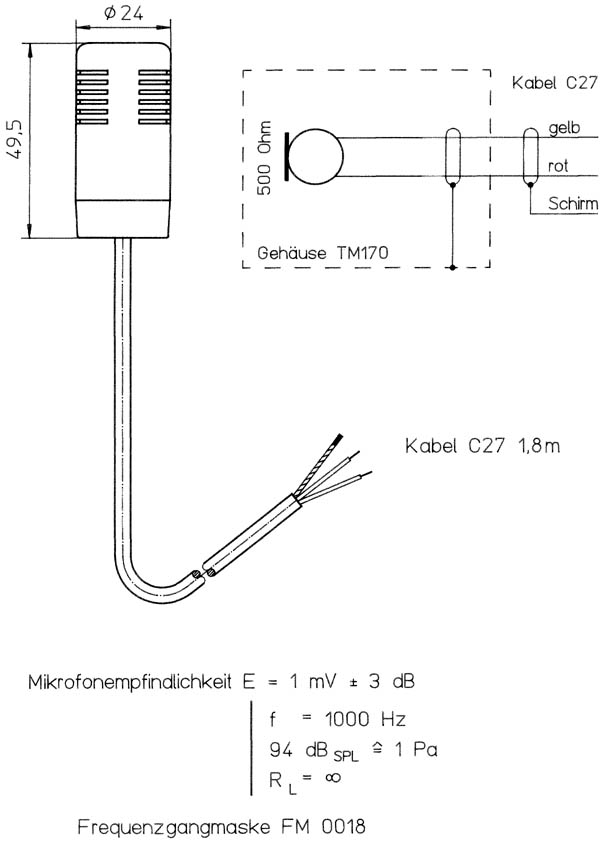

Dimensions of microphone head
Length: 49.5 mm (1.95")
Diameter: 24 mm (0.84")

Cable length (from base of microphone head): 67 inches (1.7 m)

Connections:
- Red Wire: Mic+
- Yellow Wire: Mic- or Mic Ground
- Braid: Shield (connect to Mic- or Mic Ground)

Microphone Technical Specifications

$105

In Stock



TM170-17in

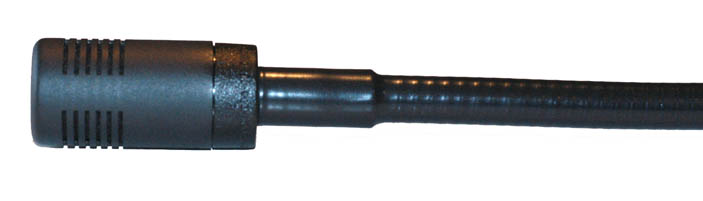

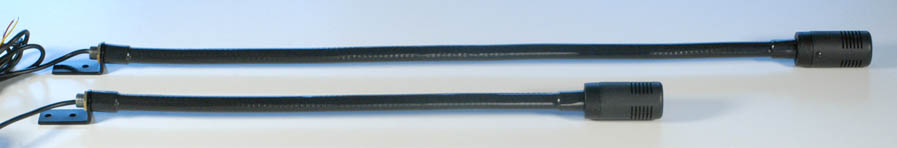

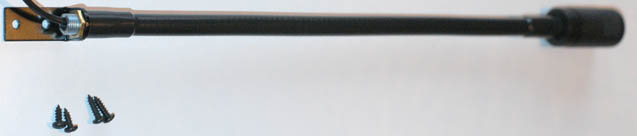

TM170 Gooseneck Microphone Assembly - 17 in
Note: This version is quite short. Because of that - the 23 inch version (below) is much more popular than this 17 inch version.
This is a great dynamic microphone for use with Becker,and Walter Dittel aircraft radios.
It is very rugged and classy looking. The right-angle mounting base and microphone adapter are black anodized machined aluminum parts - custom made for Cumulus Soaring, Inc.. This gooseneck is a great value, yet it looks and works great in even the most expensive sailplanes. The sound quality is excellent.

This microphone does not work with XCOM, Flightline, Microair or Trig radios. The ME510 works with those radios.

Value Added
The base of the microphone head is much wider than the end of the gooseneck, so I have a custom, black anodized, machined aluminum adapter made. It adds a lot. The right-angle mounting base is also a custom, black anodized, machined aluminum part.

Color: All items are black in color to minimize reflections in the cockpit.

Connections:
- Red Wire: Mic+
- Yellow Wire: Mic- or Mic Ground
- Braid: Shield (connect to Mic- or Mic Ground)

Dimensions:
Microphone Head Length: 49.5 mm (1.95")
Microphone Head Diameter: 24 mm (0.84")

Cable length (from base of microphone head): 67 inches (1.7 m)
Gooseneck Length: 12 inches (30.48 cm)
Overall Length: 16.9 inches (42.8 cm)
Weight (not including mounting screws): 7.6 ounces (215 grams)

Microphone Technical Specifications

$155

In Stock
TM170-23in

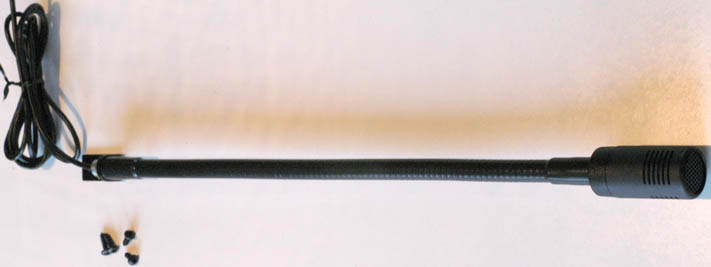

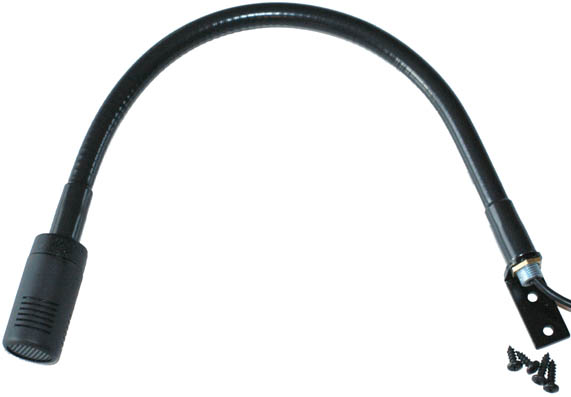

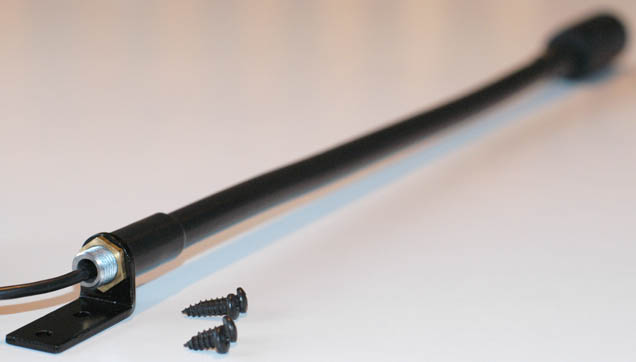

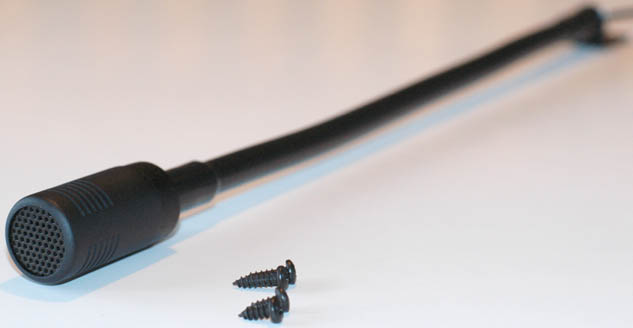

TM170 Gooseneck Microphone Assembly - 23 in - Most Popular
This is a great dynamic microphone for use with Becker,and Walter Dittel aircraft radios.
It is very rugged and classy looking. The right-angle mounting base and microphone adapter are black anodized machined aluminum parts - custom made for Cumulus Soaring, Inc.. This gooseneck is a great value, yet it looks and works great in even the most expensive sailplanes. The sound quality is excellent.

This microphone does not work with XCOM, Flightline, Microair or Trig radios. The ME510 works with those radios.

Value Added
The base of the microphone head is much wider than the end of the gooseneck, so I have a custom, black anodized, machined aluminum adapter made. It adds a lot. The right-angle mounting base is also a custom, black anodized, machined aluminum part.

Color: All items are black in color to minimize reflections in the cockpit.

Connections:
- Red Wire: Mic+
- Yellow Wire: Mic- or Mic Ground
- Braid: Shield (connect to Mic- or Mic Ground)

Dimensions:
Microphone Head Length: 49.5 mm (1.95")
Microphone Head Diameter: 24 mm (0.84")

Cable length (from base of microphone head): 67 inches (1.7 m)
Gooseneck Length: 18 inches (45.72 cm)
Overall Length: 22.8 inches (58.0 cm)
Weight (not including mounting screws): 9.7 ounces (275 grams)

Microphone Technical Specifications

$160

In Stock
