EDS O2D2-2G - 2-Place Electronic Pulse Delivery Systems

Overview | EDS O2D1 | EDS O2D2 | Constant Flow | Cannulas & Face Masks | Cylinders | Regulators | CO-PILO2T | Transfillers

On this page:


Videos

Mountain High EDS Pulse-Demand Oxygen System Safety Features
Overview Video, by Paul Remde


Mountain High EDS Pulse-Demand Oxygen System Safety Features
Duration: 7 minutes, 13 seconds
One of 80+ videos in the Soaring Product Training series
You can rent this video for 30 days for $3, or buy it for $10, or rent the entire Soaring Product Training series for $60 for one year.

Introducing the EDS Pulse-Demand Oxygen System

Operating Modes

Video: Setting up the EDS O2D2

Other Mountain High Videos
http://www.mhoxygen.com/index.php/videos
and
https://www.youtube.com/user/MtHighOxygen/videos


October 1, 2015
New EDS O2D1-2G System

Mountain High Oxygen is pleased to announce the release of our next generation of EDS (Electronic Delivery System) Pulse Demand oxygen controllers, the O2D1-2G and O2D2-2G.

These changes are common to both the O2D1 and O2D2 family of EDS.

Our new Pulse Demand systems still incorporate all of the benefits of our legacy controllers but with many improvements.

We started with the control switch: The EDS unit now incorporates a MIL spec ruggedized easy-to- grip rotary control switch providing improved reliability, increased ease of function and visibility. This switch also has very positive position detents for excellent tactile feedback making it resistant to changes from causal rubbing or bumping.

While we were at it, we improved the manifold design to allow for better breathing response and effort tracking. This combined with a new circuit board, as well as a new micro-controller, gives improved power-conserving operations with even less RFI emissions, better respire-metric tracking and dispensing of oxygen in finer resolution resulting in smoother steps from altitude and breathing changes.

Other improvements include a dedicated bi-color system battery status light allowing much easier monitoring and definitive indication of battery condition without being confused as a station operation. The original O2Dx units encoded the low battery notification into the station lights. This status light also responds to each control switch change with a beep and green flash to confirm your actions. Also the audio alerts and warnings are louder, more crisp and dynamic to human hearing in an effort of being heard over modest cabin noise. The O2D2-2G has a 600 Ohm stereo external audio jack as well as a USB compatible (5VDC) external power port.

More intuitive F-Mode settings labeled as 1, 2, 3 & 4 for use with face masks or when more oxygen is required.

Abandoned Unit Auto Shut-Off
If you should forget to turn your EDS off after use, it will now go into auto shut-down (drawing very little power) after 3 hours of detecting no use in an attempt to save the batteries for another flight.


Documents
Oxygen Cylinder Dimensions and Duration Table
Mountain High Documents Page - Manuals, specifications, articles, etc.

System Kits
The price list below includes many EDS O2D2-2G system kits.  The kits are commonly purchased combinations of components.  The kits are discounted so you save money when buying a kit when compared with buying the components individually.


How to Order
To order a product, click on the
button next to the product.
When you are ready to complete your order, click on the
button.
Click on the small images to view larger versions.

Lead-time
I try to stock as many parts as possible so I can ship to you immediately upon the receipt of your order.  However, MH offers an extremely broad range of products and kits so it is not possible for me to stock everything.  However, it is possible for MH to ship parts I don't have in stock directly to you very quickly.  That is good for you because you receive the products quickly.  It is good for me because it reduces the amount of inventory I need to stock and also eliminates the cost of shipping the products to me.  The items marked "In Stock" below are almost always in my stock here in Minnesota, USA.  The items marked "1 Day" (or similar) can be shipped directly from the vendor in Oregon, USA to you.

Part # Model # Description Photo
(Click on images below to view large versions)

Price

Lead-time
EDS O2D2

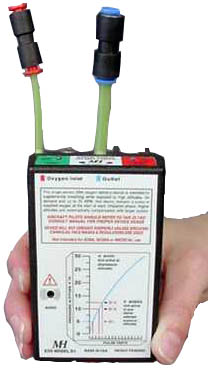

00EDS-2200-00 O2D2-2G-Kit EDS O2D2-2G Unit Kit
Mountain High’s newest breakthrough technology is the two-person MH EDS O2D2-2G Two Place Pulse Demand Oxygen System. The MH EDS O2D2-2G is the only single unit, portable, two-place, carry-on Pulse Demand oxygen system currently available for general aviation.  The MH EDS O2D2-2G, with the patented digital electronic "Pulse Demand" oxygen delivery system, enables the pilot and passenger to fly at pressure altitudes up to 25,000 ft. with safety and comfort. The O2D2-2G digital pulse demand system reduces oxygen consumption dramatically. Different from the "standard" constant flow systems, the O2D2-2G pulse demand system wastes no oxygen during the breathing cycle when oxygen is not being delivered to the lungs. The average user will enjoy a conservative consumption drop of 4 times compared to the constant flow systems. The system operates with two people for up to 50 hours on three AA alkaline batteries.  The O2D2-2G is small and easy to use, with no flow indicators to watch or manually adjust with altitude changes. A rotary control knob is used to select from the various modes that automatically deliver the required supplemental oxygen pulses for various altitudes for both pilot and passenger.  A complete EDS O2D2-2G system includes cylinder, cylinder carry case, primary reducing regulator, low pressure service line, connection fittings, the O2D2-2G, cannulas, face masks and tote bag.

Included:

Items included in EDS-O2D2-2G Unit Kit
EDS-O2D2-2G Unit 3 AAA
Batteries



2 EDS Cannulas
(standard tip)
00EDS-1084-00
1 EDS Cannula
(flare tip)
00EDS-1084-01
2 EDS Face Masks
00EDS-1078-00
EDS to XCP Coupler Kit Tote Bag, 12" x 12"
60000-0012-00

Not Included:

  • Regulator
  • Oxygen Cylinder

Oxygen Cylinder Dimensions and Duration Table
Mountain High Documents Page - Manuals, specifications, articles, etc.

$895 In Stock

EDS Accessories
00BLT-1016-xx Flex-Fill Flex-Fill, 18, 24, 36, 48 or 60 inch (45.7, 61.0, 91.4, 121.9, or 152.4 cm) with MH-300 Pressure Gauge
Flex-Fill systems make it easy to fill a remotely mounted oxygen cylinder.  It is an extension line that plugs into the pressure gauge port on the regulator and brings a fill nipple and pressure gauge out to a more convenient location.  It is ideal for use in gliders where the cylinder is mounted in a difficult to reach location. Our integrated fill-stations feature the Swagelok system for the best seal between tubing and fitting. They also have SAE straight-thread with o-ring ports that allow for the most dependable seal.
The free end has an MS22066 male fitting with 3/8-24 thread.  The TA-380-N or TA-380-S transfill adapters work with this fitting.

Note:  All complete EDS system kits include a cylinder with gauged valve and a regulator that does not have a gauge.  The Flex-Fill normally threads into a pressure gauge port on a regulator that would include a pressure gauge. Since standard EDS systems include a regulator without a gauge (and gauge port) the regulator must be upgraded to include a version with a gauge port.  For example, an XCR regulator must be upgraded to an XCR-G (MH-00REG-1030-00-Upgrade, $35).  The upgraded regulator does not include a pressure gauge because the gauge is included with the Flex-Fill.  The price of the upgrade is the price difference between the 2 regulators, minus $25 for the gauge that is not needed.  This upgrade will be added when you order a Flex-Fill unit along with an EDS system.

If you already own a regulator with a gauge - please order the "NG" (no gauge) version. You can select that option at check-out.

$159
(18")(0.46 m)

$155
(24")(0.61 m)

$169
(36")(0.91 m)

$176
(48")(1.22 m)

$195
(60")(1.52 m)

$199
(72")(1.83 m)

1 day
00EDS-1070-00 EDS-XCP-Adapter Adapter to Connect EDS Unit to XCP Regulator
EDS-XCP adapter line kit with CPC fittings that allows you to use an EDS unit with your XCP system - a must when you upgrade one or more of your XCP stations to EDS units.  This part is included with all EDS systems.  42" (1.6 m) long overall length, CPC fitting for XCP regulator, reducer and 4 mm red tube for connection to EDS inlet

$10 In Stock

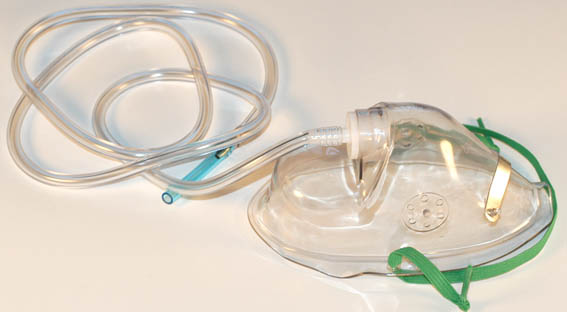

00EDS-1078-00 EDS-Face Mask Face Mask for EDS Systems
EDS Replacement Face Mask.  For use with EDS systems at or above 18,000 feet MSL.  This item is included with all EDS systems.  Includes 1 m of tubing and connector for EDS system.
$10 In Stock
00EDS-1084-00 EDS-Cannula Cannula for EDS Systems - Standard Tip Version
EDS Replacement Cannula.  This item is included with all EDS systems.  Includes 1 m of tubing and connector for EDS system.

See also the Flare Tip version below.

$8 In Stock

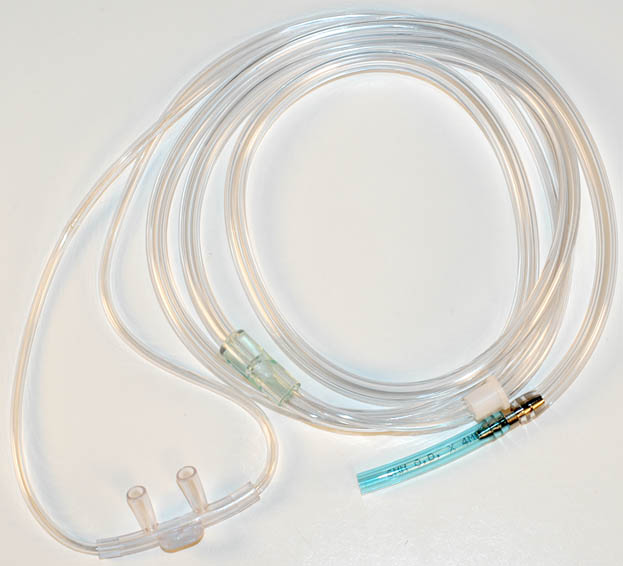

00EDS-1084-01 EDS-Cannula-Flare-Tip Cannula for EDS Systems - Flare Tip Version
EDS Replacement Cannula.  This item is included with all EDS systems.  Includes 1 m of tubing and connector for EDS system.

This "Flare Tip" version has larger openings at the tips of the nasal inserts.  It is recommended if the standard version does not trigger the EDS unit at higher altitudes.  It is ideal for pilots with larger nostrils.

$8 In Stock
60000-0012-00 EDS-Tote-Bag-12x12 Tote Bag
For storing EDS and all accessories
Nylon, with zipper and carrying handle
Dimensions: 12" x 11" (30.5 x 27.9 cm)
$7.50 1 Day

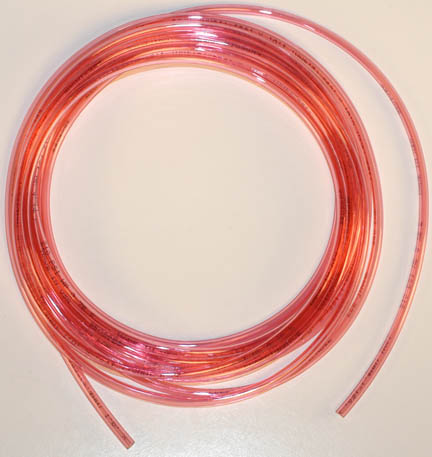

00HDW-0012-20 Tubing-Red Red Polyurethane Tubing
Length: 20 feet, 4 mm OD, 2 mm ID
As used to connect to the input port of the EDS
price is for 20 feet
$17.50 In Stock

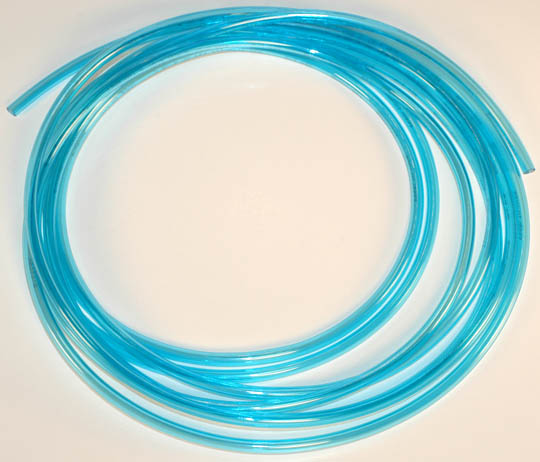

00HDW-0014-20 Tubing-Blue Blue Polyurethane Tubing
Length: 20 feet, 6 mm OD, 4 mm ID
As used to connect to the output port of the EDS
price is for 20 feet
$20 In Stock

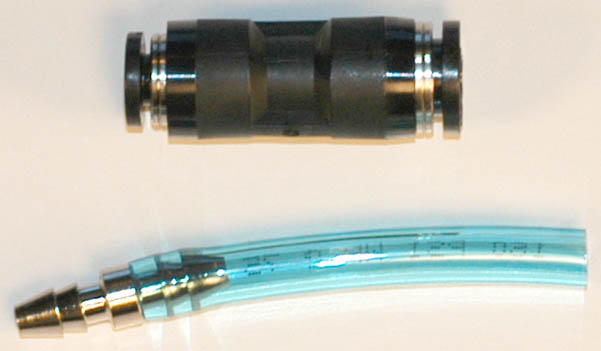

00HDW-1378 4to6mm-Coupler-Kit 4 to 6 mm Coupler Kit
For connecting EDS inlet port to user supplied 1/8" I.D. soft polypropylene or polyethylene tubing.  This 4 mm to 6 mm union and barbed tube kit allows the 4 mm polyurethane inlet line of an EDS or XCR unit to mate with any soft type 1/8" (3.2 mm) tubing.  The union allows 6 mm polyurethane tubing to be optionally used as the main run from the regulator to the delivery unit.  The union kit is useful in custom system installations or where other primary pressure reducing regulators will be used.
  • 4 mm to 6 mm tubing coupler (can be used to replace the 4 mm to 4 mm couple that is usually used on the EDS inlet)
  • Blue polyurethane (hard) interconnect tube, 6 mm O.D. x 3 cm long with barb connector for use with user supplied 1/8" I.D. (soft) polypropylene or polyethylene tubing
$7 1 Day

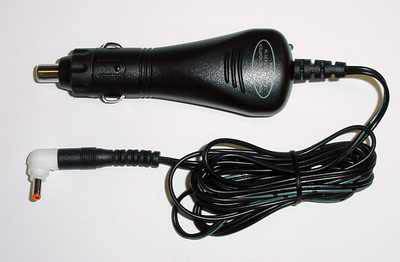

39300-1245-00 O2D2-EPS O2D2-EPS External Power Supply for O2D2-2G Systems
This adapter allows you to power a 4.5VDC electronic device.
*Fits any standard lighter socket or accessory outlet
*Dual 12/24VDC input
*6-foot (1.83m) cord
*Power-on indicator
$29 In Stock

EDS O2D2-2G Delivery Systems
EDS-O2D2-2G Delivery System Kits with Regulator
These system kits includes everything you need for supplying oxygen - except the cylinder.  The "2-Place" systems provide oxygen for two people.

Included:

Items included in EDS-O2D2-2G Delivery System Kits

EDS O2D2-2G Unit 3 AAA
Batteries
2 EDS Cannulas
(standard tip)
00EDS-1084-00
1 EDS Cannula
(flare tip)
00EDS-1084-01
2 EDS Face Mask
00EDS-1078-00
EDS to XCP Coupler Kit Tote Bag, 12" x 12"
60000-0012-00
Red tubing
from regulator
to O2D2
Regulator
See options below

Not Included:

  • Oxygen Cylinder

Also, the optional ALPS FaceMask with or without microphone is the perfect addition to any EDS system.

Note: No cylinder is included in this system.

Oxygen Cylinder Dimensions and Duration Table
Mountain High Documents Page - Manuals, specifications, articles, etc.

00EDS-2150-00 O2D2-X-STR

EDS O2D2-2G 2-Place Delivery System with EDS-STR regulator (no connector)
EDS O2D2-2G unit with EDS-STR regulator (00REG-1048-0x) is for applications in which the pilot may wish to operate up to four EDS units from a non-regulated (wild) source (30 to 125 psig.). This would be applicable for an aircraft with a built-in oxygen system. This kit does not include any adapter for connecting to the aircraft.
See a complete list and photos of included accessories here.

Many factory built in systems operate with regulated pressures that are not compatible (too high) with Mountain Highs EDS-Pulse Demand™ System. Our system requires aproximently 20psi of regulated pressure.

The Mountain High STR In-line Stabilizing Regulator allows you to operate Our EDS units from an oxygen source with pressure up to 150psi, such as an Aircraft with a built-in oxygen system. The EDS Pulse Demand™ systems can be ordered with the most common OEM type connectors for direct "Plug-n-Fly" operations.

  • BNC-SCOTT - BNC-SC01-100 connector fits most Beechcraft, Mooney and Piper with built-in oxygen systems.
  • BNC-PB-566 - Fits most Cessna single engine prior to 1980. Fits most Cessna twin engine prior to 1970.
  • BNC-PB-750 - Fits most late model Cessna singles 1980 on. Fits most late model Cessna twins 1970 on. Also fits Piper Matrix.

$1075 1 Day
00EDS-2150-01 O2D2-X-STR-BNC-SCT

EDS O2D2-2G 2-Place Delivery System with EDS-STR regulator with Scott Style BNC Connector
EDS O2D2-2G unit with EDS-STR regulator (00REG-1048-0x) is for applications in which the pilot may wish to operate up to four EDS units from a non-regulated (wild) source (30 to 125 psig.). This would be applicable for an aircraft with a built-in oxygen system. This kit includes a Scott style BNC connector for direct "Plug-n-Fly" for your aircraft type.
See a complete list and photos of included accessories here.

BNC-SCOTT - BNC-SC01-100 connector fits most Beechcraft, Mooney and Piper with built-in oxygen systems.

Many factory built in systems operate with regulated pressures that are not compatible (too high) with Mountain Highs EDS-Pulse Demand™ System. Our system requires aproximently 20psi of regulated pressure.

The Mountain High STR In-line Stabilizing Regulator allows you to operate Our EDS units from an oxygen source with pressure up to 150psi, such as an Aircraft with a built-in oxygen system. The EDS Pulse Demand™ systems can be ordered with the most common OEM type connectors for direct "Plug-n-Fly" operations.

$1095 1 Day
00EDS-2150-02 O2D2-X-STR-BNC-PB750

EDS O2D2-2G 2-Place Delivery System with EDS-STR regulator with PB750 Style BNC Connector
EDS O2D2-2G unit with EDS-STR regulator (00REG-1048-0x) is for applications in which the pilot may wish to operate up to four EDS units from a non-regulated (wild) source (30 to 125 psig.). This would be applicable for an aircraft with a built-in oxygen system. This kit includes a PB750 style BNC connector for direct "Plug-n-Fly" for your aircraft type.
See a complete list and photos of included accessories here.

BNC-PB-750 - Fits most late model Cessna singles 1980 on. Fits most late model Cessna twins 1970 on. Also fits Piper Matrix.

Many factory built in systems operate with regulated pressures that are not compatible (too high) with Mountain Highs EDS-Pulse Demand™ System. Our system requires aproximently 20psi of regulated pressure.

The Mountain High STR In-line Stabilizing Regulator allows you to operate Our EDS units from an oxygen source with pressure up to 150psi, such as an Aircraft with a built-in oxygen system. The EDS Pulse Demand™ systems can be ordered with the most common OEM type connectors for direct "Plug-n-Fly" operations.



$1095 1 Day
00EDS-2150-03 O2D2-X-STR-BNC-PB566

EDS O2D2-2G 2-Place Delivery System with EDS-STR regulator with PB566 Style BNC Connector
EDS O2D2-2G unit with EDS-STR regulator (00REG-1048-0x) is for applications in which the pilot may wish to operate up to four EDS units from a non-regulated (wild) source (30 to 125 psig.). This would be applicable for an aircraft with a built-in oxygen system. This kit includes a PB566 style BNC connector for direct "Plug-n-Fly" for your aircraft type.
See a complete list and photos of included accessories here.

BNC-PB-566 - Fits most Cessna single engine prior to 1980. Fits most Cessna twin engine prior to 1970.

Many factory built in systems operate with regulated pressures that are not compatible (too high) with Mountain Highs EDS-Pulse Demand™ System. Our system requires aproximently 20psi of regulated pressure.

The Mountain High STR In-line Stabilizing Regulator allows you to operate Our EDS units from an oxygen source with pressure up to 150psi, such as an Aircraft with a built-in oxygen system. The EDS Pulse Demand™ systems can be ordered with the most common OEM type connectors for direct "Plug-n-Fly" operations.

$1095 1 Day
00EDS-2150-04 O2D2-X-STR-CPC

EDS O2D2-2G 2-Place Delivery System with EDS-STR regulator with CPC Connector
EDS O2D2-2G unit with EDS-STR regulator (00REG-1048-0x) is for applications in which the pilot may wish to operate up to four EDS units from a non-regulated (wild) source (30 to 125 psig.). This would be applicable for an aircraft with a built-in oxygen system. This kit includes a CPC connector for direct "Plug-n-Fly" for your aircraft type.
See a complete list and photos of included accessories here.

Connector fits most late model Cirrus, Cessna Corvallis, Columbia's with built-in oxygen systems.

Many factory built in systems operate with regulated pressures that are not compatible (too high) with Mountain Highs EDS-Pulse Demand™ System. Our system requires aproximently 20psi of regulated pressure.

The Mountain High STR In-line Stabilizing Regulator allows you to operate Our EDS units from an oxygen source with pressure up to 150psi, such as an Aircraft with a built-in oxygen system. The EDS Pulse Demand™ systems can be ordered with the most common OEM type connectors for direct "Plug-n-Fly" operations.

$1095 1 Day
00EDS-2152-00 O2D2-X-XCR O2D2-2G Kit with XCR-1 Regulator
The O2D2-2G delivery system is ideal for those who have their own oxygen cylinder, but wish to upgrade to the patented EDS on-demand system. This system can supply oxygen to 1 or 2 people.  It includes everything you need for a complete system - except the cylinder.
See a complete list and photos of included accessories here.
$1040 1 Day
00EDS-2152-01 O2D2-X-XCR-G O2D2-2G Kit with XCR-G Gauged Regulator
The O2D2-2G delivery system is ideal for those who have their own oxygen cylinder, but wish to upgrade to the patented EDS on-demand system. This system can supply oxygen to 1 or 2 people.  It includes everything you need for a complete system - except the cylinder.
See a complete list and photos of included accessories here.
$1079 1 Day
00EDS-2152-03 O2D2-X-XCR-DIN-G O2D2-2G Kit with XCR-DIN-G Gauged Regulator (00REG-1036-01)
The O2D2-2G delivery system is ideal for those who have their own oxygen cylinder, but wish to upgrade to the patented EDS on-demand system. This system can supply oxygen to 1 or 2 people.  It includes everything you need for a complete system - except the cylinder.
See a complete list and photos of included accessories here.
$1095 1 Day
00EDS-2154-00 O2D2-X-FPR O2D2-2G Kit with FPR Four Place Regulator (without gauge)
The O2D2-2G delivery system is ideal for those who have their own oxygen cylinder, but wish to upgrade to the patented EDS on-demand system. This system can supply oxygen to 1 or 2 people.  It includes everything you need for a complete system - except the cylinder.  The use of the four port regulator allows up to 3 additional EDS O2D1-2G or O2D2-2G units to be added to this system.
See a complete list and photos of included accessories here.
$1175 1 Day

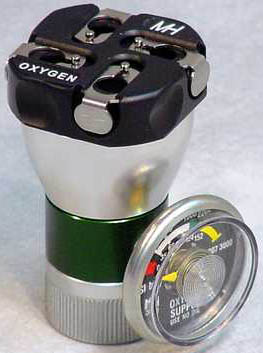

00EDS-2154-01 O2D2-X-FPR O2D2-2G Kit with FPR-G Four Place Regulator with gauge
The O2D2-2G delivery system is ideal for those who have their own oxygen cylinder, but wish to upgrade to the patented EDS on-demand system. This system can supply oxygen to 1 or 2 people.  It includes everything you need for a complete system - except the cylinder.  The use of the four port regulator allows up to 3 additional EDS O2D1-2G or O2D2-2G units to be added to this system.
See a complete list and photos of included accessories here.
$1195 1 Day
00EDS-2154-03 O2D2-X-FPR-DIN-G O2D2-2G Kit with FPR-G-DIN-477 Four Place Regulator with gauge
The O2D2-2G delivery system is ideal for those who have their own oxygen cylinder, but wish to upgrade to the patented EDS on-demand system. This system can supply oxygen to 1 or 2 people.  It includes everything you need for a complete system - except the cylinder.  The use of the four port regulator allows up to 3 additional EDS O2D1-2G or O2D2-2G units to be added to this system.
See a complete list and photos of included accessories here.
$1215 1 Day

EDS-O2D2-2G Breathing Systems - With Standard Aluminum Cylinders
EDS-O2D2-2G Breathing Systems with Aluminum Cyliders
EDS-O2D2-2G Breathing Systems are complete systems for 2 or more people which include everything from the cylinder to the cannulas and face masks.  The low-pressure service line is a high quality polyurethane line that is kink-resistant and flexible under varying temperatures. The cannula, face mask and service line connect to the EDS unit via color-coded "Quick-Connects" providing an air-tight fitting by hand. These fittings can be connected and disconnected many times.

Included:

Items included in EDS-O2D2-2G Breathing System Kits
Aluminum Oxygen
Cylinder
EDS O2D2-2G Unit 2 or 4 EDS Cannulas
(standard tip)
00EDS-1084-00
1 or 2 EDS Cannulas
(flare tip)
00EDS-1084-01
2 or 4 EDS Face Masks
00EDS-1078-00

EDS to XCP Coupler Kit Tote Bag, 12" x 12"
60000-0012-00
XCR-1 or FPR
Regulator,
and red tubing from regulator to O2D2
Holster Pack
or
Full-Pack
3 AAA
Batteries

Not Included:

  • Oxygen - The oxygen tank is empty.

To add extra flow stations to any of the 2-place O2D2-2G systems below, add $100 for the FPR 4-place regulator upgrade.
See our Full-Pack cylinder harness & carry-caddy for these cylinders. Also see CMK cylinder hold-down kits.
Also, the optional ALPS FaceMask with or without microphone is the perfect addition to any EDS system.

Oxygen Cylinder Dimensions and Duration Table
Mountain High Documents Page - Manuals, specifications, articles, etc.

00EDS-2052-02 O2D2-113-2P-H Two Place System with EDS-O2D2-2G Kit, XCR-1 Regulator, AL-113 (4.1 cu. ft.) Aluminum Cylinder and Holster Pack
See a complete list and photos of included accessories here.
Duration Table (hours)
Cylinder

Fill Pressure

Volume

Diameter
Max.
Length
Max.
Weight
Empty

Duration in Hours
(2 Place)

  bar PSI liters cu. ft. cm inch cm inch Kg  lb 10K ft 15K ft 18K ft
AL-113 124 1800 92 3.2 8.13 3.20 26.67 10.50 1.11 2.45 2.8 1.35 1.05
AL-113 153 2216 113 4.0 8.13 3.20 26.67 10.50 1.11 2.45 3.45 1.7 1.3
$1165 1 Day
00EDS-2053-02 O2D2-180-2P-H Two Place System with EDS-O2D2-2G Kit, XCR-1 Regulator, AL-180 (5.8 cu. ft.) Aluminum Cylinder and Holster Pack
See a complete list and photos of included accessories here.
Duration Table (hours)
Cylinder

Fill Pressure

Volume

Diameter
Max.
Length
Max.
Weight
Empty

Duration in Hours
(2 Place)

  bar PSI liters cu. ft. cm inch cm inch Kg  lb 10K ft 15K ft 18K ft
AL-180 124 1800 115 4.1 8.13 3.20 34.93 13.75 1.41 3.13 3.55 1.7 1.35
AL-180 153 2216 165 5.8 8.13 3.20 34.93 13.75 1.41 3.13 5.05 2.45 1.9
$1165 1 Day
00EDS-2054-02 O2D2-180-2P-F Two Place System with EDS-O2D2-2G Kit, XCR-1 Regulator, AL-180 (5.8 cu. ft.) Aluminum Cylinder and Full-Pack
See a complete list and photos of included accessories here.
Duration Table (hours)
Cylinder

Fill Pressure

Volume

Diameter
Max.
Length
Max.
Weight
Empty

Duration in Hours
(2 Place)

  bar PSI liters cu. ft. cm inch cm inch Kg  lb 10K ft 15K ft 18K ft
AL-180 124 1800 115 4.1 8.13 3.20 34.93 13.75 1.41 3.13 3.55 1.7 1.35
AL-180 153 2216 165 5.8 8.13 3.20 34.93 13.75 1.41 3.13 5.05 2.45 1.9
$1210 1 Day
00EDS-2054-D2 O2D2-180-2P-F-DIN Two Place System with EDS-O2D2-2G Kit, XCR-DIN Regulator, DIN valve with Gauge, AL-180 (5.8 cu. ft.) Aluminum Cylinder and Full-Pack
See a complete list and photos of included accessories here.
Duration Table (hours)
Cylinder

Fill Pressure

Volume

Diameter
Max.
Length
Max.
Weight
Empty

Duration in Hours
(2 Place)

  bar PSI liters cu. ft. cm inch cm inch Kg  lb 10K ft 15K ft 18K ft
AL-180 124 1800 115 4.1 8.13 3.20 34.93 13.75 1.41 3.13 3.55 1.7 1.35
AL-180 153 2216 165 5.8 8.13 3.20 34.93 13.75 1.41 3.13 5.05 2.45 1.9
$1275 1 Day
00EDS-2058-02 O2D2-248-2P-F Two Place System with EDS-O2D2-2G Kit, XCR-1 Regulator, AL-248 (8.7 cu. ft.) Aluminum Cylinder and Full-Pack
See a complete list and photos of included accessories here.
Duration Table (hours)
Cylinder

Fill Pressure

Volume

Diameter
Max.
Length
Max.
Weight
Empty

Duration in Hours
(2 Place)

  bar PSI liters cu. ft. cm inch cm inch Kg  lb 10K ft 15K ft 18K ft
AL-248 124 1800 222 7.8 11.11 4.375 32.38 12.75 2.04 4.5 6.8 3.3 2.55
AL-248 139 2015 248 8.8 11.11 4.375 32.38 12.75 2.04 4.5 7.6 3.7 2.85
$1250 1 Day
00EDS-2058-D2 O2D2-248-2P-F-DIN Two Place System with EDS-O2D2-2G Kit, XCR-DIN Regulator, AL-248 (8.7 cu. ft.) Aluminum Cylinder and Full-Pack
See a complete list and photos of included accessories here.
Duration Table (hours)
Cylinder

Fill Pressure

Volume

Diameter
Max.
Length
Max.
Weight
Empty

Duration in Hours
(2 Place)

  bar PSI liters cu. ft. cm inch cm inch Kg  lb 10K ft 15K ft 18K ft
AL-248 124 1800 222 7.8 11.11 4.375 32.38 12.75 2.04 4.5 6.8 3.3 2.55
AL-248 139 2015 248 8.8 11.11 4.375 32.38 12.75 2.04 4.5 7.6 3.7 2.85
$1310 1 Day
00EDS-2060-02 O2D2-415-2P-F Two Place System with EDS-O2D2-2G Kit, XCR-1 Regulator, AL-415 (14.6 cu. ft.) Aluminum Cylinder and Full-Pack
See a complete list and photos of included accessories here.
Duration Table (hours)
Cylinder

Fill Pressure

Volume

Diameter
Max.
Length
Max.
Weight
Empty

Duration in Hours
(2 Place)

  bar PSI liters cu. ft. cm inch cm inch Kg  lb 10K ft 15K ft 18K ft
AL-415 124 1800 371 13.1 11.11 4.375 47.37 18.65 2.83 6.25 11.35 5.5 4.3
AL-415 139 2015 415 14.7 11.11 4.375 47.37 18.65 2.83 6.25 12.7 6.15 4.8
$1255 1 Day
00EDS-2060-04 O2D2-415-4P-F Four Place System with 2 EDS-O2D2-2G Kits, FPR Regulator, AL-415 (14.6 cu. ft.) Aluminum Cylinder and Full-Pack
See a complete list and photos of included accessories here.
Duration Table (hours)
Cylinder

Fill Pressure

Volume

Diameter
Max.
Length
Max.
Weight
Empty

Duration in Hours
(4 Place)

  bar PSI liters cu. ft. cm inch cm inch Kg  lb 10K ft 15K ft 18K ft
AL-415 124 1800 371 13.1 11.11 4.375 47.37 18.65 2.83 6.25 5.68 2.55 2.15
AL-415 139 2015 415 14.7 11.11 4.375 47.37 18.65 2.83 6.25 6.35 3.08 2.4
$2195 1 Day
00EDS-2060-D2 O2D2-415-2P-F-DIN Two Place System with EDS-O2D2-2G Kit, XCR-DIN Regulator, AL-415 (14.6 cu. ft.) Aluminum Cylinder and Full-Pack
See a complete list and photos of included accessories here.
Duration Table (hours)
Cylinder

Fill Pressure

Volume

Diameter
Max.
Length
Max.
Weight
Empty

Duration in Hours
(2 Place)

  bar PSI liters cu. ft. cm inch cm inch Kg  lb 10K ft 15K ft 18K ft
AL-415 124 1800 371 13.1 11.11 4.375 47.37 18.65 2.83 6.25 11.35 5.5 4.3
AL-415 139 2015 415 14.7 11.11 4.375 47.37 18.65 2.83 6.25 12.7 6.15 4.8
$1315 1 Day
00EDS-2062-02 O2D2-647-2P-F Two Place System with EDS-O2D2-2G Kit, XCR-1 Regulator, AL-647 (22.8 cu. ft.) Aluminum Cylinder and Full-Pack
See a complete list and photos of included accessories here.
Duration Table (hours)
Cylinder

Fill Pressure

Volume

Diameter
Max.
Length
Max.
Weight
Empty

Duration in Hours
(2 Place)

  bar PSI liters cu. ft. cm inch cm inch Kg  lb 10K ft 15K ft 18K ft
AL-647 124 1800 526 18.6 13.33 5.250 48.51 19.10 3.81 8.40 16.1 7.8 6.05
AL-647 153 2216 647 22.8 13.33 5.250 48.51 19.10 3.81 8.40 19.8 9.6 7.45
$1325 1 Day
00EDS-2062-04 O2D2-647-4P-F Four Place System with 2 EDS-O2D2-2G Kits, FPR Regulator, AL-647 (22.8 cu. ft.) Aluminum Cylinder and Full-Pack
See a complete list and photos of included accessories here.
Duration Table (hours)
Cylinder

Fill Pressure

Volume

Diameter
Max.
Length
Max.
Weight
Empty

Duration in Hours
(4 Place)

  bar PSI liters cu. ft. cm inch cm inch Kg  lb 10K ft 15K ft 18K ft
AL-647 124 1800 526 18.6 13.33 5.250 48.51 19.10 3.81 8.40 8.05 3.9 3.03
AL-647 153 2216 647 22.8 13.33 5.250 48.51 19.10 3.81 8.40 9.9 4.8 3.73
$2270 1 Day
00EDS-2062-D2 O2D2-647-2P-F-DIN Two Place System with EDS-O2D2-2G Kit, XCR-DIN Regulator, AL-647 (22.8 cu. ft.) Aluminum Cylinder and Full-Pack
See a complete list and photos of included accessories here.
Duration Table (hours)
Cylinder

Fill Pressure

Volume

Diameter
Max.
Length
Max.
Weight
Empty

Duration in Hours
(2 Place)

  bar PSI liters cu. ft. cm inch cm inch Kg  lb 10K ft 15K ft 18K ft
AL-647 124 1800 526 18.6 13.33 5.250 48.51 19.10 3.81 8.40 16.1 7.8 6.05
AL-647 153 2216 647 22.8 13.33 5.250 48.51 19.10 3.81 8.40 19.8 9.6 7.45
$1385 1 Day
00EDS-2064-02 O2D2-682-2P-F Two Place System with EDS-O2D2-2G Kit, XCR-1 Regulator, AL-682 (24.09 cu. ft.) Aluminum Cylinder and Full-Pack
See a complete list and photos of included accessories here.
Duration Table (hours)
Cylinder

Fill Pressure

Volume

Diameter
Max.
Length
Max.
Weight
Empty

Duration in Hours
(2 Place)

  bar PSI liters cu. ft. cm inch cm inch Kg  lb 10K ft 15K ft 18K ft
AL-682 124 1800 609 21.5 11.11 4.375 70.50 27.75 3.92 8.65 18.65 9.05 7.05
AL-682 139 2015 682 24.1 11.11 4.375 70.50 27.75 3.92 8.65 20.9 10.1 7.85
$1265 1 Day
00EDS-2064-04 O2D2-682-4P-F Four Place System with 2 EDS-O2D2-2G Kits, FPR Regulator, AL-682 (24.09 cu. ft.) Aluminum Cylinder and Full-Pack
See a complete list and photos of included accessories here.
Duration Table (hours)
Cylinder

Fill Pressure

Volume

Diameter
Max.
Length
Max.
Weight
Empty

Duration in Hours
(4 Place)

  bar PSI liters cu. ft. cm inch cm inch Kg  lb 10K ft 15K ft 18K ft
AL-682 124 1800 609 21.5 11.11 4.375 70.50 27.75 3.92 8.65 9.33 4.53 3.53
AL-682 139 2015 682 24.1 11.11 4.375 70.50 27.75 3.92 8.65 10.45 5.05 3.93
$2215 1 Day
00EDS-2064-D2 O2D2-682-2P-F Two Place System with EDS-O2D2-2G Kit, XCR-DIN Regulator, AL-682 (24.09 cu. ft.) Aluminum Cylinder and Full-Pack
See a complete list and photos of included accessories here.
Duration Table (hours)
Cylinder

Fill Pressure

Volume

Diameter
Max.
Length
Max.
Weight
Empty

Duration in Hours
(2 Place)

  bar PSI liters cu. ft. cm inch cm inch Kg  lb 10K ft 15K ft 18K ft
AL-682 124 1800 609 21.5 11.11 4.375 70.50 27.75 3.92 8.65 18.65 9.05 7.05
AL-682 139 2015 682 24.1 11.11 4.375 70.50 27.75 3.92 8.65 20.9 10.1 7.85
$1325 1 Day

EDS-O2D2-2G Breathing Systems - With Fiber Wrapped Cylinders
EDS-O2D2-2G Breathing Systems with Fiber Wrapped Cylinders
EDS-O2D2-2G Breathing Systems are complete systems for 2 or more people which include everything from the cylinder to the cannulas and face masks.  The low-pressure service line is a high quality polyurethane line that is kink-resistant and flexible under varying temperatures. The cannula, face mask and service line connect to the EDS unit via color-coded "Quick-Connects" providing an air-tight fitting by hand. These fittings can be connected and disconnected many times.

Included:

Items included in EDS-O2D2-2G Breathing System Kits
Kevlar, Carbon or
Silica (Glass) Fiber
Wrapped Cylinders
EDS O2D2-2G Unit 2 or 4 EDS Cannulas
(standard tip)
00EDS-1084-00
1 or 2 EDS Cannulas
(flare tip)
00EDS-1084-01
2 or 4 EDS Face Masks
00EDS-1078-00

EDS to XCP Coupler Kit Tote Bag, 12" x 12"
60000-0012-00
XCR-1 or FPR
Regulator,
and red tubing from regulator to O2D2
Full-Pack
or
Tuff-Pack
3 AAA
Batteries

Not Included:

  • Oxygen - The oxygen tank is empty.

To add extra flow stations to any of the 2-place O2D2-2G systems below, add $100 for the FPR 4-place regulator upgrade.
See our Full-Pack cylinder harness & carry-caddy for these cylinders. Also see CMK cylinder hold-down kits.
Also, the optional ALPS FaceMask with or without microphone is the perfect addition to any EDS system.

Oxygen Cylinder Dimensions and Duration Table
Mountain High Documents Page - Manuals, specifications, articles, etc.

00EDS-2002-02 O2D2-011-2P-F Two Place System with EDS-O2D2-2G Kit, XCR-1 Regulator, KF-011 (11 cu. ft.) Kevlar Cylinder and Full-Pack
See a complete list and photos of included accessories here.
Duration Table (hours)
Cylinder

Fill Pressure

Volume

Diameter
Max.
Length
Max.
Weight
Empty

Duration in Hours
(2 Place)

  bar PSI liters cu. ft. cm inch cm inch Kg  lb 10K ft 15K ft 18K ft
KF-011 124 1800 303 10.7 9.27 3.62 48 18.90 0.91 2.0 9.25 4.5 3.5
KF-011 128 1850 311 11.0 9.27 3.62 48 18.90 0.91 2.0 9.55 4.6 3.6
$1669 1 Day
00EDS-2002-D2 O2D2-011-2P-F-DIN Two Place System with EDS-O2D2-2G Kit, XCR-DIN Regulator, DIN valve with gauge, KF-011 (11 cu. ft.) Kevlar Cylinder and Full-Pack
See a complete list and photos of included accessories here.
Duration Table (hours)
Cylinder

Fill Pressure

Volume

Diameter
Max.
Length
Max.
Weight
Empty

Duration in Hours
(2 Place)

  bar PSI liters cu. ft. cm inch cm inch Kg  lb 10K ft 15K ft 18K ft
KF-011 124 1800 303 10.7 9.27 3.62 48 18.90 0.91 2.0 9.25 4.5 3.5
KF-011 128 1850 311 11.0 9.27 3.62 48 18.90 0.91 2.0 9.55 4.6 3.6


$1735 1 Day
00EDS-2004-02 O2D2-022-2P-F Two Place System with EDS-O2D2-2G Kit, XCR-1 Regulator, CFFC-022 (22 cu. ft.) Carbon Fiber Wrapped Cylinder and Full-Pack
See a complete list and photos of included accessories here.
Duration Table (hours)
Cylinder

Fill Pressure

Volume

Diameter
Max.
Length
Max.
Weight
Empty

Duration in Hours
(2 Place)

  bar PSI liters cu. ft. cm inch cm inch Kg  lb 10K ft 15K ft 18K ft
CFFC-022 128 1850 623 22 13.2 5.2 54.1 21.3 1.9 4.2 19.1 9.25 7.2
$2195 1 Day
00EDS-2004-04 O2D2-022-4P-F Four Place System with 2 EDS-O2D2-2G Kits, FPR Regulator, CFFC-022 (22 cu. ft.) Carbon Fiber Wrapped Cylinder and Full-Pack
See a complete list and photos of included accessories here.
Duration Table (hours)
Cylinder

Fill Pressure

Volume

Diameter
Max.
Length
Max.
Weight
Empty

Duration in Hours
(4 Place)

  bar PSI liters cu. ft. cm inch cm inch Kg  lb 10K ft 15K ft 18K ft
CFFC-022 128 1850 623 22 13.2 5.2 54.1 21.3 1.9 4.2 9.6 4.6 3.6
$3095 1 Day
00EDS-2004-D2 O2D2-022-2P-F-DIN Two Place System with EDS-O2D2-2G Kit, XCR-DIN Regulator, CFFC-022 (22 cu. ft.) Carbon Fiber Wrapped Cylinder and Full-Pack
See a complete list and photos of included accessories here.
Duration Table (hours)
Cylinder

Fill Pressure

Volume

Diameter
Max.
Length
Max.
Weight
Empty

Duration in Hours
(2 Place)

  bar PSI liters cu. ft. cm inch cm inch Kg  lb 10K ft 15K ft 18K ft
CFFC-022 128 1850 623 22 13.2 5.2 54.1 21.3 1.9 4.2 19.1 9.25 7.2

$2280 1 Day
00EDS-2010-02 O2D2-077-2P-T Two Place System with EDS-O2D2-2G Kit, XCR-1 Regulator, KF-077 (77 cu. ft.) Kevlar Cylinder and Tuff-Pack
See a complete list and photos of included accessories here.
Duration Table (hours)
Cylinder

Fill Pressure

Volume

Diameter
Max.
Length
Max.
Weight
Empty

Duration in Hours
(2 Place)

  bar PSI liters cu. ft. cm inch cm inch Kg  lb 10K ft 15K ft 18K ft
KF-077 124 1800 2121 74.9 19.38 7.60 75.69 29.80 5.85 12.9 65 31.5 24.5
KF-077 128 1850 2180 77.0 19.38 7.60 75.69 29.80 5.85 12.9 66.8 32.4 25.2
$2339 1 Day
00EDS-2010-04 O2D2-077-4P-T Four Place System with 2 EDS-O2D2-2G Kits, FPR Regulator, KF-077 (77 cu. ft.) Kevlar Cylinder and Tuff-Pack
See a complete list and photos of included accessories here.
Duration Table (hours)
Cylinder

Fill Pressure

Volume

Diameter
Max.
Length
Max.
Weight
Empty

Duration in Hours
(4 Place)

  bar PSI liters cu. ft. cm inch cm inch Kg  lb 10K ft 15K ft 18K ft
KF-077 124 1800 2121 74.9 19.38 7.60 75.69 29.80 5.85 12.9 32.5 15.8 12.25
KF-077 128 1850 2180 77.0 19.38 7.60 75.69 29.80 5.85 12.9 33.4 16.2 12.6
$3285 1 Day
00EDS-2012-02 O2D2-115-2P-T Two Place System with EDS-O2D2-2G Kit, XCR-1 Regulator, KF-115 (115 cu. ft.) Kevlar Cylinder and Tuff-Pack
See a complete list and photos of included accessories here.
Duration Table (hours)
Cylinder

Fill Pressure

Volume

Diameter
Max.
Length
Max.
Weight
Empty

Duration in Hours
(2 Place)

  bar PSI liters cu. ft. cm inch cm inch Kg  lb 10K ft 15K ft 18K ft
KF-115 124 1800 3169 111.9 23.11 9.10 80.77 31.80 8.21 18.10 97.1 47 36.6
KF-115 128 1850 3257 115.0 23.11 9.10 80.77 31.80 8.21 18.10 99.8 48.3 37.6
$2695 1 Day
00EDS-2012-04 O2D2-115-4P-T Four Place System with 2 EDS-O2D2-2G Kits, FPR Regulator, KF-115 (115 cu. ft.) Kevlar Cylinder and Tuff-Pack
See a complete list and photos of included accessories here.
Duration Table (hours)
Cylinder

Fill Pressure

Volume

Diameter
Max.
Length
Max.
Weight
Empty

Duration in Hours
(4 Place)

  bar PSI liters cu. ft. cm inch cm inch Kg  lb 10K ft 15K ft 18K ft
KF-115 124 1800 3169 111.9 23.11 9.10 80.77 31.80 8.21 18.10 48.55 23.5 18.3
KF-115 128 1850 3257 115.0 23.11 9.10 80.77 31.80 8.21 18.10 49.9 24.2 18.8
$3600 1 Day
00EDS-2014-02 O2D2-048-2P-F Two Place System with EDS-O2D2-2G Kit, XCR-1 Regulator, CFFC-048 (48 cu. ft.) Carbon Fiber Wrapped Cylinder and Full-Pack
See a complete list and photos of included accessories here.
Duration Table (hours)
Cylinder

Fill Pressure

Volume

Diameter
Max.
Length
Max.
Weight
Empty

Duration in Hours
(2 Place)

  bar PSI liters cu. ft. cm inch cm inch Kg  lb 10K ft 15K ft 18K ft
CFFC-048 124 1800 309 10.9 17.15 6.75 49.5 19.5 2.90 6.4 34.0 16.5 12.8
CFFC-048 153 2216 1365 48.2 17.15 6.75 49.5 19.5 2.90 6.4 41.8 20.3 15.8
$1915 1 Day
00EDS-2014-04 O2D2-048-4P-F Four Place System with 2 EDS-O2D2-2G Kits, FPR Regulator, CFFC-048 (48 cu. ft.) Carbon Fiber Wrapped Cylinder and Full-Pack
See a complete list and photos of included accessories here.
Duration Table (hours)
Cylinder

Fill Pressure

Volume

Diameter
Max.
Length
Max.
Weight
Empty

Duration in Hours
(4 Place)

  bar PSI liters cu. ft. cm inch cm inch Kg  lb 10K ft 15K ft 18K ft
CFFC-048 124 1800 309 10.9 17.15 6.75 49.5 19.5 2.90 6.4 17.0 8.2 6.4
CFFC-048 153 2216 1365 48.2 17.15 6.75 49.5 19.5 2.90 6.4 20.9 10.2 7.9
$2855 1 Day
00EDS-2014-D2 O2D2-048-2P-F-DIN Two Place System with EDS-O2D2-2G Kit, XCR-DIN Regulator, CFFC-048 (48 cu. ft.) Carbon Fiber Wrapped Cylinder and Full-Pack
See a complete list and photos of included accessories here.
Duration Table (hours)
Cylinder

Fill Pressure

Volume

Diameter
Max.
Length
Max.
Weight
Empty

Duration in Hours
(2 Place)

  bar PSI liters cu. ft. cm inch cm inch Kg  lb 10K ft 15K ft 18K ft
CFFC-048 124 1800 309 10.9 17.15 6.75 49.5 19.5 2.90 6.4 34.0 16.5 12.8
CFFC-048 153 2216 1365 48.2 17.15 6.75 49.5 19.5 2.90 6.4 41.8 20.3 15.8
$1985 1 Day
00EDS-2084-02 O2D2-480-2P-F Two Place System with EDS-O2D2-2G Kit, XCR-1 Regulator, CFF-480 (18.2 cu. ft.) Silica (Glass) Fiber Wrapped Cylinder and Full-Pack
See a complete list and photos of included accessories here.
Duration Table (hours)
Cylinder

Fill Pressure

Volume

Diameter
Max.
Length
Max.
Weight
Empty

Duration in Hours
(2 Place)

  bar PSI liters cu. ft. cm inch cm inch Kg  lb 10K ft 15K ft 18K ft
CFF-480 124 1800 309 10.9 11.43 4.50 40.00 15.75 1.87 4.125 9.5 4.6 3.5
CFF-480 207 3000 515 18.2 11.43 4.50 40.00 15.75 1.87 4.125 15.8 7.7 6.0
$1695 1 Day
00EDS-2084-04 O2D2-480-2P-F Four Place System with 2 x EDS-O2D2-2G Kits, XCR-1 Regulator, CFF-480 (18.2 cu. ft.) Silica (Glass) Fiber Wrapped Cylinder and Full-Pack
See a complete list and photos of included accessories here.
Duration Table (hours)
Cylinder

Fill Pressure

Volume

Diameter
Max.
Length
Max.
Weight
Empty

Duration in Hours
(4 Place)

  bar PSI liters cu. ft. cm inch cm inch Kg  lb 10K ft 15K ft 18K ft
CFF-480 124 1800 309 10.9 11.43 4.50 40.00 15.75 1.87 4.125 4.8 2.3 1.8
CFF-480 207 3000 515 18.2 11.43 4.50 40.00 15.75 1.87 4.125 7.9 3.9 3.0
$2640 1 Day
00EDS-2084-D2 O2D2-480-2P-DIN-F Two Place System with EDS-O2D2-2G Kit, XCR-DIN Regulator with Gauge, CFF-480 (18.2 cu. ft.) Silica (Glass) Fiber Wrapped Cylinder and Full-Pack
See a complete list and photos of included accessories here.
Duration Table (hours)
Cylinder

Fill Pressure

Volume

Diameter
Max.
Length
Max.
Weight
Empty

Duration in Hours
(2 Place)

  bar PSI liters cu. ft. cm inch cm inch Kg  lb 10K ft 15K ft 18K ft
CFF-480 124 1800 309 10.9 11.43 4.50 40.00 15.75 1.87 4.125 9.5 4.6 3.5
CFF-480 207 3000 515 18.2 11.43 4.50 40.00 15.75 1.87 4.125 15.8 7.7 6.0


$1760 1 Day

Cumulus Soaring, Inc.
Paul E. Remde

8661 Connelly Place
Savage, Minnesota 55378
USA


Home | Contact | Customer Service | How to Order | Privacy | Technical Support | View Cart


Phone: 1-952-445-9033
FAX: 1-952-445-8954
