Home > Oxygen > Mountain High > Cannulas & Masks


Mountain High Equipment & Supply Company

Cannulas & Face Masks

Overview | EDS O2D1 | EDS O2D2 | Constant Flow | Cannulas & Face Masks | Cylinders | Regulators | CO-PILO2T | Transfillers

Overview
Mountain High makes a variety of oxygen cannulas and face masks for use with their oxygen delivery systems.


How to Order
To order a product, click on the
button next to the product.
When you are ready to complete your order, click on the
button.
Click on the small images to view larger versions.

Lead-time
I try to stock as many parts as possible so I can ship to you immediately upon the receipt of your order.  However, MH offers an extremely broad range of products and kits so it is not possible for me to stock everything.  However, it is possible for MH to ship parts I don't have in stock directly to you very quickly.  That is good for you because you receive the products quickly.  It is good for me because it reduces the amount of inventory I need to stock and also eliminates the cost of shipping the products to me.  The items marked "In Stock" below are almost always in my stock here in Minnesota, USA.  The items marked "1 Day" (or similar) can be shipped directly from the vendor in Oregon, USA to you.

Part # Model # Description Photo
(Click on images below to view large versions)

Price

Lead-time

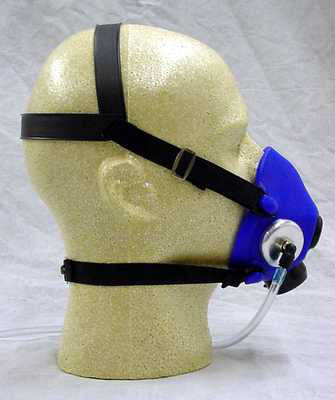

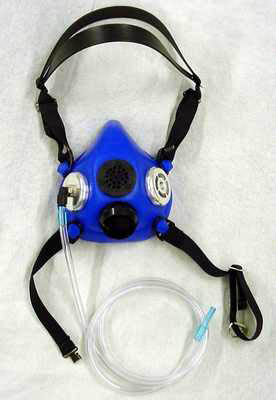

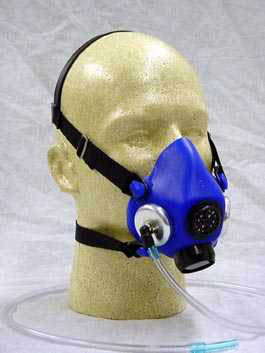

Alps Alps Alps Face Mask

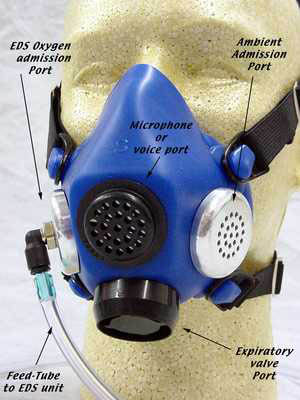

The newest members of the Mountain High family of products are the MH ALPS FaceMask and the MH ALPS-M (for microphone) FaceMask. The ALPS-M is outfitted with an electronic "Clear-Speak" ambient noise-canceling microphone that enables pilots to fly with safety and comfort with clear, crisp voice communication and is compatible with most aircraft systems. The mask is easy to put on and exceptionally comfortable as it does not require a polyvinyl bag. The ALPS or the ALPS-M FaceMask can be used with any of the MH oxygen systems.

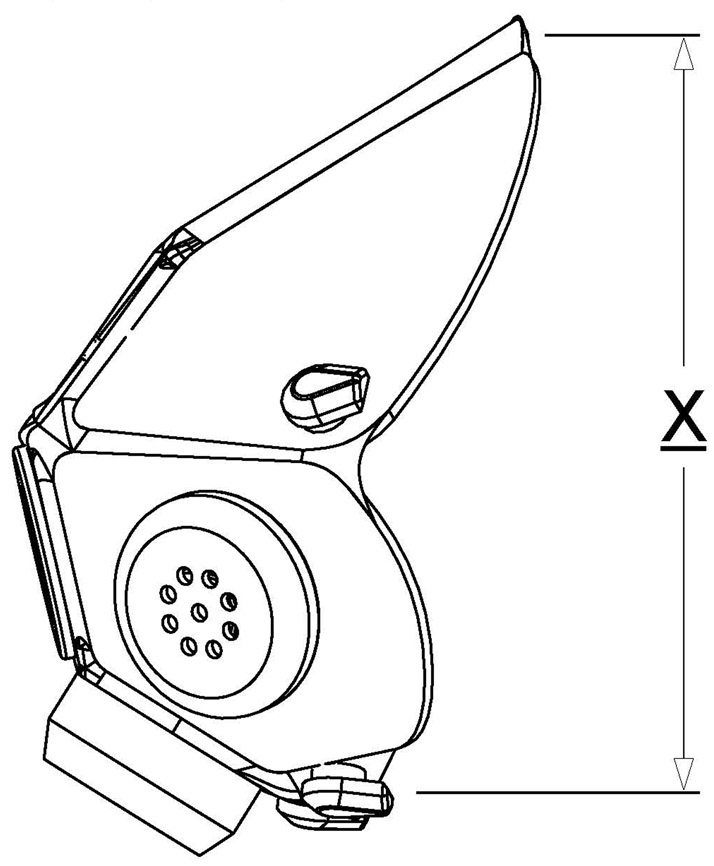

Sizing Chart


(1) Measure from the bridge of your nose to the bottom of your chin.
(2) Compare your measurement to the table below to choose best fit.

Alps Mask Sizing Chart
X (inches) X (cm) Size Model #
4.25 10.8 Small AMSKS
4.75 12.1 Medium AMSKM
5.12 13 Large AMSKL



Models
Replace the "x" in the model number below with "S" for small, "M" for medium, or "L" for large size.
Part Number System Compatibility Microphone Price
AMSKx-1000-00 Constant Flow no mic. $175
AMSKx-2000-02 Constant Flow microphone $479
AMSKx-1100-00 EDS O2D1 or O2D2 no mic. $175
AMSKx-2100-02 EDS O2D1 or O2D2 microphone $479
AMSKx-1200-00 EDS-ip no mic. $175
AMSKx-2200-02 EDS-ip microphone $479
$175
(no mic.)
or
$479
(with mic.)
1 day
00EDS-1084-00 EDS-Cannula Cannula for EDS Systems - Standard Tip Version
EDS Replacement Cannula.  This item is included with all EDS systems.  Includes 1 m of tubing and connector for EDS system.  For use with EDS systems only - not compatible with constant flow systems.

See also the Flare Tip version below.

$8 In Stock
00EDS-1084-01 EDS-Cannula-Flare-Tip Cannula for EDS Systems - Flare Tip Version
EDS Replacement Cannula.  This item is included with all EDS systems.  Includes 1 m of tubing and connector for EDS system. For use with EDS systems only - not compatible with constant flow systems.

This "Flare Tip" version has larger openings at the tips of the nasal inserts.  It is recommended if the standard version does not trigger the EDS unit at higher altitudes.  It is ideal for pilots with larger nostrils.

$8 In Stock
00EDS-1078-00 EDS-Face Mask Face Mask for EDS Systems
EDS Replacement Face Mask.  For use with EDS systems at or above 18,000 feet MSL.  This item is included with all EDS systems.  Includes 1 m of tubing and connector for EDS system.  For use with EDS systems only - not compatible with constant flow systems.
$10 In Stock

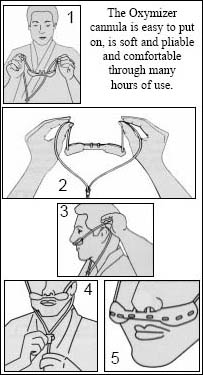

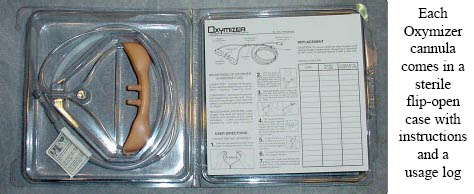

00XCP-1044 XCP-OX-M Oxymizer Cannula - XCP version
The Oxymizer's unique oxygen-conserving reservoir design accumulates (saves) the continuous flow of oxygen normally wasted during exhalation.  The saved oxygen is available as a bonus at the very beginning of each inhalation cycle where oxygen is taken deeper into the lungs, allowing a much greater absorption efficiency.  Thus, a smaller flow rate is required over conventional cannulas saving your precious oxygen.  The Oxymizer's unique design closely emulates the function of much more complicated and expensive diluter demand regulators.  Tests have show pilot using the Oxymizer need only 0.750 liter/minute at 18,000 feet to obtain more than 95% of saturated oxygen in the blood.  A standard cannula or facemask will require about 2 liters/min at 18,000 ft.  The Oxymizer will properly oxygenate the blood using only 1/3 the oxygen needed by standard cannulas resulting in up to 66% of saved oxygen.

The Oxymizer "M" type (moustache-style) oxygen-conserving cannula (shown) is the most popular version. Also available is the Oxymizer "P" or pendant-style Oxymizer (not shown).  The Oxymizer is standard issue with our XCR and XCP constant flow systems and may work with almost any adjustable constant flow regulator.

Note: The Oxymizer cannula is not compatible with any EDS system.

This version of the Oxymizer includes a female adapter that slides onto the male connector on the top of an MH3 or MH4 flowmeter.

Oxymizer Cannula Catalog Page

  $29 In Stock
00XCR-1040 XCR-OX-M Oxymizer Cannula - XCR version
The Oxymizer's unique oxygen-conserving reservoir design accumulates (saves) the continuous flow of oxygen normally wasted during exhalation.  The saved oxygen is available as a bonus at the very beginning of each inhalation cycle where oxygen is taken deeper into the lungs, allowing a much greater absorption efficiency.  Thus, a smaller flow rate is required over conventional cannulas saving your precious oxygen.  The Oxymizer's unique design closely emulates the function of much more complicated and expensive diluter demand regulators.  Tests have show pilot using the Oxymizer need only 0.750 liter/minute at 18,000 feet to obtain more than 95% of saturated oxygen in the blood.  A standard cannula or facemask will require about 2 liters/min at 18,000 ft.  The Oxymizer will properly oxygenate the blood using only 1/3 the oxygen needed by standard cannulas resulting in up to 66% of saved oxygen.

The Oxymizer "M" type (moustache-style) oxygen-conserving cannula (shown) is the most popular version. Also available is the Oxymizer "P" or pendant-style Oxymizer (not shown).  The Oxymizer is standard issue with our XCR and XCP constant flow systems and may work with almost any adjustable constant flow regulator.

Note: The Oxymizer cannula is not compatible with any EDS system.

This version of the Oxymizer includes 6 mm tubing for connecting to an XCR system.

Oxymizer Cannula Catalog Page

  $29 In Stock
00XCP-1040-01 Cannula Aviators Standard Cannula
Calibrated for use with the MH4 flowmeter or any other device calibrated to the standard protocol of 1 liter/min. per 10,000 ft.

Not for use with EDS systems or the MH3 flowmeter.

$5 In Stock
00XCP-1050-01 XCP-F1 Facemask XCP-F1 Standard Face Mask
This is the standard face mask that is included in XCP systems.  Calibrated for use with the MH4 flowmeter or any other device calibrated to the standard protocol of 1 liter/min. per 10,000 ft.  Includes 1 meter tubing and CPC fitting.
$10.50 1 day
00XCR-1036-00 XCR-F1 Facemask XCR-F1 Standard Face Mask
This is the standard face mask that is included in XCR systems.  Calibrated for use with the MH4 flowmeter or any other device calibrated to the standard protocol of 1 liter/min. per 10,000 ft.  Includes 1 m of tubing and connector.
$10.50 1 day
