Overview
Mountain High makes a variety of oxygen cylinders.  The most popular series is their AL series.  The KF Series weighs about 1/2 as much as the AL series.  However, is quite a bit more expensive, requires recurrent pressure testing every 3 years, and must be replaced after 15 years.

Cylinder Lengths
The Aluminum cylinder lengths shown in the tables below include the cylinder and valve - no regulator.  The added length for a standard XCR regulator is about 1.75 inches (45 mm).
The composite cylinder lengths shown in the tables below include the cylinder only - no valve or regulator.  The added length for a standard US CGA-540 valve and XCR regulator is about 3.5 inches (89 mm).

Cylinder Valve Port Types
There are 2 types of cylinder valve port types commonly used in aircraft.  It is important to know which one is on your cylinder when ordering a regulator for it.  The regulator attaches to this port.

  • CGA-540 - US standard, Approximate outer diameter of threads: 0.902" (22.9 mm)
  • DIN-477 - European standard, Approximate outer diameter of threads: 1.04" (25.4 mm)

    click on image to view larger version

All cylinders provided by Mountain High use 3/4 x 16 UNF straight threads.  However, 2 different types of o-rings are used - one for aluminum cylinders and a different type for fiber wrapped cylinders.

Airline Travel with Oxygen Cylinders
Airline travel with an oxygen cylinder requires preparation. The TSA requires that the valve be removed from the cylinder so they can look inside the cylinder.  The valve should be removed before you get to the security checkpoint. Mountain High said that the valve can be removed quite easily.  The threads on the valve are straight threads (not tapered threads) - which is nice.  An o-ring is used to make the seal.  When putting the valve back onto the cylinder it is very important that a torque wrench is use.  The torque wrench should be set for 60 to 65 ft*Lbs.  Please see the TSA web site in the link below for details.
http://www.tsa.gov/traveler-information/compressed-gas-cylinders

When ordering cylinder valves, it is necessary to specify the service pressure rating of the cylinder that it will be used with.  Then the correct burst plug can be supplied in the valve.

Cylinder Testing Requirements
I am often asked to clarify the life and testing requirements for oxygen cylinders.  The table below should help.

Note: These testing and life requirements are specified by the U.S. Department of Transportation.  Oxygen cylinders are classified as "pressure vessels".  All cylinders provided by Mountain High meet all U.S. D.O.T. requirements and also meet all the requirements for Canada.

Cylinder Life and Hydro Testing Requirements
These requirements are from the U.S. Department of Transportation.
  Life Limit Hydro Testing Interval
Aluminum Cylinders unlimited 5 years
Steel Cylinders - Type 3AA unlimited 3 years
Steel Cylinders - Type 3HT 24 years 5 years
Kevlar and Carbon Wrapped Aluminum Cylinders 15 years The old rule was 3 years.  Starting in July of 2006, after the first hydro test, the interval changes to 5 years.
Silica (Glass) Wrapped Aluminum Cylinders (CFF-480) 15 years 3 years



Cylinder Types Overview
Series Type Photo
(click on images below to view larger versions)
Description
AL Series Aluminum The AL aluminum oxygen cylinders are featured in our XCP, XCR & EDS portable oxygen systems. These cylinders feature our low-profile CGA-540 (oxygen) valve with pressure gauge that shows the amount in the cylinder at all times with the valve open or closed. Although these aluminum cylinders are intended for portable 'carry-on' applications, they have been used in some airborne applications. See our Full Pack cylinder harness & carry-caddy for these cylinders. Also see CMK cylinder hold-down kits.
CFF Series

Aluminum core with
Silica (glass) Fiber Wrap
CFF cylinders have an aluminum core with silica (glass) fiber wrap and are DOT-E 7277-3000 rated. These are high-pressure oxygen cylinders for service pressures up to 3,000 PSI. They can be optionally ordered with a DIN-477 (Euro-norm) valve with gauge.
CFFC Series

Aluminum core with
Carbon Fiber Wrap

KF Series

Aluminum core with
Kevlar Fiber Wrap
The lightest aircraft oxygen cylinder that technology has to offer. These Kevlar fiber-wrapped cylinders have been developed specifically for aircraft use.

The KF series cylinders are the perfect solution for cylinder installations far aft in the aircraft previously not possible before. A thin-wall, seamless aluminum (6061-T6) alloy 'liner-cylinder' is reinforced by a full over-wrapping of Kevlar fibers sealed in epoxy. This yields about a 50% to 60% weight savings over conventional cylinder technology without any compromise in safety.

These cylinders are preferred by many who build the state-of-the-art composite-fiber aircraft. They are made under a DOT mfg. protocol. If used in commercial applications or in a type-certified aircraft, the DOT service life is 15 years from the first hydro-test date and hydro-tests are done every three years. The KF series cylinders are complemented by our RCV/RCR remote-controlled-regulator system and built-in EDS system. The KF series cylinders can be secured for carry-about applications with the Full-Pack and Tuff-Pack cylinder carry-caddy harness systems.


Kevlar Fiber cylinders are the lightest technology has to offer and are designed specifically and approved for aircraft applications. A simplified fabrication process is where the cylinder liner is made (steps 1,2,3 & 4) Fiber wrap (steps 5 & 6) are wrapped around the liner. Threads for the valving device is done after step 4 and before step 5. Epoxy is applied during the wrapping process.

If the cylinder is to be used in type certified aircraft, by current DOT protocol, it must be hydro tested every 3 years and taken out of service if it fails or after 15 years from the first hydro test date comes about. Even if the cylinder passes hydro test. DOT protocol does not specifically detail any requirements for these cylinders if used in experimental aircraft. As of July of 2006, any Kevlar cylinder tested after that date can be hydro tested every 5 years (instead of 3).  That is true for cylinders manufactured before that date.



Oxygen Cylinder Dimensions and Duration Table
(single place)
For multiple place systems, divide the duration numbers by the number of stations.
AL Series Cylinders- Aluminum
  Pressure

Volume

Diameter
Max.
Length
Max.
Weight
Empty


MH4
Flowmeter
with standard
cannula
or face mask

MH3 or MH4
Flowmeter
with
Oxymizer
Cannula

EDS



Duration in Hours

Duration in Hours

Duration in Hours

Cylinder bar PSI liters cu. ft. cm inch cm inch Kg  lb 10K ft 15K ft 18K ft 10K ft 15K ft 18K ft 10K ft 15K ft 18K ft
AL-113 124 1800 92 3.2 8.13 3.20 26.67 10.50 1.11 2.45 1.3 0.9 0.7 3.8 2.1 1.6 5.6 2.7 2.1
AL-113 153 2216 113 4.0 8.13 3.20 26.67 10.50 1.11 2.45 1.6 1.1 0.9 4.7 2.6 2.0 6.9 3.4 2.6
AL-180 124 1800 115 4.1 8.13 3.20 34.93 13.75 1.41 3.13 1.6 1.1 0.9 4.8 2.6 2.0 7.1 3.4 2.7
AL-180 153 2216 165 5.8 8.13 3.20 34.93 13.75 1.41 3.13 2.3 1.6 1.3 6.9 3.8 2.9 10.1 4.9 3.8
AL-248 124 1800 222 7.8 11.11 4.375 32.38 12.75 2.04 4.5 3.1 2.1 1.8 9.2 5.1 3.9 13.6 6.6 5.1
AL-248 139 2015 248 8.8 11.11 4.375 32.38 12.75 2.04 4.5 3.5 2.4 2.0 10.3 5.7 4.3 15.2 7.4 5.7
AL-415 124 1800 371 13.1 11.11 4.375 47.37 18.65 2.83 6.25 5.2 3.6 3.0 15.4 8.5 6.5 22.7 11.0 8.6
AL-415 139 2015 415 14.7 11.11 4.375 47.37 18.65 2.83 6.25 5.8 4.0 3.4 17.2 9.5 7.2 25.4 12.3 9.6
AL-647 124 1800 526 18.6 13.33 5.250 48.51 19.10 3.81 8.40 7.4 5.1 4.3 21.8 12.0 9.2 32.2 15.6 12.1
AL-647 153 2216 647 22.8 13.33 5.250 48.51 19.10 3.81 8.40 9.1 6.3 5.3 26.9 14.8 11.3 39.6 19.2 14.9
AL-682 124 1800 609 21.5 11.11 4.375 70.50 27.75 3.92 8.65 8.5 5.9 5.0 25.3 13.9 10.6 37.3 18.1 14.1
AL-682 139 2015 682 24.1 11.11 4.375 70.50 27.75 3.92 8.65 9.6 6.6 5.6 28.3 15.6 11.9 41.8 20.2 15.7

CFF Series Cylinders - Silica (glass) Fiber Wrapped Aluminum
  Pressure

Volume

Diameter
Max.
Length
Max.
Weight
Empty


MH4
Flowmeter
with standard
cannula
or face mask

MH3 or MH4
Flowmeter
with
Oxymizer
Cannula

EDS



Duration in Hours

Duration in Hours

Duration in Hours

Cylinder bar PSI liters cu. ft. cm inch cm inch Kg  lb 10K ft 15K ft 18K ft 10K ft 15K ft 18K ft 10K ft 15K ft 18K ft
CFF-480 124 1800 309 10.9 11.43 4.50 40.00 15.75 1.87 4.125 4.3 3.0 2.5 12.8 7.1 5.4 18.9 9.2 7.1
CFF-480 207 3000 515 18.2 11.43 4.50 40.00 15.75 1.87 4.125 7.2 5.0 4.2 21.4 11.8 9.0 31.6 15.3 11.9

CFFC Series Cylinders - Carbon Filament Fiber Wrapped Aluminum
  Pressure

Volume

Diameter
Max.
Length
Max.
Weight
Empty


MH4
Flowmeter
with standard
cannula
or face mask

MH3 or MH4
Flowmeter
with
Oxymizer
Cannula

EDS



Duration in Hours

Duration in Hours

Duration in Hours

Cylinder bar PSI liters cu. ft. cm inch cm inch Kg  lb 10K ft 15K ft 18K ft 10K ft 15K ft 18K ft 10K ft 15K ft 18K ft
CFFC-022 128 1850 623 22 13.2 5.2 54.1 21.3 1.9 4.2 8.7 6.0 5.1 25.9 14.2 10.8 38.1 18.5 14.4
CFFC-048 124 1800 1109 39.2 17.2 6.8 49.5 19.5 3.1 7.0 15.5 10.7 9.1 46.1 25.3 19.3 67.9 32.9 25.6
CFFC-048 153 2216 1365 48.2 17.2 6.8 49.5 19.5 3.1 7.0 19.1 13.2 11.2 56.7 31.2 23.8 83.6 40.5 31.5

KF Series Cylinders - Kevlar Fiber Wrapped Aluminum
  Pressure

Volume

Diameter
Max.
Length
Max.
Weight
Empty


MH4
Flowmeter
with standard
cannula
or face mask

MH3 or MH4
Flowmeter
with
Oxymizer
Cannula

EDS



Duration in Hours

Duration in Hours

Duration in Hours

Cylinder bar PSI liters cu. ft. cm inch cm inch Kg  lb 10K ft 15K ft 18K ft 10K ft 15K ft 18K ft 10K ft 15K ft 18K ft
KF-011 124 1800 303 10.7 9.27 3.62 48 18.90 0.91 2.0 4.2 2.9 2.5 12.6 6.9 5.3 18.5 9.0 7.0
KF-011 128 1850 311 11.0 9.27 3.62 48 18.90 0.91 2.0 4.4 3.0 2.5 19.1 9.2 7.2 19.1 9.2 7.2
KF-022 124 1800 606 21.4 13.21 5.2 51.05 20.10 1.81 4.0 8.5 5.9 5.0 25.2 13.9 10.6 37.1 18.0 14.0
KF-022 128 1850 623 22.0 13.21 5.2 51.05 20.10 1.81 4.0 8.7 6.0 5.1 25.9 14.2 10.8 38.2 18.5 14.4
KF-050 124 1800 1378 48.7 17.27 6.8 64.00 25.20 3.58 7.9 19.3 13.4 11.3 57.3 31.5 24.0 84.4 40.9 31.8
KF-050 128 1850 1416 50.0 17.27 6.8 64.00 25.20 3.58 7.9 19.8 13.7 11.6 58.9 32.4 24.7 86.8 42.0 32.7
KF-077 124 1800 2121 74.9 19.38 7.60 75.69 29.80 5.85 12.9 29.7 20.6 17.3 88.2 48.5 36.9 130.0 62.9 49.0
KF-077 128 1850 2180 77.0 19.38 7.60 75.69 29.80 5.85 12.9 30.5 21.1 17.8 90.6 49.8 38.0 133.6 64.7 50.3
KF-115 124 1800 3169 111.9 23.11 9.10 80.77 31.80 8.21 18.10 44.4 30.7 25.9 131.7 72.5 55.2 194.2 94.0 73.2
KF-115 128 1850 3257 115.0 23.11 9.10 80.77 31.80 8.21 18.10 45.6 31.6 26.6 135.4 74.5 56.7 199.6 96.6 75.2

Technical Notes
Weight of Oxygen: 0.083 lb/cu. ft.

Oxygen Pressure Ratings
Oxygen cylinders specifications are sometimes shown at 2 different pressures.  The 1850 rating is excellent for comparison purposes and in locations where that is the maximum fill pressure available.  The higher ratings are nice to know but are not available at all oxygen supply locations.


How to Order
To order a product, click on the
button next to the product.
When you are ready to complete your order, click on the
button.
Click on the small images to view larger versions.

Lead-time
I try to stock as many parts as possible so I can ship to you immediately upon the receipt of your order.  However, MH offers an extremely broad range of products and kits so it is not possible for me to stock everything.  However, it is possible for MH to ship parts I don't have in stock directly to you very quickly.  That is good for you because you receive the products quickly.  It is good for me because it reduces the amount of inventory I need to stock and also eliminates the cost of shipping the products to me.  The items marked "In Stock" below are almost always in my stock here in Minnesota, USA.  The items marked "1 Day" (or similar) can be shipped directly from the vendor in Oregon, USA to you.

Part # Model # Description Photo
(Click on images below to view large versions)

Price

Lead-time
Cylinders
MH-00CYL-1002-00 AL-113 AL-113 Aluminum Oxygen Cylinder - No Valve
See details and dimensions here: Oxygen Cylinder Dimensions and Duration Table

Valve & Gauge
not included
$60 1 day
MH-00CYL-1002-01 AL-113-540 AL-113-540 Aluminum Oxygen Cylinder with CGA-540 Valve and Gauge
See details and dimensions here: Oxygen Cylinder Dimensions and Duration Table
$175 1 day
MH-00CYL-1002-02 AL-113-DIN AL-113-DIN Aluminum Oxygen Cylinder with DIN-477 Valve and Gauge
See details and dimensions here: Oxygen Cylinder Dimensions and Duration Table
$190 1 day
MH-00CYL-1004-00 AL-180

AL-180 Aluminum Oxygen Cylinder - No Valve
See details and dimensions here: Oxygen Cylinder Dimensions and Duration Table


Valve & Gauge
not included
$60 1 day
MH-00CYL-1004-01 AL-18-5400

AL-180-540 Aluminum Oxygen Cylinder with CGA-540 Valve and Gauge
See details and dimensions here: Oxygen Cylinder Dimensions and Duration Table

$175 1 day

MH-00CYL-1004-02

AL-180-DIN

AL-180-DIN Aluminum Oxygen Cylinder with DIN-477 Valve and Gauge
See details and dimensions here: Oxygen Cylinder Dimensions and Duration Table

$190 1 day
MH-00CYL-1008-00 AL-248

AL-248 Aluminum Oxygen Cylinder - No Valve
See details and dimensions here: Oxygen Cylinder Dimensions and Duration Table


Valve & Gauge
not included
$85 1 day
MH-00CYL-1008-01 AL-248-540

AL-248-540 Aluminum Oxygen Cylinder with CGA-540 Valve and Gauge
See details and dimensions here: Oxygen Cylinder Dimensions and Duration Table

$200 1 day
MH-00CYL-1008-02 AL-248-DIN

AL-248-DIN Aluminum Oxygen Cylinder with DIN-477 Valve and Gauge
See details and dimensions here: Oxygen Cylinder Dimensions and Duration Table

$225 1 day
MH-00CYL-1010-00 AL-415

AL-415 Aluminum Oxygen Cylinder - No Valve
See details and dimensions here: Oxygen Cylinder Dimensions and Duration Table


Valve & Gauge
not included
$95 1 day
MH-00CYL-1010-01 AL-415-540

AL-415-540 Aluminum Oxygen Cylinder with CGA-540 Valve and Gauge
See details and dimensions here: Oxygen Cylinder Dimensions and Duration Table

$205 1 day
MH-00CYL-1010-02 AL-415-DIN

AL-415-DIN Aluminum Oxygen Cylinder with DIN-477 Valve and Gauge
See details and dimensions here: Oxygen Cylinder Dimensions and Duration Table

$230 1 day
MH-00CYL-1012-00 AL-647

AL-647 Aluminum Oxygen Cylinder - No Valve
See details and dimensions here: Oxygen Cylinder Dimensions and Duration Table


Valve & Gauge
not included
$160 1 day
MH-00CYL-1012-01 AL-647-540

AL-647-540 Aluminum Oxygen Cylinder with CGA-540 Valve and Gauge
See details and dimensions here: Oxygen Cylinder Dimensions and Duration Table

$285 1 day
MH-00CYL-1012-02 AL-647-DIN

AL-647-DIN Aluminum Oxygen Cylinder with DIN-477 Valve and Gauge
See details and dimensions here: Oxygen Cylinder Dimensions and Duration Table

$310 1 day
MH-00CYL-1014-00 AL-682

AL-682 Aluminum Oxygen Cylinder - No Valve
See details and dimensions here: Oxygen Cylinder Dimensions and Duration Table


Valve & Gauge
not included
$100 1 day
MH-00CYL-1014-01 AL-682-540

AL-682-540 Aluminum Oxygen Cylinder with CGA-540 Valve and Gauge
See details and dimensions here: Oxygen Cylinder Dimensions and Duration Table

$220 1 day

MH-00CYL-1014-02

AL-682-DIN

AL-682-DIN Aluminum Oxygen Cylinder with DIN-477 Valve and Gauge
See details and dimensions here: Oxygen Cylinder Dimensions and Duration Table

$245 1 day
MH-00CYL-1038-00 CFF-480 CFF-480 Oxygen Cylinder, Aluminum core with Silica (glass) Fiber Wrap - No Valve or Gauge
CFF cylinders have an aluminum core with silica (glass) fiber wrap and are DOT-E 7277-3000 rated. These are high-pressure oxygen cylinders for service pressures up to 3,000 psi. They can be optionally ordered with a DIN-477 (Euro-norm) valve with gauge.
See details and dimensions here: Oxygen Cylinder Dimensions and Duration Table

Valve & Gauge
not included
$595 1 day
MH-00CYL-1038-01 CFF-480-540 CFF-480-540 Oxygen Cylinder, Aluminum core with Silica (glass) Fiber Wrap - with CGA-540 Valve and Gauge
CFF cylinders have an aluminum core with silica (glass) fiber wrap and are DOT-E 7277-3000 rated. These are high-pressure oxygen cylinders for service pressures up to 3,000 psi. They can be optionally ordered with a DIN-477 (Euro-norm) valve with gauge.
See details and dimensions here: Oxygen Cylinder Dimensions and Duration Table

$710 1 day
MH-00CYL-1038-02 CFF-480-DIN CFF-480-DIN Oxygen Cylinder, Aluminum core with Silica (glass) Fiber Wrap - with DIN-477 Valve and Gauge
CFF cylinders have an aluminum core with silica (glass) fiber wrap and are DOT-E 7277-3000 rated. These are high-pressure oxygen cylinders for service pressures up to 3,000 psi. They can be optionally ordered with a DIN-477 (Euro-norm) valve with gauge.
See details and dimensions here: Oxygen Cylinder Dimensions and Duration Table

$740 1 day
MH-00CYL-1056-00 CFFC-022

CFFC-022 Oxygen Cylinder, Aluminum core with Carbon Fiber Wrap - No Valve or Gauge
See details and dimensions here: Oxygen Cylinder Dimensions and Duration Table


Valve & Gauge
not included
$1035 1 day
MH-00CYL-1056-01 CFFC-022

CFFC-022-540 Oxygen Cylinder, Aluminum core with Carbon Fiber Wrap - with CGA-540 Valve and Gauge
See details and dimensions here: Oxygen Cylinder Dimensions and Duration Table

$1150 1 day
00CYL-1056-02 CFFC-022

CFFC-022-DIN Oxygen Cylinder, Aluminum core with Carbon Fiber Wrap - with DIN-477 Valve and Gauge
See details and dimensions here: Oxygen Cylinder Dimensions and Duration Table

$1175 1 day
MH-00CYL-1040-00 CFFC-048

CFFC-048 Oxygen Cylinder, Aluminum core with Carbon Fiber Wrap - No Valve or Gauge
See details and dimensions here: Oxygen Cylinder Dimensions and Duration Table


Valve & Gauge
not included
$795 1 day
MH-00CYL-1040-01 CFFC-048-540

CFFC-048-540 Oxygen Cylinder, Aluminum core with Carbon Fiber Wrap - with CGA-540 Valve and Gauge
See details and dimensions here: Oxygen Cylinder Dimensions and Duration Table

$910 1 day
MH-00CYL-1040-02 CFFC-048-DIN

CFFC-048-DIN Oxygen Cylinder, Aluminum core with Carbon Fiber Wrap - with DIN-477 Valve and Gauge
See details and dimensions here: Oxygen Cylinder Dimensions and Duration Table

$950 1 day
MH-00CYL-1044-00 KF-011 KF-011 Oxygen Cylinder - Aluminum core with Kevlar Fiber Wrap - No Valve or Gauge
The lightest aircraft oxygen cylinder that technology has to offer. These Kevlar fiber-wrapped cylinders have been developed specifically for aircraft use.

The KF series cylinders are the perfect solution for cylinder installations far aft in the aircraft previously not possible before. A thin-wall, seamless aluminum (6061-T6) alloy 'liner-cylinder' is reinforced by a full over-wrapping of Kevlar fibers sealed in epoxy. This yields about a 50% to 60% weight savings over conventional cylinder technology without any compromise in safety.

These cylinders are preferred by many who build the state-of-the-art composite-fiber aircraft. They are made under a DOT mfg. protocol. If used in commercial applications or in a type-certified aircraft, the DOT service life is 15 years from the first hydro-test date and hydro-tests are done every three years. The KF series cylinders are complemented by our RCV/RCR remote-controlled-regulator system and built-in EDS system. The KF series cylinders can be secured for carry-about applications with the Full-Pack and Tuff-Pack cylinder carry-caddy harness systems.

If the cylinder is to be used in type certified aircraft, by current DOT protocol, it must be hydro tested every three years and taken out of service if it fails or after 15 years from the first hydro test date comes about. Even if the cylinder passes hydro test. DOT protocol does not specifically detail any requirements for these cylinders if used in experimental aircraft.

See details and dimensions here: Oxygen Cylinder Dimensions and Duration Table


Valve & Gauge
not included

$550 1 day
MH-00CYL-1044-01 KF-011-540 KF-011-540 Oxygen Cylinder - Aluminum core with Kevlar Fiber Wrap - with CGA-540 Valve and Gauge
The lightest aircraft oxygen cylinder that technology has to offer. These Kevlar fiber-wrapped cylinders have been developed specifically for aircraft use.

The KF series cylinders are the perfect solution for cylinder installations far aft in the aircraft previously not possible before. A thin-wall, seamless aluminum (6061-T6) alloy 'liner-cylinder' is reinforced by a full over-wrapping of Kevlar fibers sealed in epoxy. This yields about a 50% to 60% weight savings over conventional cylinder technology without any compromise in safety.

These cylinders are preferred by many who build the state-of-the-art composite-fiber aircraft. They are made under a DOT mfg. protocol. If used in commercial applications or in a type-certified aircraft, the DOT service life is 15 years from the first hydro-test date and hydro-tests are done every three years. The KF series cylinders are complemented by our RCV/RCR remote-controlled-regulator system and built-in EDS system. The KF series cylinders can be secured for carry-about applications with the Full-Pack and Tuff-Pack cylinder carry-caddy harness systems.

If the cylinder is to be used in type certified aircraft, by current DOT protocol, it must be hydro tested every three years and taken out of service if it fails or after 15 years from the first hydro test date comes about. Even if the cylinder passes hydro test. DOT protocol does not specifically detail any requirements for these cylinders if used in experimental aircraft.

See details and dimensions here: Oxygen Cylinder Dimensions and Duration Table

$665 1 day
MH-00CYL-1044-02 KF-011-DIN KF-011-DIN Oxygen Cylinder - Aluminum core with Kevlar Fiber Wrap - with DIN-477 Valve and Gauge
The lightest aircraft oxygen cylinder that technology has to offer. These Kevlar fiber-wrapped cylinders have been developed specifically for aircraft use.

The KF series cylinders are the perfect solution for cylinder installations far aft in the aircraft previously not possible before. A thin-wall, seamless aluminum (6061-T6) alloy 'liner-cylinder' is reinforced by a full over-wrapping of Kevlar fibers sealed in epoxy. This yields about a 50% to 60% weight savings over conventional cylinder technology without any compromise in safety.

These cylinders are preferred by many who build the state-of-the-art composite-fiber aircraft. They are made under a DOT mfg. protocol. If used in commercial applications or in a type-certified aircraft, the DOT service life is 15 years from the first hydro-test date and hydro-tests are done every three years. The KF series cylinders are complemented by our RCV/RCR remote-controlled-regulator system and built-in EDS system. The KF series cylinders can be secured for carry-about applications with the Full-Pack and Tuff-Pack cylinder carry-caddy harness systems.

If the cylinder is to be used in type certified aircraft, by current DOT protocol, it must be hydro tested every three years and taken out of service if it fails or after 15 years from the first hydro test date comes about. Even if the cylinder passes hydro test. DOT protocol does not specifically detail any requirements for these cylinders if used in experimental aircraft.

See details and dimensions here: Oxygen Cylinder Dimensions and Duration Table

$700 1 day
MH-00CYL-1046-00 KF-022 KF-022 Oxygen Cylinder - Aluminum core with Kevlar Fiber Wrap - No Valve or Gauge
The lightest aircraft oxygen cylinder that technology has to offer. These Kevlar fiber-wrapped cylinders have been developed specifically for aircraft use.

The KF series cylinders are the perfect solution for cylinder installations far aft in the aircraft previously not possible before. A thin-wall, seamless aluminum (6061-T6) alloy 'liner-cylinder' is reinforced by a full over-wrapping of Kevlar fibers sealed in epoxy. This yields about a 50% to 60% weight savings over conventional cylinder technology without any compromise in safety.

These cylinders are preferred by many who build the state-of-the-art composite-fiber aircraft. They are made under a DOT mfg. protocol. If used in commercial applications or in a type-certified aircraft, the DOT service life is 15 years from the first hydro-test date and hydro-tests are done every three years. The KF series cylinders are complemented by our RCV/RCR remote-controlled-regulator system and built-in EDS system. The KF series cylinders can be secured for carry-about applications with the Full-Pack and Tuff-Pack cylinder carry-caddy harness systems.

If the cylinder is to be used in type certified aircraft, by current DOT protocol, it must be hydro tested every three years and taken out of service if it fails or after 15 years from the first hydro test date comes about. Even if the cylinder passes hydro test. DOT protocol does not specifically detail any requirements for these cylinders if used in experimental aircraft.

See details and dimensions here: Oxygen Cylinder Dimensions and Duration Table


Valve & Gauge
not included

$1495 1 day
MH-00CYL-1046-01 KF-022-540 KF-022-540 Oxygen Cylinder - Aluminum core with Kevlar Fiber Wrap - with CGA-540 Valve and Gauge
The lightest aircraft oxygen cylinder that technology has to offer. These Kevlar fiber-wrapped cylinders have been developed specifically for aircraft use.

The KF series cylinders are the perfect solution for cylinder installations far aft in the aircraft previously not possible before. A thin-wall, seamless aluminum (6061-T6) alloy 'liner-cylinder' is reinforced by a full over-wrapping of Kevlar fibers sealed in epoxy. This yields about a 50% to 60% weight savings over conventional cylinder technology without any compromise in safety.

These cylinders are preferred by many who build the state-of-the-art composite-fiber aircraft. They are made under a DOT mfg. protocol. If used in commercial applications or in a type-certified aircraft, the DOT service life is 15 years from the first hydro-test date and hydro-tests are done every three years. The KF series cylinders are complemented by our RCV/RCR remote-controlled-regulator system and built-in EDS system. The KF series cylinders can be secured for carry-about applications with the Full-Pack and Tuff-Pack cylinder carry-caddy harness systems.

If the cylinder is to be used in type certified aircraft, by current DOT protocol, it must be hydro tested every three years and taken out of service if it fails or after 15 years from the first hydro test date comes about. Even if the cylinder passes hydro test. DOT protocol does not specifically detail any requirements for these cylinders if used in experimental aircraft.

See details and dimensions here: Oxygen Cylinder Dimensions and Duration Table

$1610 1 day
MH-00CYL-1052-00 KF-077 KF-077 Oxygen Cylinder - Aluminum core with Kevlar Fiber Wrap - No Valve or Gauge
The lightest aircraft oxygen cylinder that technology has to offer. These Kevlar fiber-wrapped cylinders have been developed specifically for aircraft use.

The KF series cylinders are the perfect solution for cylinder installations far aft in the aircraft previously not possible before. A thin-wall, seamless aluminum (6061-T6) alloy 'liner-cylinder' is reinforced by a full over-wrapping of Kevlar fibers sealed in epoxy. This yields about a 50% to 60% weight savings over conventional cylinder technology without any compromise in safety.

These cylinders are preferred by many who build the state-of-the-art composite-fiber aircraft. They are made under a DOT mfg. protocol. If used in commercial applications or in a type-certified aircraft, the DOT service life is 15 years from the first hydro-test date and hydro-tests are done every three years. The KF series cylinders are complemented by our RCV/RCR remote-controlled-regulator system and built-in EDS system. The KF series cylinders can be secured for carry-about applications with the Full-Pack and Tuff-Pack cylinder carry-caddy harness systems.

If the cylinder is to be used in type certified aircraft, by current DOT protocol, it must be hydro tested every three years and taken out of service if it fails or after 15 years from the first hydro test date comes about. Even if the cylinder passes hydro test. DOT protocol does not specifically detail any requirements for these cylinders if used in experimental aircraft.

See details and dimensions here: Oxygen Cylinder Dimensions and Duration Table


Valve & Gauge
not included

$1295 1 day
MH-00CYL-1052-01 KF-077-540 KF-077-540 Oxygen Cylinder - Aluminum core with Kevlar Fiber Wrap - with CGA-540 Valve and Gauge
The lightest aircraft oxygen cylinder that technology has to offer. These Kevlar fiber-wrapped cylinders have been developed specifically for aircraft use.

The KF series cylinders are the perfect solution for cylinder installations far aft in the aircraft previously not possible before. A thin-wall, seamless aluminum (6061-T6) alloy 'liner-cylinder' is reinforced by a full over-wrapping of Kevlar fibers sealed in epoxy. This yields about a 50% to 60% weight savings over conventional cylinder technology without any compromise in safety.

These cylinders are preferred by many who build the state-of-the-art composite-fiber aircraft. They are made under a DOT mfg. protocol. If used in commercial applications or in a type-certified aircraft, the DOT service life is 15 years from the first hydro-test date and hydro-tests are done every three years. The KF series cylinders are complemented by our RCV/RCR remote-controlled-regulator system and built-in EDS system. The KF series cylinders can be secured for carry-about applications with the Full-Pack and Tuff-Pack cylinder carry-caddy harness systems.

If the cylinder is to be used in type certified aircraft, by current DOT protocol, it must be hydro tested every three years and taken out of service if it fails or after 15 years from the first hydro test date comes about. Even if the cylinder passes hydro test. DOT protocol does not specifically detail any requirements for these cylinders if used in experimental aircraft.

See details and dimensions here: Oxygen Cylinder Dimensions and Duration Table

$1410 1 day
MH-00CYL-1054-00 KF-115 KF-115 Oxygen Cylinder - Aluminum core with Kevlar Fiber Wrap - No Valve or Gauge
The lightest aircraft oxygen cylinder that technology has to offer. These Kevlar fiber-wrapped cylinders have been developed specifically for aircraft use.

The KF series cylinders are the perfect solution for cylinder installations far aft in the aircraft previously not possible before. A thin-wall, seamless aluminum (6061-T6) alloy 'liner-cylinder' is reinforced by a full over-wrapping of Kevlar fibers sealed in epoxy. This yields about a 50% to 60% weight savings over conventional cylinder technology without any compromise in safety.

These cylinders are preferred by many who build the state-of-the-art composite-fiber aircraft. They are made under a DOT mfg. protocol. If used in commercial applications or in a type-certified aircraft, the DOT service life is 15 years from the first hydro-test date and hydro-tests are done every three years. The KF series cylinders are complemented by our RCV/RCR remote-controlled-regulator system and built-in EDS system. The KF series cylinders can be secured for carry-about applications with the Full-Pack and Tuff-Pack cylinder carry-caddy harness systems.

If the cylinder is to be used in type certified aircraft, by current DOT protocol, it must be hydro tested every three years and taken out of service if it fails or after 15 years from the first hydro test date comes about. Even if the cylinder passes hydro test. DOT protocol does not specifically detail any requirements for these cylinders if used in experimental aircraft.

See details and dimensions here: Oxygen Cylinder Dimensions and Duration Table


Valve & Gauge
not included

$1600 1 day
MH-00CYL-1054-01 KF-115-540 KF-115-540 Oxygen Cylinder - Aluminum core with Kevlar Fiber Wrap - with CGA-540 Valve and Gauge
The lightest aircraft oxygen cylinder that technology has to offer. These Kevlar fiber-wrapped cylinders have been developed specifically for aircraft use.

The KF series cylinders are the perfect solution for cylinder installations far aft in the aircraft previously not possible before. A thin-wall, seamless aluminum (6061-T6) alloy 'liner-cylinder' is reinforced by a full over-wrapping of Kevlar fibers sealed in epoxy. This yields about a 50% to 60% weight savings over conventional cylinder technology without any compromise in safety.

These cylinders are preferred by many who build the state-of-the-art composite-fiber aircraft. They are made under a DOT mfg. protocol. If used in commercial applications or in a type-certified aircraft, the DOT service life is 15 years from the first hydro-test date and hydro-tests are done every three years. The KF series cylinders are complemented by our RCV/RCR remote-controlled-regulator system and built-in EDS system. The KF series cylinders can be secured for carry-about applications with the Full-Pack and Tuff-Pack cylinder carry-caddy harness systems.

If the cylinder is to be used in type certified aircraft, by current DOT protocol, it must be hydro tested every three years and taken out of service if it fails or after 15 years from the first hydro test date comes about. Even if the cylinder passes hydro test. DOT protocol does not specifically detail any requirements for these cylinders if used in experimental aircraft.

See details and dimensions here: Oxygen Cylinder Dimensions and Duration Table

$1715 1 day

Cylinder Valve Heads
00CYL-0014-00 CGA-540-Valve CGA-540 Valve without Gauge for Aluminum cylinders

  $100 1 day
00CYL-0014-01 KF-CGA-540G-Valve KF-540 valve with Gauge for KF-type cylinders
with 3/4"-16 male threads for cylinder

$125 1 day
00CYL-0014-02 CGA-540G-AL-CFFC-Valve CGA-540G, 540 valve with Gauge for Aluminum or CFFC-type cylinders
with 3/4"-16 male threads for cylinder


$120 1 day
00CYL-0014-03 CFF-CGA-540G-Valve CFF-CGA-540G, 540 valve with Gauge for CFF-480 cylinders
with 3/4"-16 male threads for cylinder


$125 1 day
00CYL-0020-00 DIN-477-Valve DIN-477 (euro norm) Valve Without Gauge
Threads on cylinder end: 3/4"-16 UNF


  $125 1 day
00CYL-0020-01 DIN-477-G-Valve-4K DIN-477 (euro norm) Valve With 4000 PSI Gauge
Threads on cylinder end: 3/4"-16 UNF
$155 1 day
00CYL-0020-02 DIN-477-G-Valve-3K DIN-477 (euro norm) Valve With 3000 PSI Gauge
Threads on cylinder end: 3/4"-16 UNF
$155 1 day

Cylinder Mounting Kits
CMK-Omega CMK-Omega CMK Ω ('Omega') Cylinder Mounting Kits
The CMK 'OMEGA' type bracket cylinder mounting kit is a rigid, low-profile, high-strength method of securing aluminum or composite-fiber cylinders to a flat surface. With the CMK brackets bolted in place, the cylinder is held into place by a set of stainless steel taut-bands. The taut-bands are the quick-release, ("open-loop") type in which the cylinder is easily placed and removed by loosening the grip-knobs and uncoupling the quick-release latch on the bands.

CMK 'Omega' Cylinder Mounting Kit Photos
(Click on images below to view larger versions.)
CMK Ω Kit CMK Ω Kit on
KF-022 cylinder
Band Type -02
"Quick-Release"
"Open Loop"

Options

Size

  • CMK-0002-03, CMK-011, For KF-011 cylinders (diameter: 3.62 inch (9.27 cm)), $95
  • CMK-0004-02, CMK-022/647, for AL-647 cylinders (diameter: 5.25 inch (13.21 cm)), $95
  • CMK-0004-03, CMK-022/647, for KF-022 cylinders (diameter: 5.2 inch (13.33 cm)), $100
  • CMK-0006-03, CMK-040/050, for KF-050 cylinders (diameter: 6.8 inch (17.27 cm)), $95
  • CMK-0008-03, CMK-077, for KF-077 cylinders (diameter: 7.6 inch (19.38 cm)), $95
  • CMK-0010-02, CMK-113/180, for AL-113 and AL-180 cylinders (diameter: 3.2 inch (8.13 cm)), $85
  • CMK-0012-03, CMK-115, for KF-115 cylinders (diameter: 9.10 inch (23.11 cm)), $100
  • CMK-0016-02, CMK-248, for AL-248, AL-415 and AL-682 cylinders (diameter: 4.275 inch (11.11 cm)), $95
  • CMK-0022-03, CMK-480, for CFF-480 cylinders (diameter: 4.5 inch (11.43 cm)), $95

CMK Taut-band Data sheet
CMK bracket Data sheet

  $79 to $95 1 day

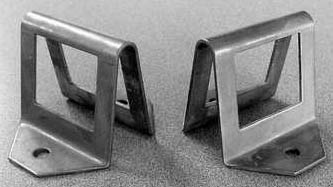

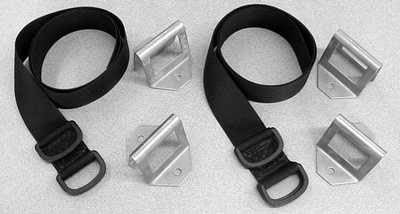

00CMK-0024-00 CMK-A CMK "A" Bracket Cylinder Mounting Kits

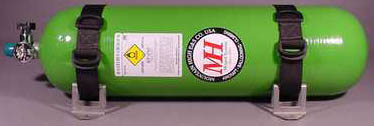

Made specially for fiber-wound cylinders, the CMK-A bracket cylinder mounting kit is a rigid, low profile method of securing either aluminum or fiber-wound cylinders to a flat surface inside a deep area where removal on the axis is not possible and scratching the cylinder may be a concern. A wide fabric strap is used to secure the cylinder, minimizing the possibility of damaging the cylinder. The CMK-A provides the greatest number of options for mounting these types of cylinders. The brackets can be positioned anywhere throughout the circumference of the fabric belts. The fabric belts can then be rotated so the tightening buckle is positioned almost anywhere desired for easy access. Used with many composite-fiber aircraft.

Strap Length: 35 inches (88.9 cm)

$60 1 day

Cylinder Carrying Cases

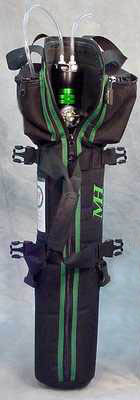

FullPack FP-xxx Full-Pack Padded Carrying Case for Portable Cylinders
A fully padded carry case for any of our portable cylinders. A GoreTex padded-fabric harness allows you to safely carry the cylinder. There is a set of D-rings placed about the harness that allows you to mount the cylinder to a structure such as a seat back. When zipped, the Full-Pack holds and totally covers the cylinder, valve, and regulator adding to your comfort, convenience and safety.  The mounting straps shown below are included.  Select cylinder model when ordering.

Installing Full-Pack on Aircraft Seatback
(Click on images below to view larger versions.)
Straps
mounted on
aircraft seatback
Attaching the
Full-Pack
to the seatback
Attaching the
Full-Pack
to the seatback
Ready to fly

Sizes:

  • FP-011, MH-00FAB-0002-00 - for KF-011 Kevlar Cylinder - $99
  • FP-022, MH-00FAB-0004-00 - for KF-022 Kevlar Cylinder - $99
  • FP-180/113, MH-00FAB-0006-00 - for AL-180 or AL-113 Aluminum Cylinder - $99
  • FP-248, MH-00FAB-0008-00 - for AL-248 Aluminum Cylinder - $99
  • FP-415, MH-00FAB-0010-00 - for AL-415 Aluminum Cylinder - $99
  • FP-480, MH-00FAB-0012-00 - for CFF-480 Silica (Glass) Fiber Cylinder - $99
  • FP-647, MH-00FAB-0014-00 - for AL-647 Aluminum Cylinder - $99
  • FP-682, MH-00FAB-0016-00 - for AL-682 Aluminum Cylinder - $99
  • FP-048, MH-00FAB-0017-00 - for CFFC-048 Carbon Fiber Cylinder - $125

Full-Pack info sheet

  $99
to
$125
1 day
HolsterPack HP-xxx Holster Pack Carrying Case for Portable Cylinders
Light-weight carry case for cylinders suited particularly for hang gliding and parasailing applications. It enables pilots to attach the cylinder to a harness using the Holster Pack's grommet system.

Sizes:

  • HP-113 - for AL-113 Aluminum Cylinder, 00FAB-0020, $30
  • HP-180 - for AL-180 Aluminum Cylinder, 00FAB-0022-00, $32
$30
to
$32
1 day

Cumulus Soaring, Inc.
Paul E. Remde

8661 Connelly Place
Savage, Minnesota 55378
USA


Home | Contact | Customer Service | How to Order | Privacy | Technical Support | View Cart


Phone: 1-952-445-9033
FAX: 1-952-445-8954
