Home > Flight Computers / GPS Flight Recorders / Variometers > LX Navigation

Products

  LX EOS


LX Zeus 2.8 (80 mm) with LX EOS vario LX Zeus 4.3 with LX EOS vario


LX Zeus 5.5 with LX EOS vario LX Zeus 7.0 LX EOS vario



Use your existing Cambridge 302 with:
or or or

LX Zeus CAI 302

Overview
LX Navigation is a great soaring instrument company in Slovenia. They have been making and supporting instruments for sailplanes since the early 1990's - starting with products like the LX20 and Colibri and LX4000. They have come a long way since then. Their latest products are very high-tech instruments.


LX Navigation Versus LXNAV
LX Navigation has been making popular soaring flight instruments for many years.  Several years ago the company divided into two companies.  The original LX Navigation remains and makes the Colibri II, LX Zeus, EOS and other products.  Some of the other products that had been made by LX Navigation in the past (LX8000) have gone to the new LXNAV company.  LXNAV makes the Nano, LX8000, LX8080, LX9000, S3, S7, V80 and other products.

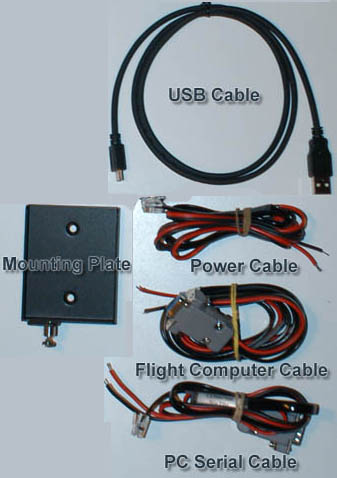

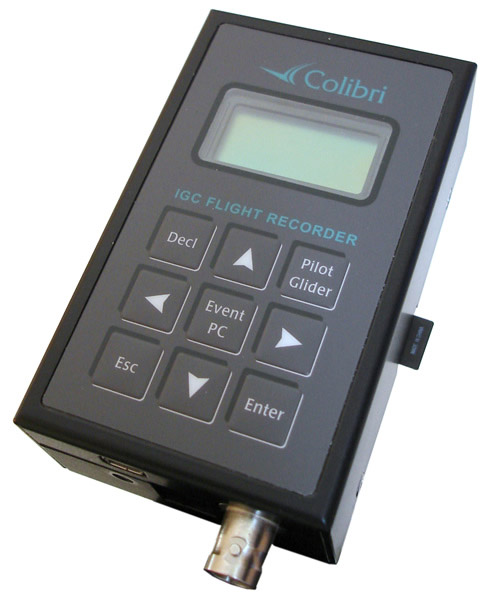

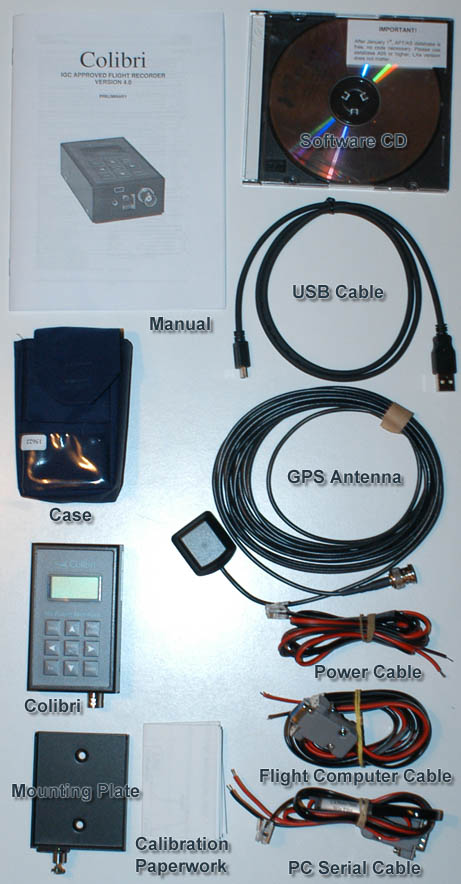

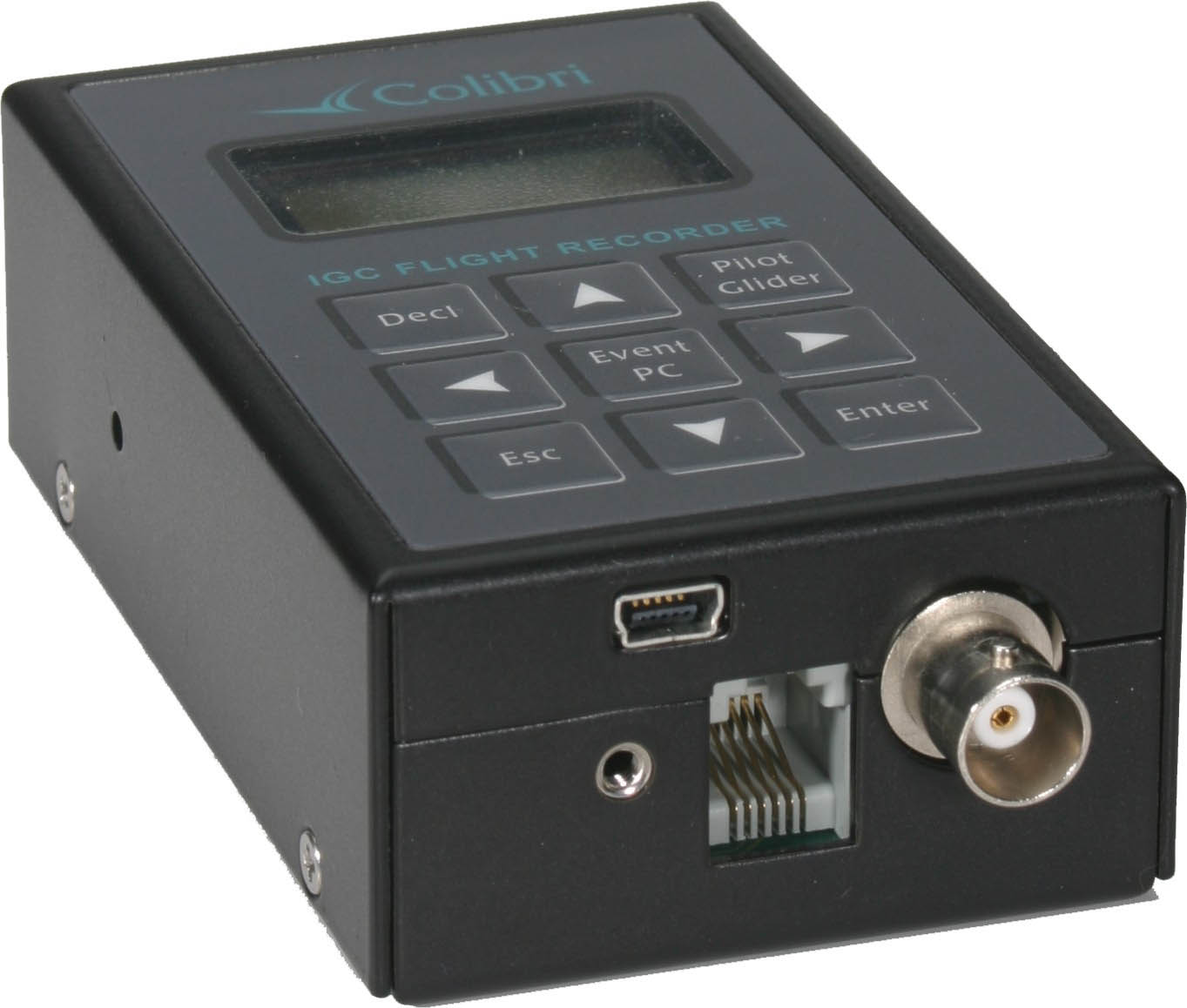

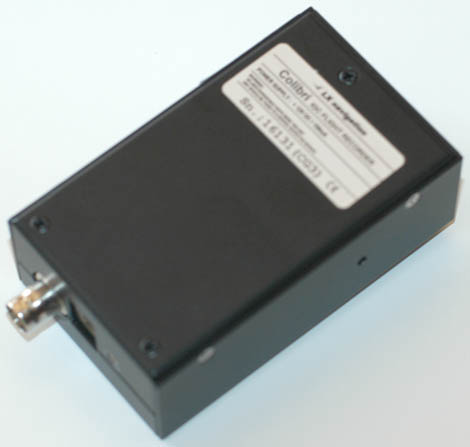

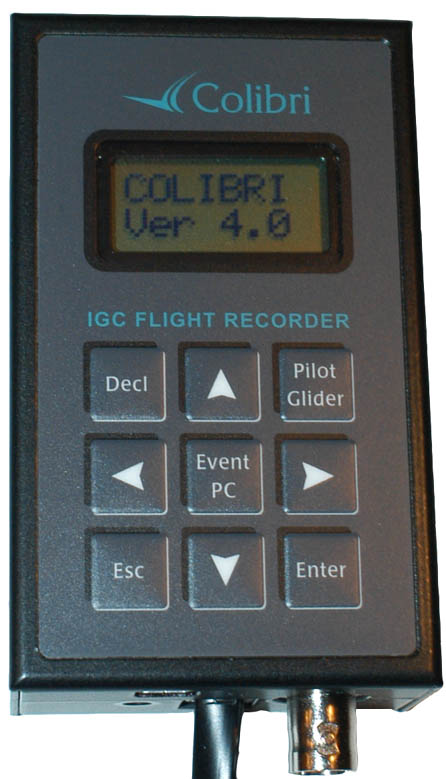

Colibri Setup and Tips Document
This document is designed as a "need to know" document for new Colibri owners.  Let me know if you have any suggestions for improving the document. Note that this document applies to the original Colibri - not the more recent Colibri II.
Colibri Setup and Tips.pdf


Example Systems

LX EOS with Naviter Oudie 2
This is a great system. The EOS is a speed-to-fly vario with built-in IGC approved GPS flight recorder and backup navigation with waypoints and tasks. It sends
vario, GPS, and airspeed data to the Oudie. The Oudie is a full-features flight computer with an extremely bright display. The EOS provides power to the Oudie through the Oudie's power/data cable and an adapter cable and RJ45 coupler. The Oudie can send task declarations to the LX EOS.
Example System -  LX EOS Variometer with Naviter Oudie 2

or
LX EOS
Speed-to-fly variometer and
IGC approved flight Recorder

Cable-EOS-Oudie-Pwr-0p3
Cable for connecting the
LX EOS's "User" port to the
Oudie-Cable-Kit. This cable
powers the Oudie-Cable-Kit
with 12V power from the LX EOS.
or
Cable-EOS-Oudie-noPwr-0p3
This cable does not pass 12V power
from the EOS. In this case the red
and black power leads on the Oudie
Cable Kit must be connected to
12V power. It is nice if you want to
power the Oudie independently.

RJ-Coupler-RJ45-RJ45
This is included in the box
with the Oudie

Naviter Oudie Cable Kit
The cable powers the Oudie with 5V.
It is included in the box with the Oudie.

Important Note
: If the LX EOS powers this
cable with 12V, do not connect power to the
red and black power leads. Put shrink tubing
on the red and black power leads so they
won't short.

Naviter Oudie 2
with
SeeYou Mobile

Oudie-Mount-RAM-Arm-Std
RAM Arm Mount with Oudie cradle

  • LX EOS - $1695
  • Cable-EOS-Oudie-Pwr-0p3 - Cable for connecting the LX EOS's "User" port to the Oudie-Cable-Kit , $40, OR Cable-EOS-Oudie-noPwr-0p3 - This cable does not pass 12V power from the EOS. In this case the red and black power leads on the Oudie Cable Kit must be connected to 12V power. It is nice if you want to power the Oudie independently. $40
  • RJ-Coupler-RJ45-RJ45 - This is included in the box with the Oudie.
  • Naviter Oudie Cable Kit - The EOS powers the Oudie Cable Kit with 12V. The cable powers the Oudie with 5V. Included in the box with the Oudie.
  • Naviter Oudie2 - with SeeYou Mobile license, $625
  • Oudie-Mount-RAM-Arm-Std - RAM Arm Mount with Oudie cradle, $38.85

Total Price: $2398.85

Optional
Other mounting options include the Oudie-Mount-RAM-SCM or a Oudie-Mount-GNeck-Panel or Oudie-Mount-GNeck-RA.
or or


LX EOS with PowerFLARM Core and Naviter Oudie 2
This is a great system. The EOS is a speed-to-fly vario with built-in IGC approved GPS flight recorder and backup navigation with waypoints and tasks. It sends
vario, GPS, and airspeed data to the Oudie 2. The Oudie is a full-features flight computer with an extremely bright display. The EOS provides power to the Oudie 2 through the Oudie's power/data cable and an adapter cable and RJ45 coupler. The EOS also powers the PowerFLARM Core with 12V. FLARM data is forwarded through the LX EOS to the Oudie 2. Since both the LX EOS and Oudie 2 can display FLARM traffic, a remote FLARM display may not be necessary. Both the PowerFLARM Core and the Naviter Oudie 2 have the ability to record non-IGC approved flight logs which are accepted by the OLC (Online Contest) - which is a nice backup to the IGC approved flight recorder in the LX EOS. It is also possible to upgrade the PowerFLARM Core to enable IGC approved flight recording for $100.

Example System -  LX EOS Variometer with PowerFLARM Core and Naviter Oudie 2


or

PowerFLARM Core

Optional:
PowerFLARM-Enable-IGC

LXNAV-S7-GPS-PFCore
Cable from the EOS's FLARM port to the
PowerFLARM's DB-9 connector
The EOS powers the
PowerFLARM Core with 12V.
or
Cable-PFLARM-Pwr-DB9m-S7-0p5
Cable for connecting an EOS's FLARM
GPS port to a PowerFLARM Core's DB-9
port. 12V power leads are also provided
for powering the PowerFLARM Core with
12V. This cable does not pass 12V power
from the EOS to the
PowerFLARM Core.

LX EOS
Speed-to-fly variometer and
IGC approved flight Recorder

Cable-EOS-Oudie-Pwr-0p3
Cable for connecting the
LX EOS's "User" port to the
Oudie-Cable-Kit. This cable
powers the Oudie-Cable-Kit
with 12V power from the LX EOS.
or
Cable-EOS-Oudie-noPwr-0p3
This cable does not pass 12V power
from the EOS. In this case the red
and black power leads on the Oudie
Cable Kit must be connected to
12V power. It is nice if you want to
power the Oudie independently.

RJ-Coupler-RJ45-RJ45
This is included in the box
with the Oudie.

Naviter Oudie Cable Kit
The cable powers the Oudie with 5V.
It is included in the box with the Oudie.

Important Note
: If the LX EOS powers this
cable with 12V, do not connect power to the
red and black power leads. Put shrink tubing
on the red and black power leads so they
won't short.

Naviter Oudie 2
with
SeeYou Mobile

Oudie-Mount-RAM-Arm-Std
RAM Arm Mount with Oudie cradle
  • PowerFLARM Core - $1460
  • PowerFLARM-Enable-IGC - Optional: $100
  • LXNAV-S7-GPS-PFCore - Cable for connecting the PowerFLARM Core to the EOS. The EOS provides 12V power for the PowerFLARM Core. $33, OR Cable-PFLARM-Pwr-DB9m-S7-0p5 - This version does not pass 12V power from the EOS to the PowerFLARM Core. It is nice if you want to be able to power the PowerFLARM Core independantly. $75
  • LX EOS - $1695
  • Cable-EOS-Oudie-Pwr-0p3 - Cable for connecting the EOS's "User" port to the Oudie-Cable-Kit , $40, OR Cable-EOS-Oudie-noPwr-0p3 - This cable does not pass 12V power from the EOS. In this case the red and black power leads on the Oudie Cable Kit must be connected to 12V power. It is nice if you want to power the Oudie independently. $40
  • RJ-Coupler-RJ45-RJ45 - This is included in the box with the Oudie.
  • Naviter Oudie Cable Kit - The cable powers the Oudie with 5V. It is included in the box with the Oudie. Important Note: If the LX EOS powers this cable with 12V, do not connect power to the red and black power leads. Put shrink tubing on the red and black power leads so they won't short.
  • Naviter Oudie2 - with SeeYou Mobile license, $625
  • Oudie-Mount-RAM-Arm-Std - RAM Arm Mount with Oudie cradle, $38.85

Total Price: $3891.85

Optional
Other mounting options include the Oudie-Mount-RAM-SCM or a Oudie-Mount-GNeck-Panel or Oudie-Mount-GNeck-RA.
or or


LX Zeus with PowerFLARM Core
The LX Zeus together with an EOS variometer make for a very powerful soaring flight computer system. Adding a PowerFLARM makes it complete. The EOS is a speed-to-fly vario with built-in IGC approved GPS flight recorder.
The PowerFLARM Core has the ability to record non-IGC approved flight logs which are accepted by the OLC (Online Contest) - which is a nice backup to the IGC approved flight recorder in the LX EOS. It is also possible to upgrade the PowerFLARM Core to enable IGC approved flight recording for $100.

Example System -  LX Zeus Flight Computer with LX EOS Variometer and PowerFLARM Core


or


Zeus 2.8 with EOS
or

Zeus 4.3 with EOS
or

Zeus 5.5 with EOS
or

Zeus 7.0 with EOS

PowerFLARM Core

Optional:
PowerFLARM-Enable-IGC

Optional:
LXNAV FlarmView
or
LXNAV FlarmView57
or
LXNAV FlarmView2

LXNAV-S7-GPS-PFCore
Cable from the Zeus's FLARM port to the
PowerFLARM's DB-9 connector
The Zeus powers the
PowerFLARM Core with 12V.
or
Cable-PFLARM-Pwr-DB9m-S7-0p5
Cable for connecting an Zeus's FLARM
GPS port to a PowerFLARM Core's DB-9
port. 12V power leads are also provided
for powering the PowerFLARM Core with
12V. This cable does not pass 12V power
from the Zeus to the
PowerFLARM Core.

LX Zeus 2.8 with EOS
or
LX Zeus 4.3 with EOS
or
LX Zeus 5.5 with EOS
or
LX Zeus 7.0 with EOS
LX Zeus flight computer
with LX EOS
speed-to-fly vario
with built-in
IGC approved
flight recorder

Total System Price with LX Zeus 2.8: $4993
Total System Price with LX Zeus 4.3: $5903
Total System Price with LX Zeus 5.5: $6238
Total System Price with LX Zeus 7.0: $6238


Currency Issues
Since the products below are from Slovenia, the prices are subject to change with fluctuations in exchange rates.

How to Order
To order a product, click on the button next to the product.
When you are ready to complete your order, click on the button.
Click on the small images to view larger versions.

Part # Description Photo
Click on image to view larger version

Price

Lead-time

LX-EOS

LX EOS Speed-to-fly Variometer with GPS flight recorder, navigation, Thermal Assistant, and FLARM display
The LX EOS is a very powerful and full-featured soaring flight computer system which can be mounted in a standard small 57 mm (2 1/4") instrument hole.

Sale: I have more of these in stock than I need. They are new and in perfect condition. I will update their firmware to the latest version before shipment. Their built-in flight recorders were calibrated at the factory in early February, 2015. The calibration is valid for 5 years. The sale price applies only to the units in stock.

Features

  • Speed-to-fly variometer
  • High level IGC approved flight recorder with ENL (engine noise level) sensor built-in
  • Mechanical pointer
  • Extremely bright direct sunlight readable display
  • Integrated G-meter (g-forces recorder)
  • 3-axis gyroscope
  • 3-axis accelerometers
  • Final glide calculator based on GPS data
  • Simple navigation to turnpoints and navigation through tasks
  • Flarm radar screen (FLARM and ADS-B traffic only -The EOS cannot display Mode C/S transponder "PCAS" traffic.)
  • Thermal assistant screen
  • Logbook
  • External SD memory card interface for flight log and waypoint transfers and upgrades
  • System extensions:
    • Second seat display with control knob

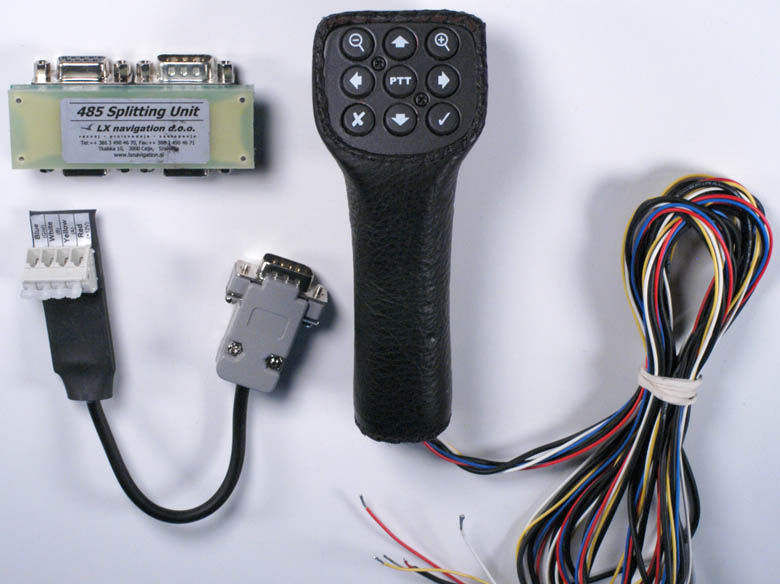

    • Stick-mounted Remote Control (LX Joy)
  • TE compensation by TE probe or using electronic compensation
  • Flight information with Barograph
  • Multi pilot support
  • Accurate wind calculation in straight flight and circling
  • GPS receiver as an integral part of the system
  • Completely new design using latest pressure transducer technology
  • Extremely fast vario data acquisition
  • Rotary knob with push function, for simple and effective handling
  • Nearly unlimited memory space for flight recorder!
  • ENL (Engine Noise Level) sensor is built in
  • 5 status inputs (SC, VP, Gear, Brakes, Flaps)
  • OAT probe input (Outside temperature)
  • Internal beeper (for Flarm warnings…)
  • Flarm port (input of Flarm and Powerflarm data)
  • PDA/PNA port, supplies navigation and Flarm data to PNA/PDA
  • Bluetooth interface built-in

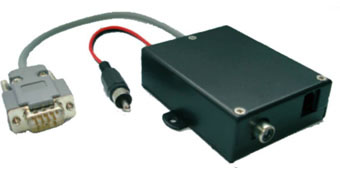

  • Voice module as an integrated part of the system
  • CAN Bus, for connection to LX Zeus or other devices
  • External SD Card interface, for firmware updates, flight downloads and TP transfers
  • Standard 57 mm size
  • The unit can be used as stand alone, or as a part of LX Zeus system
  • Built in rechargeable battery serves two hours of autonomy
  • Charging of built-in battery is realized via main power

Cables for Connecting the LX EOS to Other Devices
(See image at right for LX EOS electrical connections)

  • Cable-EOS-Oudie-noPwr-0p3 - Cable from EOS "USER" port to Oudie power/data adapter. 12V power from the EOS is not passed to the Oudie power/data adapter. The Oudie power/data adapter's red and black power leads must be powered with 12V. - Recommended
  • Cable-EOS-Oudie-Pwr-0p3 - Cable from EOS "USER" port to Oudie power/data adapter. 12V power from the EOS is used to power the Oudie power/data cable. Be sure not to power the Oudie power/data cable's red and black power leads with 12V.
  • LXNAV-S7-GPS-IGC - Cable from EOS or Zeus FLARM port to FLARM with 6-pin RJ12 connector. The EOS or Zeus powers the FLARM with 12V.
  • LXNAV-S7-GPS-PF, Cable from EOS or Zeus FLARM port to RJ45 connector with "standard IGC" connections, for use with PowerFLARM Portable. The EOS or Zeus powers the PowerFLARM Portable with 12V.
  • Cable-PFLARM-Pwr-RJ45-S7-0p5 - Cable from EOS or Zeus FLARM port to RJ45 connector with "standard IGC" connections, for use with PowerFLARM Portable. 12V power leads are also provided for powering the PowerFLARM Portable with 12V. This cable does not pass 12V power from the EOS or Zeus to the PowerFLARM Portable. - Recommended
  • LXNAV-S7-GPS-PFCore, Cable from EOS or Zeus FLARM port to DB-9m connector for connection to PowerFLARM Core. The EOS or Zeus powers the Core with 12V.
  • Cable-PFLARM-Pwr-DB9m-S7-0p5, Cable for connecting EOS or Zeus FLARM port to a PowerFLARM Core's DB-9 port. 12V power leads are also provided for powering the PowerFLARM Core with 12V. This cable does not pass 12V power from the EOS or Zeus to the PowerFLARM Core. - Recommended

Manuals for LX Navigation products are available here.

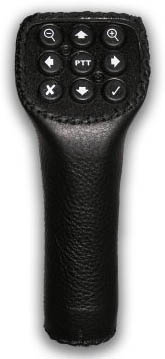

Optional LX-Joy-EOS
Stick-mounted
Remote Control

Sale: $1295
(formerly $1695)

In Stock


LX-EOS-K
(knots)

$1295 (sale)


LX-EOS-M
(m/s)

$1695



LX-EOS-D-K
(2nd-seat repeater in knots)

$695


LX-EOS-D-M
(2nd-seat repeater in m/s)

$695

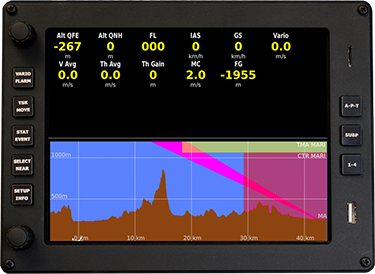

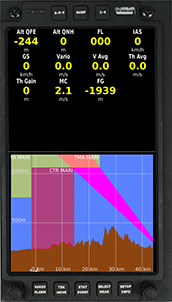

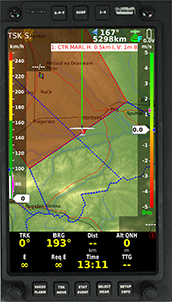

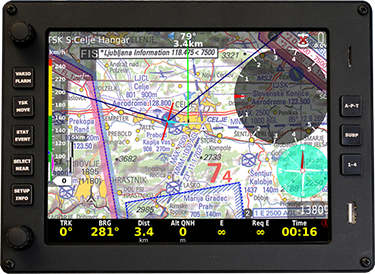

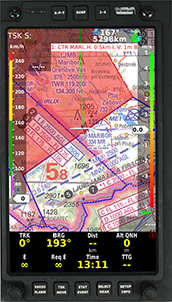

LX-Zeus-2.8

LX Zeus 2.8
A very powerful soaring flight computer system with 2.8" color display that fits into a standard 80 mm instrument hole. It is supplied with an LX EOS variometer which fits into a standard 57 mm instrument hole. The LX EOS has a built-in IGC approved GPS flight recorder with ENL (engine noise level) recording and many other impressive features.

LX Zeus 2.8 uses a high quality 2.8 inch diagonal colour display with a resolution of 240x320 pixels. The size of the display has enabled the design of a unit which retains all the excellent features of the LX Zeus, but doesn’t require an upgrade of the instrument panel. The operation and commands are identical to all other Zeus units comprising two rotary switches and eight push buttons.

Versions
Note: The FLARM versions are not for use in the USA. For U.S. customers, a PowerFLARM may be connected to the Zeus.

  • LX-Zeus-2p8-IGC (Most Popular), with LX EOS variometer with built-in IGC approved GPS flight recorder
  • LX Zeus-2p8-IGC-FLARM, with LX EOS variometer with built-in IGC approved GPS flight recorder and FLARM Red Box with built-in SD card reader, dipole antenna, and LED external FLARM display (FLARM is not IGC enabled)
  • LX-Zeus-2p8-IGC-FLARM-IGC, with LX EOS variometer with built-in IGC approved GPS flight recorder and FLARM Red Box with built-in SD card reader, dipole antenna, and LED external FLARM display (FLARM is IGC enabled)
  • LX-Zeus-2p8-CAI-302, for use with an existing Cambridge 302 variometer
  • LX-Zeus-2p8-D, 2nd-seat unit, with EOS indicator

Features

  • Flight downloads and all data transfer via USB stick
  • 3 TP files can be active at once (each with a maximum of 2000 waypoints)
  • 2 x 485 system bus ports - NO NEED FOR SPLITTER
  • Custom design of graphic page layout (no PC tool needed - directly on the Zeus)
  • 2 GPS inputs to maximize gps security-in flight reliability

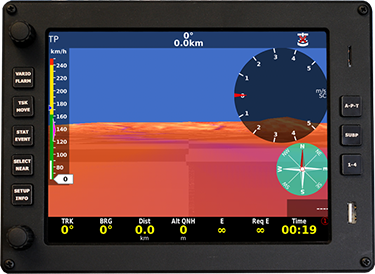

  • 3D terrain display
  • Every push button supports 2 functions delivered by either a short or long press
  • AHRS (artificial horizon) offered as an external box
  • LX EOS Vario (color vario, 57 mm)
  • Landscape or Portrait orientation of the screen
  • Plug and play connectors
  • ICAO(eg UK CAA) charts available - simple installation via USB stick

Software Features

  • Infinite number of NAV BOXES
  • Custom graphic layout
  • 3 main screens (APT, TP, TSK)
  • Every main screen has SUBPAGE (Airport information and glide path - terrain view)
  • Software (Linux based) developed entirely by LX Navigation
  • Data transfer via USB stick
  • 3 TP (.cup) files can be active at once
  • Import TSK files (.cup)
  • Whole world map preloaded
  • Update via USB stick - no password needed

Hardware

  • 2 computers (embedded ARM Cortex and microcontroller)
  • 2 x 485 system bus ports ( No need for splitter)
  • 2 x CAN ports
  • 2 x GPS ports (Colibri II and Flarm)
  • 2 x Flarm display ports
  • 1 x OAT port
  • 1 x SD interface
  • 1 x USB port A size
  • 8 push buttons and 2 rotary switches
  • 8 gb storage memory

Optional Accessories

  • Second seat unit

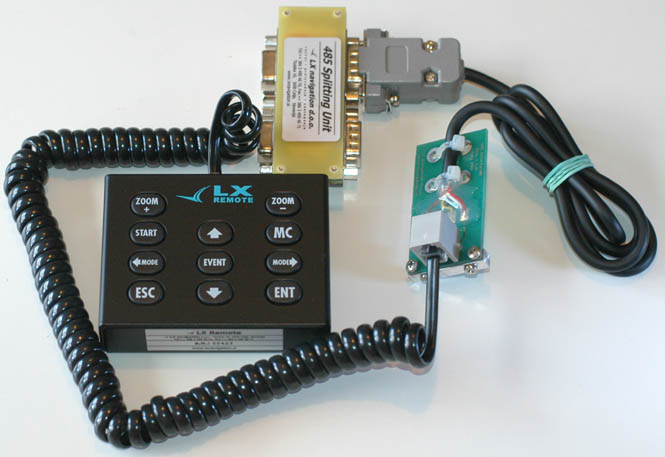

  • Remote stick
  • AHRS
  • Compass module
  • Voice module
  • Flarm RB, MB
  • Flarm color or led display

Display

  • Colour display 2.8 inch
  • Resolution 240 x 320
  • Extended temperature range
  • 1200 nits backlight

Dimensions and Power Consumption

  • Size: 80 mm air norm; installation depth 55 mm (without connectors)
  • Zeus 2.8  power consumption; 350 mA at 12V (incl. vario using by moderate audio volume)

Manuals for LX Navigation products are available here.


LX Zeus 2.8


LX EOS Variometer


Optional LX-Joy-Zeus
Stick-mounted
Remote Control

See prices
at right
3 Weeks


LX-Zeus-2p8-IGC
(Zeus 2.8 and EOS)
$3500



LX-Zeus-2p8-IGC-FLARM
(Zeus 2.8, EOS & FLARM)
$3760


LX-Zeus-2p8-IGC-FLARM-IGC
(Zeus 2.8, EOS & FLARM IGC)
$3890



LX-Zeus-2p8-CAI-302
(Zeus 2.8 for use
with existing 302)
$2720



LX-Zeus-2p8-D
(Zeus 2nd-seat repeater
with EOS display)
$1940



LX-AHRS-Zeus-2p8
(External AHRS
sensor box,
for Zeus 2.8)
$1550

LX-Zeus-4.3

LX Zeus 4.3
A very powerful soaring flight computer system with 4.3" color display. It is supplied with an LX EOS variometer which fits into a standard 57 mm instrument hole.
The LX EOS has a built-in IGC approved GPS flight recorder and many other impressive features.

LX Zeus 4.3 uses a high quality 4.3 inch diagonal colour display with a resolution of 800 x 480 pixels. The operation and commands are identical to all other Zeus units comprising two rotary switches and eight push buttons.

Versions
Note: The FLARM versions are not for use in the USA. For U.S. customers, a PowerFLARM may be connected to the Zeus.

  • LX-Zeus-4p3-IGC (Most Popular), with LX EOS variometer with built-in IGC approved GPS flight recorder
  • LX Zeus-4p3-IGC-FLARM, with LX EOS variometer with built-in IGC approved GPS flight recorder and FLARM Red Box with built-in SD card reader, dipole antenna, and LED external FLARM display (FLARM is not IGC enabled)
  • LX-Zeus-4p3-IGC-FLARM-IGC, with LX EOS variometer with built-in IGC approved GPS flight recorder and FLARM Red Box with built-in SD card reader, dipole antenna, and LED external FLARM display (FLARM is IGC enabled)
  • LX-Zeus-4p3-CAI-302, for use with an existing Cambridge 302 variometer
  • LX-Zeus-4p3-D, 2nd-seat unit, with EOS indicator

Features

  • Flight downloads and all data transfer via USB stick
  • 3 TP files can be active at once (each with a maximum of 2000 waypoints)
  • 4 x 485 system bus ports - NO NEED FOR SPLITTER
  • Custom design of graphic page layout (no PC tool needed - directly on the Zeus)
  • 2 GPS inputs to maximize gps security-in flight reliability
  • 3D terrain display
  • Every push button supports 2 functions delivered by either a short or long press
  • AHRS (artificial horizon) offered as an external box
  • USB D 60 Vario ( color vario 57 mm, optionally 80 mm)
  • No need for the removal of instrument for flight recorder calibration (remove only Colibri II for baro calibration)
  • Colibri II, a high level approved flight recorder, is incorporated into the system
  • Landscape or Portrait orientation of the screen
  • Simple conversion from landscape to portrait and vice versa
  • Plug and play connectors

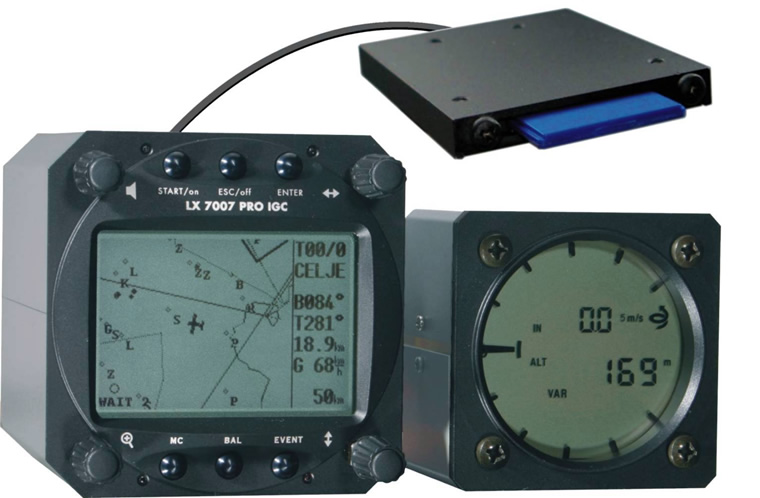

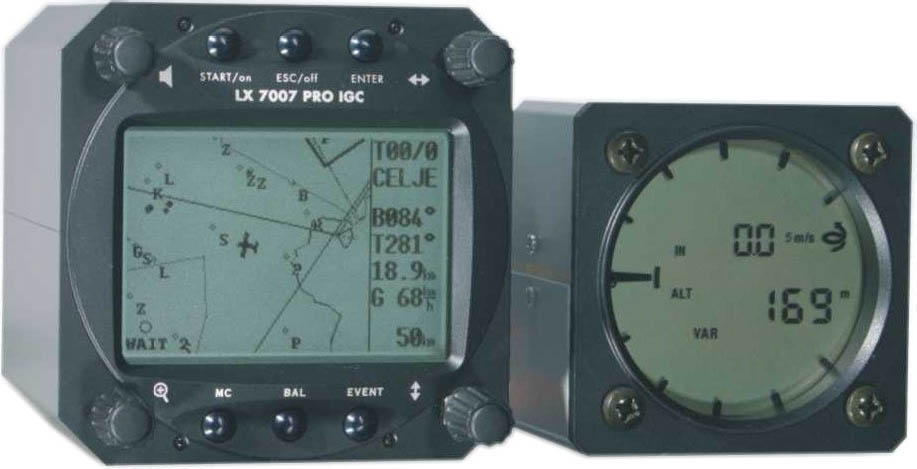

  • Upgrade of LX 7000 and LX 7007 to Zeus  - more...
  • ICAO(eg UK CAA) charts available - simple installation via USB stick

Software Features

  • Infinite number of NAV BOXES
  • Custom graphic layout
  • 3 main screens (APT, TP, TSK)
  • Every main screen has SUBPAGE (Airport information and glide path - terrain view)
  • Software (Linux based) developed entirely by LX Navigation
  • Data transfer via USB stick
  • 3 TP (.cup) files can be active at once (each with a maximum of 2000 waypoints)
  • Import TSK files (.cup)  (with a maximum of 50 tasks)
  • Whole world map preloaded
  • Update via USB stick - no password needed

Hardware

  • 2 computers (embedded ARM Cortex and microcontroller)
  • 4 x 485 system bus ports ( No need for splitter)
  • 2 x CAN ports
  • 2 x GPS ports (Colibri II and Flarm)
  • 2 x Flarm display ports
  • 1 x OAT port
  • 1 x SD interface
  • 1 x USB port A size
  • 8 push buttons and 2 rotary switches
  • 8 gb storage memory

Optional Accessories

  • Second seat unit
  • Remote stick
  • Compass module
  • Voice module
  • Flarm RB, MB
  • Flarm color or led display

Display

  • Colour display 4.3 inch
  • Resolution 800 x 480 pixels
  • High intensity adjustable backlight
  • Absolute antiglare
  • Extended temperature range

Dimensions and Power Consumption

Manuals for LX Navigation products are available here.


LX Zeus 4.3


LX EOS Variometer


Optional LX-Joy-Zeus
Stick-mounted
Remote Control

See prices
at right
3 Weeks


LX-Zeus-4p3-IGC
(Zeus 4.3 and EOS)
$4410



LX-Zeus-4p3-IGC-FLARM
(Zeus 4.3, EOS & FLARM)
$4500


LX-Zeus-4p3-IGC-FLARM-IGC
(Zeus 4.3, EOS & FLARM IGC)
$4930



LX-Zeus-4p3-CAI-302
(Zeus 4.3 for use
with existing 302)
$3630



LX-Zeus-4p3-D
(Zeus 4.3 2nd-seat repeater
with EOS display)
$2200



LX-Zeus-AHRS-Module
(Built-in AHRS
for Zeus 4.3, 5.5, 7.0)
$1420



LX-Zeus-5.5

LX Zeus 5.5
A very powerful soaring flight computer system with 5.5" color display. It is supplied with an LX EOS variometer which fits into a standard 57 mm instrument hole. The LX EOS has a built-in IGC approved GPS flight recorder and many other impressive features.

LX Zeus 5.5 uses a high quality 5.5 inch diagonal colour display with a resolution of 640 x 480 pixels. The operation and commands are identical to all other Zeus units comprising two rotary switches and eight push buttons.

Versions
Note: The FLARM versions are not for use in the USA. For U.S. customers, a PowerFLARM may be connected to the Zeus.

  • LX-Zeus-5p5-IGC (Most Popular), with LX EOS variometer with built-in IGC approved GPS flight recorder
  • LX Zeus-5p5-IGC-FLARM, with LX EOS variometer with built-in IGC approved GPS flight recorder and FLARM Red Box with built-in SD card reader, dipole antenna, and LED external FLARM display (FLARM is not IGC enabled)
  • LX-Zeus-5p5-IGC-FLARM-IGC, with LX EOS variometer with built-in IGC approved GPS flight recorder and FLARM Red Box with built-in SD card reader, dipole antenna, and LED external FLARM display (FLARM is IGC enabled)
  • LX-Zeus-5p5-CAI-302, for use with an existing Cambridge 302 variometer
  • LX-Zeus-5p5-D, 2nd-seat unit, with EOS indicator

Features

  • Flight downloads and all data transfer via USB stick
  • 3 TP files can be active at once (each with a maximum of 2000 waypoints)
  • 4 x 485 system bus ports - NO NEED FOR SPLITTER
  • Custom design of graphic page layout (no PC tool needed - directly on the Zeus)
  • 2 GPS inputs to maximize gps security-in flight reliability
  • 3D terrain display
  • Every push button supports 2 functions delivered by either a short or long press
  • AHRS Module (artificial horizon) offered as an integrated solution
  • LX EOS Vario ( color vario 57 mm, optionally 80 mm)
  • Landscape or Portrait orientation of the screen
  • Simple conversion from landscape to portrait and vice versa
  • Plug and play connectors
  • ICAO(eg UK CAA) charts available - simple installation via USB stick

Software Features

  • Infinite number of NAV BOXES
  • Custom graphic layout
  • 3 main screens (APT, TP, TSK)
  • Every main screen has SUBPAGE (Airport information and glide path - terrain view)
  • Software (Linux based) developed entirely by LX Navigation
  • Data transfer via USB stick
  • 3 TP (.cup) files can be active at once (each with a maximum of 2000 waypoints)
  • Import TSK files (.cup)  (with a maximum of 50 tasks)
  • Whole world map preloaded
  • Update via USB stick - no password needed

Hardware

  • 2 computers (embedded ARM Cortex and microcontroller)
  • 4 x 485 system bus ports ( No need for splitter)
  • 2 x CAN ports
  • 2 x GPS ports (Colibri II and Flarm)
  • 2 x Flarm display ports
  • 1 x OAT port
  • 1 x SD interface
  • 1 x USB port A size
  • 8 push buttons and 2 rotary switches
  • 8 gb storage memory

Optional Accessories

  • Second seat unit
  • AHRS Module (artificial horizon) built-in
  • Remote stick
  • Compass module
  • Voice module
  • Flarm RB, MB
  • Flarm color or led display

Display

  • Colour display 5.5 inch
  • Resolution 640 x 480 pixels
  • High intensity adjustable backlight
  • Absolute antiglare
  • Extended temperature range

Dimensions and Power Consumption

Manuals for LX Navigation products are available here.

LX Zeus Overview Video
The video below is a very nice
LX Zeus 5.5 IGC FLARM overview by MillenAir.nl. Click on the "YouTube" link in the video to view it in high-resolution on YouTube.


LX Zeus 5.5


LX EOS Variometer


Optional LX-Joy-Zeus
Stick-mounted
Remote Control

See prices
at right
3 Weeks


LX-Zeus-5p5-IGC
(Zeus 5.5 and EOS)
$4745



LX-Zeus-5p5-IGC-FLARM
(Zeus 5.5, EOS & FLARM)
$5190


LX-Zeus-5p5-IGC-FLARM-IGC
(Zeus 5.5, EOS & FLARM IGC)
$5450


LX-Zeus-5p5-CAI-302
(Zeus 5.5 for use
with existing 302)
$3965



LX-Zeus-5p5-D
(Zeus 5.5 2nd-seat repeater
with EOS display)
$2330



LX-Zeus-AHRS-Module
(Built-in AHRS
for Zeus 4.3, 5.5, 7.0)
$1420

LX-Zeus-7.0

LX Zeus 7.0
A very powerful soaring flight computer system with 7.0" color display. It is supplied with an LX EOS variometer which fits into a standard 57 mm instrument hole. The LX EOS has a built-in IGC approved GPS flight recorder and many other impressive features.

LX Zeus 7.0 uses a high quality 7.0 inch diagonal colour display with a resolution of 800 x 480 pixels. The operation and commands are identical to all other Zeus units comprising two rotary switches and eight push buttons. The Zeus 7.0 has the same hardware as the Zeus 5.5 - except that the Zeus 7.0 has a larger screen.

Versions
Note: The FLARM versions are not for use in the USA. For U.S. customers, a PowerFLARM may be connected to the Zeus.

  • LX-Zeus-7p0-IGC (Most Popular), with LX EOS variometer with built-in IGC approved GPS flight recorder
  • LX Zeus-7p0-IGC-FLARM, with LX EOS variometer with built-in IGC approved GPS flight recorder and FLARM Red Box with built-in SD card reader, dipole antenna, and LED external FLARM display (FLARM is not IGC enabled)
  • LX-Zeus-7p0-IGC-FLARM-IGC, with LX EOS variometer with built-in IGC approved GPS flight recorder and FLARM Red Box with built-in SD card reader, dipole antenna, and LED external FLARM display (FLARM is IGC enabled)
  • LX-Zeus-7p0-CAI-302, for use with an existing Cambridge 302 variometer
  • LX-Zeus-7p0-D, 2nd-seat unit, with EOS indicator

Features

  • Flight downloads and all data transfer via USB stick
  • 3 TP files can be active at once (each with a maximum of 2000 waypoints)
  • 4 x 485 system bus ports - NO NEED FOR SPLITTER
  • Custom design of graphic page layout (no PC tool needed - directly on the Zeus)
  • 2 GPS inputs to maximize gps security-in flight reliability
  • 3D terrain display
  • Every push button supports 2 functions delivered by either a short or long press
  • AHRS Module (artificial horizon) offered as an integrated solution
  • LX EOS Vario ( color vario 57 mm, optionally 80 mm)
  • Landscape or Portrait orientation of the screen
  • Simple conversion from landscape to portrait and vice versa
  • Plug and play connectors
  • ICAO(eg UK CAA) charts available - simple installation via USB stick

Software Features

  • Infinite number of NAV BOXES
  • Custom graphic layout
  • 3 main screens (APT, TP, TSK)
  • Every main screen has SUBPAGE (Airport information and glide path - terrain view)
  • Software (Linux based) developed entirely by LX Navigation
  • Data transfer via USB stick
  • 3 TP (.cup) files can be active at once (each with a maximum of 2000 waypoints)
  • Import TSK files (.cup)  (with a maximum of 50 tasks)
  • Whole world map preloaded
  • Update via USB stick - no password needed

Hardware

  • 2 computers (embedded ARM Cortex and microcontroller)
  • 4 x 485 system bus ports ( No need for splitter)
  • 2 x CAN ports
  • 2 x GPS ports (Colibri II and Flarm)
  • 2 x Flarm display ports
  • 1 x OAT port
  • 1 x SD interface
  • 1 x USB port A size
  • 8 push buttons and 2 rotary switches
  • 8 gb storage memory

Optional Accessories

  • Second seat unit
  • AHRS Module (artificial horizon) built-in
  • Remote stick
  • Compass module
  • Voice module
  • Flarm RB, MB
  • Flarm color or led display

Display

  • Colour display 7.0 inch
  • Resolution 800 x 480 pixels
  • High intensity adjustable backlight
  • Absolute antiglare
  • Extended temperature range

Dimensions and Power Consumption

  • Size: 110 x 190 mm
  • Zeus 7.0  power consumption; 500 to 550 mA at 12V

Manuals for LX Navigation products are available here.


LX Zeus 7.0


LX EOS Variometer


Optional LX-Joy-Zeus
Stick-mounted
Remote Control

See prices
at right
3 Weeks


LX-Zeus-7p0-IGC
(Zeus 7.0 and EOS)
$4745



LX-Zeus-7p0-IGC-FLARM
(Zeus 7.0, EOS & FLARM)
$5190


LX-Zeus-7p0-IGC-FLARM-IGC
(Zeus 7.0, EOS & FLARM IGC)
$5450


LX-Zeus-7p0-CAI-302
(Zeus 7.0 for use
with existing 302)
$3965



LX-Zeus-7p0-D
(Zeus 7.0 2nd-seat repeater
with EOS display)
$2330



LX-Zeus-AHRS-Module
(Built-in AHRS
for Zeus 4.3, 5.5, 7.0)
$1420

LX-Zeus-CAI-302

LX Zeus for use with Cambridge 302
For customers who already have a Cambridge 302 variometer in their glider - the Zeus CAI 302 is a great option.
All Zeus sizes are available. The 302 connects to the Zeus as a "plug and play" device.

  • Cambridge 302 not included

Highlights:

  • Compatible with all LX ZEUS devices (2.8, 4.3, 5.5, and 7.0)
  • 302 is used as-is (no HW and no FW upgrades necessary)
  • CAI 302 is powered from LX ZEUS
  • No special FW for Zeus – 302 necessary (302 is recognized automatically)
  • Plug and play solution with a special CAI Zeus cable
  • QNH altitude, vario data, airspeed and GPS are sent from CAI 302 to Zeus
  • MC, Ballast, Volume and Altitude settings done on Zeus are sent to CAI 302
  • MC setting can be adjusted on both devices
  • OAT temperature is measured by the Zeus wiring sensor
  • Colibri II system features are still available (if Colibri is a part of the system)
  • Guaranteed FW updates as with regular Zeus configuration
  • Later upgrade to LX Vario can be done anytime
  • LX Zeus does not loose any significant function coupled with CAI 302
  • NOTE: Flarm cannot be connected to the system


Use your existing
Cambridge 302 with:


LX Zeus 2.8
or

LX Zeus 4.3
or

LX Zeus 5.5
or

LX Zeus 7.0

See prices
at right
3 Weeks


LX-Zeus-2p8-CAI-302
$2720


LX-Zeus-4p3-CAI-302
$3630


LX-Zeus-5p5-CAI-302
$3965


LX-Zeus-7p0-CAI-302
$3965



LX-AHRS-Zeus-2p8
(External AHRS
sensor box,
for Zeus 2.8)
$1550


LX-Zeus-AHRS-Module
(Built-in AHRS
for Zeus 4.3, 5.5, 7.0)
$1420

LX-Zeus-AHRS-Module AHRS Mobile for Zeus 4.3, 5.5, and 7.0
Not for Zeus 2.8

Built-in AHRS artificial horizon unit for Zeus


LX Zeus 5.5 with built-in AHRS Module

$1420 3 Weeks


LX-Zeus-AHRS-Module
(Built-in AHRS
for Zeus 4.3, 5.5, 7.0)
$1420



LX-AHRS-Zeus-2p8
(External AHRS
sensor box,
for Zeus 2.8)
$1550

P-ColibriII-1 Cable, 1 m (3.281 feet), Goddard PS-5a to LX Navigation Colibri II - by Goddard
For connecting an LX Navigation Colibri II to a Goddard PS-5a power converter. DB-9f at PS-5a end and mini-USB at Colibri II end. The PS-5a provides 5V power for the Colibri II. The cable's DB-9f connector housing has a built-in RS-232 to TTL data level converter which allows the Colibri II to communicate with any PDA.
  $95.00 In Stock
Colibri-PC-Pwr Colibri PC Cable - by Goddard
This cable is used to connect an LX Navigation Colibri (not the Colibri II) to 12V power and to a PC for transferring waypoints to the Colibri or downloading flight logs from the Colibri to a PC.  The connector for connection to the PC is a DB-9f connector.  Two cables exit the DB-9f connector.  Both the cable to the RJ6/6 (6-conductor phone jack) connector (for the Colibri) and the power leads are 2 m long.  The wiring harness has a total of 3 connections:
  • RJ6/6 (6-conductor phone jack), with 2 m (6.56 ft) cable - Plugs into the Colibri for the power and data connections
  • DB-9f, 9-pin female connector - for connection to a PC
  • Power leads - bare leads for connecting to a 12V power source such as the Pwr-12V-500mA wall plug or a 12V battery.  The 12V power converter is not included.

This cable's DB-9f 9-pin connector is designed for connection to a PC's RS-232 serial port.  However, most new PCs don't have RS-232 serial ports.  However, the FTDI Chip USB Serial Adapter can be used to add a serial port to any PC that has a USB port.  It works great with the Colibri.

$55 In Stock
LX-Joy-EOS

LX Joy for EOS
Stick-mounted remote for LX EOS variometer.

Note: This version is for the LX EOS only. It is not for use with the LX Zeus.

All flight computer functions can be accessed without touching the panel-mounted instrument. It consists of 5 push buttons, 1 navigation switch with push button (up, down, left, right, and enter), 1 LED indicator and 1 button at the back for SC. It has 3 modes: Normal, Zoom/Volume and PAN mode.

Note: Please measure the top of the control stick in your glider before ordering. These are custom made for you in Slovenia. Even if you think your glider matches one of the standard - please, measure the stick in your glider.

Features:

  • 5 push buttons
  • 1 navigation switch with push function (up, down, left, right and enter)
  • CAN connection
  • Plug and play with LX EOS
  • Ergonomically designed with Leather
  • 1 LED indicator (for modes of operation)
  • 1 SC button at the back
  • Diameters available: 19,1 mm, 20,1 mm, 24,3 mm, 25 mm
  • Also available with Trimmer for AS and Start button for SH

LX Joy Manual

Note: These photos show
the Zeus version.

$380
or
$445

Available
Soon

Pre-order
Now


LX-Joy-EOS-18mm
(Stemme S10)
$380


LX-Joy-EOS-19p3mm
(DG, LAK)
$380


LX-Joy-EOS-20mm
(Schempp-Hirth,
LX, Stemme, Apis)
$380


LX-Joy-EOS-R-20mm
(Schempp-Hirth motorglider
("M" models) with red
starter button)
$445


LX-Joy-EOS-TS-20mm
(with Trim Switch
for EB29)
$445


LX-Joy-EOS-24mm
(Schleicher,
Pipistrel Taurus,
and Alisport Silent)
$380


LX-Joy-EOS-TS-24mm
(with Trim Switch
for EB28)
$445


LX-Joy-EOS-25mm
(JS)
$380



LX-Joy-EOS-Rubber
(replacement rubber keypad)
$30

LX-Joy-Zeus

LX Joy for Zeus
Stick-mounted remote for LX Zeus.

Note: This version is for Zeus only. It is not for use with the LX EOS.

All flight computer functions can be accessed without touching the panel-mounted instrument. It consists of 5 push buttons, 1 navigation switch with push button (up, down, left, right, and enter), 1 LED indicator and 1 button at the back for SC. It has 3 modes: Normal, Zoom/Volume and PAN mode.

Note: Please measure the top of the control stick in your glider before ordering. These are custom made for you in Slovenia. Even if you think your glider matches one of the standard - please, measure the stick in your glider.

Features:

  • 5 push buttons
  • 1 navigation switch with push function (up, down, left, right and enter)
  • CAN connection
  • Plug and play with LX Zeus
  • Ergonomically designed with Leather
  • 1 LED indicator (for modes of operation)
  • 1 SC button at the back
  • Diameters available: 19,1 mm, 20,1 mm, 24,3 mm, 25 mm
  • Also available with Trimmer for Binder EB motorgliders and Start button for SH

LX Joy Manual

$380
or
$445
3 Weeks


LX-Joy-Zeus-18mm
(Stemme S10)
$380


LX-Joy-Zeus-19p3mm
(DG, LAK)
$380


LX-Joy-Zeus-20mm
(Schempp-Hirth,
LX, Stemme, Apis)
$380


LX-Joy-Zeus-R-20mm
(Schempp-Hirth motorglider
("M" models) with red
starter button)
$445


LX-Joy-Zeus-TS-20mm
(with Trim Switch
for EB29)
$445


LX-Joy-Zeus-24mm
(Schleicher,
Pipistrel Taurus,
and Alisport Silent)
$380


LX-Joy-Zeus-TS-24mm
(with Trim Switch
for EB28)
$445


LX-Joy-Zeus-25mm
(JS)
$380



LX-Joy-Zeus-Rubber
(replacement rubber keypad)
$30

LX-ColibriII-Mounting-Frame Colibri II Mounting Frame
Nice, simple mounting frame for Colibri II units. This frame is not included with the Colibri II, but it is a very nice accessory.

$25 In Stock
LX-ColibriII-Pwr-Data Colibri II Power and Data Adapter
The adapter is not included with the Colibri II, but it is a very important accessory. You power the adapter with 12V from your glider's 12V power system and it powers the Colibri II with 5V power through the Colibri II's mini-USB connector. It also has a built-in serial voltage adapter to convert the Colibri II's low-voltage serial data to standard RS-232 serial data levels. A standard USB to mini-USB cable (not included with this adapter but included with the Colibri II) is used to connect the adapter to the Colibri II. The 6-pin RJ port on the adapter follows the IGC standard and has the same connections as the original Colibri. Cables that connected to an original Colibri can be connected directly to this adapter.
Input: 12V, Output: 5V,
Includes built-in serial data voltage level converter.

$75 In Stock
LX-Compass-Module Compass Module Field Sensor for LX7007 and Zeus
This option allows the LX7007 or Zeus to calculate wind speed and direction more accurately.
$590 3 Weeks
LXNAV-LX5PC Cable for connecting PC to LX 7000, LX 7007, LX 8000 or LX 9000
This cable connects a PC to the small, round, panel mounted "PC connector" found on the LX7000, LX7007, LX 8000 and LX 9000 wiring harness.  It has a small round 5-pin female connector for connecting to the panel mounted "PC connector" and a DB-9f connector for connecting to a PC serial port.  This cable is included in the box with the LX7000 and LX7007.  It is probably not included in the box with the LX 8000 and LX 9000 because data is normally transferred to those units using an SD card of USB Flash Drive.

Note: This cable is designed to connect to a DB-9 9-pin RS-232 serial connector on a PC.  Most current PCs don't have 9-pin serial connectors, so a USB to serial adapter will be required.  I have tried many, and found many that didn't work at all.  I finally found one that works great with most soaring instruments.  It is the Keyspan USA-19HS Serial Adapter.  I like it so much I decided to stock and sell it.  You can see details here:FTDI Chip USB Serial Adapter.

$35 In Stock
LX-Voice-Module

Voice Module for LX7007 and Zeus
The LX Voice Module was developed to make the LX7007 and Zeus units even more user friendly by providing voice warnings and information generated by the built in voice synthesizer.

The LX Voice Module does not require the external power supply.  There are also no additional speakers necessary as the built in audio mixer makes the existing vario speaker also available for the voice.

Hardware Configuration
The aluminum black box (55 x 22 x 75 mm / 2.17 x 0.87 x 2.95 inches) may be installed anywhere in the cockpit. Three digital inputs also allow connection of other external sensors providing e.g. landing gear or air brakes status signals

The unit is powered and controlled via the LX system bus. The existing speaker should only be reconnected from the LX7007 output to the Voice Module output. The unit includes the audio mixer controlled by the LX 7007 to reduce the vario volume during the Voice Module active time. The mixer setting is controlled entirely by the pilot. The LX7007 with FLARM option also provides FLARM warnings to the Voice Module.

Technical data:

  • Power: 12 V DC from LX 7007 or Zeus RS485 bus, consumption 20 mA without audio
  • Size: 55 x 22 x 75 mm / 2.17 x 0.87 x 2.95 inches
  • 3 inputs
  • SD card data storage medium
  • Audio mixer controlled by LX7007
  • Voice volume control via LX7007
  • User configurable inputs via the ini file stored on SD card

$290 3 weeks

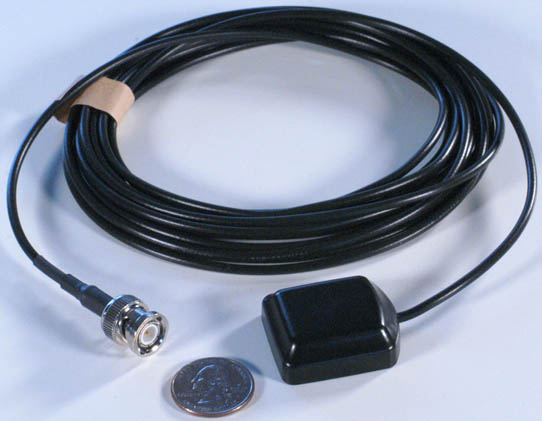

Garmin-GA25-BNC

Garmin GA 25 BNC GPS Antenna for Colibri, LX20, LX5000, LX7000 and LX7007 Products
Includes a 2.9 m (9.5 ft) cable with a BNC connector.  A similar antenna is included with the Colibri, LX7000 and LX7007.  It is not compatible with the LX8000.

Not compatible with Colibri II.

$29.95 In Stock
BNC-RA BNC Elbow
The BNC elbow can be used with some GPS and Radio antenna cables to reduce the amount of cable space required at the point the antenna connects to the device.  It is very nice for use on the bottom of the Colibri because it allows the use of a very short antenna cable.
$9.95 In Stock

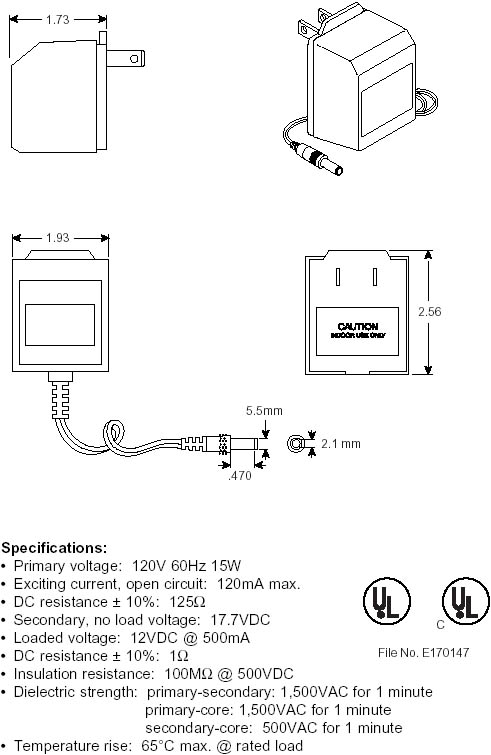

Pwr-12V-500mA Power Supply
Wall plug 12V power supply.  Input: 110 VAC, Output: 12V, 500 mA, Connector: 2.1 x 5.5 mm DC power plug.
Perfect for powering any soaring GPS, flight computer, flight recorder, etc.   Works great with a Colibri.

$19 In Stock



Cumulus Soaring, Inc.
Paul E. Remde

8661 Connelly Place
Savage, Minnesota 55378
USA


Home | Contact | Customer Service | How to Order | Privacy | Technical Support | View Cart


Phone: 1-952-445-9033
FAX: 1-952-445-8954
