Overview
ILEC is best know for their popular SN10 flight computer and vario system.  They also offer some very nice variometers and total energy probes.

Links
Garmin | Garrecht Volkslogger

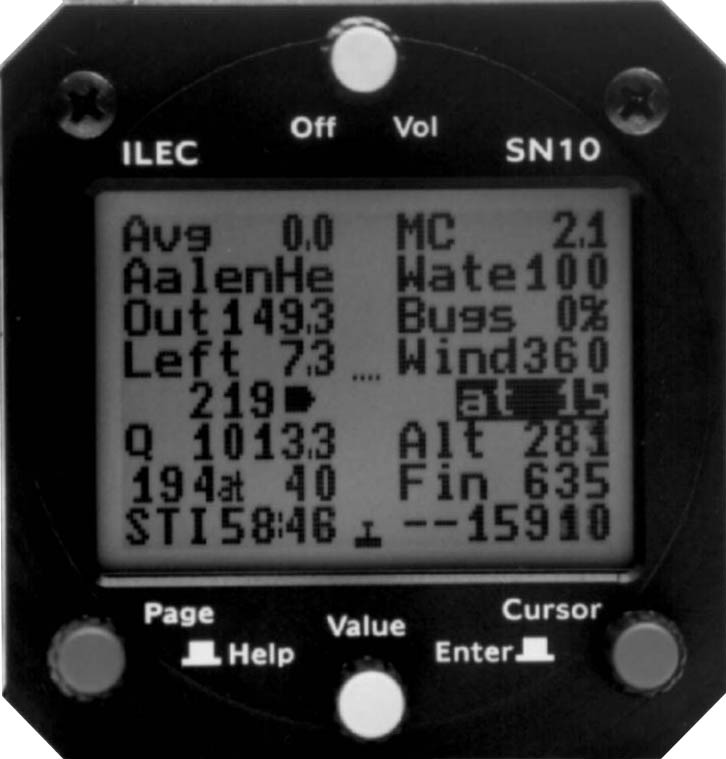

Screen Images from SN-10
Click on the images to view larger versions.

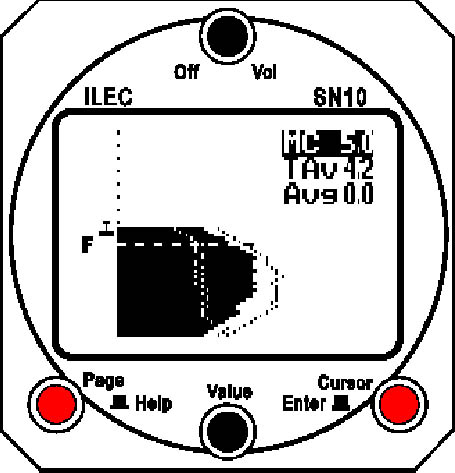

Thermal Height Band Graph
Shows climb rate vs. altitude
Alternate

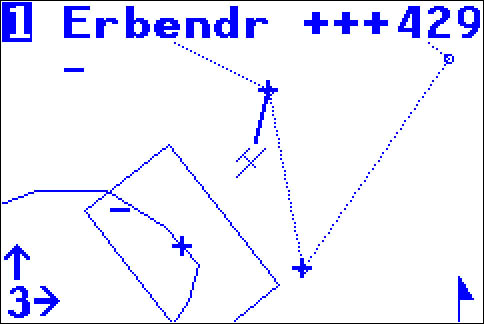

Landing Sites

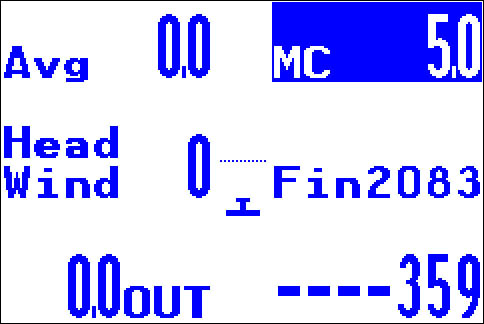

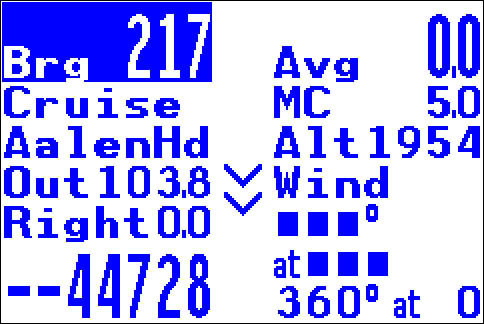

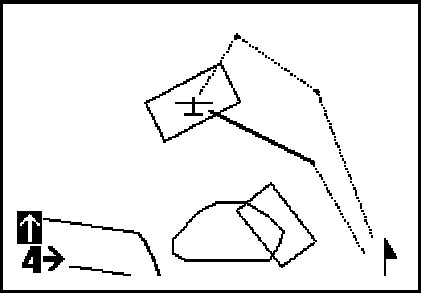

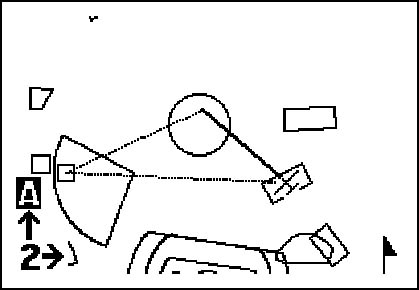

Area Task Airspace Flight Screen Simple Final Glide

SN-10B Demo Software
If you are a potential SN-10 customer, or you are a new SN-10B owner, or you want a refresher course on how to use your SN-10B you will want to try the SN-10B Demo for PCs.
Demo Software Install

New Goddard Cables for Connecting an SN10 to a FLARM or PowerFLARM
The SN10 works great with FLARM and PowerFLARM devices.  The SN10 can even send a task declaration to the FLARM or PowerFLARM.  However, the SN10's 12V power output does not provide enough current to power a FLARM or PowerFLARM.  Therefore, we have created 2 new SN10 wiring harnesses for use with FLARM and PowerFLARM units.  You can see details using the links below.

  • SN10b-Pnl-FLARM-Pwr-1 - for connecting a FLARM or PowerFLARM to the SN10.  12V power leads are included on the wiring harness for powering the FLARM unit.
  • SN10b-Pnl-PS5a-FLARM-1 - for connecting a FLARM or PowerFLARM unit to the SN10 and a PDA or PNA.  The 12V power for the FLARM unit is provided by either a Goddard PS5a power converter, or an Oudie power/data cable.

New Software Version 2.38 for ILEC SN-10 - FREE Upgrade
There is a new version of the SN-10 software which is available now - free of charge.All new SN-10 units shipped from Cumulus Soaring, Inc. will include this latest software version.

The software is available here: http://www.nadler.com/sn10/SN10_Resource_Index.html

SN10 Data Transfer Software
The ILEC data transfer software is included with the SN10 upgrade software installation.  It is available here:
http://www.nadler.com/sn10/SN10_Resource_Index.html

USB to Serial Converters
New laptop computers do not offer RS-232 serial ports - which are required for transferring files to and from the SN10.  Computer stores sell USB to Serial adapters which claim to offer a serial port through a standard USB port.  However, I have tested several of them and have found very few that work.  I just found a unit that works great with my Windows 7 64-bit computer. It is from FTDI Chip and is available here: FTDI Chip

David Nadler has compiled a very nice list of devices that have been tested and work well.  You can see his page here: http://www.nadler.com/sn10/SN10_USB_Serial_Notes.html

See the SN-10 in Action
The excellent soaring film A Fine Week of Soaring features many in flight views of the SN-10 in use in a soaring contest.  You can order it here: A Fine Week of Soaring

SN-10B Upgrades
It is possible to upgrade an SN-10 to an SN-10B.  The SN10B is just like an SN10, but with a new LCD screen: Higher-resolution, higher-contrast, and less reflective. When they're turned off, you couldn't tell them apart except for the label.  The document below describes how to get your SN-10 upgraded to an SN-10B for about $350.  You'll find that the upgrade is worth the money.  The new display looks great!
SN-10B Upgrade.pdf

SN-10 Compatibility with GPS Flight Recorders
The SN-10 does not include an integral GPS.  It does include a flight recorder, but it is not IGC approved for validation of any flights.  The SN-10 will work with just about any flight recorder, but can send task declarations to the Volkslogger, so the combination of VL and SN-10 is quite common.  The SN10 also works great with FLARM and PowerFLARM devices. It can send task declarations (maximum of 8 turnpoints) to the PowerFLARM. The low cost (non-IGC approved) option would be to use a Garmin GPS 16-HVS.

How to Create an SN-10b Waypoint and SUA data file
StrePla now makes it easy to export files which include waypoints and airspace for downloading to the SN10.  Below are the steps I used recently.  Several files are created.  One includes the waypoints only.  Another includes the airspace only.  But the largest file includes both waypoints and airspace - that is the one to use.

  1. Adjust the view in StrePla to show the area you want to export.
  2. Go to the File menu and select Export / Airspace
  3. Select the desired region using the box and select SN10 as the output format
  4. Save the file into the C:\SN10 directory
  5. Edit the header line of the waypoint file with text similar to that shown below.
    H "Stanton MSC Home Grass Field Rny NS/EW 122.8",Timezone -5:00,Magvar -3,Home "Stanton"

Using a Pocket PC for SN-10 Waypoint Database and Fight Log Transfers
It is possible to send waypoint files to the SN-10 from a Pocket PC.  You can also download flight logs from the SN-10 to the Pocket PC.  That way you don't need to bring a PC to the airport.  A utility called PocketDOS can be used to run the ILEC SN-10 utility on the Pocket PC.  The process is described here: SN10 Transfer with PocketDOS.pdf

For a description of the cables required, please see Data Cables - For Data Transfer Only below.

Note: The procedure above has been tested a few times using an iPAQ 3970.  It worked perfectly with a medium sized flight log.  At least one person has mentioned difficulty getting the procedure to work with his older Pocket PC.  Please let me know if you have any problems getting this to work.  Please also let me know if it works well for you.  You can expect very long delays of several minutes at certain points in the flight log download process.

Data Cables - For Data Transfer Only
Any Pocket PC cable such as the I38C-x that would connect the Pocket PC or cradle to the PS-5a can be connected through an ILEC "PC" cable to the instrument panel connector and through the ILEC "Cockpit Panel Cable" (or a custom cable like the SN10b-Pnl-Vb-1) to the SN-10.  Below is a text overview of the connection.  Do not forget to use the ILEC "PC" cable between the Pocket PC cable and the instrument panel connector because it is wired to put the SN-10 into PC communication mode.

SN10 <-> ILEC Cockpit Panel Cable (or similar Goddard cable) <-> ILEC PC Cable <-> Pocket PC Cable (I38C-x or similar)
or

Data Cables - For use in Flight
The SN-10 is delivered with basic cables that can be used to connect to most any GPS - but some soldering is required.  Optional custom cables from Goddard are available for connecting the SN-10 to a variety of GPS and GPS flight recorder units.  These cables greatly simplify installation and they are very reliable and robust.  All you need to do is screw them together and you are ready to fly - no soldering required.  Please use the handy Cable Selection Guide to find the cables you need.  For connecting the SN-10 to a GPS only (no Pocket PC) look for the SN-10 at the top right corner of the table and then find the desired GPS in the left-hand column. For connecting the SN-10 to a GPS and a Pocket PC, look for the SN-10 and GPS pair in the left-hand column and then look across the top of the table for the desired PDA.  The table recommends cable options for use in flight.  For cables for use in transferring files while on the ground see the paragraph above.  When ordering the SN-10 you have the option to have the ILEC supplied panel cable modified for connection to a Volkslogger, Colibri or Cambridge GPS-NAV, 302 or 302A for $39 (includes labor and shipping to Goddard and back).  Or you can order the option to have a Garmin GPS 16-HVS GPS attached to the ILEC supplied panel cable for $188 (includes $129 for the GPS and a $59 charge for labor, quick-disconnect connectors, and shipping to Goddard and back).

Interesting Article
TotalEnergyCompensationInPractice-Brozel.pdf

SN-10 Cable Photos
Click on the images to view larger versions.

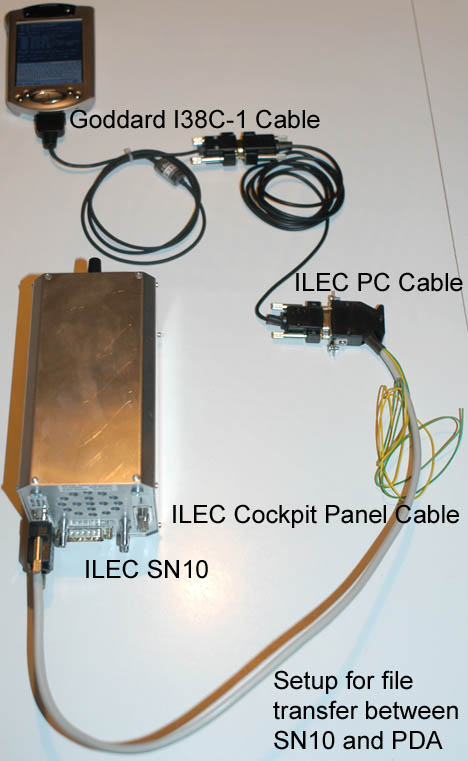

Cables for file transfer from SN10 to PDA
using included ILEC Cockpit Panel Cable
Cables for file transfer from SN10 to PDA
using Goddard Cables
Cables for use in flight Cables for File transfer from Volkslogger to PDA



SN-10 Photos
Click on the images to view larger versions.

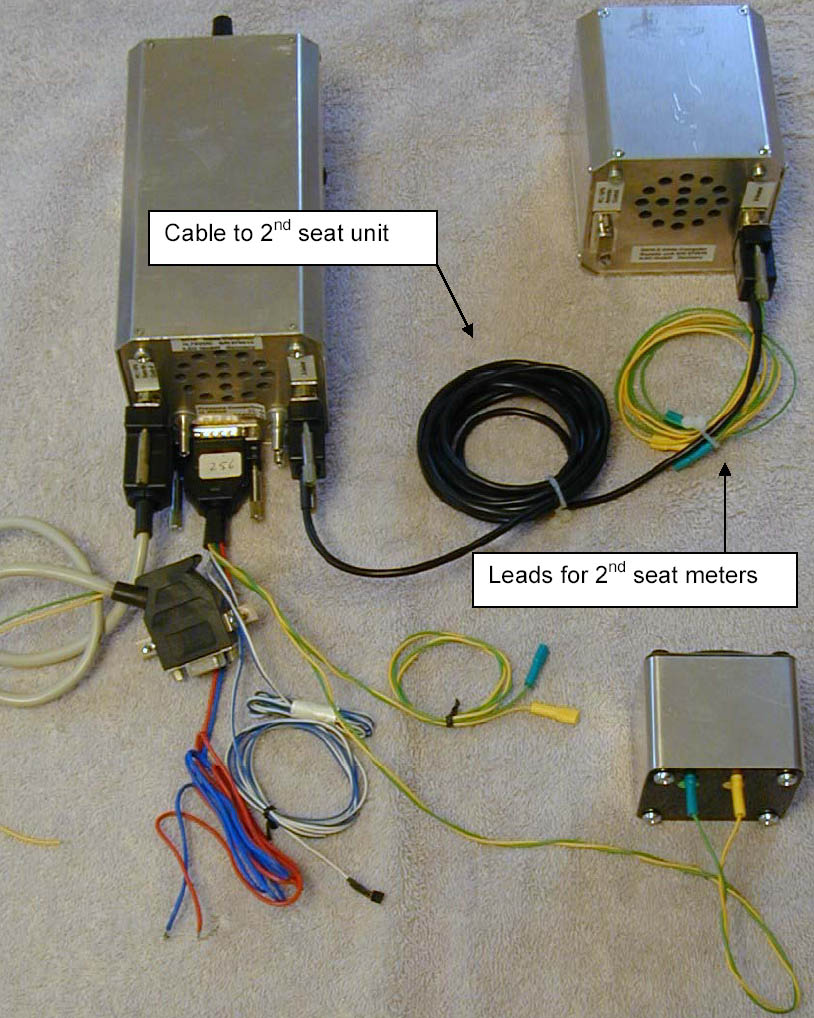

Included Parts 2-Seater Assembly

Currency Issues
Since the products below are from Germany, the prices are subject to change with fluctuations in exchange rates.

Warranty and Repairs
The link below is a page from the SN10 manual.  It covers the warranty and includes instructions for returning an item to ILEC for repair.
ILEC-Warranty-and-Repairs.pdf

How to Order
To order a product, click on the
button next to the product.
When you are ready to complete your order, click on the
button.
Click on the small images to view larger versions.

Part # Description Photo
Click on image to view larger version

Price

Lead-time

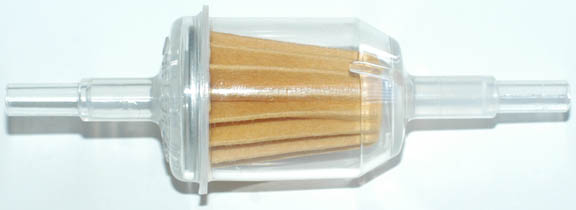

AirFilter Air Filter/Water Trap
For use with instrument tubing.  Used to protect variometers and other instruments from contamination from dust and other particles.  The factory highly recommends the use of these filters in the pitot line.  They are also useful in the static and TE lines as well.  They will not affect the operation of the TE probe.  Length: 103 mm (4.05 in), Diameter: 35 mm (1.38 in), For use with 3/16 inch or 5 mm I.D. instrument tubing.
$4.95 In Stock

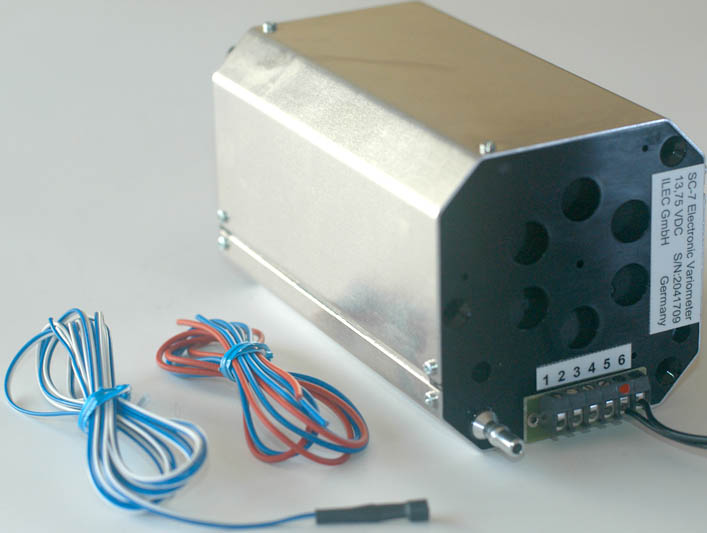

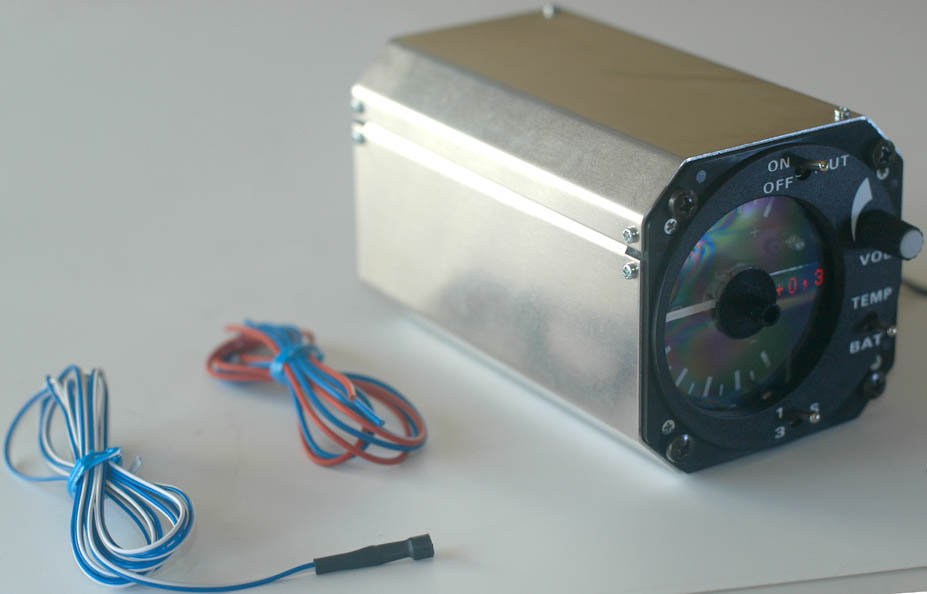

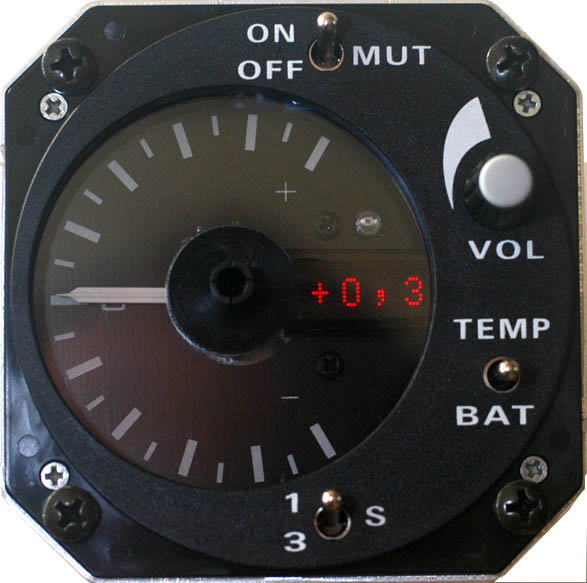

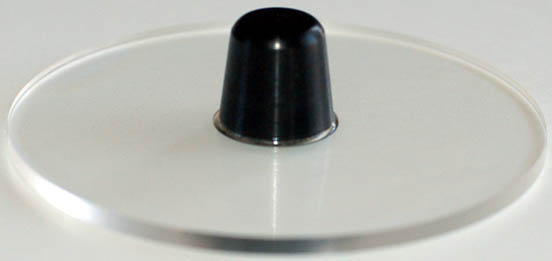

SC-7 SC-7 Variometer with Audio and Averager
Fits in an 80 mm (3 1/8") instrument hole, Type: Thermal flow measurement with thermistors at constant temperature, For 2-seat glider installations a RAZ meter can be used as a repeater for the 2nd seat.  This variometer does not require a capacity flask.  Small LED numeric display normally displays the average climb in the thermal but at the press of a toggle switch it can display battery voltage (in percent) or temperature.  The design of the vario face allows the use of a custom MacCready ring.  See the SC-7-MC below.  It is the only electric vario with averager that can also use a MacCready Ring.
Brochure
Manual
$795 6 weeks
SN10B SN10B Flight Computer with vario meter
This is an extremely nice flight computer system.  The display is very bright and easy to read even in bright sunlight.  The thermal height band graph is unique and very useful.

SN-10 Compatibility with GPS Flight Recorders
The SN-10 does not include an integral GPS.  It does include a flight recorder, but it is not IGC approved for validation of any flights.  The SN-10 will work with just about any flight recorder, but can send task declarations to the Volkslogger, so the combination of VL and SN-10 is quite common.  The low cost (non-IGC approved) option would be to use a Garmin GPS35. It will also work well with a Colibri, Cambridge 302A or most Garmin GPSs.

New SN-10 Software Version
There is a new option to show reachable airports on the map screen.  Details and free upgrade files are available here.

Custom Cables
The SN-10 is delivered with basic cables that can be used to connect to most any GPS - but some soldering is required.  Optional custom cables are available for connecting the SN-10 to a variety of GPS and GPS flight recorder units.  These cables greatly simplify installation.  All you need to do is screw them together and you are ready to fly - no soldering required.  Please use the handy Cable and Cradle Selection Guide to find the cables you need.  For connecting the SN-10 to a GPS only (no Pocket PC) look for the SN-10 at the top right corner of the table and then find the desired GPS in the left-hand column. For connecting the SN-10 to a GPS and a Pocket PC, look for the SN-10 and GPS pair in the left-hand column and then look across the top of the table for the desired PDA.

Ordering Options
When ordering the SN-10 you have the option to have the ILEC supplied panel cable modified for connection to a Garmin GPS, Volkslogger, Colibri or Cambridge GPS-NAV, 302 or 302A for $39 to $59 (includes labor and shipping to Goddard and back).  Or you can order the option to have a Garmin GPS 16-HVS GPS attached to the SN10's panel cable for $188 (includes $129 for the GPS and a $59 charge for labor, quick-disconnect connectors, and shipping to Goddard and back).

Using a Pocket PC for SN-10 Waypoint Database and Fight Log Transfers
It is possible to send waypoint files to the SN-10 from a Pocket PC.  You can also download flight logs from the SN-10 to the Pocket PC.  That way you don't need to bring a PC to the airport.  Details are available here.

How to Create an SN-10b Waypoint and SUA data file
The process of creating a waypoint and SUA data file for the SN-10b is a bit complicated.  The process I use is described here.

Demo Software for PCs: Software
Brochures

Manual
Software (firmware) upgrades: Software

$1850

4 weeks
SN10-2

SN10-2 repeater for 2-seat gliders with vario display - New
Sale - The ILEC SN10-2 is still a great product, but they are not selling as well as they used to. I have more in stock than I need. They are new units. The sale price applies only to units in my stock. This is $800 off the normal price.

This "repeater" display offers the same controls found on the master SN-10.  This unit does not operate independently from the master - the same data is displayed on both units at all times.  That is useful when training others on how to use the system and when you want to show the other pilot some data on their display.


$1165 In Stock

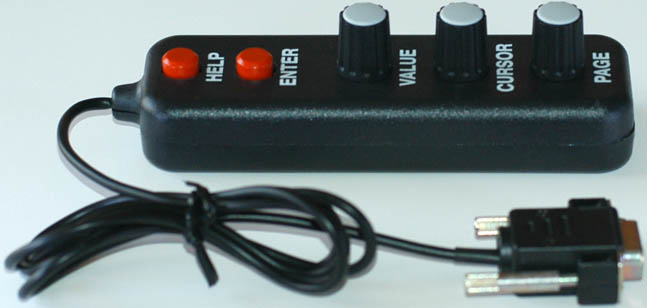

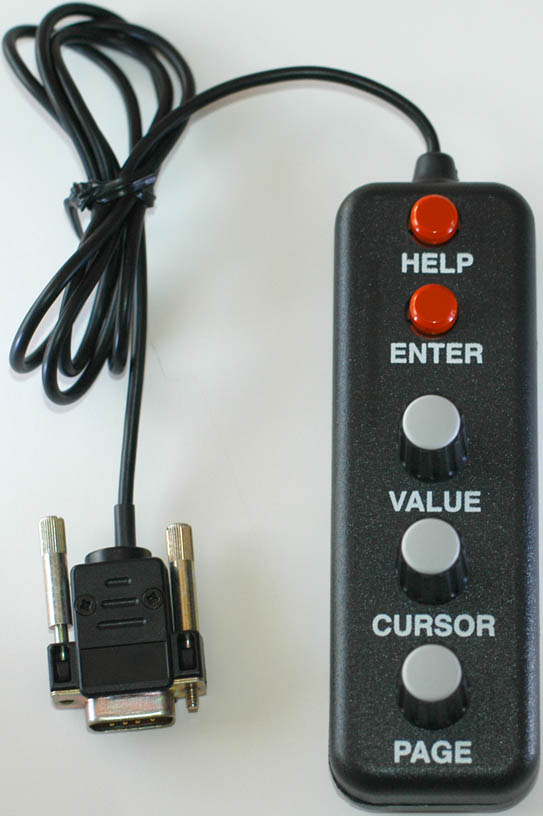

SN10-R SN10-R Remote Control
Duplicates the knobs and push-buttons of the SN-10 in a remote unit that can be mounted at your fingertips.

$190 In Stock

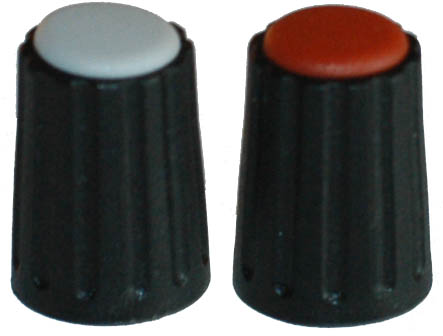

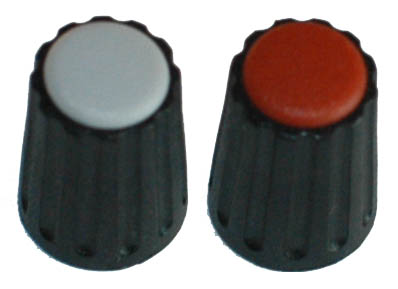

SN10-Knob

Knob for SN-10
Replacement knob for the SN-10.  Available with light grey or red cap.  The grey capped knobs come in 2 different sized inserts.  The knob is the same size, but the hole for the control knob is different.  The rod for the "Off / Volume" knob (on the top of the SN10) is larger than the rod for the "Value" knob (on the bottom of the SN10).  The control rods for the red-capped "Page" and "Cursor" knobs are small like the one on the "Value" knob.

Options:

  • ILEC-SN10-Knob-Grey-Large - with grey cap, for large control rod, for "OFF/Volume" knob
  • ILEC-SN10-Knob-Grey-Small - with grey cap, for small control rod, for "Value" knob
  • ILEC-SN10-Knob-Red-Small - with red cap, for small control rod, for "Page" and "Cursor" knobs
$4.95 In Stock


ILEC-SN10-Knob-Grey-Large


ILEC-SN10-Knob-Grey-Small


ILEC-SN10-Knob-Red-Small

SN10-PC-Cable Cable, PC to SN-10 Instrument Panel Connector (SN-10 SN >= 100)
This cable is used to connect a PC to the instrument panel connector for the SN-10.  It includes a jumper that puts the SN-10 into PC communication mode.  It works only with SN-10 units with serial numbers of 100 or higher.  This cable is included as a standard accessory with the SN-10.
$39 In Stock

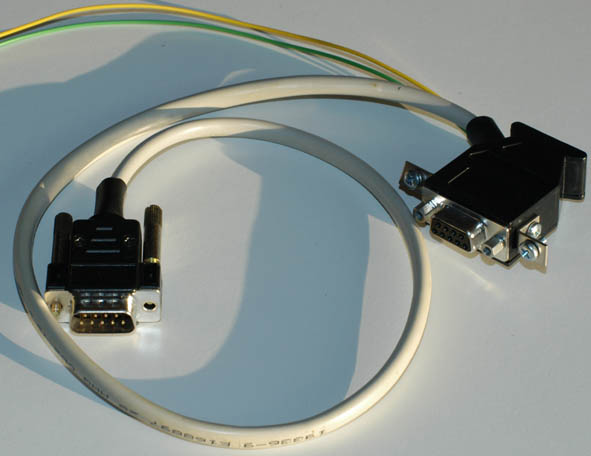

SN10-Panel-Cable Cable, SN-10 to Instrument Panel Connector (SN-10 SN >= 100), Grey
Cable from the SN-10 to the instrument panel.  It has 2 wires for GPS data exiting the panel connector.  It works only with SN-10 units with serial numbers of 100 or higher.  This cable is included as a standard accessory with the SN-10.
GPS Wire Connections
 - Green, SN-10 RS-232 receive, connect to GPS transmit
 - Yellow, SN-10 RS-232 transmit, connect to GPS receive
$63 In Stock

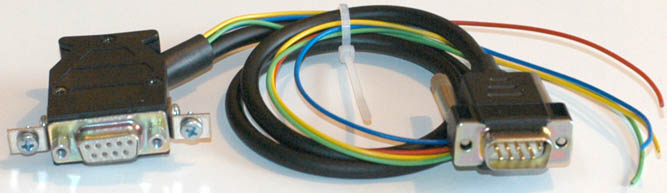

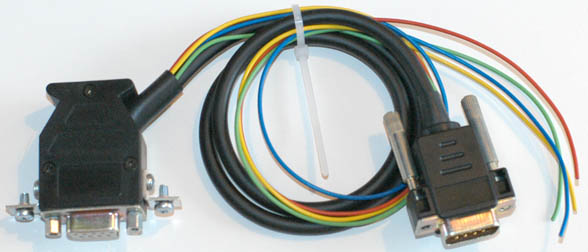

SN10-Panel-Cable-Old Cable, SN-10 to Instrument Panel Connector (SN-10 SN < 100), Black
Cable from the SN-10 to the instrument panel.  It has 4 wires for GPS data exiting the panel connector.  It works only with SN-10 units with serial numbers of 99 or lower.  This cable was included as a standard accessory with the SN-10.
GPS Wire Connections
 - Green, SN-10 RS-232 receive, connect to GPS transmit
 - Yellow, SN-10 RS-232 transmit, connect to GPS receive
 - Red, +12V power supply for Garmin GPS 35-HVS
 - Blue, Common for 12V power supply for Garmin GPS 35-HVS
$63 In Stock

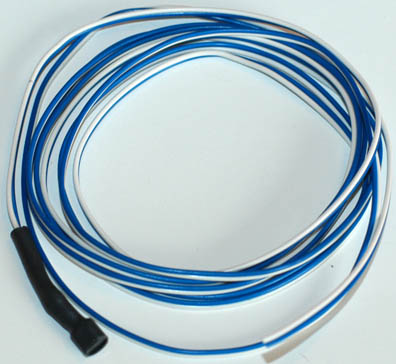

SN10-Temp-Probe Temperature Probe for SN-10
The SN-10 must be recalibrated when a new temperature probe is installed.  The probe itself is only $10 but installation and calibration are required.  I can do the installation and calibration for an additional $39.  The factory says that calibration cannot be done by customers.  The total for the probe, installation and calibration is $49.  You will need to ship the SN-10 to me.  Shipping back to the customer is an additional charge.

$49 In Stock

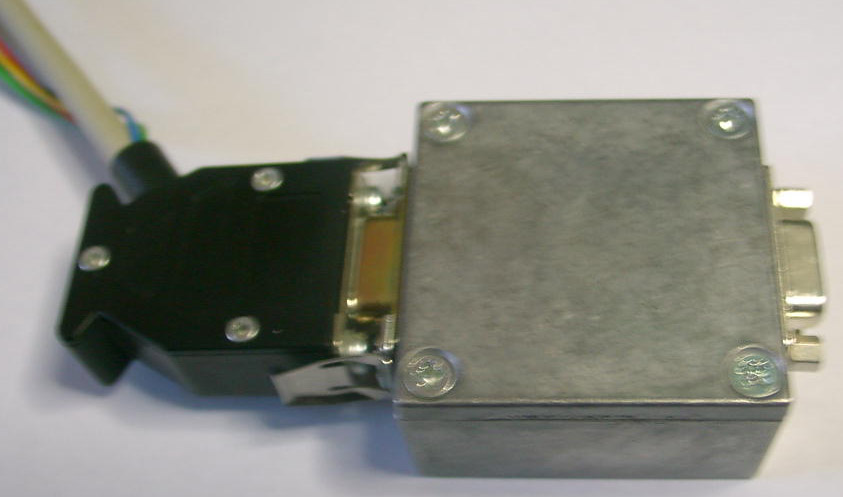

SN10-USB-Adapter SN-10 USB Adapter

PC no longer required at the gliderport!!!
Transferring data from a PC to an SN10 has been awkward in the past.  Most new PCs don't have a serial port, so a USB to serial adapter is required, but only specific USB to serial adapters seem to work with the SN10.  Also, file transfer software must be downloaded and installed on the PC. And PCs have never been easy to use near a glider, or read in bright sunlight.

The great news is that the new SN10 USB Adapter eliminates all those problems.  After you have installed the SN10 USB Adapter in your glider you can use a standard USB Flash Drive to transfer data to and from the SN10.  It can be used to upload waypoint and airspace files to the SN10, download flight logs from the SN10, and even update the firmware in the SN10.  Therefore there is no longer any need to bring a laptop computer to the gliderport.  Just plug the USB Flash Drive into the new panel-mounted SN10 USB Adapter and use the control knobs on the SN10 to transfer the desired data.

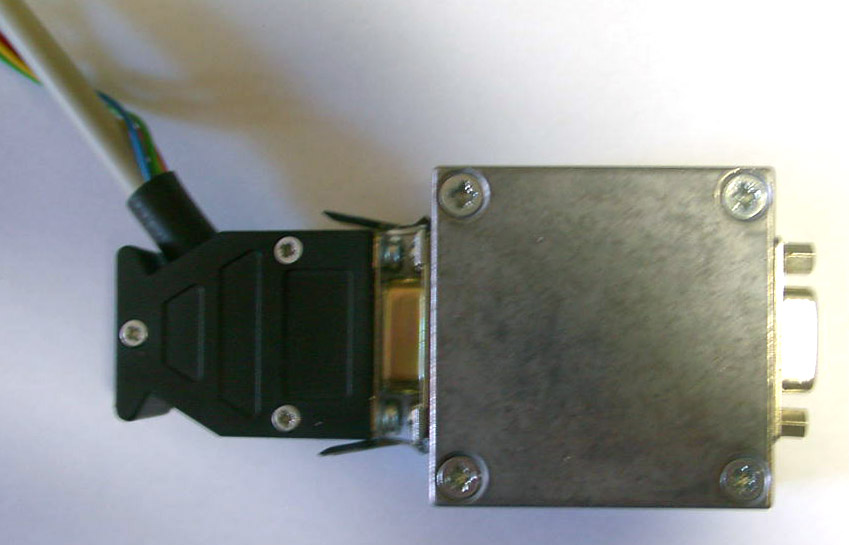

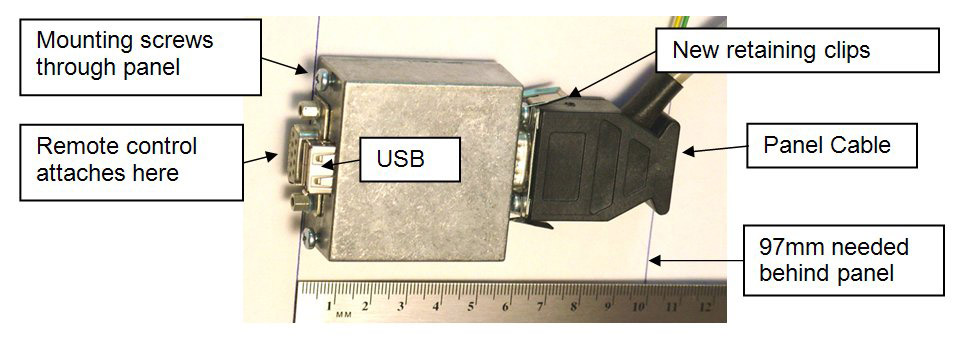

The SN10 USB adapter attaches to the panel connector on the SN10 Panel Cable.  The SN10 USB Adapter then connects to the instrument panel in the same location that the panel connector from the SN10 Panel Cable had been.  The panel connector still includes a DB-9 connector for connection to an SN10 remote or PC, but it also includes a USB connector.

The SN10 USB Adapter is a little wider than the panel connector, so some panel modifications may be necessary.

 - USB Flash Drive not included - You can buy a USB Flash drive at Radio Shack, Best Buy, Target, Walgreens, etc. They are not expensive.  You don't need to buy one with much memory.  A 16 MB USB Flash Drive would be plenty for use with the SN10, but it would be tough to find one with that little memory.  Any memory size will do.

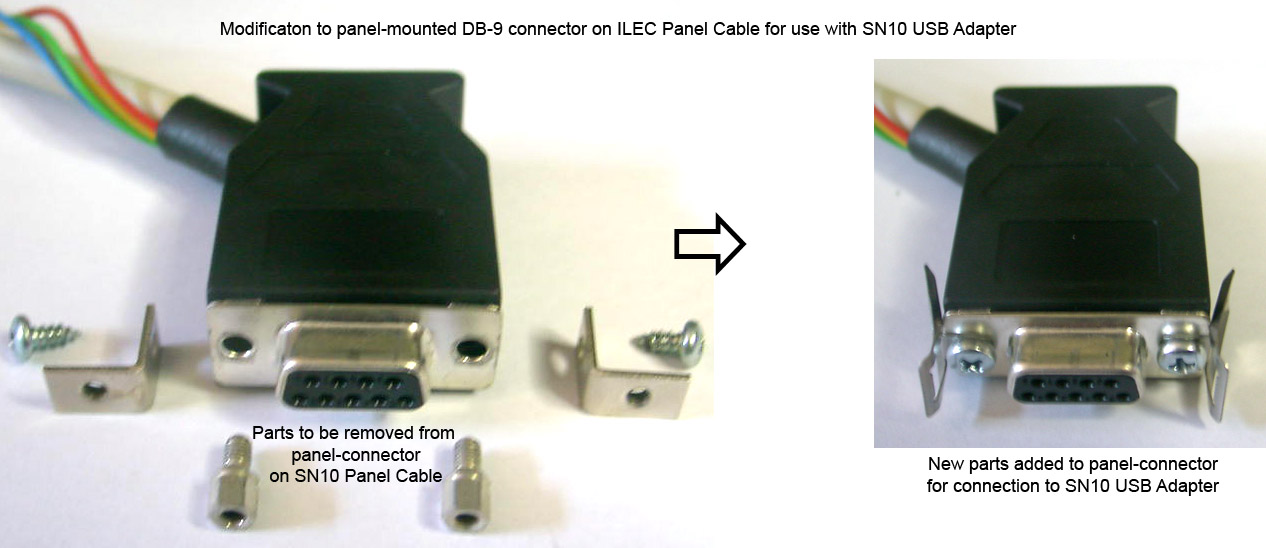

The SN10 USB Adapter kit includes the parts necessary to modify the panel connector on the SN10 Panel Cable for connection to the SN10 USB Adapter.  The photo below shows the modification.  Click on the photo to view a larger version.

Dimensions
Depth of box (not including connectors): 50 mm (1.97 inches)
Depth including connectors: 64 mm (2.52 inches)
Height: 50 mm (1.97 inches)
Width: 25 mm (1 inch)

Manual


$240 In Stock

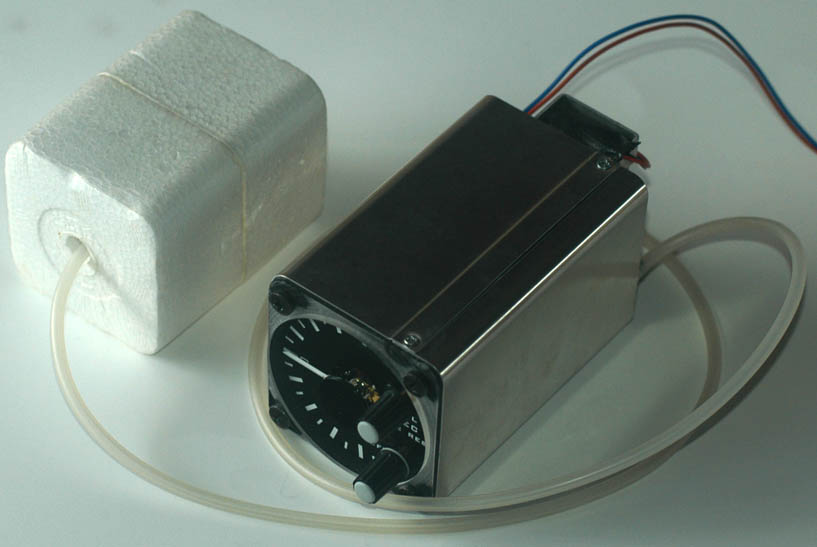

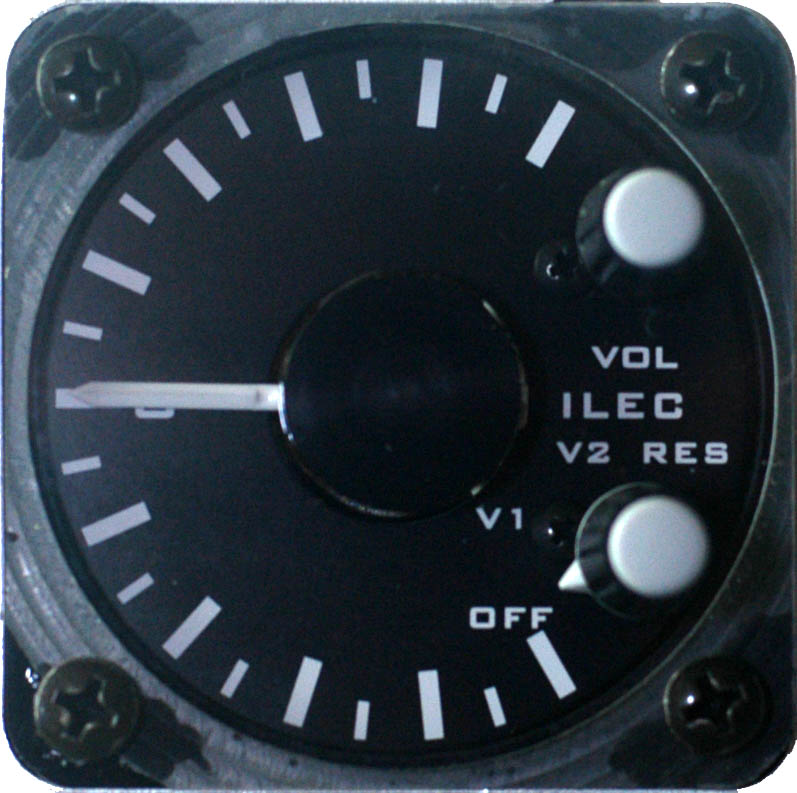

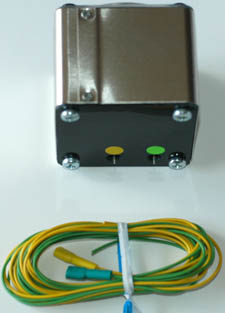

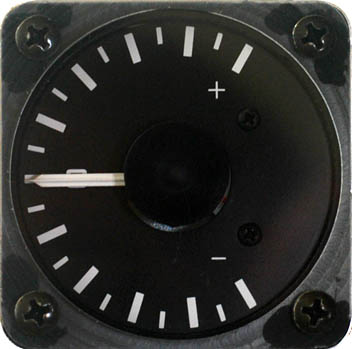

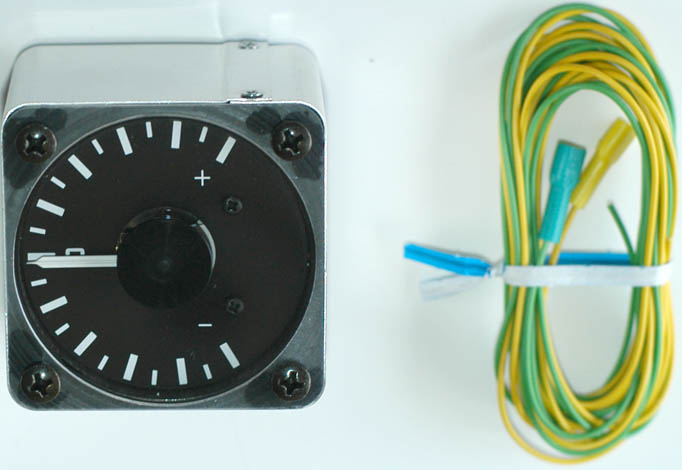

RAZ RAZ Vario Meter
Vario meter for SN10 or SC-7.  It fits in a 57 mm instrument hole.  This is not a stand-alone instrument.  It is to be used with either  the SC-7 or SN-10.  The SN-10 and SN10-2 repeater each come with a single RAZ meter.  Additional meters may be added if you would like to display multiple types of variometer information at the same time.
$150 In Stock

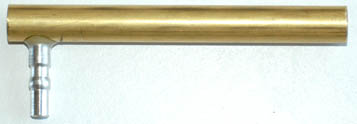

TE-Fuselage-6mm

Total Energy Probe, Fuselage Mount, 6mm
Total energy probe to be mounted to the fuselage pointing up.  This TE probe mounting method is not as accurate as mounting the probe on the vertical stabilizer.

Diameter of base that fits into the mount: 6 mm
Diameter of collar near base: 10 mm
Diameter of probe: 6 mm
Length: 330 mm (13")
Length of part that fits into 6 mm hole: 28 mm (1.10")

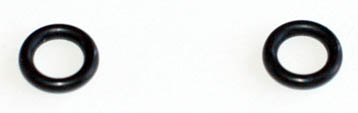

The single o-ring is located in a slot from about 3 to 5 mm from the end of the probe.

ILEC recommends mounting the probe at least 1 m behind the trailing edge of the wing on the top of the fuselage.

These are the very famous ILEC TE probes. Due to the special design of these probes, they offer excellent compensation combined with high insensitivity to sideslip. This feature of the TE-probe is especially important during thermalling, where a small sideslip is nearly unavoidable. The use of TE-Probes for total energy compensation is superior to the usage of membrane systems or electronically compensation, because the latter two methods strongly depend on the accurate measurement of the static pressure. Static measurement is in nearly all aircraft a serious (unsolved) problem, especially in case of sideslip.

ILEC Probes are made out of a very durable aluminum alloy with a golden galvanized surface to protect against corrosion. Due to the low weight, the tendency of our probe to oscillate is less compared to brass or steel probes. Each probe consists of three parts: the sensing head with its two holes, the tube and the mount with O-ring sealing. The probe is simply installed by pushing it into the opening. The O-ring seals, putting tape around the mount is not necessary. After landing, the probe is pulled out and stored at a safe place.

Maintenance of the Probe
It is recomended to grease the connector slightly, e.g. with Vaseline© Before insertion of the probe make sure the edge of the assembly adaptor is rounded. Otherwise the O-ring easily can be cut and destroyed.


Total Energy Compensation In Practice - Brozel

$55 In Stock


ILEC-TE-Fuselage-6mm-Gold

TE-Fuselage-8mm

Total Energy Probe, Fuselage Mount, 8mm
Total energy probe to be mounted to the fuselage pointing up.  This TE probe mounting method is not as accurate as mounting the probe on the vertical stabilizer.

Diameter of base that fits into the mount: 8 mm
Diameter of collar near base: 10 mm
Diameter of probe: 6 mm
Length: 330 mm (13")
Length of part that fits into 8 mm hole: 28 mm (1.10")
The slots for the 2 o-rings are located from about 3 to 5 and 22 to 24 mm from the end of the probe.

ILEC recommends mounting the probe at least 1 m behind the trailing edge of the wing on the top of the fuselage.

These are the very famous ILEC TE probes. Due to the special design of these probes, they offer excellent compensation combined with high insensitivity to sideslip. This feature of the TE-probe is especially important during thermalling, where a small sideslip is nearly unavoidable. The use of TE-Probes for total energy compensation is superior to the usage of membrane systems or electronically compensation, because the latter two methods strongly depend on the accurate measurement of the static pressure. Static measurement is in nearly all aircraft a serious (unsolved) problem, especially in case of sideslip.

ILEC Probes are made out of a very durable aluminum alloy with a golden galvanized surface to protect against corrosion. Due to the low weight, the tendency of our probe to oscillate is less compared to brass or steel probes. Each probe consists of three parts: the sensing head with its two holes, the tube and the mount with O-ring sealing. The probe is simply installed by pushing it into the opening. The O-ring seals, putting tape around the mount is not necessary. After landing, the probe is pulled out and stored at a safe place.

Maintenance of the Probe
It is recomended to grease the connector slightly, e.g. with Vaseline© Before insertion of the probe make sure the edge of the assembly adaptor is rounded. Otherwise the O-ring easily can be cut and destroyed.


Total Energy Compensation In Practice - Brozel

$55

In Stock


ILEC-TE-Fuselage-8mm-Gold

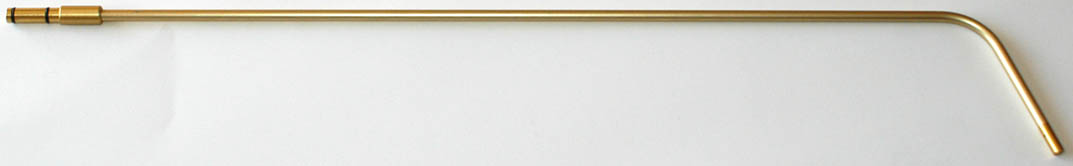

TE-Tail-6mm

Total Energy Probe, Tail Mount, 6mm
Total energy probe to be mounted to tail of the glider pointing forward.  For use on LS (Rolladen Schneider) gliders only due to smaller than standard 6 mm diameter connection.

Diameter of base that fits into the mount: 6 mm
Diameter of collar near base: 8 mm
Diameter of probe: 6 mm
Length: 550 mm (21.65")
Length of part that fits into 6 mm hole: 28 mm (1.10"), The single o-ring is located in a slot from about 3 to 5 mm from the end of the probe.

These are the very famous ILEC TE probes. Due to the special design of these probes, they offer excellent compensation combined with high insensitivity to sideslip. This feature of the TE-probe is especially important during thermalling, where a small sideslip is nearly unavoidable. The use of TE-Probes for total energy compensation is superior to the usage of membrane systems or electronically compensation, because the latter two methods strongly depend on the accurate measurement of the static pressure. Static measurement is in nearly all aircraft a serious (unsolved) problem, especially in case of sideslip.

ILEC Probes are made out of a very durable aluminum alloy with a golden galvanized surface to protect against corrosion. Due to the low weight, the tendency of our probe to oscillate is less compared to brass or steel probes. Each probe consists of three parts: the sensing head with its two holes, the tube and the mount with O-ring sealing. The probe is simply installed by pushing it into the opening. The O-ring seals, putting tape around the mount is not necessary. After landing, the probe is pulled out and stored at a safe place.

Maintenance of the Probe
It is recomended to grease the connector slightly, e.g. with Vaseline© Before insertion of the probe make sure the edge of the assembly adaptor is rounded. Otherwise the O-ring easily can be cut and destroyed.

Total Energy Compensation In Practice - Brozel

$55 In Stock


ILEC-TE-Tail-6mm-Gold

TE-Tail-8mm

Total Energy Probe, Tail Mount, 8mm
Total energy probe to be mounted to tail of the glider pointing forward.  This is the standard ILEC TE Probe. It is very popular.

Diameter of base that fits into the mount: 8 mm
Diameter of collar near base: 10 mm
Diameter of probe: 6 mm
Length: 550 mm (21.65")
Length of part that fits into 8.1 mm hole: 28 mm (1.10")
The slots for the 2 o-rings are located from about 3 to 5 and 22 to 24 mm from the end of the probe.

Color Options:

  • Gold
  • Blue (classy, easier to find in grass)

These are the very famous ILEC TE probes. Due to the special design of these probes, they offer excellent compensation combined with high insensitivity to sideslip. This feature of the TE-probe is especially important during thermalling, where a small sideslip is nearly unavoidable. The use of TE-Probes for total energy compensation is superior to the usage of membrane systems or electronically compensation, because the latter two methods strongly depend on the accurate measurement of the static pressure. Static measurement is in nearly all aircraft a serious (unsolved) problem, especially in case of sideslip.

ILEC Probes are made out of a very durable aluminum alloy with a golden galvanized surface to protect against corrosion. Due to the low weight, the tendency of our probe to oscillate is less compared to brass or steel probes. Each probe consists of three parts: the sensing head with its two holes, the tube and the mount with O-ring sealing. The probe is simply installed by pushing it into the opening. The O-ring seals, putting tape around the mount is not necessary. After landing, the probe is pulled out and stored at a safe place.

Maintenance of the Probe
It is recomended to grease the connector slightly, e.g. with Vaseline© Before insertion of the probe make sure the edge of the assembly adaptor is rounded. Otherwise the O-ring easily can be cut and destroyed.


Total Energy Compensation In Practice - Brozel

$55 In Stock


ILEC-TE-Tail-8mm-Gold


ILEC-TE-Tail-8mm-Blue

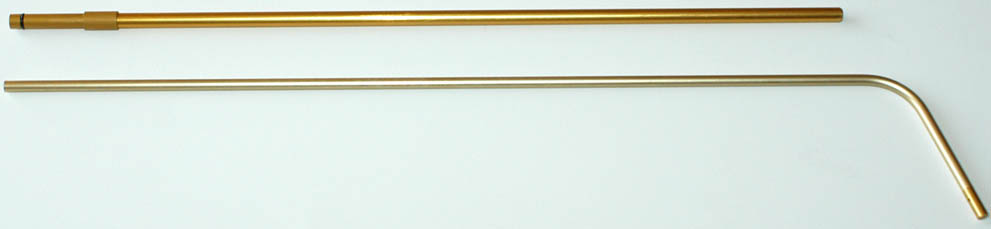

TL

Total Energy Probe, Long, Tail Mount
Total energy probe to be mounted to tail of the glider pointing forward.

Diameter of base that fits into the mount: 8 mm
Diameter of collar near base: 10 mm
Diameter of part of probe near base: 8 mm
Diameter of part of probe near bent tip: 6 mm
Length: 900 mm (35.4")
Length of part that fits into 8 mm hole: 28 mm (1.10")
The slots for the 2 o-rings are located from about 3 to 5 and 22 to 24 mm from the end of the probe.

Color Options:

  • Gold
  • Blue (classy, easier to find in grass)

These are the very famous ILEC TE probes. Due to the special design of these probes, they offer excellent compensation combined with high insensitivity to sideslip. This feature of the TE-probe is especially important during thermalling, where a small sideslip is nearly unavoidable. The use of TE-Probes for total energy compensation is superior to the usage of membrane systems or electronically compensation, because the latter two methods strongly depend on the accurate measurement of the static pressure. Static measurement is in nearly all aircraft a serious (unsolved) problem, especially in case of sideslip.

ILEC Probes are made out of a very durable aluminum alloy with a golden galvanized surface to protect against corrosion. Due to the low weight, the tendency of our probe to oscillate is less compared to brass or steel probes. Each probe consists of three parts: the sensing head with its two holes, the tube and the mount with O-ring sealing. The probe is simply installed by pushing it into the opening. The O-ring seals, putting tape around the mount is not necessary. After landing, the probe is pulled out and stored at a safe place.

Maintenance of the Probe
It is recomended to grease the connector slightly, e.g. with Vaseline© Before insertion of the probe make sure the edge of the assembly adaptor is rounded. Otherwise the O-ring easily can be cut and destroyed.


Assembly Note
"For easier transport, extended probes are sent in two parts, and must be assembled by the customer, by bonding.  Put a thin coat of epoxy adhesive (araldite or equivalent), or cyanoacrylate on the end of the this tube.  Mate it with the extender tube, and push them together.  Wait for curing.  Ready.  Attention, do not clog the tube by using too much adhesive.  Bonding surfaces must be clean.  In necessary, clean with organic solvent (Tetra, Tri, or equivalent).  WARNING! Experience shows that with tubes which have not been bonded, the front tube will come loose mostly during takeoff under the influence of shocks to the tail.  Consequently it will be lost here, or during the flight.  This is not only regrettable but may be dangerous.  Where - for any reason whatsoever - the tubes are not being bonded, a wide and tough adhesive tape must be wound around the joint, as a minimum, for safety."

Assembly Instructions for Long ILEC TE Probes
Total Energy Compensation In Practice - Brozel

Note from Cumulus Soaring
The use of tape as a back-up is a good idea if the glue bond is not good for safety purposes of course, but the use of tape alone will probably not provide an adequate seal for good performance of the TE probe.  Small leaks are a big problem with TE systems.



$90 In Stock


ILEC-TL-8mm-Gold


ILEC-TL-8mm-Blue

TE-Mount

Mount for Total Energy Probe
Works with all models of ILEC TE probes that have an 8 mm outer diameter.  This item is to be mounted permanently in the glider.  The TE probes listed above (except the TE-Tai-6mm) will plug into this receptacle.

Overall Length: 90 mm (3.54 in)
Inside diameter: 8 mm
Outside diameter: 10 mm
Hole Depth: 80.25 mm


Brochure and Installation Instructions

TotalEnergyCompensationInPractice-Brozel.pdf

$22

In Stock


ILEC-TE-Mount-8mm-Gold

TE-O-Ring-6.3mm

O-Ring for Total Energy Probe, 6.3mm
Outer Diameter: 6.3mm, Inner Diameter: 3.1mm, Thickness: 1.6mm, Buna-N, black, Durometer hardness: A70, Used with ILEC 6 mm TE Probes, The price at right is for each ring. Two are used on most TE probes.

O-rings are included with the TE probe.  I am listing these here so that you will know you can get more if you ever need them.

$0.50 In Stock

TE-O-Ring-8mm

O-Ring for Total Energy Probe, 8mm
Outer Diameter: 8mm, Inner Diameter: 6mm, Thickness: 1.5mm, Buna-N, black, Durometer hardness: A70, Used with ILEC and esa-systems 8 mm TE Probes and esa-systems UN and SUN probe mounts, The price at right is for each ring. Two are used on most TE probes.

O-rings are included with the TE probe.  I am listing these here so that you will know you can get more if you ever need them.

$0.50 In Stock



Cumulus Soaring, Inc.
Paul E. Remde

8661 Connelly Place
Savage, Minnesota 55378
USA


Home | Contact | Customer Service | How to Order | Privacy | Technical Support | View Cart


Phone: 1-952-445-9033
FAX: 1-952-445-8954
