Garrecht

Overview
The Garrecht Volkslogger is known for its reliability.  It also works great with the ILEC SN-10 because the SN-10 can send a task declaration to the Volkslogger.

How to Order
To order a product, click on the
button next to the product.
When you are ready to complete your order, click on the
button.
Click on the small images to view larger versions.

Part # Description Photo
Click on image to view larger version

Price

Lead-time

VL Garrecht Volkslogger

This product is no longer available.

GPS flight recorder, IGC Approved, Works great with an SN10 because the SN10 can send task declarations directly to the Volkslogger.  Note: This unit does not come with a 12V power supply.  I recommend the Pwr-12V-500mA unit below.  It is required if you want to transfer waypoint files and flight logs to a PC while at home (unless you use a 12V battery).

  • Aluminum Case, .080" (2 mm) Wall Thickness, black anodized
  • Dimensions: 3.94" x 2.36" x 2.17" (WxHxD)
  • GPS-Antenna mounted in Case
  • Weight: 11 oz. approx.
  • Operating Voltage: 9 - 14 V DC
  • Nominal Voltage: 12 V
  • GARMIN 12-Channel GPS-Receiver
  • Engine-noise-level recording system
  • Current Consumption: at nominal voltage about 120mA
  • Internal Data Base for:
    - 500 Way Points
    - 25 Tasks
    - 25 Pilots
  • Recording Time: up to 150 hrs (10 hours at 4 second intervals)
  • Recording Interval for Flight and Turnpoint Sector selectable separately
  • Operating Temperature: -4 F to +158 F(-20 C to + 70 C)
  • RS-232-Port for Connection to PC
  • NMEA-Port for Connection to Instruments without their own GPS-Receiver
  • Display: LCD, 2 x 16 Characters
  • Operation: 3 Button Input

Free OEM Version of StrePla
The Volkslogger package includes a special version of StrePla flight analysis software.  It has limited functionality but can be used to upload waypoint files to the VL and download flight logs.  It can also (I think) display the flight trace on a 2D map but cannot display it in 3D mode.  It includes a coupon that can be used to upgrade to the full version of StrePla for a reduced price (the standard StrePla upgrade price).  More information on StrePla is available here.

Cables
I offer cables for connecting the Volkslogger to a variety of Pocket PCs and the ILEC SN-10.  For connecting the VL to an SN-10 and the SN-10 instrument panel connector you will want a SN10b-Pnl-Vb-1.  For connecting the VL to an SN-10 and a Pocket PC you will want a SN10b-Pnl-PS5a-VLb-1.  For connecting to any Pocket PC please consult the Cable and Cradle Selection Guide.

Manual: Volkslogger Manual
VL to IGC - This is a handy Pocket PC utility for downloading flight logs from the Volkslogger.

$1425 No
Longer
Available

Binder-Connector Round 5-pin Binder power/data connector, male, right angle, for use with older Volksloggers
This right angle connector can be used to connect 12V power and GPS data to/from the VL.  A wiring diagram is below.

Pin 1: Ground/Common
Pin 2: +12 VDC Power Input
Pin 3:

Pin 4: VL RS-232 Transmit (NMEA Data Output)
Pin 5: VL RS-232 Receive

Connector Dimensions and Component Breakout
Volkslogger Wiring Details (in German)

$24.95 In Stock
VLa-2 Volkslogger Cable, 2 m (6.56 feet) - For Volkslogger with round 5-pin Binder power/data connector
This cable can be used to connect 12V power and GPS data to/from the VL.  It has a right angle, round, binder connector on one end and bare leads on the other end.  A wiring diagram is included.

Pin 1: Ground/Common
Pin 2: +12 VDC Power Input
Pin 3:

Pin 4: VL RS-232 Transmit (NMEA Data Output)
Pin 5: VL RS-232 Receive
Volkslogger Wiring Details (in German)

  $55 2 weeks
VLb-2 Volkslogger Cable, 2 m (6.56 feet) - For Volkslogger with RJ45 power/data connector
This cable can be used to connect 12V power and GPS data to/from the VL.  It has an RJ45 connector on one end and bare leads on the other end.  A wiring diagram is included.


1: Ground/Common
2: Ground/Common
3: VL RS-232 Receive
4: VL RS-232 Transmit (NMEA Data Output)
5:
6:
7: +12 VDC Power Input
8: +12 VDC Power Input
Volkslogger Wiring Details (in German)

  $19.95 2 weeks
VLa-PC-Pwr Volkslogger PC Cable - For Volkslogger with round 5-pin Binder power/data connector
This cable is used to connect the VL to 12V power and to a PC for transferring waypoints to the VL or downloading flight logs from the VL to a PC.  Two cables exit the DB-9f connector.  Both the cable to the Binder connector and the power leads are 2 m long.  The wiring harness has a total of 3 connections:
  • Binder, 5-pin round connector, male, right angle, with 2 m (6.56 ft) cable - Plugs into the Volkslogger for the power and data connections
  • DB-9f, 9-pin female connector - for plugging into a PC
  • Power leads, 2 m long - bare leads for connecting to a 12V power source such as the Pwr-12V-500mA wall plug or a 12V battery.  The 12V power converter is not included.

This cable's DB-9f 9-pin connector is designed for connection to a PC's RS-232 serial port.  However, most new PCs don't have RS-232 serial ports.  However, the FTDI Chip USB Serial Adapter can be used to add a serial port to any PC that has a USB port.  It works great with the Volkslogger.

$75 In Stock
VLb-PC-Pwr Volkslogger PC Cable - For Volkslogger with RJ45 power/data connector
This cable is used to connect the VL to 12V power and to a PC for transferring waypoints to the VL or downloading flight logs from the VL to a PC.  Two cables exit the DB-9f connector.  Both the cable to the RJ45 connector and the power leads are 2 m long.  The wiring harness has a total of 3 connections:
  • RJ45, with 2 m (6.56 ft) cable - Plugs into the Volkslogger for the power and data connections
  • DB-9f, 9-pin female connector - for plugging into a PC
  • Power leads - bare leads for connecting to a 12V power source such as the Pwr-12V-500mA wall plug or a 12V battery.  The 12V power converter is not included.

This cable's DB-9f 9-pin connector is designed for connection to a PC's RS-232 serial port.  However, most new PCs don't have RS-232 serial ports.  However, the FTDI Chip USB Serial Adapter can be used to add a serial port to any PC that has a USB port.  It works great with the Volkslogger.

Note: This cable also works great with FLARM and PowerFLARM units and with the Output port on K6 Mux units.

$55 In Stock

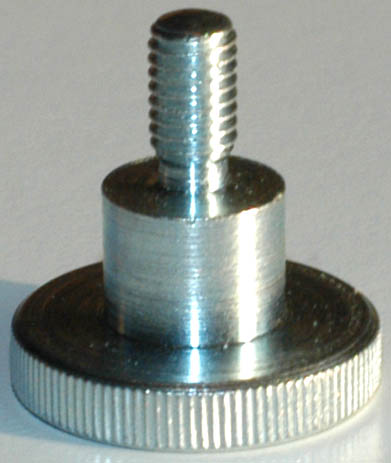

VL-Screw Volkslogger Mounting Screw
Unique mounting screw for Volkslogger.  Note that the Volkslogger does not use a standard camera mount thread.  This item is included with the Volkslogger.

I'm sorry, but this part is no longer available.  I believe it uses an M5 thread.

$19 No Longer
Available

Pwr-12V-500mA Power Supply
Wall plug 12V power supply.  Input: 110 VAC, Output: 12V, 500 mA, Connector: 2.1 x 5.5 mm DC power plug.
Perfect for powering any soaring GPS, flight computer, flight recorder, etc. at home.
$19 In Stock
