Forbes Aviation Products

Overview
Forbes offers some simple, low cost instrument panel hole reducers and fillers.

Part # Description Photo
Click on image to view larger version

Price

Lead-time
FAP-04-1 Instrument Hole Reducer
Allows the installation of a 2 1/4'' (57 mm) dia. instrument in a 3 1/8'' (80 mm) dia. hole in your instrument panel.  Made of .080 thick heat-treated aluminum. Black anodize finish. Weight 1.0 oz.  For a finished look, use the optional FAP-04-5 spacer plate to fill in the space inside the large hole.

Dimensions
Width and height: 3.46 inches (88 mm)
Diameter of hole: 2.28 inches (58 mm)

$13 In Stock

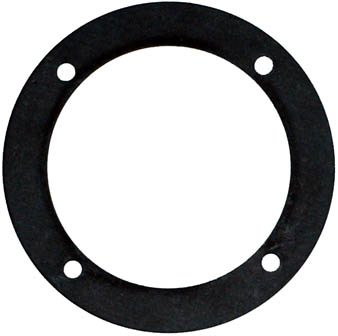

FAP-04-5 Instrument Spacer Plate
To be used with hole reducer FAP-04-1. Fills in the panel thickness, giving a finished look. Made of .080 thick heat- treated aluminum. Black anodize finish. weight 1.1 oz

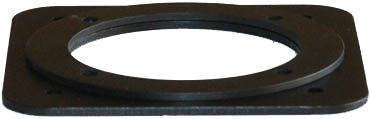

The photo below shows how the FAP-04-1 and FAP-04-5 look when assembled.  The instrument would be mounted with the screws through both plates.

$10 In Stock

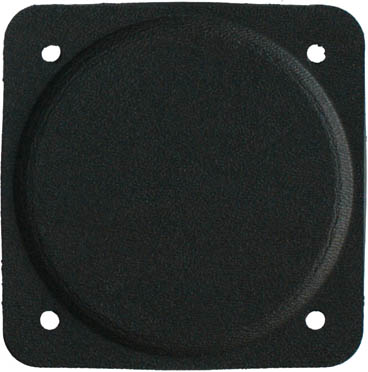

FAP-05-1 Hole Cover, 2 1/4" (57 mm)
Used to cover up an instrument hole after the instrument has been removed. Made of .063 thick R59 fire retardant black plastic, with hair cell finish. Pre- drilled for easy mounting.
$7 In Stock
FAP-05-2 Hole Cover, 3 1/8" (80 mm)
Used to cover up an instrument hole after the instrument has been removed. Made of .063 thick R59 fire retardant black plastic, with hair cell finish. Pre- drilled for easy mounting.
$9 In Stock
