Falcon Gauge's Corporate Statement about Quality and Reliability
At Falcon Gauge Instruments and Wultrad Inc, we are dedicated to providing the homebuilt and experimental pilot with a full range of reliable and high quality instrumentation. Our goal is to create value for our customers and employees by extending innovation, expanding relationships, and exceeding expectations by energizing our sales efforts. Falcon Gauge brand instruments are made to the highest standards, having been subjected to a troika of tests before leaving the factory. The result is the consumer having the best product at a very reasonable price.
We hope that you are fully satisfied with Falcon Gauge products.


Frequently Asked Questions

1. Are Falcon Gauges TSO'd?

  • Falcon Gauges are not TSO'd, but made to TSO or MIL specifications for quality. This helps keep prices down and suitable for the experimental market.

2. What is your warranty policy?

  • Falcon Gauges carry a one year limited warranty from date of purchase.

3. Can I install the G-Meter in my type certificated airplane or glider?

  • This is a note from the manufacturer: "The FAA does not require g-meter is TSO'd. There is no TSO specification available. If you want to install a g-meter in certified airplane or glider, all you need to do is that to take our calibration sheet and fill out the FAA form and then get it approval by an FAA field engineer."

How to Order
To order a product, click on the
button next to the product.
When you are ready to complete your order, click on the
button.
Click on the small images to view larger versions.

Part # Description Photo
(Click on images below to view large versions)

Price

Lead-time
G-Meters
GM510-2 G-Meter, -5 to +10 g, 57 mm (2 1/4")

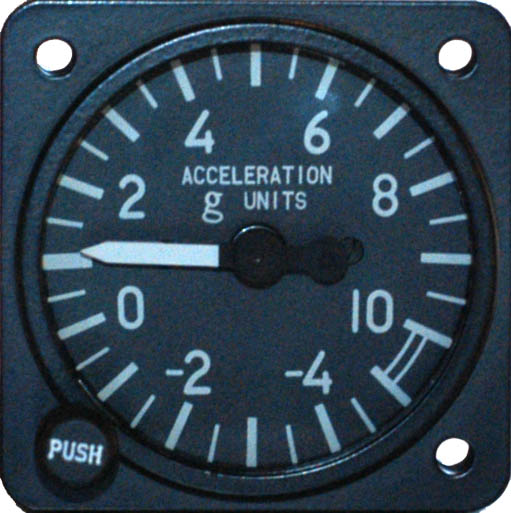

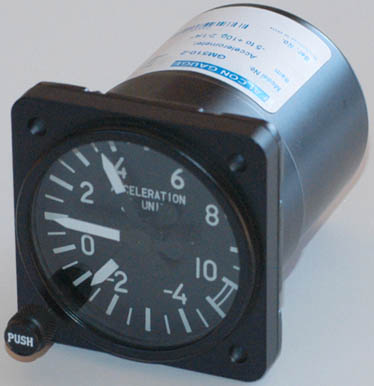

Accelerometer measures G forces acting on the airframe during turbulent or aerobatic maneuvers. One pointer gives a continuous reading, the other two indicate maximum positive and negative loads. Easy to reset by pushing the reset button. All models are mechanical and offer precision, accuracy, and durability. Very easy to operate. No wiring necessary. Flying acrobatics or not, this G-Meter provides the pilot valuable information and it's nice to have for any winged airplane and helicopter without having to pay astonishing prices.

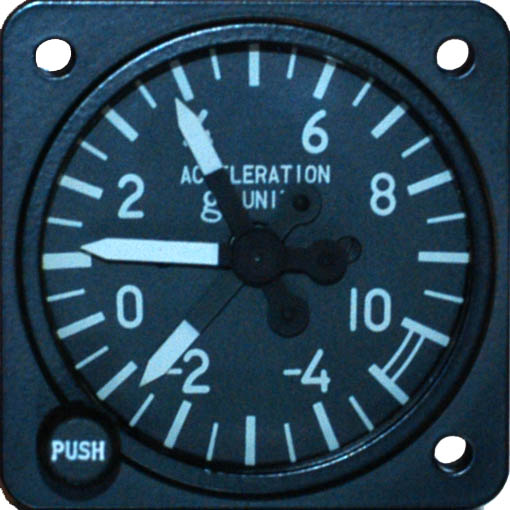

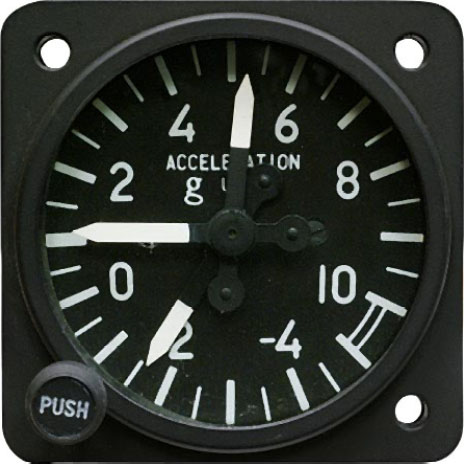

The units I have received to date are slightly conservative because they read a little bit high.  When upright they read 1.1 to 1.2 g (see photos at right) and when inverted they read -1.1 to -1.2 g.  That makes sense because it would lead you to think you are pulling slightly more Gs than you are actually pulling.

Technical Specifications: MIL-A-5885C, Operation Temperature: -55 to +60C, fits standard 2 1/4" instrument cutout

Dimensions: 61 mm (2 1/4") x 61 mm x 108 mm (3.5")

Catalog Page

Instructions

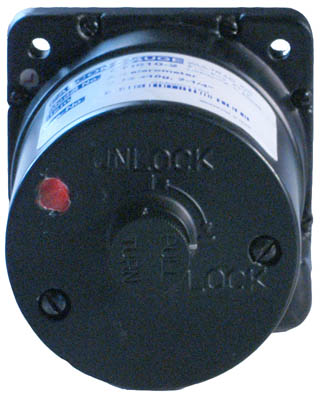

Important Note: The units come with the locking knob set to the locked position.  Do not press the reset button until after moving the locking knob to the unlocked position.

$495 In Stock
