CPC

CPC Quick-Disconnect Couplings
These are often used as a convenient way to connect a condom catheter to relief tubing in a sailplane.  The female connector is usually used on the glider tubing side while a male connector is used on the condom catheter.  The 3/8" barb fitting can be connected to 3/8" I.D. (inner diameter) tubing available at any hardware store.  It is also the right size for connecting directly to a condom catheter.  The 2 halves of the quick-disconnect pair are connected by pushing them together until a snap is heard.  To separate them press the button on the female connector and pull them apart.  Both male and female connectors are available in versions with and without shutoff valve.  Using a connector with shutoff valve on the condom catheter will keep urine from leaking out of the connector when the connectors are separated.  You may, or may not want a shutoff valve on the glider side.  You would not want to use a shutoff valve on the glider side if you want the tubing to drain out the bottom of the glider, or into a collection bag when disconnected.  You would want a shutoff valve on the glider side if the tubing runs up hill to avoid spills.

Specifications
Pressure: Vacuum to 120 psi, 8.3 bar
Temperature: -40F to 180F continuous, -40C to 82C continuous
Materials:
Main components and valves: Acetal
Thumb latch: Acetal
Valve spring: 316 stainless steel
External springs and pin: 302 stainless Steel
O-rings: Buna-N
Color: Natural white with charcoal or light gray latch



CPC Quick-Disconnect Couplings - Assembled
Parts Photo
(click on image below
to view larger version)
Overall Length
CPC-QD-38-M
(Male connector - no valve)
with
CPC-QD-38-F
(Female connector - no valve)
or
CPC-QD-38-F-V
 (Female connector - with valve)
73 mm
(2.87 inches)
CPC-QD-38-M-V
(Male connector - with valve)
with
CPC-QD-38-F
(Female connector - no valve)
or
CPC-QD-38-F-V
 (Female connector - with valve)
83 mm
(3.27 inches)

How to Order
To order a product, click on the
button next to the product.
When you are ready to complete your order, click on the
button.
Click on the small images to view larger versions.

Part # Description Photo
Click on image to view larger version

Price

Lead-time

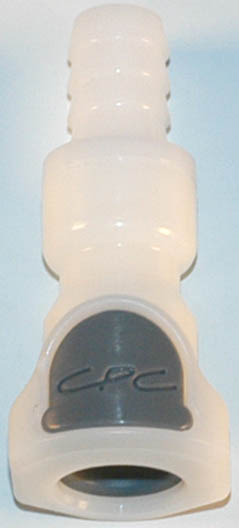

CPC-QD-38-F Quick-Disconnect, Female, with Barb for 3/8" I.D. Tubing - No Shutoff Valve
Commonly used on the glider side.
Mating connector sold separately.
Length: 53 mm (2.09 inches)
Max Width: 22 mm (0.87 inches)
Max Height: 23 mm (0.91 inches)
Overall length of complete assembly when connected to non-valved mating connector: 73 mm (2.87 inches)

Overall length of complete assembly when connected to valved mating connector: 83 mm (3.27 inches)
8 In
Stock

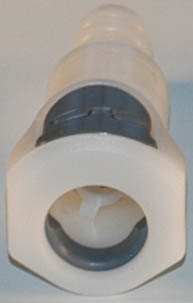

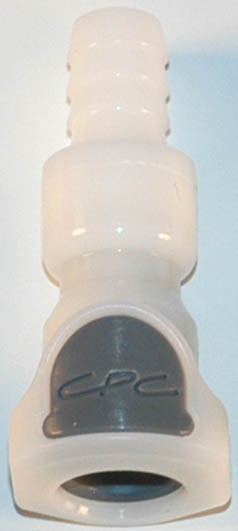

CPC-QD-38-F-V Quick-Disconnect, Female, with Barb for 3/8" I.D. Tubing - With Shutoff Valve
Commonly used on the glider side.  The shutoff valve closes when the mating connector is removed.
Mating connector sold separately.
Length: 53 mm (2.09 inches)
Max Width: 22 mm (0.87 inches)
Max Height: 23 mm (0.91 inches)
Overall length of complete assembly when connected to non-valved mating connector: 73 mm (2.87 inches)

Overall length of complete assembly when connected to valved mating connector: 83 mm (3.27 inches)
10 In
Stock

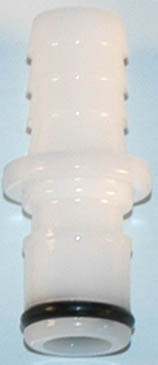

CPC-QD-38-M Quick-Disconnect, Male, with Barb for 3/8" I.D. Tubing - No Shutoff Valve
Commonly used on the pilot side (condom catheter).
Mating connector sold separately.
Length: 26 mm (1.0 inches)
Max Diameter: 16 mm (0.63 inches)
Overall length when connected to mating connector: 73 mm (2.87 inches)
2 In
Stock

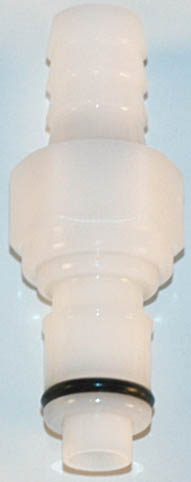

CPC-QD-38-M-V Quick-Disconnect, Male, with Barb for 3/8" I.D. Tubing - With Shutoff Valve
Commonly used on the pilot side (condom catheter).   The shutoff valve closes when the mating connector is removed.
Mating connector sold separately.
Length: 49 mm (1.93 inches)
Max Width: 16 mm (0.63 inches)
Overall length when connected to mating connector: 83 mm (3.27 inches)
10 In
Stock
