Home > Antennas / Transponders > Comant

Overview
Comant offers a variety of antennas.  Below are some of their transponder antennas.

Related Pages

Antenna Cables
I sell standard antenna cables made by Goddard here: http://www.cumulus-soaring.com/goddard.htm#Cable-Ant-RG58-BNCm-BNCm-3


How to Order
To order a product, click on the
button next to the product.
When you are ready to complete your order, click on the
button.
Click on the small images to view larger versions.

Part # Description Photo
(Click on images below to view large versions)

Price

Lead-time

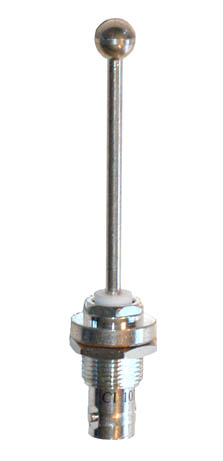

CI-101 Antenna, Transponder, Stub
This unit is a bit on the expensive side.  I recommend the RAMI-AV-22 instead.

Frequency: 1030-1090 MHz (Transponder Band)
Connector: BNC, female
Rated for:
300 Knots TAS
Transponder antenna with top loaded stub monopole.
Antenna radiator is mechanically captivated and is machined from solid brass for impact resistance.
Contact points are made from beryllium copper.
Metallic parts are plated with bright nickel for corrosion protection.
Mounts through a single 0.600" diameter mounting hole.

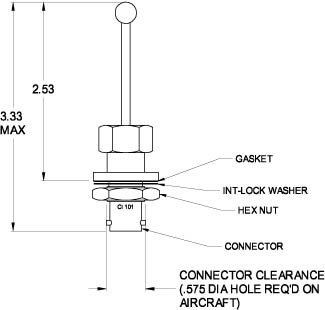

Dimensions (See drawing at right)

Specifications
$134 1 week

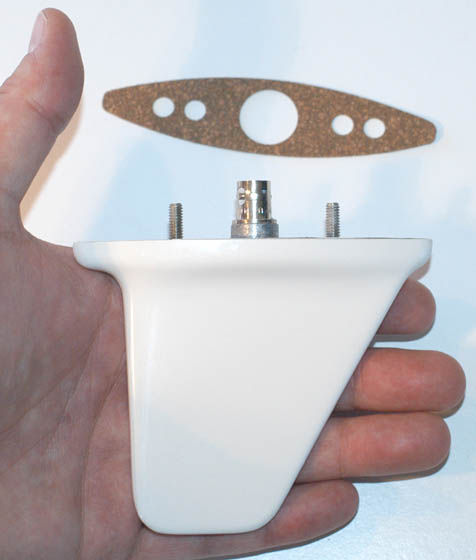

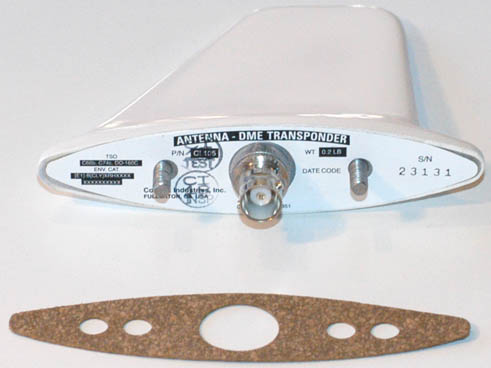

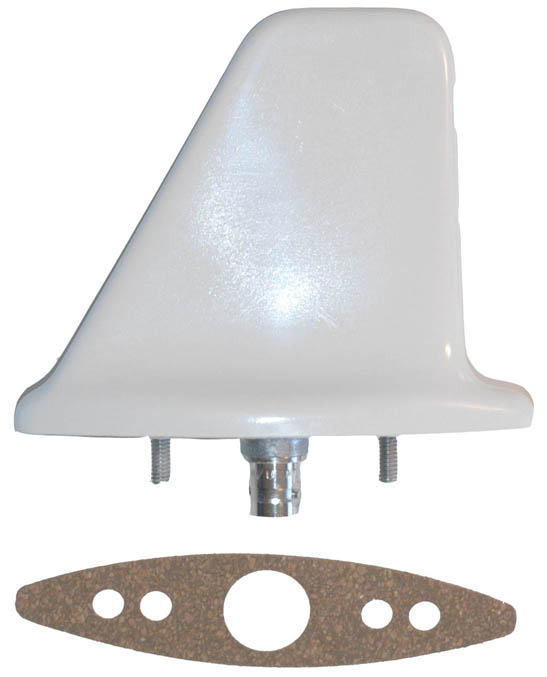

CI-105 Antenna, Transponder, Blade Style
This unit is a bit on the expensive side.  I recommend the RAMI-AV-74 instead.

Frequency: 950 to 1220 MHz (DME Band) and 1030-1090 MHz (Transponder Band)
Connector: BNC, female
Rated for
400 Knots TAS at 25,000 ft.
Broadband and rugged antenna designed for DME or transponder use.
Antenna assembly encased in a glass reinforced polyester molded shell.
Standard two stud mounting configuration where the studs are extended to 0.41 inch in length.

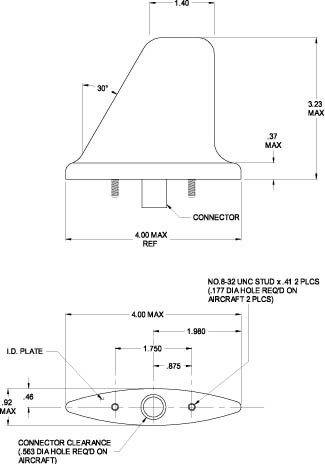

Dimensions (See drawing at right)

Specifications

$185 1 week

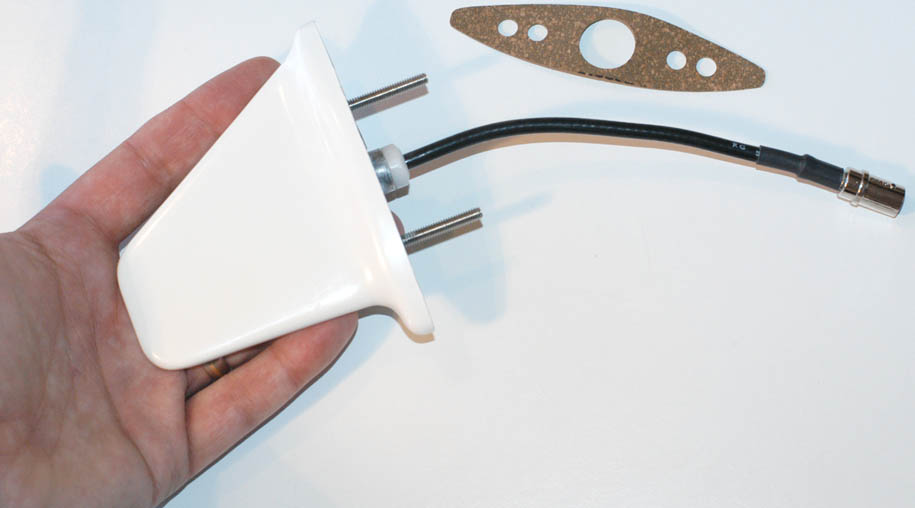

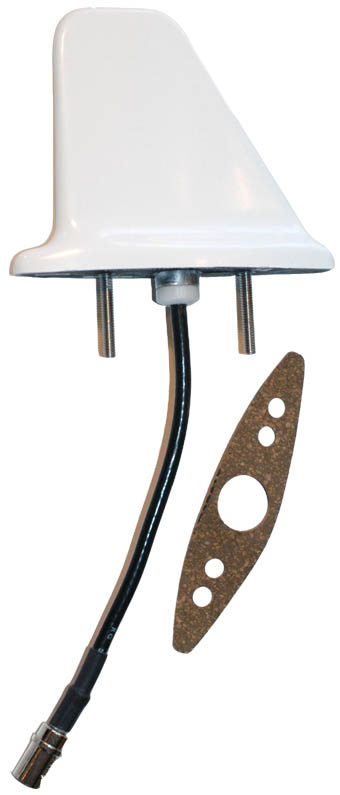

CI-105-9 Antenna, Transponder, Blade Style with Remote Connector
This unit is a bit on the expensive side.  I recommend the RAMI-AV-74 instead.

Frequency: 950 to 1220 MHz (DME Band) and 1030-1090 MHz (Transponder Band)
Connector: BNC (female) on a 6 inch coaxial extension cable
Rated for
400 Knots TAS at 25,000 ft.
Broadband and rugged antenna designed for DME or transponder use.
Antenna assembly encased in a glass reinforced polyester molded shell.
This model offers standard two stud mounting, where the studs are extended to 1 inch in length.

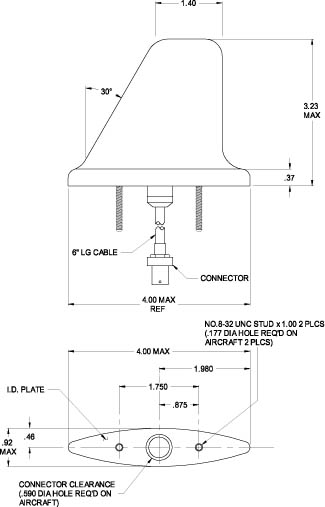

Dimensions (See drawing at right)

Specifications

$299 1 week
