Overview
ClearNav has developed the next generation of soaring instruments.  They offer products which are designed to be extremely easy to use in flight. Their products include the ClearNav II color flight computer and the CNv Variometer.


News

ClearNav Vario with LCD Display - 2 of 2 - Thermal Assistant
Overview Video, by Paul Remde


ClearNav Vario with LCD Display - 2 of 2 - Thermal Assistant
Duration: 7+ minutes
One of 80+ videos in the Soaring Product Training series
You can rent this video for 30 days for $3, or buy it for $10, or rent the entire Soaring Product Training series for $60 for one year.


ClearNav Vario Flight Report
I have received quite a lot of positive feedback from customers using the ClearNav Vario.  Renny Rozzoni from New Mexico was kind to send the following note:

“Outstanding – It is the best vario I have ever flown with (and I’ve been flying gliders for 43 years)!  It took me about 15 minutes getting used to it, and then over the duration of the flight I experimented with it and tried a few different settings, and I have to tell you – it is fantastic.   The Thermal Assist tool is phenomenal and really helped out in some of those rough New Mexico thermals.  In addition, the digital display screen is very easy to read, well laid out, and the key data can be seen at a glande. They have created a truly outstanding product!”


ClearNav II Soaring Flight Computer
Overview Video, by Paul Remde


ClearNav II Soaring Flight Computer
Duration: 20+ minutes
One of 80+ videos in the Soaring Product Training series
You can rent this video for 30 days for $3, or buy it for $10, or rent the entire Soaring Product Training series for $60 for one year.


ClearNav Vario with LCD Display - 1 of 2
Overview Video, by Paul Remde


ClearNav Vario with LCD Display - 1 of 2
Duration: 25+ minutes
One of 80+ videos in the Soaring Product Training series
You can rent this video for 30 days for $3, or buy it for $10, or rent the entire Soaring Product Training series for $60 for one year.


ClearNav Vario with Mechanical Pointer
Overview Video, by Paul Remde


ClearNav Vario with Mechanical Pointer
Duration: 22+ minutes
One of 80+ videos in the Soaring Product Training series
You can rent this video for 30 days for $3, or buy it for $10, or rent the entire Soaring Product Training series for $60 for one year.


New Thermal Assistant and Software Upgrades for ClearNav CNv Vario with LCD Display
ClearNav has been working hard and has made major improvements to the CNv variometer with LCD display. The latest software version features a new Thermal Assistant as well as new signal processing with noise rejection and "inertial principles" which make it faster while remaining easy-to-use in flight. The vario has been receiving rave reviews from experienced soaring pilots around the world. The built-in GPS provides the GPS position 5 times every second (most varios only receive GPS position once each second) - which helps explain why the Thermal Assistant is so extremely useful. Experienced soaring pilots who never thought they would find a Thermal Assistant useful are fans of the new feature - it really is amazing! You can see the new Thermal Assistant in the image below. In the image, the glider is on the right and circling to the left. The scale on the left side of the screen is the variometer scale. The glider has just gone through some sink at the edge of the thermal. As the glider continues to circle to the left, the cylindrical thermal strength graph rotates to the right (clockwise) while the glider icon remains stationary. The black arrow points to the strongest part of the thermal. The dashed line indicates when the pilot may want to roll to wings level for a second or two. The lead angle of the dashed line is user configurable. The length of the black arrow indicates how much of a centering correction is recommended. Note: The new Thermal Assistant is only available on CNv varios with the LCD display (the version without a mechanical pointer) and XC software upgrade. Customers with the CNv variometer head with mechanical pointer may want to upgrade to the LCD version so they can take advantage of the new Thermal Assistant feature. New software enhancements to the moving map screen are also in the works for release soon.

ClearNav Review in Sailplane & Glidering Magazine
Click on the links below for an excellent review of ClearNav soaring instruments by U.K. / New Zealand pilot G. Dale - as published in Sailplane & Gliding magazine in the August/September 2015 issue.


image or PDF

New ClearNav II

The ClearNav II is a much faster and brighter version of the ClearNav color flight computer. It uses less power than previous versions and works with all existing accessories. Reasonably priced upgrades are available for existing ClearNav users. Customers who purchased ClearNav units after June 1st, 2014 are eligible for a free upgrade. Customers who bought ClearNav units between January 1, 2014 and May 31, 2014 qualify for discounted upgrades. Details are available in the document below. Note: Customers who pre-order a ClearNav II before January 31, 2015 will pay the current price of $2950. Starting February 1, 2015 the price will go up to $3500.
ClearNavI.pdf

ClearNav CNv Variometer Overview and Training Video
Detailed overview and training video for the ClearNav CNv "Club" and "XC" variometers. It is great tool for customers interested in learning more about it prior to purchase, and existing users looking for a "spring refresher course".

https://www.youtube.com/watch?v=RccpXWfHCk0

More product news and photos are available here: www.clearnav.net


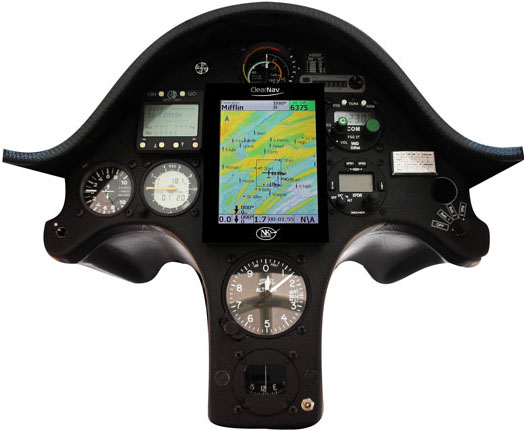

First Impressions
I am extremely impressed with the ClearNav Navigation Display hardware and software.  The display has a large and extremely bright screen without the overall dimensions being too large.  I didn't think I was going to like the lack of a touch-screen, but I find the remote to be easy to use and the software very intuitive.  The 3 software features that impress me the most are the way area tasks are supported, the "Glide Amoeba" glide range rings and the way it calculates estimated speed for the remainder of the task.  You can see some of those features in action in the screen captures below.

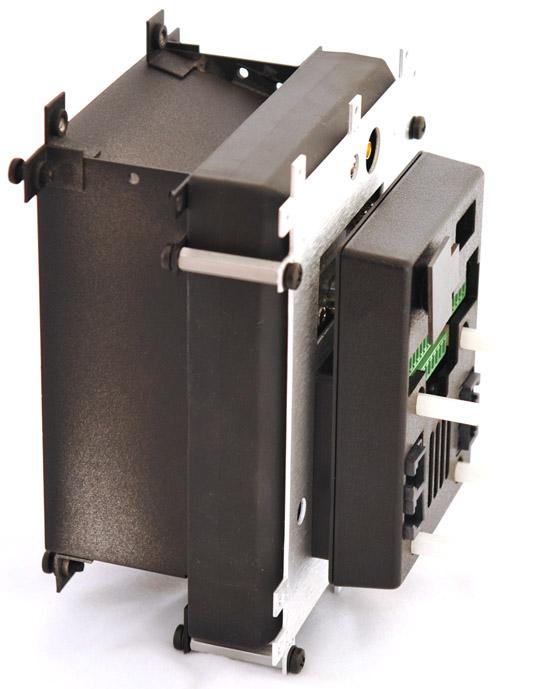

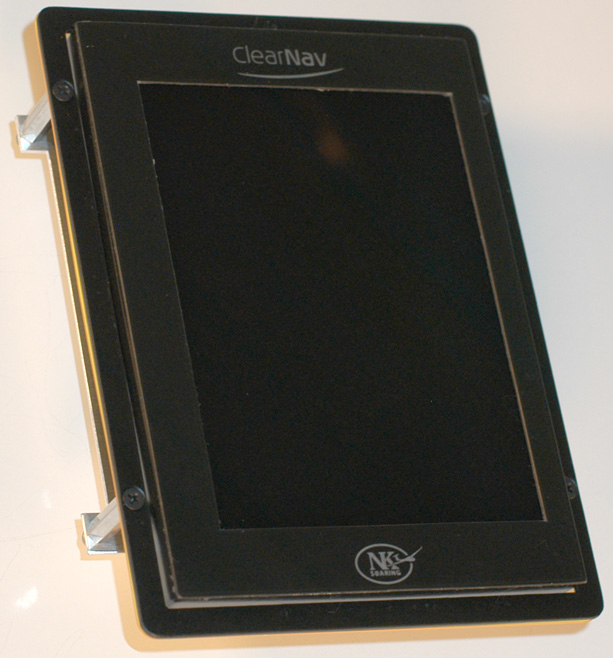

Mounting Options
Click on the small images below to view larger ones.

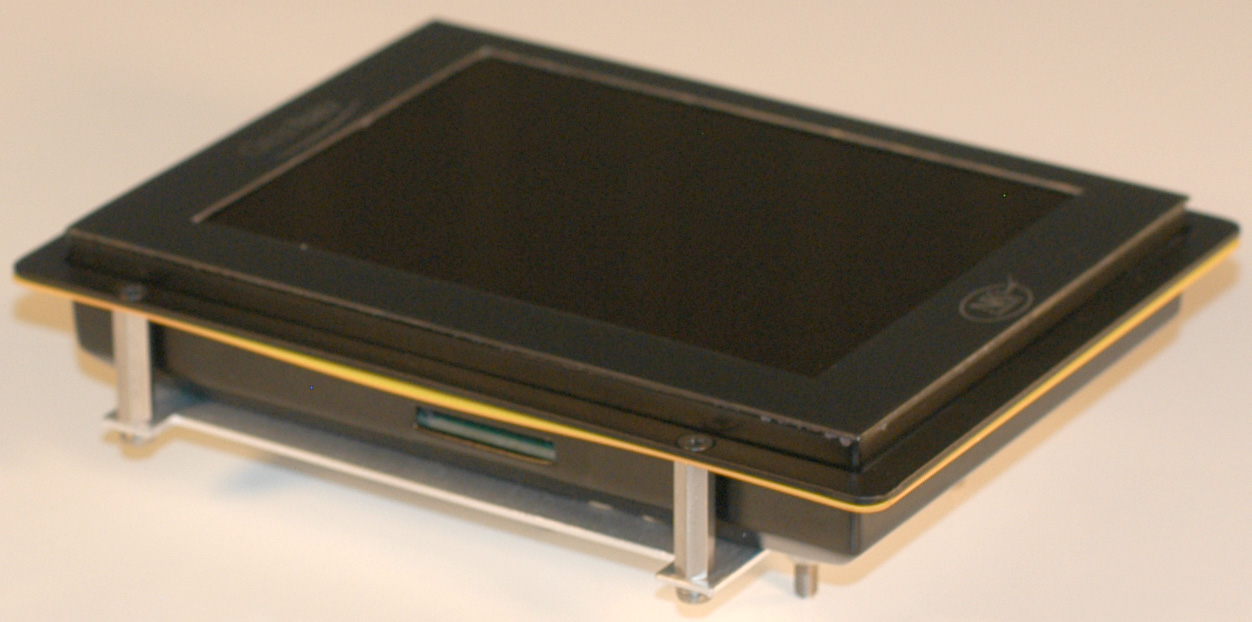

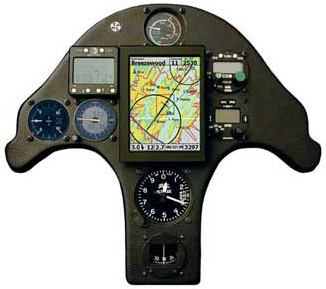

On Panel
(included)

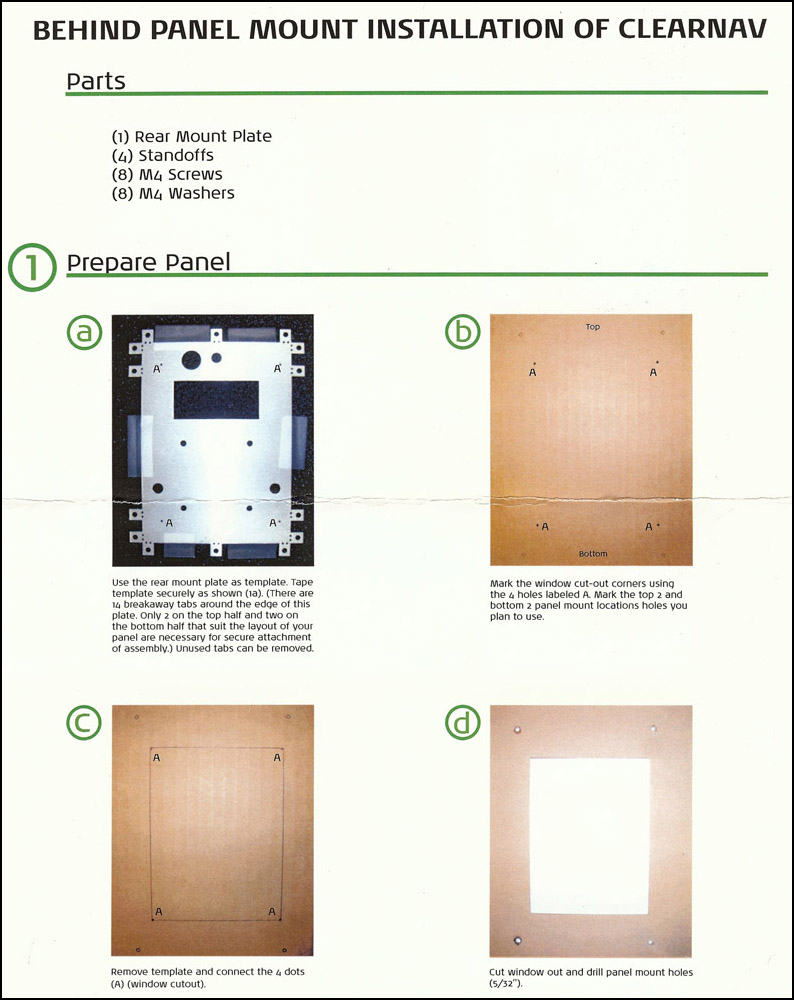

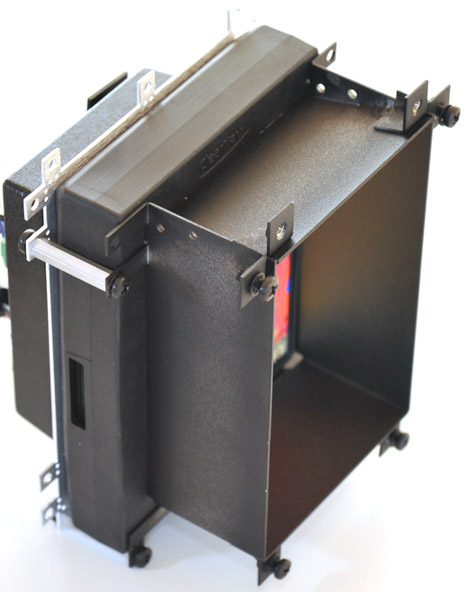

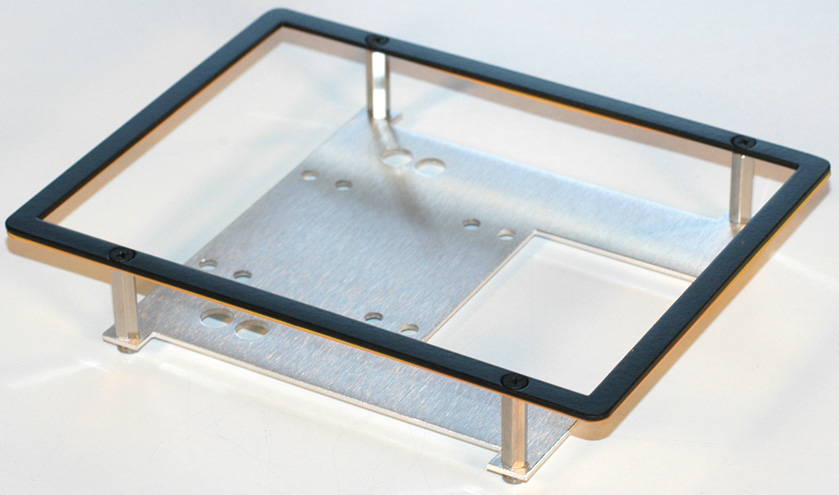

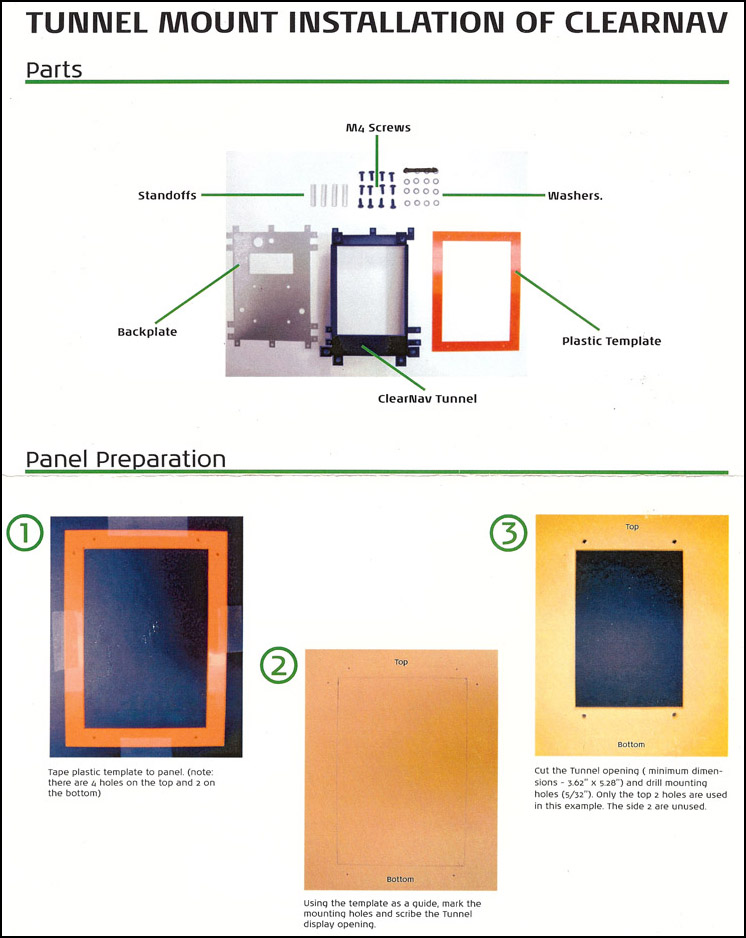

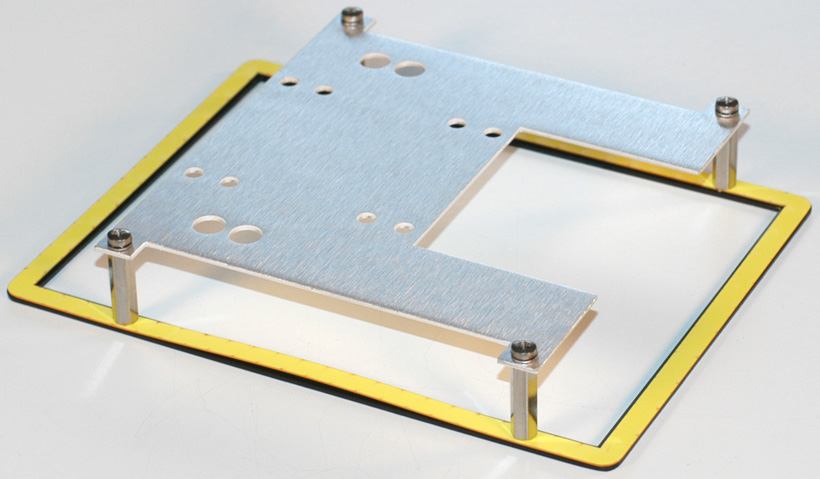

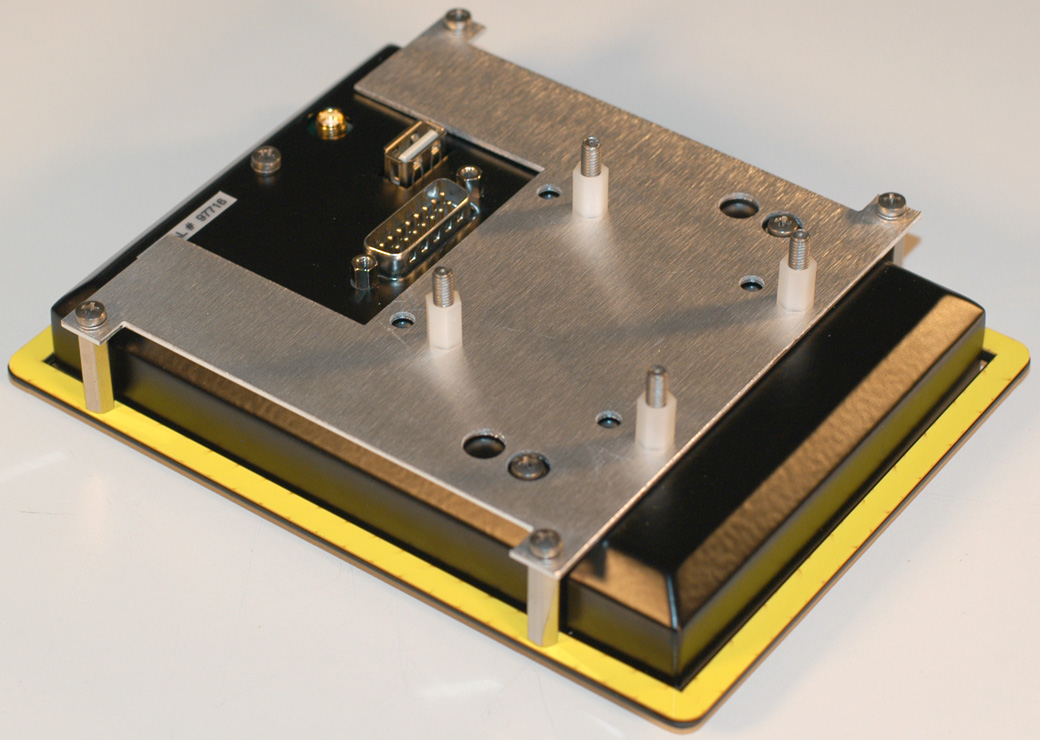

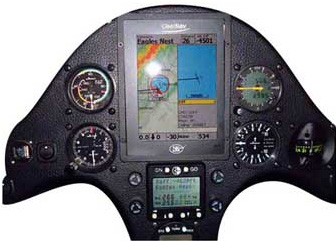

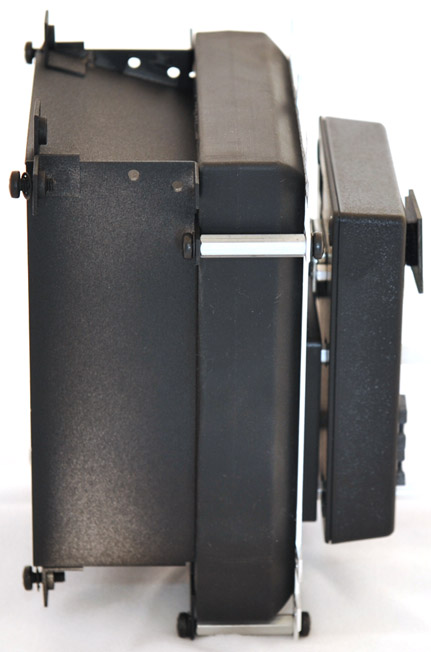

Through Panel Behind Panel Tunnel Mount
(recessed)
popular

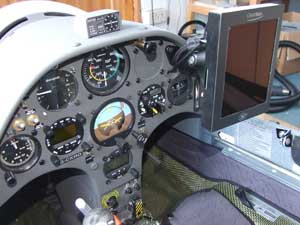

RAM Mount



Clear Navigator Software
Quick Overview of the Innovative Features Displayed on the Moving Map

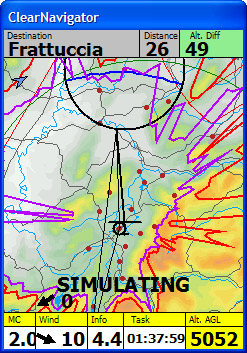

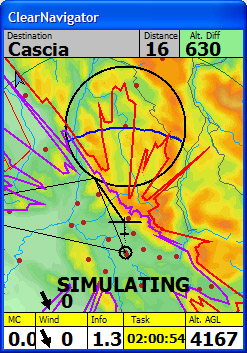

(Screen captures from the PC simulator)

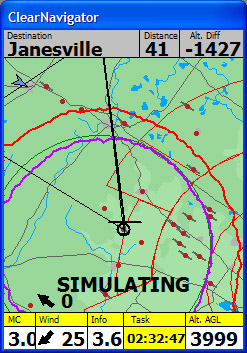

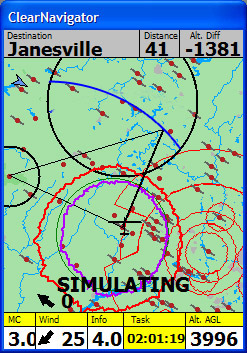

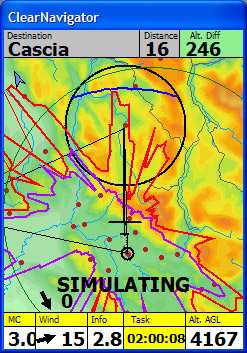

  • The purple arc is the "Glide Amoeba" to a user specified arrival altitude over the terrain
    You can make it to the purple arc and still have enough altitude for a safe pattern and landing.
    The arrival altitude is user adjustable (1000 feet AGL in these examples).
    The left example is over flat terrain. Note how the rings are shifted to compensate for the wind.
    The right example is in mountainous terrain with a ridge in the lower right quadrant of the screen.
  • The red arc is the"Glide Amoeba" to ground level.
  • The black circles are turn areas
  • The heavy black line is line from your current position to the active waypoint.
    Simply turn the glider until the line is pointed straight up an you will be on course.
  • The fine black lines show the task course line.  They are drawn automatically.
  • The blue arc in the turn area is a locus of points of equal task distance.  Simply fly to any
    point on the blue arc and you will complete the task in the desired task time.  The blue
    arc moves out and back if you change the estimated speed around the course.  There is
    no need to move turn points within the turn area.

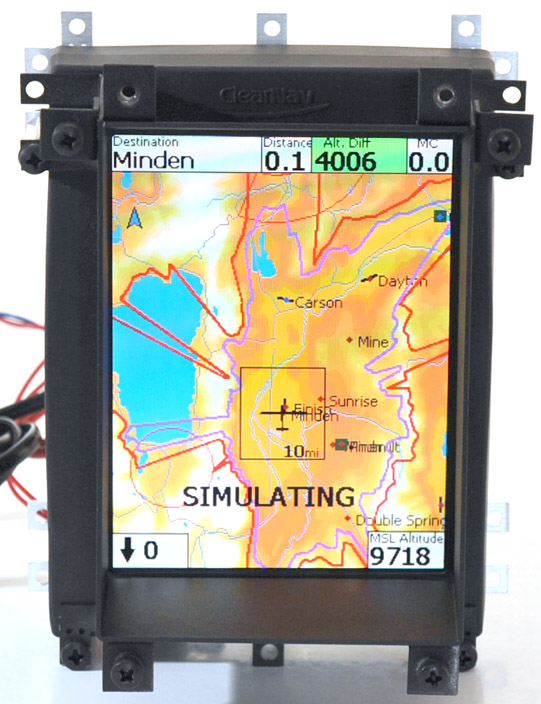

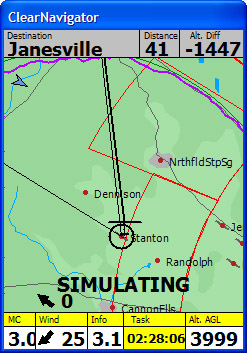

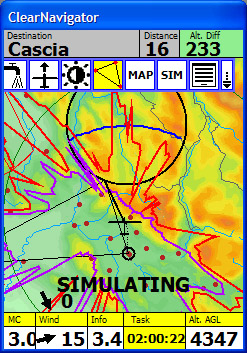

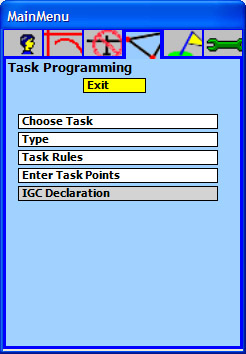

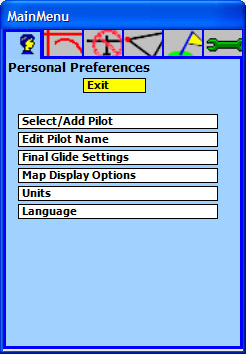

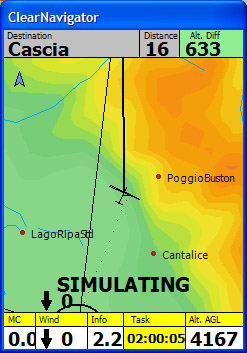

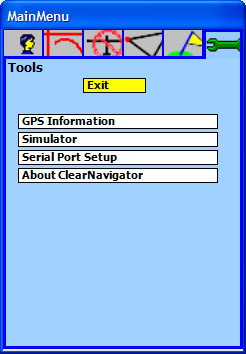

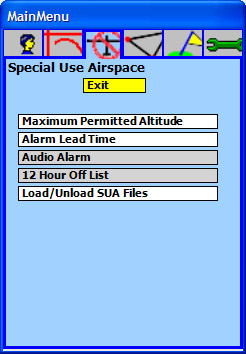

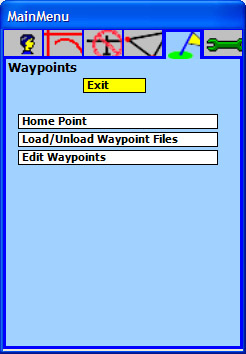

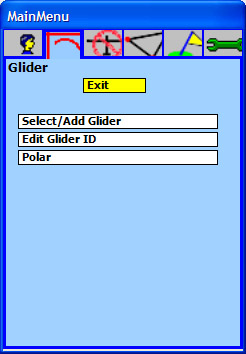

Screen Captures from the PC Simulator
Click on the images below to view full resolution versions.


Customer Installation Photos
Please send me a photo of your ClearNav installation.
Click on the small images below to view larger ones.

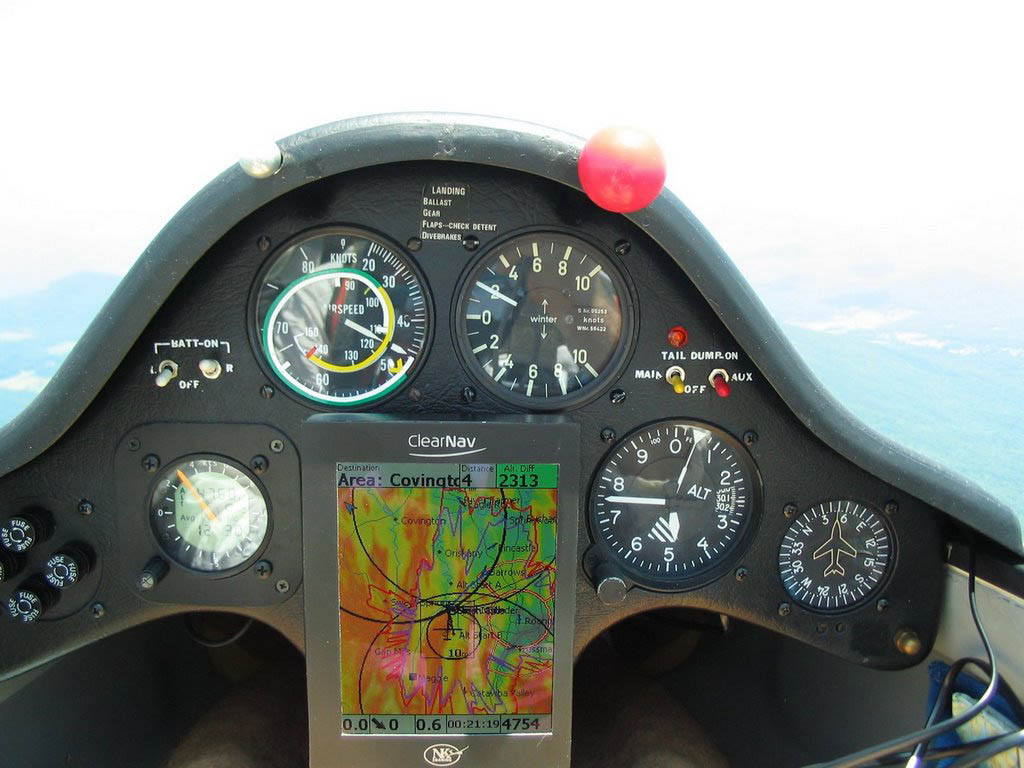

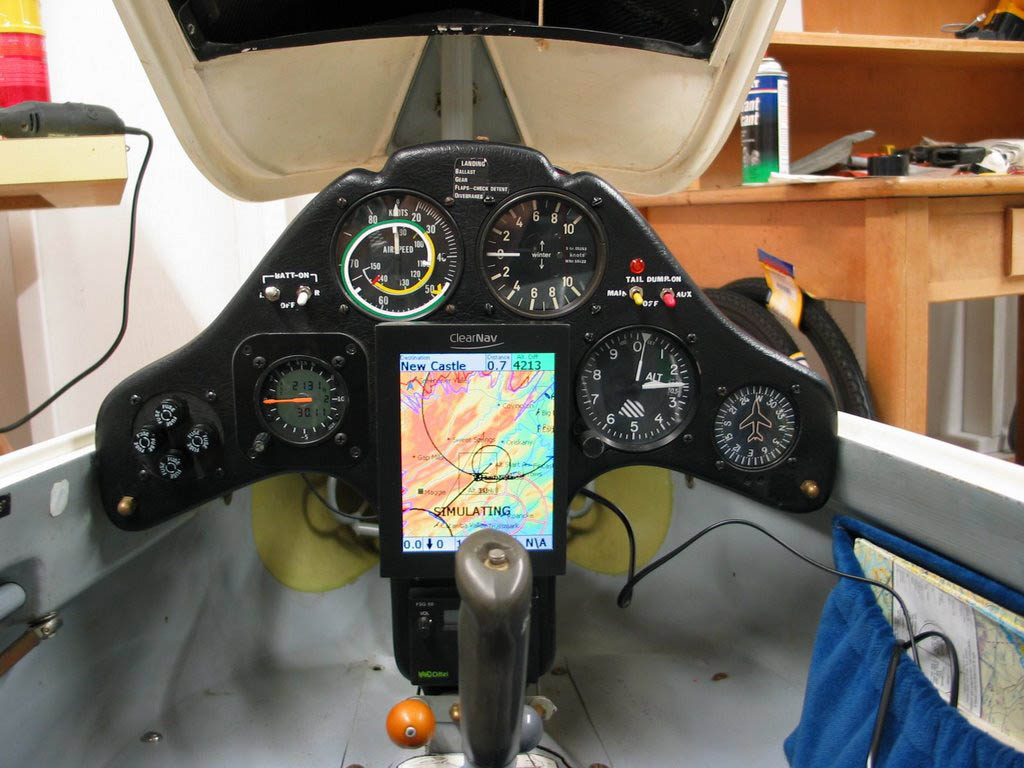

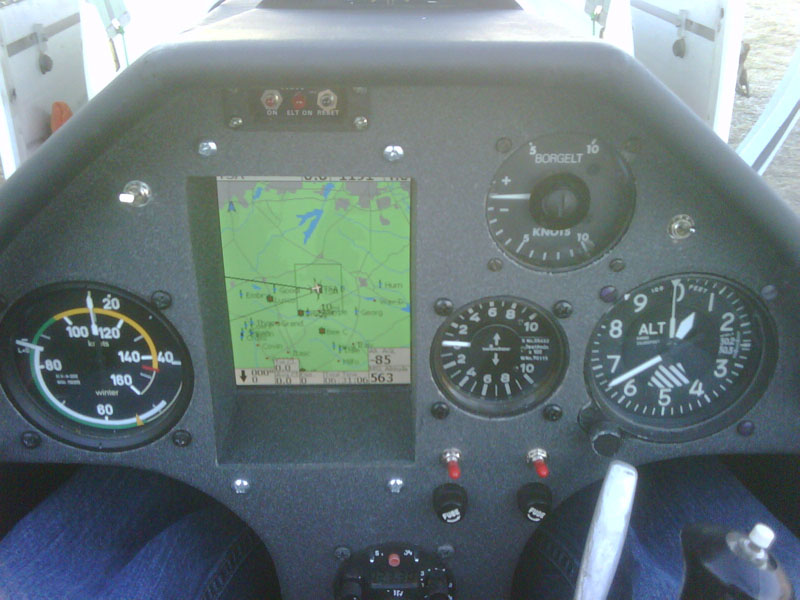

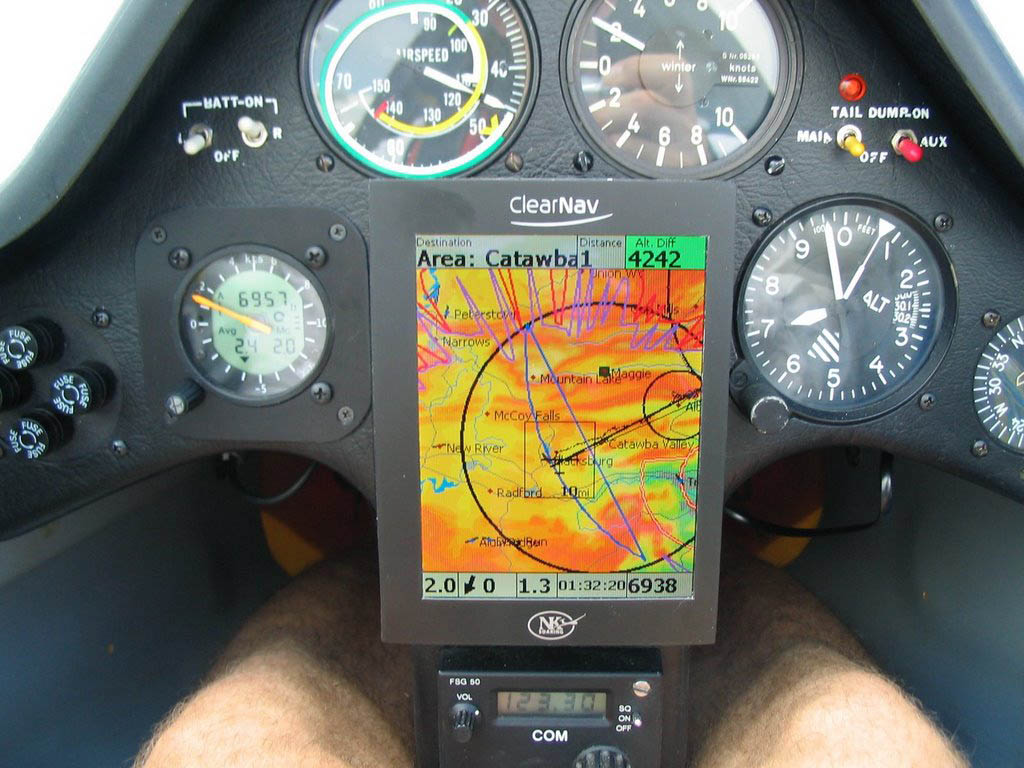

From NK web site Jay Pokorski's ClearNav Installation in his ASW-20 Jay Pokorski's ClearNav Installation in his ASW-20 Jay Pokorski's ClearNav Installation in his ASW-20
Recessed mount in

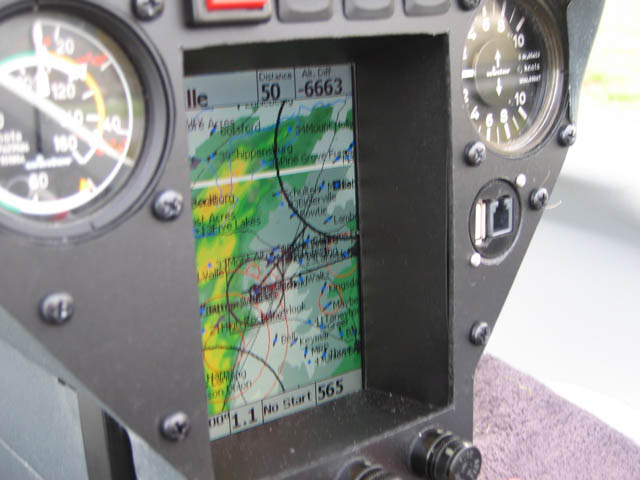

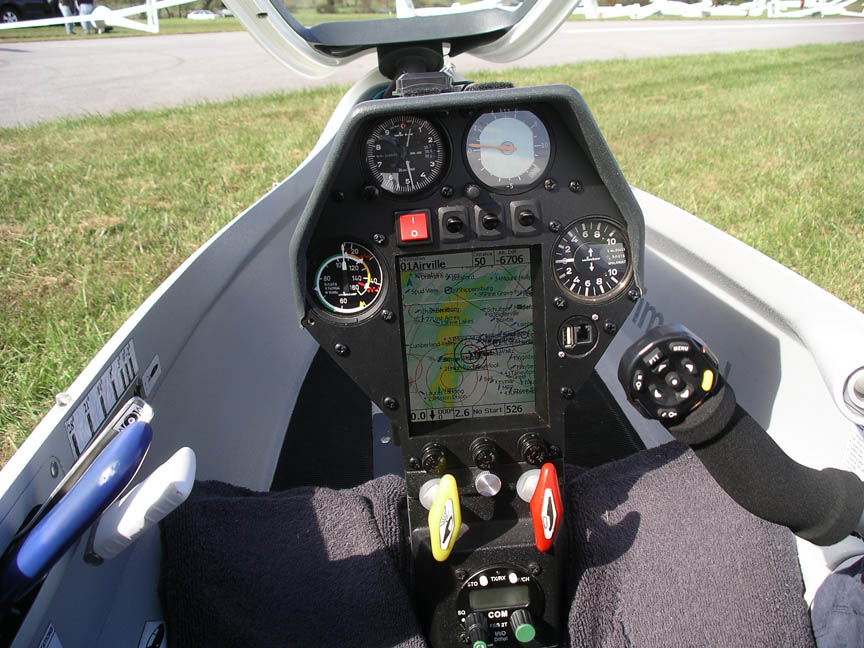

Kolie Lombard's Diana 2
(made by Kolie - not NK)
Recessed mount in
Kolie Lombard's Diana 2
(made by Kolie - not NK)
VGA ClearNav
on RAM mounting arm
in Phil Jones' sailplane
ClearNav installed using
"Behind Panel" mounting kit

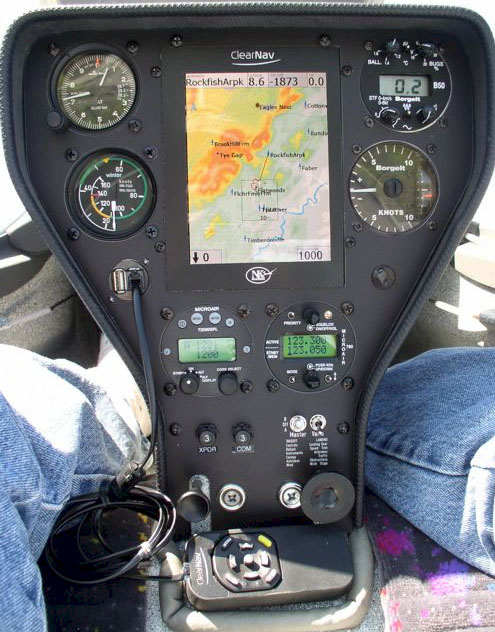

in Hal Loken's Genesis
Recessed mount in

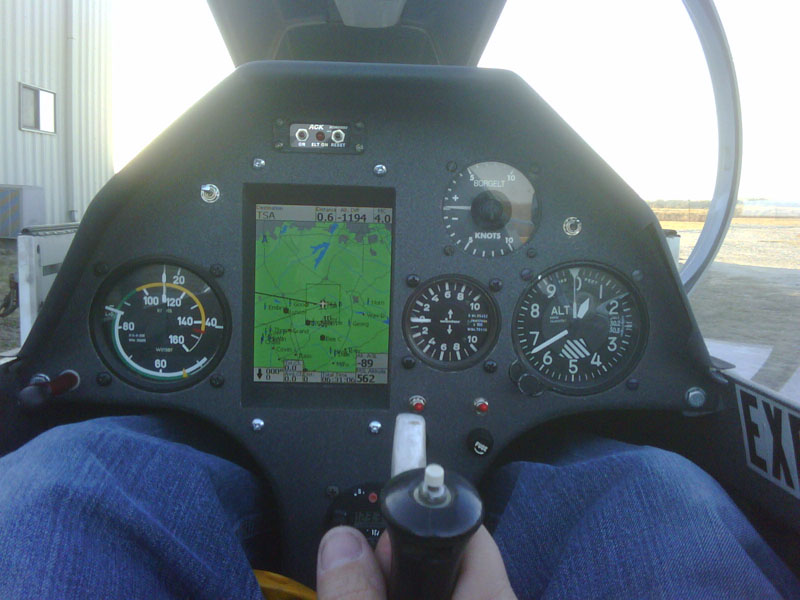

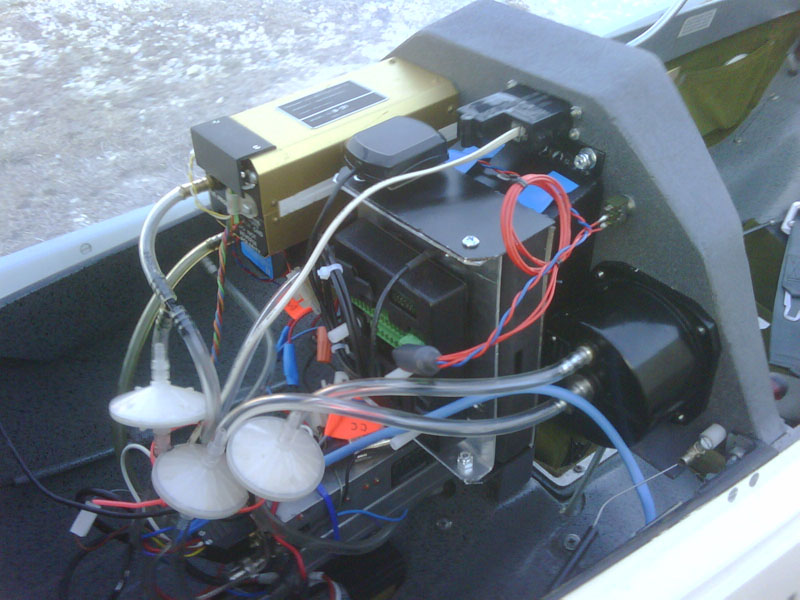

Terry Stroud's sailplane
(made by Terry - not NK)
Recessed mount in
Terry Stroud's sailplane
(made by Terry - not NK)
Recessed mount in
Terry Stroud's sailplane
(made by Terry - not NK)

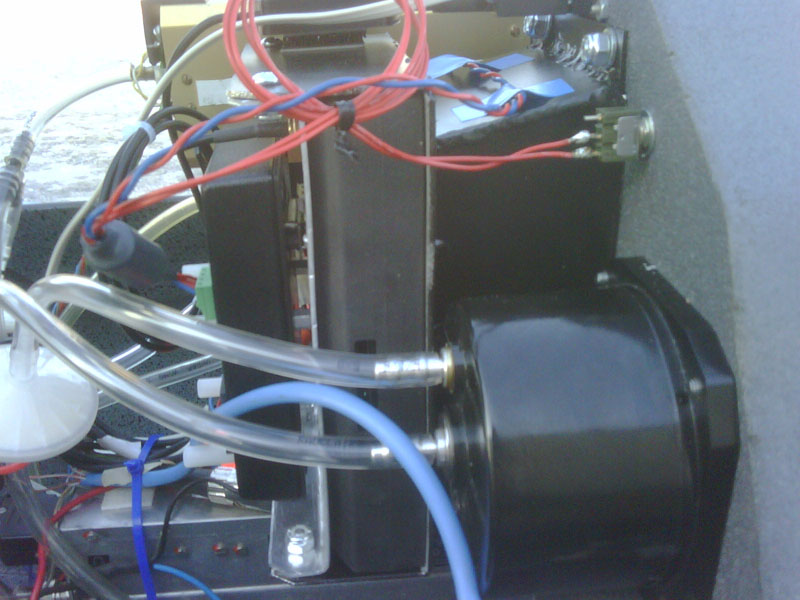

Recessed mount in
Terry Stroud's sailplane
(made by Terry - not NK)

The Team
The team of people working on the product is very impressive. It includes:

  • Richard Kellerman - Soaring Pilot (recent Hilton Cup Winner), businessman
  • Dave Ellis - Soaring Pilot, Ran Cambridge Aero Instruments for 14 years, Driving force behind the Cambridge C-NAV, M-NAV, L-NAV, S-NAV, and the first IGC Approved Flight Recorder - the GPS-NAV. He also developed the Cambridge 302 and 303. In my opinion the Cambridge products were industry leaders in regard to ease-of-use.
  • Chip Garner - World level soaring competition pilot, Software Engineer, developer of Glide Navigator and Glide Navigator II (originally Cambridge Pocket-NAV) soaring flight software. Big proponent of the "keep the instruments simple - keep your eyes out of the cockpit" instrument design philosophy.
  • Phil Schlosser - Worked with Dave Ellis at Cambridge Aero Instruments for 14 years or so. Firmware developer for the Cambridge 302 and many other products.
  • Rick Sheppe - Soaring Pilot, functional designer of the Cambridge S-NAV, L-NAV and GPS-NAV.

ClearNav Overview
I have sold PDA systems for use in gliders for many years. I'm a fan of graphical moving map displays because they present key information to the glider pilot in a clear way so that one can glance at the display and get a quick overview of how you are doing. You know instantly which airports are within gliding range. That is powerful information and dramatically enhances safety. The problem is that currently available PDAs have small screens that are quite difficult to read in sunlight - they just are not bright enough. NK has designed what I consider to be a fantastic solution. It is a large display that really is easy to read in sunlight.

Key Features

  • Large, extremely bright 5.5+" diagonal color LCD screen (the largest PDAs are 4" diagonal).
  • The display is not a touchscreen - to maximize screen brightness
  • Built-in GPS engine (calculating position and altitude 4 times each second) and connector for external GPS antenna
  • IGC Approved Flight Recorder - Recording at 1 second intervals
  • Remote Keypad - Simple operator interface for operating the screen
  • Moving map with selectable layers
  • Comprehensive task optimization
  • Glide "amoeba" (gliding range footprint) shows areas you can reach, taking wind, glider polar, and terrain into account
  • New Method for Area Tasks - A blue arc shows where to turn in the turn area.
  • Airmass history
  • Airspace Monitor
  • Landability status monitor
  • Size: 4.25"w x 5.83"h x 1.22"d (108mm x 148mm x 31mm)
  • Display Size: 3.39"w x 4.53"h (86mm x 115mm)
  • Screen Resolution: 240 x 320 pixels (1/4 VGA version), 480 x 640 pixels (VGA version)
  • Backlight: CCFL (Cold Cathode Fluorescent Lamp) backlight. Nominal luminance is 700 Candelas/m^2 (nits), achieved with a single lamp that goes around 3 sides of the LCD. NK provides lamp overdrive capability up to 1100 nits for severe ambient conditions such as flying into a hazy late afternoon sun. This increases battery drain, so the display is normally operated at its nominal luminance.
  • Weight: ~1 lb (450 g)
  • Operating System: Windows CE.NET
  • Memory: 2 GB of internal memory for turnpoint, terrain, map and airspace information
  • Data Transfer: USB Flash Drive and perhaps a built-in SD card reader
  • Power Requirements: 9 to 16 VDC
  • Power Consumption: 600 mA at full brightness, 300 mA at min. brightness, In power-save mode the backlight goes to full brightness when any key is pressed on the remote keypad. It backs down to min. brightness about 25 seconds after the last key press.
  • Compatible with Cambridge 302 - The ClearNav can receive Vector Wind (speed and direction), Real Time Headwind and True Airspeed from the 302. The Vector Wind (speed and direction) and Real Time Headwind can be displayed. The Vector Wind is used for final glide (as the auto wind) if it is available. The True Airspeed is used for the total energy final glide calculation.

Interesting Details

Area Task Support - Brilliant!
When I first started playing with my ClearNav demo I was extremely impressed with the brilliant new way the ClearNav handles area tasks.  Competitive software requires that you move the turn point within the turn area.  That can be cumbersome and even dangerous to do in flight.  The ClearNav is much simpler and more intuitive.  There is no need to move or manipulate the turn location in any way.  A blue arc is shown inside the turn area.  It is a locus of points within the turn area that lie along an ellipse such that making your turn at any point on the line will give you the same distance around the course.  The software places the blue arc automatically based on your estimated speed around the course and the task time.  Task course lines are drawn in fine black lines from the start point, to a point on the blue line and then on to the center of the next turn area.  If you are flying fast then blue arc moves to a point on the far edge of the turn area.  If you are flying slowly the blue arc moves to a point on the near side of the turn area.  When the blue arc reaches the far or near side of the area then the turnpoint in the next turn area moves away from the center of that area to compensate.  For example, if you are flying slowly then the blue arc will move to the near side of the turn area you are headed for and the turn point in the following turn area will move closer to the near edge of that area.  I think this way of handling turn areas is revolutionary and brilliant!  Congratulations Chip Garner, Rick Sheppe and the NK team on this innovation!  It is brilliant because you never need to move the turn point manually, you just glance at the screen and fly to a point on the blue arc.  That makes flying safer because you will keep your eyes out of the cockpit and it also makes you faster because you can focus your efforts on flying fast - not fiddling with the software.

Glide Amoebas
The glide amoebas show your gliding range graphically on the map.  They take into account the wind, glider polar, altitude and surrounding terrain.  Over flat terrain they look like circular rings.  Over mountainous terrain they look like, well... amoebas. A ridge shows up as a flat "impassable" line while long extended "fingers" show where it is possible to glide through mountain passes or down into valleys. In flat land soaring the footprint will be much more circular or ellipse shaped. This is a very powerful feature.  Past generations of soaring software highlighted reachable airports on the map - which is also nice, but in ClearNavigator you can see at a glance not just what airports are reachable (any airport inside the glide amoeba) but you also know how far you can glide over the ground - or down into a valley.  To me the most powerful feature of any soaring software is the ability to glance at the screen and know instantly whether or not you can make it to a nearby landing site. The Glide Amoebas makes that very clear and intuitive and easy to use in flight - Fantastic!

  • The purple arc is the "Glide Amoeba" to a user specified arrival altitude over the terrain You can make it to the purple arc and still have enough altitude for a safe pattern and landing.  The arrival altitude is user adjustable (1000 feet AGL in these examples). The left example is over flat terrain. Note how the rings are shifted to compensate for the wind.  The right example is in mountainous terrain with a ridge in the lower right quadrant of the screen.
  • The red arc is the "Glide Amoeba" to ground level.

Calculation of Estimated Speed for the Remainder of the Task - New - Powerful
The ClearNav has a very innovative and powerful algorithm for calculating the estimated speed for the remainder of the task - so that you can finish at the desired time.  The estimated speed is used to estimate how long it will take you to finish the task - and the total time on task.  In contest tasks top pilot do their best to arrive home as close to, but just after the minimum task time.  The reason for that is that the final glide will be a larger percentage of your total task time.  Since final glides are fast (no thermalling), your achieved speed is faster for the entire task when the final glide is as high a percentage as possible of the total task.  Since it is considered important to finish just at or just after the minimum task time, it is important for your soaring software to accurately calculate the estimated time on course.  All brands of soaring software do calculations for the approximate time on course.  In Glide Navigator II the pilot is required to enter his/her best estimate of the speed that will be achieved for the remainder of the task.  That is tough to do accurately because you have to take into account the remaining cross-country speed while thermalling and the speed on final glide.  Great contest pilots like Chip Garner have the experience to do that pretty accurately, but most contest pilots (myself included) have a hard time knowing what number to enter into Glide Navigator II for the estimated speed for the remainder of the task.  Other soaring software (SeeYou Mobile, WinPilot, etc.) have several options available for the calculation of the estimated speed for the remainder of the task.  Most pilots select the option to use the MacCready setting to calculate the estimated speed for the remainder of the task (taking into account thermalling and final glide phases).  They do a pretty good job but they are assuming that you don't find lift while gliding and don't work great when ridge running.  Chip Garner has designed a powerful new algorithm for the ClearNav that is better than all previous methods.  Before the start, it uses the MacCready setting. Once on course the speed is computed based on your climbing and gliding performance so far, predicted out and including the final glide. It includes the wind and a final glide at the current MacCready setting and altitude. If you exceed final glide height it switches to the MacCready glide speed corresponding to that height.  It is not very sensitive to the MacCready setting because it using actual calculated climb and glide data. The glide netto and average climb used in the calculation are shown on both the performance and task dialogs. The prediction works extremely well if conditions do not change appreciably, in which case you can adjust the speed. Chip Garner says he has been able to consistently finish within about 30 seconds of the minimum task time on area tasks using the ClearNav.  This is a very powerful and innovative tool for accurately arriving home at the desired time.

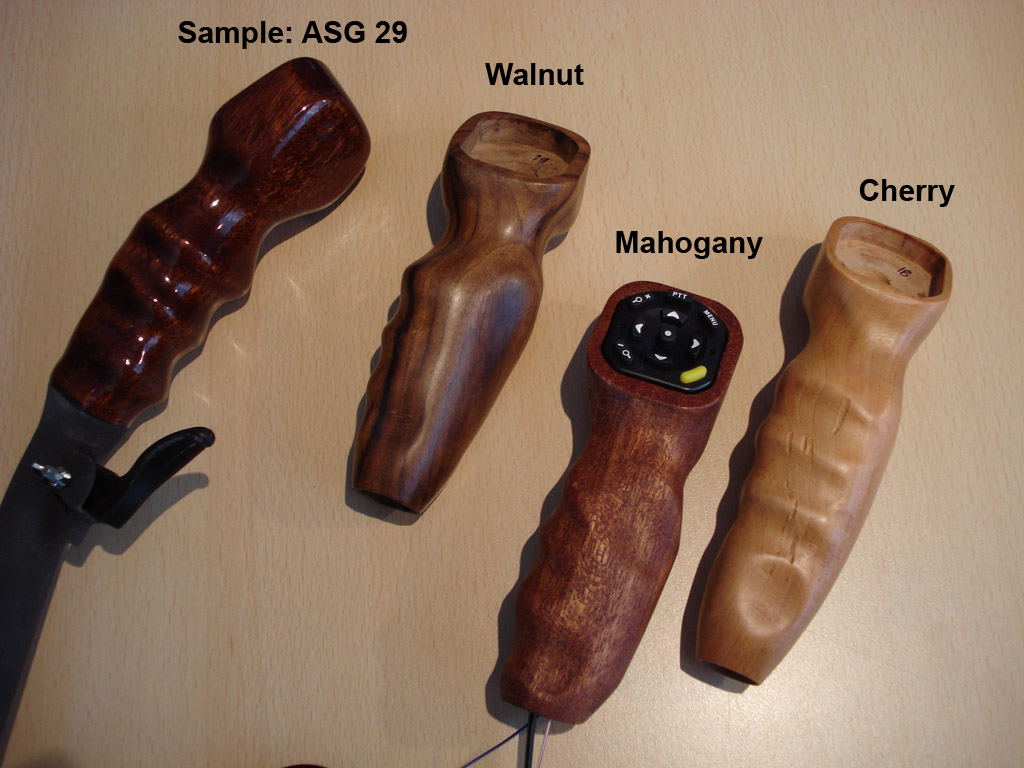

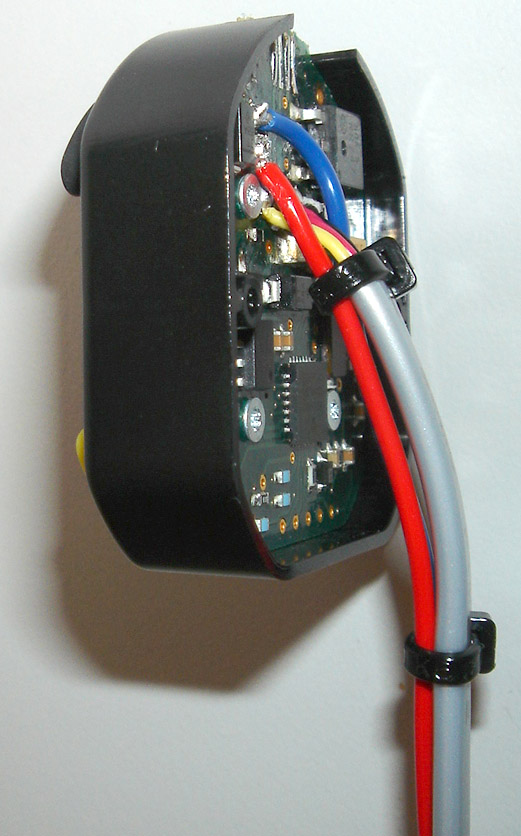

StickMountedRemote

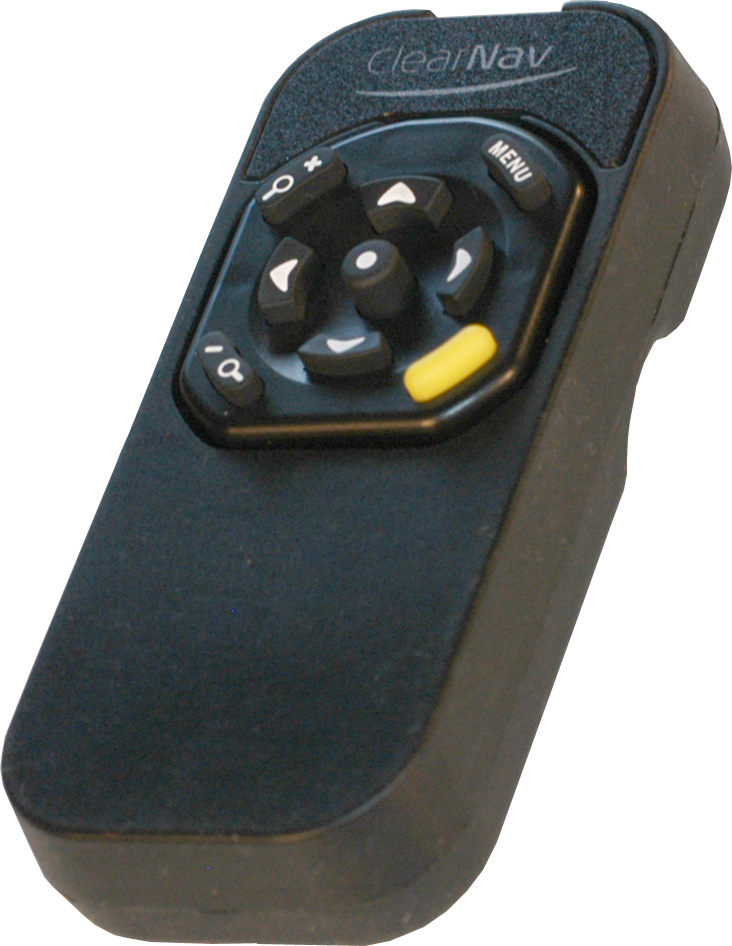

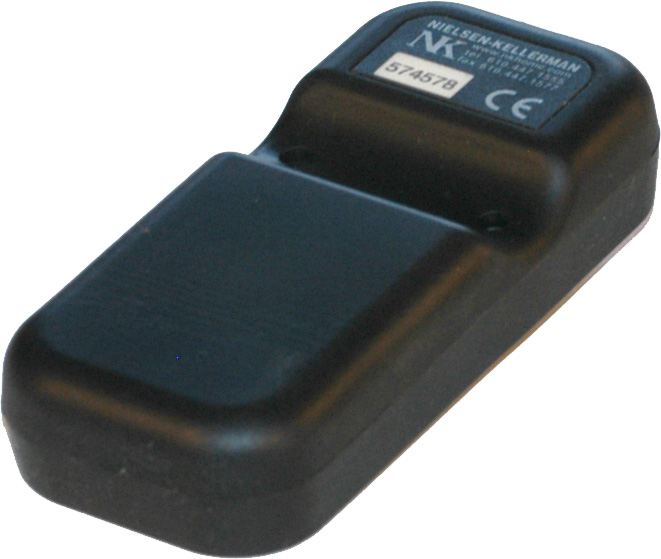

Remote Control

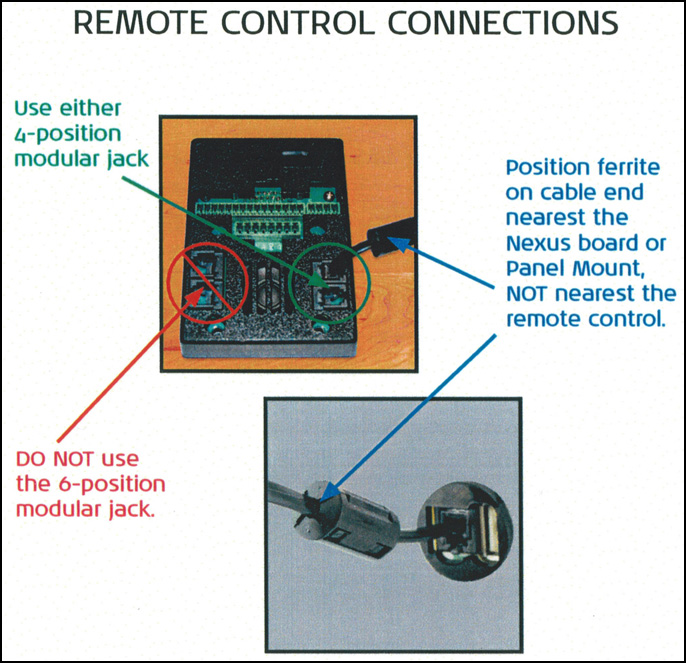

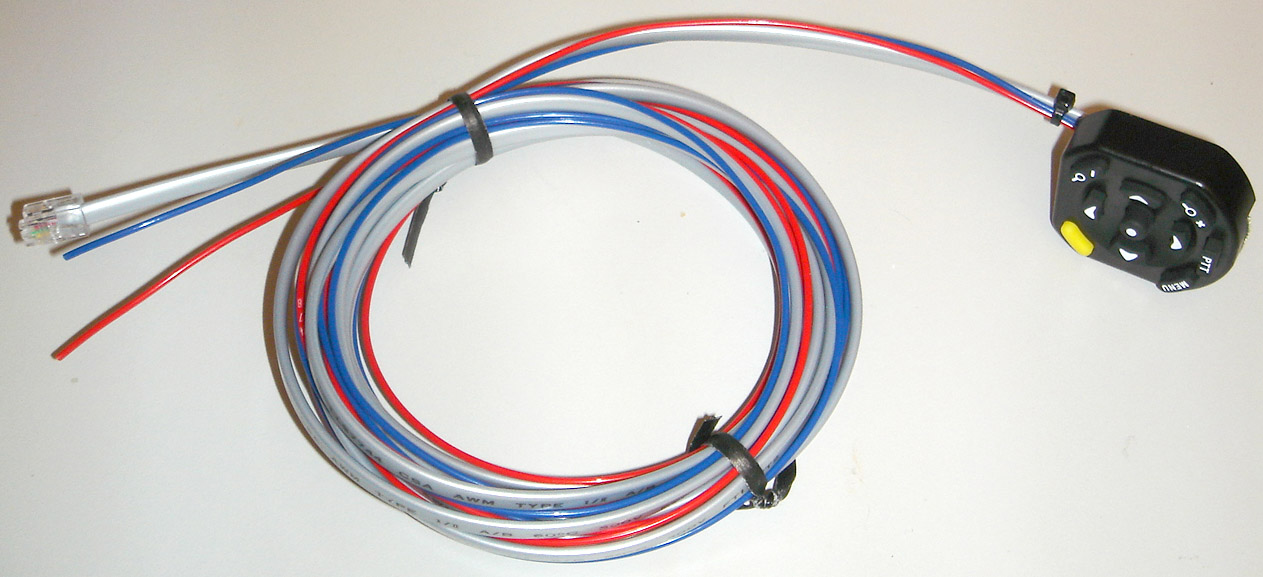

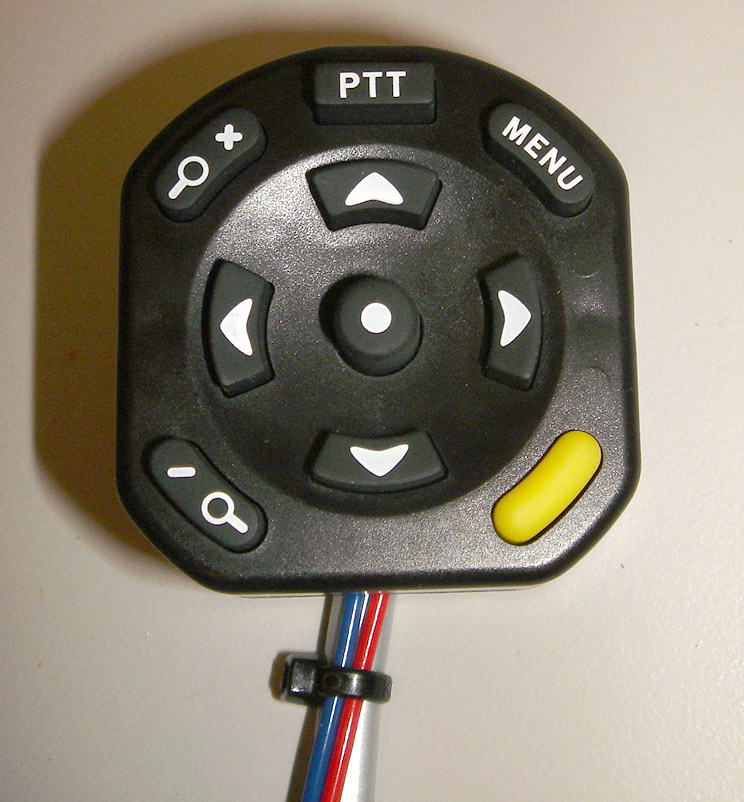

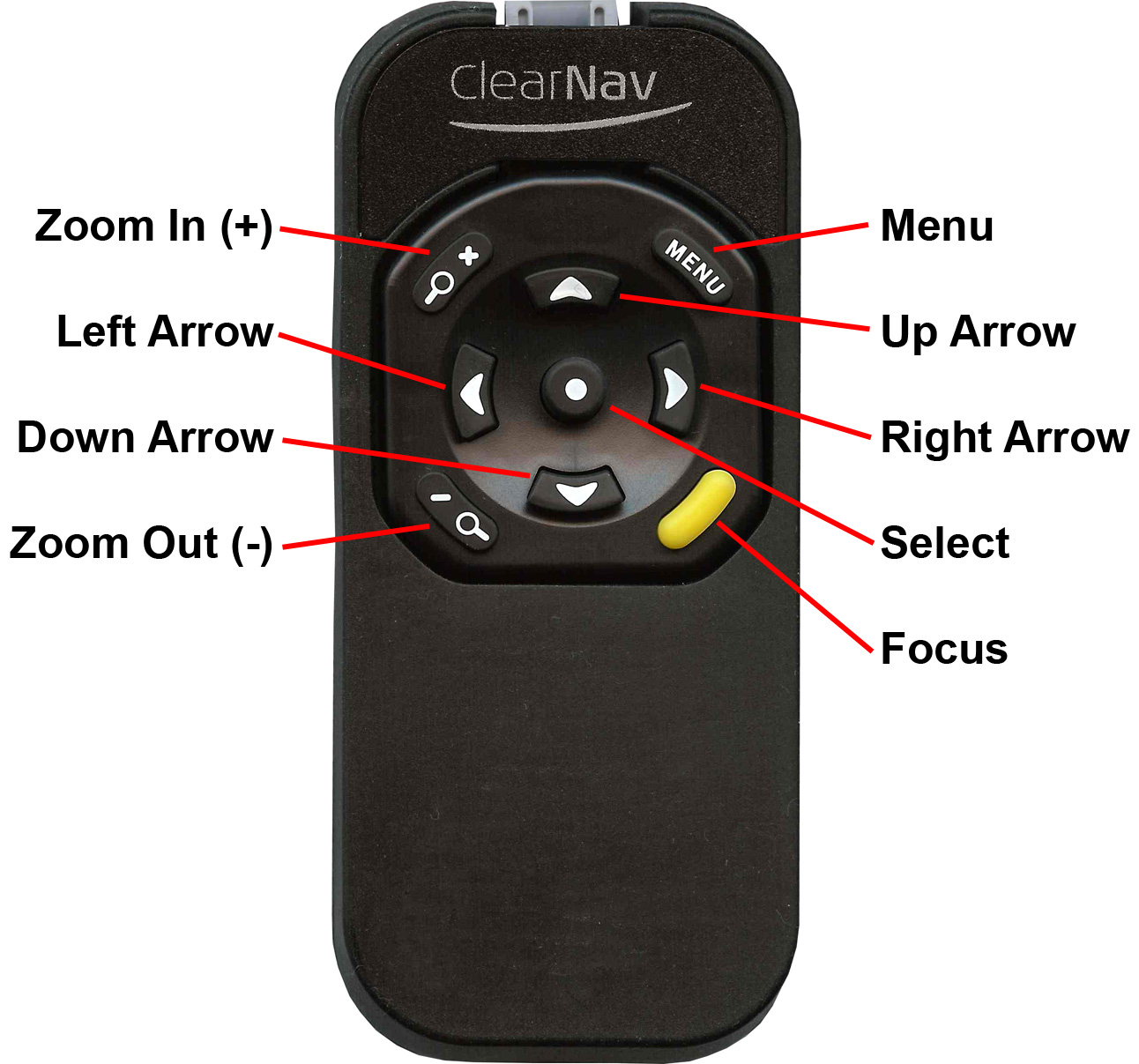

A handheld remote control or stick-mounted remote is used to control the software.  It includes Arrow Keys (Left, Right, Up, Down), Enter, Zoom In, Zoom Out, Focus (yellow), and Menu buttons.  The operation of the buttons is quite intuitive.  The yellow Focus button changes the focus of the software between the user selectable data shown on the bottom of the screen and a black rectangle in on the moving map.  The rectangle can be used to pan the map to view regions outside the current view, or to select items inside the rectangle.  For example, you can use the Arrow Keys to move the rectangle over airports or airspace on the map. Then press the enter key and you can view airport or airspace data or make an airport in the rectangle the active waypoint so you can fly directly to it.  The Ribbon key is used to display and hide the pop-up menu icons.  They are shown and described below. They appear near the top of the screen.

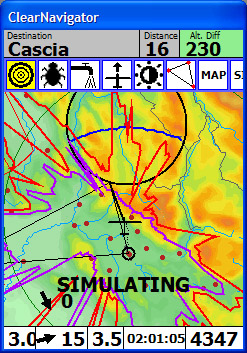

Ribbon Icons (from left to right)

  • Change active waypoint (sorted by distance from current location or by name)
  • Bugs (polar degradation)
  • Water Ballast
  • Map Orientation (North Up or Track Up)
  • Screen Brightness
  • Task Edit
  • Map Settings
  • Simulator Settings (speed, turn rate, altitude)
  • Settings Menu
  • Ribbon Options


Chip Garner (ClearNavigator software designer) playing with his ClearNav prototype at the Region 4 Soaring Contest in 2007

Waypoint and Airspace File Compatibility
The ClearNav comes loaded with maps and elevation data for the entire world.  It supports waypoint files in either the Cambridge (Glide Navigator II) ".dat" format or the SeeYou ".cup" format.  It supports airspace files in the Tim Newport-Peace ".sua" format.  Soaring site data is readily available on the internet at the Worldwide Soaring Turnpoint Exchange.  I often use SeeYou or StrePla to import the latest FAA database of public and private airports and then export a subset of local airports to a Cambridge or SeeYou waypoint file.

What Vario to Use with It?
ClearNav's new variometer will be able to connect to the ClearNav display by April of 2013. That will be the best solution.

The 2nd best option is a Cambridge 302 because the ClearNav can accept airspeed data from the 302.  Many will probably use a Cambridge 302 because it offers many features in a small box. The IGC Approved flight recorder in the 302 is redundant, but it is always nice having an extra flight recorder. The ClearNav now also supports communication with Cambridge L-NAV (or S-NAV) and GPS-NAV combinations.

My Impressions
As stated above, I am very impressed with the product. I am a big fan of Dave Ellis and Chip Garner's "keep it simple - keep it safe" philosophy and the unit seems to keep to that principle well. I love the Glide Amoebas and the Area Task support.  I like that the screen is not overly cluttered and it is easy to hide the terrain data if you want to see only airports, airspace and "culture" data such as rivers, lakes, cities and roads.  The fonts are large and easy to read.

I must admit that 2 design items surprised me at first. I was surprised that the unit is not a touch-screen because I have long been a fan of the simplicity possible with touch-screens. However, I have been told that this compromise was necessary to ensure maximum screen brightness. Touch-screens consist of plastic layers placed between the LCD screen and the operator and they reduce the amount of light that gets to the pilot's eyes. Another reason to do without the touch-screen is that touch-screens are not ideal for use in a glider cockpit - while bumping along in ridge lift. A handheld or stick mounted keypad is a much better option for use in a glider. I have found the keypad solution to be an easy-to-use and intuitive alternative to a touch-screen. A nice side-benefit to the use of a keypad rather than a touch-screen is that there is no need to mount the screen in a location where it is within reach. Often PDAs are mounted on gooseneck or RAM arms to get them closer to the pilot - within reach. That is not necessary with the ClearNav - just mount the handheld remote within reach.

The VGA (480 x 640 pixel) display on the ClearNav is very nice.  The text and maps look very crisp.

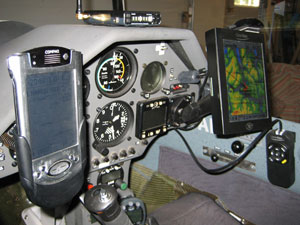

Second Seat Installation
The same mounting options and components are used when installing the ClearNav in the second seat in a 2 -seat glider. Two ClearNav systems installed in one glider will operate completely independently as they each contain a GPS and full functionality. If one ClearNav is connected to a Cambridge 302 for airspeed data, a CANbus extension cable may be used to connect the two Nexus Boards to enable sharing of the airspeed data. Additional data and function sharing may be available in the future.

Conclusions
This is going to be an extremely popular flight computer system.

The online manual is available here:

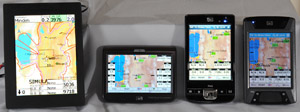

Screen Comparison With Competitive Products

The photo above includes (from left to right): NK ClearNav, iPAQ 310, iPAQ 210, iPAQ hx4700 (backlight getting dimmer as it is 3 years old).  The 3 units on the right are all running SeeYou Mobile software.  Click on the image to see a much larger version.  Note that this photo was taken indoors.  Screen brightness may be quite different outside in direct sunlight, or with the sun behind the units. The ClearNav is by far the brightest.  The iPAQ 310 uses a different screen technology than the iPAQ 210 and iPAQ hx4700 - which may make it better in sunlight.  To make the screen brightness comparison as fair as possible, all 4 devices are showing the same location on the map - Minden, NV.

ClearNav Flight Log Validation Program
The utility program below may be used to validate the security of flight logs generated by NK ClearNav units.  Download it to your PC and run it. To download it, right-click on it and select "Save Target As...".
IGCVerify-NKClearNav.exe


Example Systems

ClearNav II
The ClearNav II is a large, bright, color, navigation display that runs ClearNavigator soaring flight software.  The display has a large and extremely bright screen without the overall dimensions being too large.  I find the remote to be easy to use and the software very intuitive.  The 2 software features that impress me the most are the way area tasks are supported, and the "Glide Amoeba" glide range rings.

Example System with ClearNav

ClearNav II ClearNav Remote
  • ClearNav, $2750, Large, bright, color, navigation display that runs ClearNavigator soaring flight software.

Total Price: $2750


ClearNav II Flight Computer with ClearNav XC Variometer
The ClearNav is a large, bright, color, navigation display that runs ClearNavigator soaring flight software.  The display has a large and extremely bright screen without the overall dimensions being too large.  I find the remote to be easy to use and the software very intuitive.  The 2 software features that impress me the most are the way area tasks are supported, and the "Glide Amoeba" glide range rings.  It works great with the ClearNav variometer.  The ClearNav Flight Computer and ClearNav Variometer communicate over the high-speed CANbus.

Example System with ClearNav II and CNv XC Variometer


ClearNav II

CNi-0643
Cable for connecting the the ClearNav
vario RS-232 serial port to the
ClearNav II Nexus Board serial port.

ClearNav CNv
variometer
with
XC
software
upgrade
  • CNi-0604 - ClearNav II flight computer with color display, $2750
  • CNi-0643 - Cable for connecting the the ClearNav vario RS-232 serial port to the ClearNav MFD Nexus Board serial port., $20

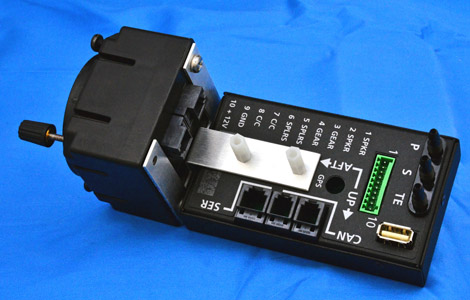

  • CNi-0660 - CNv Variometer with digital pointer, $1450
  • CNi-0628 - CNv XC Software Upgrade (Free with this package)

Total Price: $4220


ClearNav II Flight Computer with ClearNav Variometer and PowerFLARM Core
The ClearNav is a large, bright, color, navigation display that runs ClearNavigator soaring flight software.  The display has a large and extremely bright screen without the overall dimensions being too large.  I find the remote to be easy to use and the software very intuitive.  The 2 software features that impress me the most are the way area tasks are supported, and the "Glide Amoeba" glide range rings.  It works great with the ClearNav variometer.
The ClearNav II displays the FLARM and ADS-B and Mode C/S transponder traffic on its color display and pops-up messages for urgent traffic alerts.

Example System with ClearNav II, CNv XC Variometer and PowerFLARM Core


ClearNav
CNi-0660
Vario System
with Digital Display
and XC Software Upgrade
CNi-0643
Cable for connecting the the ClearNav
vario RS-232 serial port to the
ClearNav II Nexus Board serial port.

ClearNav II

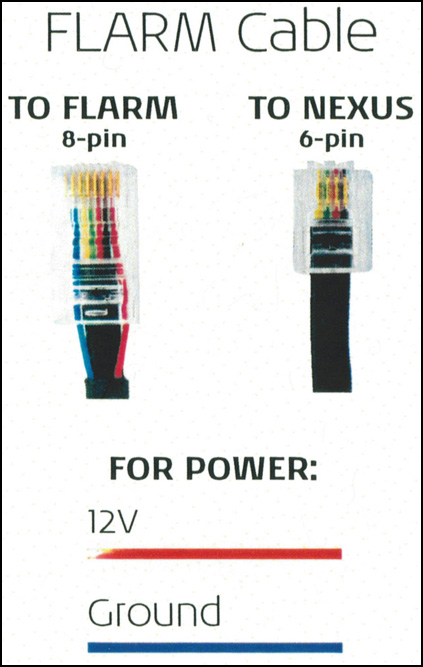

Cable-ClearNav-PFLARMDB9m-1
Cable for connecting the
PowerFLARM Core to the
ClearNav display's Nexus
connection box and 12V power
for powering the PowerFLARM

PowerFLARM Core



  • CNi-0660 - CNv Variometer System with Digital Pointer, $1450
  • CNi-0628 - CNv XC Software Upgrade (Free with this package)
  • CNi-0643 - Cable for connecting the the ClearNav vario RS-232 serial port to the ClearNav MFD Nexus Board serial port., $20
  • CNi-0604 ClearNav II with Bezel Mount ($2750) or CNi-0605 ClearNav II with Tunnel Mount ($2750) or CNi-0607 ClearNav II with On-Panel Mount ($2660)
  • Cable-ClearNav-PFLARMDB9m-1 - Cable for connecting the PowerFLARM Core to the ClearNav display's Nexus connection box and 12V power for powering the PowerFLARM, $60
  • PowerFLARM Core - IGC Approved GPS Flight Recorder and Traffic and Collision Avoidance unit - $1599

Total Price with ClearNav II with Bezel or Tunnel Mount: : $5879
Total Price with ClearNav II with On-Panel Mount: : $5789


Example System with ClearNav CNv Variometer with XC Software Upgrade and Oudie 2
The ClearNav CNv XC variometer has a built-in IGC approved GPS flight recorder and can be used to navigate to waypoints or around tasks. It can also send vario and airspeed data to a Naviter Oudie 2 running SeeYou Mobile software.

Example System with PowerFLARM Core, ClearNav CNv XC vario, K6 Mux, and Oudie 2

ClearNav
CNi-0669
Vario System
with Digital Display
and XC Software Upgrade

Cable-CNv-Oudie-0p1
Cable for connecting a ClearNav CNv variometer to an Oudie-Cable-Kit.
Power is not passed through this cable, data only.

RJ-Coupler-RJ45-RJ45
This is included in the box
with the Oudie

Oudie-Cable-Kit
supplied with Oudie
The cable's RJ45 connector connects to the RJ45 Coupler at left.
The cable is powered with 12V from the glider power system and supplies 5 V power for the Oudie.
Naviter Oudie2
with
SeeYou
Mobile
software
Oudie-Mount-RAM-Arm-Std
RAM Arm Mount with Oudie cradle
  • CNi-0669 - ClearNav XC Variometer System with Digital Pointer and XC Software Upgrade, $1950
  • Cable-CNv-Oudie-0p1 - Cable for connecting a ClearNav CNv variometer to an Oudie-Cable-Kit. Power is not passed through this cable, data only. $45
  • RJ-Coupler-RJ45-RJ45 - This is included in the box with the Oudie.
  • Naviter Oudie2 , with SeeYou Mobile license, Oudie-Cable-Kit with RJ45 Coupler, $625
  • Oudie-Mount-RAM-Arm-Std - RAM Arm Mount with Oudie cradle, $39

Total Price of all the components: $2659

Optional
Other mounting options include the Oudie-Mount-RAM-SCM or a Oudie-Mount-GNeck-Panel or Oudie-Mount-GNeck-RA.
or or


Example System with PowerFLARM Core, ClearNav CNv Variometer with XC Software Upgrade, K6 Mux, and Oudie 2
The ClearNav CNv XC variometer has a built-in IGC approved GPS flight recorder and can be used to navigate to waypoints or around tasks. It can also send vario and airspeed data to a Naviter Oudie 2 running SeeYou Mobile software.  In flight mode the K6 Mux combines the GPS, vario, airspeed and wind data from the CNv XC with FLARM traffic data from the PowerFLARM and sends it to the Oudie 2.  In "communication with PowerFLARM" mode the Oudie2 can send flight declarations to the PowerFLARM.  In "communication with CNv" mode the Oudie can send flight declarations to the CNv (once the CNv supports that function).  The K6 Mux also does baud rate conversions.  The CNv communicates with the K6 Mux at 4800 baud.  The PowerFLARM communicates with the K6 Mux at 19200 baud.  The K6 Mux communicates with the Oudie 2 at 19200 baud.

Example System with PowerFLARM Core, ClearNav CNv XC vario, K6 Mux, and Oudie 2
PowerFLARM Core Cable-K6Mux-FLARM-DB9m-0p3
Cable for connecting a PowerFLARM Core's DB-9 port to the K6 Mux.
This cable passes 12V power from the K6 Mux to the FLARM.

ClearNav
CNi-0669
Vario System
with Digital Display
and XC Software Upgrade

Cable-K6Mux-CNv-0p3
Cable for connecting a ClearNav CNv variometer to a K6 Mux.
Power is not passed through this cable, data only.
K6 Mux
4-port data multiplexer and baud rate converter
Oudie-Cable-Kit
supplied with Oudie
The cable's RJ45 connector plugs directly into the K6 Mux's output port.
The cable is powered with 12V from the glider power system and supplies 12V power for the K6 Mux and PowerFLARM (through the K6 Mux) and 5 V power for the Oudie.
Naviter Oudie2
with
SeeYou
Mobile
software
Oudie-Mount-RAM-Arm-Std
RAM Arm Mount with Oudie cradle
  • PowerFLARM Core - IGC Approved GPS Flight Recorder and Traffic and Collision Avoidance unit - $1599
  • Cable-K6Mux-FLARM-DB9m-0p3, Cable for connecting a PowerFLARM Core's DB-9 port to the K6 Mux. This cable passes 12V power from the K6 Mux to the FLARM. $45
  • CNi-0669 - ClearNav XC Variometer System with Digital Pointer and XC Software Upgrade, $1950
  • Cable-K6Mux-CNv-0p3, Cable for connecting a ClearNav CNv variometer to a K6 Mux. Power is not passed through this cable, data only. $45
  • K6 Mux, 4-port data multiplexer and baud rate converter, $165
  • Setup of K6 Mux, The K6 Mux must be configured to work with the devices as desired.  You can do this yourself, or I can do it for you for $20.
  • Naviter Oudie2 , includes SeeYou Mobile license which is tied to the Oudie, $625
  • Oudie-Mount-RAM-Arm-Std - RAM Arm Mount with Oudie cradle, $39

Total Price of all the components: $4488

Optional
Other mounting options include the Oudie-Mount-RAM-SCM or a Oudie-Mount-GNeck-Panel or Oudie-Mount-GNeck-RA.
or or


How to Order
To order a product, click on the
button next to the product.
When you are ready to complete your order, click on the
button.
Click on the small images to view larger versions.

Part # Description Photo
Click on image to view larger version

Price

Lead-time

CNi-0620

ClearNav Variometer System with Analog Display
The ClearNav variometer has been receiving very positive reviews from glider pilots around the world. It is a state-of-the-art digital variometer.

Note: This version of the CNv vario does not support the new Thermal Assistant feature that is available in the CNi-0660-XC LCD version of the vario (see below). The CNi-0660-XC version is therefore recommended over this version.

Note: The CNi-0668 is a discounted package which includes:

  • CNi-0620, Club Vario System with Analog Display, $1550
  • CNi-0628, XC Software license upgrade, $600
  • Discount: -$100
  • Total: $2050

ClearNav Vario with Mechanical Pointer
Overview Video, by Paul Remde


ClearNav Vario with Mechanical Pointer
Duration: 22+ minutes
One of 80+ videos in the Soaring Product Training series
You can rent this video for 30 days for $3, or buy it for $10, or rent the entire Soaring Product Training series for $60 for one year.

Upgradeable Functionality With a Simple Software Upgrade
One of the design goals was to be able to supply an upgradeable variometer system that can be upgraded easily.  The design team has met that goal, but rather than have hardware upgrades on the shelf at the factory, they have decided to put the full package of sensors and options into every unit.  Users will pay for only the features they want.  For example, a user could start with a basic unit, then, when they want to upgrade and enable some hardware of software function in the future, they simply buy a software upgrade that is tied to their unit's serial number - enabling any features and pre-installed hardware they desire.  The software upgrade is downloaded to a USB Flash Drive and plugged into the variometer.  It's that simple.  There shouldn't be any need to send the unit back to the factory, because all the hardware is pre-installed when the unit is first shipped - regardless of what set of features are enabled.

I am very excited about the ease of upgrade of the new variometer.  You can buy a simple speed-to-fly vario and upgrade it at any time to a powerful unit with built-in task navigation, PDA support, ClearNav MFD support, and an IGC approved flight recorder - with a simple software download and USB Flash Drive.  Cool!

Note: Please buy the software upgrades from me.  The price will be the same as buying it directly from ClearNav.

The CNv Club variometer includes:

  • TE audio vario
    Fast response with digital filters and user-selected time constants
  • Speed-to-Fly
    Audio tones and display provide feedback for best STF
  • Mechanical pointer
    Still the most effective way to display both magnitude and rate of change
  • High resolution, high contrast backlit graphical display
    Long and short averages of climb and netto and many other parameters
  • Get-home navigation ***
    Glideslope and vectors to the home field with wind correction
  • Wind data ***
    Head and tail winds, graphical and numeric wind
  • Suction (TE probe) or electronic (Pitot and Static) options ***
  • Pnematic TE Compensation with TE Probe
  • Electronic TE Compensation ***
  • In-flight adjustment of TE probe ***
    If the TE probe is under compensating it can be easily adjusted
  • Multi-coated low reflection window for maximum visibility
  • Easy update using USB Flash drive
  • 57 MM size
  • Easy to use
    One knob selects screens, the other screen values, graphical UI
  • PC utility
    Polar entry, netto or relative netto behavior, STF deadband etc can all be set using a configurator program. This program can also control which of many screens appear in flight, and the order in which they appear.
  • Upgradeable at any time to CNv Cross Country version
    You can purchase an upgrade that is tied to the serial number of the unit to upgrade it to a CNv Cross Country.
ClearNav Vario Comparison
The System
  CNv Club CNv Cross Country
Air Data Computer
Display and Controller
Profile Editor
Simple User Interface
ClearNav MFD (multi-function display) Integration
Features
  CNv Club CNv Cross Country
Total Energy
Speed-to-Fly
Wind
Get Home Navigation to take-off site
Pneumatic TE Compensation (with TE probe)
Electronic TE Compensation
Secure Flight Recorder
Task Management
CAI Dataport (ability to send data out the serial port to a PDA)
In-Flight Information and Settings Screens
  CNv Club CNv Cross Country
Netto and Relative Netto
Voltmeter
MacCready Value
Volume (audio)
Ballast
Bugs
Speeds
Altitudes
Outside Air Temperature
Other Settings
  CNv Club CNv Cross Country
Time Constants
Dry Weight Adjust
Local Time
Polar
Backlight
Tools and Information
  CNv Club CNv Cross Country
Units
GPS
Flight Logs
Logbook
Pointer Zero
Software Updates
Other Features
  CNv Club CNv Cross Country
Cruise/Climb Switching
Alarms

Package Discount
Customers that buy the CNv Club Vario at the same time as a ClearNav MFD will receive the XC Upgrade (worth $500) for free.

It consists of 2 components:

  • Air Data Computer (ADC)
    Black box mounted to the back of the variometer or remotely mounted

  • Display
    Variometer display head mounted in the instrument panel.  The display can also be used as a 2nd-seat repeater.

Main Features

  • Flexible two-piece design with all sensors and most of the processing power in a formed aluminum enclosure (the Air Data Computer or ADC) and the display in a separate injection molded plastic enclosure. The two are connected with a CANbus cable, allowing the ADC to be mounted either on the rear of the display module, or wherever convenient.
  • State-of-the-art sensors:
  • pressure (pitot, static, and T.E.)
  • three-axis accelerometer
  • two axis rate sensor
  • three-axis magnetometer
  • five Hertz GPS receiver
  • High-visibility mechanical pointer driven by a stepper motor,
  • Dot-matrix LCD
  • 2 rotate/push control knobs
  • ADC and display software field-upgradeable.
  • Fully compatible with ClearNav.
  • The display module also acts as a repeater for two-seat installations.
    57 MM (2 ¼”) display size fits any panel.
    T.E. available either from a suction probe or using pitot and static.
  • In-flight fine tuning of T.E. suction compensation.
  • ADC is highly configurable and provides scalable capability from an entry level basic T.E. vario for club use to a fully featured racing vario including Speed-to-Fly, enhanced wind vector calculations, acceleration corrections to T.E., and a secure flight recorder.
  • Display module also highly configurable with in-flight user control of:
    • Time constants (LCD, pointer and audio)
    • Displayed parameters:
      • Netto
      • T.E. (total energy variometer)
      • Relative netto
      • Smart averager
      • bottom-to-now climb
    • Bugs,ballast, MC, volume
    • Profiles (set up profiles on the ground, instantly select one in flight)

Additional features

  • Smart gear and spoiler warning support
  • Emergency power connections
  • Configurable manual cruise climb switch
  • Automatic volume control

Connectivity

  • CANbus (2)
  • Serial (1)
  • USB host (1)

Both the CANbus and serial ports can be configured to make available any and all of the sensor outputs. This will make it easy for users who choose not to use a ClearNav flight Computer to take full advantage of all of the ClearNav vario features.

Manuals and Other Documents on ClearNav web site
NAV Display Online Manual
CNv Vario Online Manual
CNv XC Online Manual
CNv Vario Overview






Red Needle: 3.0 knots (instantaneous)
20 second average: 3.7 knots
Thermal Average: 2.9 knots

The "0:20" on the top left indicates that the number on the top right is a short term (20 second) average.
The lower left number "00:48" is the time in the current thermal.  The number to its right is the thermal average.


3D model with the scale faceplate and control knobs visible.  The vario is supplied with 2 versions of the faceplate - one in knots and one in m/s.  The unit can be installed without the scale faceplate if desired.

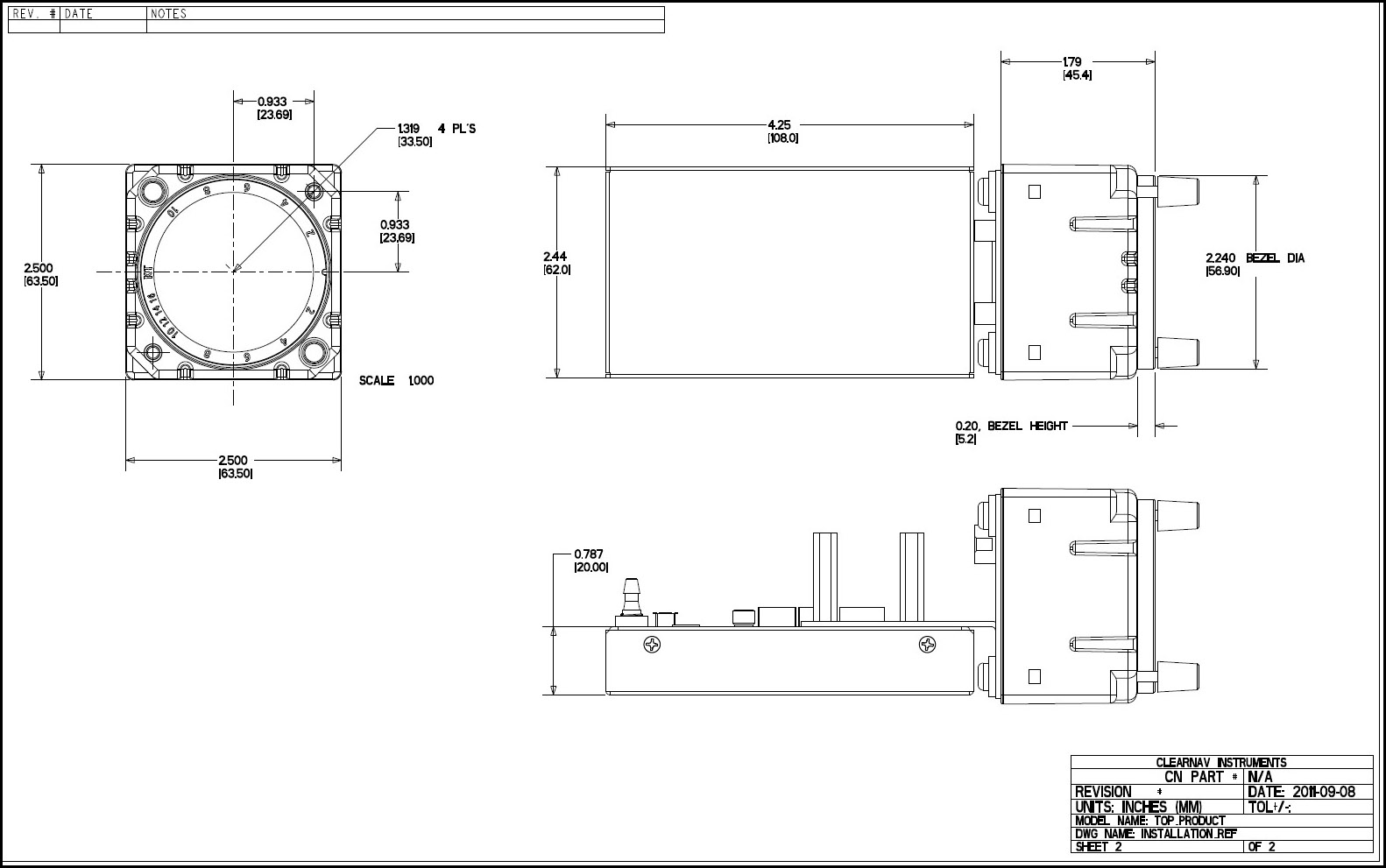

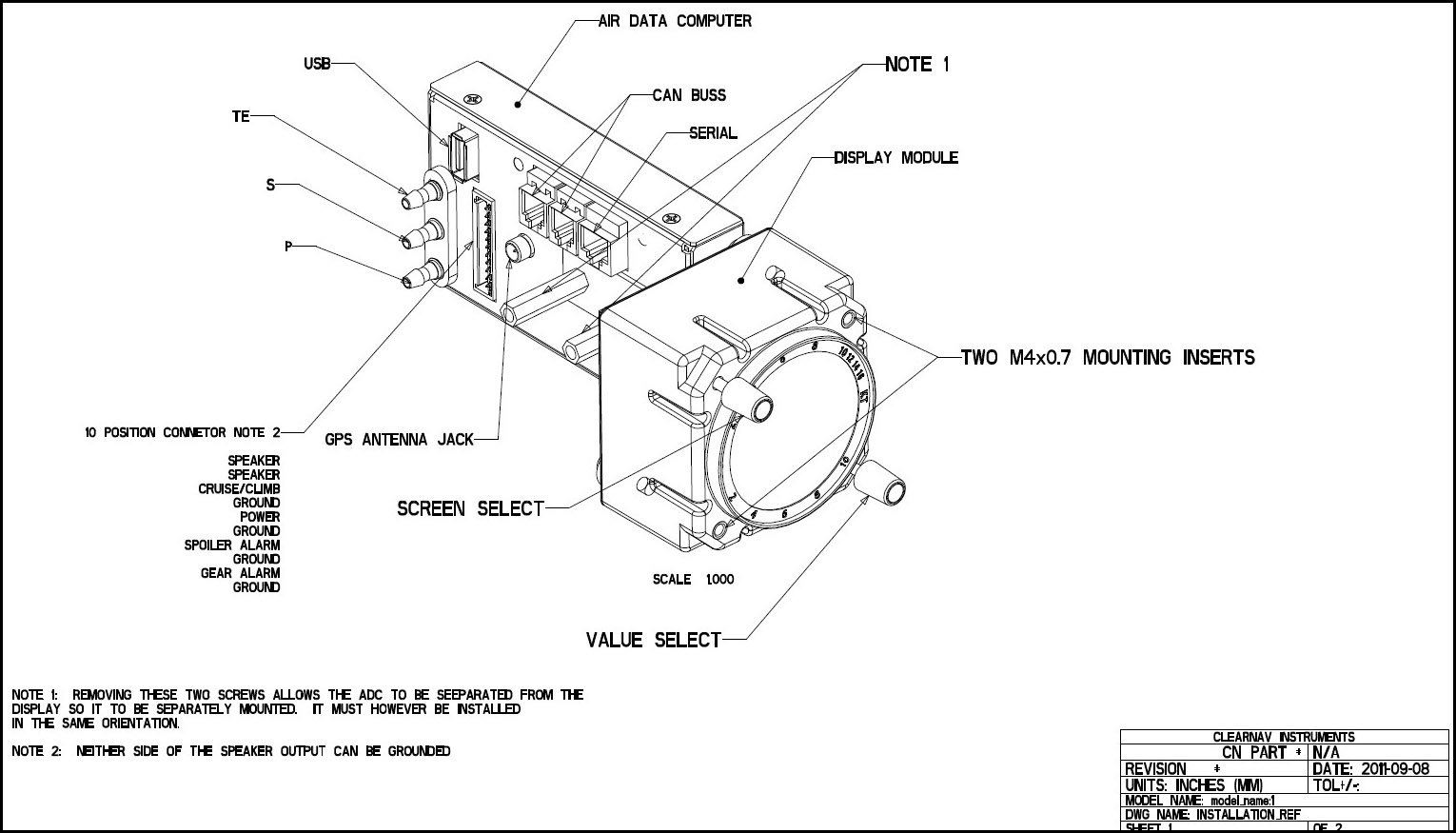

ClearNavVarioDrawings.pdf

CNi-0620: $1550

CNi-0668: $2050
(CNi-0620 vario
and CNi-0628
XC software upgrade)

In Stock


Club Vario with Analog Display
CNi-0620: $1550


XC Vario with Analog Display
CNi-0668: $2050

CNi-0660

ClearNav Variometer System with Digital Display (no mechanical pointer)
The ClearNav variometer has been receiving very positive reviews from glider pilots around the world. It is a state-of-the-art digital variometer.

Note: The CNi-0669 is a discounted package which includes:

  • CNi-0660, Club Vario System with Digital Display, $1450
  • CNi-0628, XC Software license upgrade, $600
  • Discount: -$100
  • Total: $1950

ClearNav Vario with LCD Display - 1 of 2
Overview Video, by Paul Remde


ClearNav Vario with LCD Display - 1 of 2
Duration: 25+ minutes
One of 80+ videos in the Soaring Product Training series
You can rent this video for 30 days for $3, or buy it for $10, or rent the entire Soaring Product Training series for $60 for one year.

ClearNav Vario with LCD Display - 2 of 2 - Thermal Assistant
Overview Video, by Paul Remde


ClearNav Vario with LCD Display - 2 of 2 - Thermal Assistant
Duration: 7+ minutes
One of 80+ videos in the Soaring Product Training series
You can rent this video for 30 days for $3, or buy it for $10, or rent the entire Soaring Product Training series for $60 for one year.

ClearNav has been working hard and has made major improvements to the CNv variometer with LCD display. The latest software version features a new Thermal Assistant as well as new signal processing with noise rejection and "inertial principles" which make it faster while remaining easy-to-use in flight. The vario has been receiving rave reviews from experienced soaring pilots around the world. The built-in GPS provides the GPS position 5 times every second (most varios only receive GPS position once each second) - which helps explain why the Thermal Assistant is so extremely useful. Experienced soaring pilots who never thought they would find a Thermal Assistant useful are fans of the new feature - it really is amazing! You can see the new Thermal Assistant in the image below. In the image, the glider is on the right and circling to the left. The scale on the left side of the screen is the variometer scale. The glider has just gone through some sink at the edge of the thermal. As the glider continues to circle to the left, the cylindrical thermal strength graph rotates to the right (clockwise) while the glider icon remains stationary. The black arrow points to the strongest part of the thermal. The dashed line indicates when the pilot may want to roll to wings level for a second or two. The lead angle of the dashed line is user configurable. The length of the black arrow indicates how much of a centering correction is recommended. Note: The new Thermal Assistant is only available on CNv varios with the LCD display (the version without a mechanical pointer) and XC software upgrade. Customers with the CNv variometer head with mechanical pointer may want to upgrade to the LCD version so they can take advantage of the new Thermal Assistant feature. With the 25% off sale - now is the perfect time to upgrade. New software enhancements to the moving map screen are also in the works for release soon.

This version of the CNv variometer includes the high-resolution LCD display. The vario scale is displayed graphically on the LCD display instead of using a mechanical pointer. It can do everything that the version with mechanical pointer can do - plus it can display a moving map with waypoints, tasks and sectors (no airspace or terrain).

Upgradeable Functionality With a Simple Software Upgrade
One of the design goals was to be able to supply an upgradeable variometer system that can be upgraded easily.  The design team has met that goal, but rather than have hardware upgrades on the shelf at the factory, they have decided to put the full package of sensors and options into every unit.  Users will pay for only the features they want.  For example, a user could start with a basic unit, then, when they want to upgrade and enable some hardware of software function in the future, they simply buy a software upgrade that is tied to their unit's serial number - enabling any features and pre-installed hardware they desire.  The software upgrade is downloaded to a USB Flash Drive and plugged into the variometer.  It's that simple.  There shouldn't be any need to send the unit back to the factory, because all the hardware is pre-installed when the unit is first shipped - regardless of what set of features are enabled.

I am very excited about the ease of upgrade of the new variometer.  You can buy a simple speed-to-fly vario and upgrade it at any time to a powerful unit with built-in task navigation, PDA support, ClearNav MFD support, and an IGC approved flight recorder - with a simple software download and USB Flash Drive.  Cool!

Note: Please buy the software upgrades from me.  The price will be the same as buying it directly from ClearNav.

The CNv variometer includes:

  • TE audio vario
    Fast response with digital filters and user-selected time constants
  • Speed-to-Fly
    Audio tones and display provide feedback for best STF
  • Mechanical pointer
    Still the most effective way to display both magnitude and rate of change
  • High resolution, high contrast backlit graphical display
    Long and short averages of climb and netto and many other parameters
  • Get-home navigation ***
    Glideslope and vectors to the home field with wind correction
  • Wind data ***
    Head and tail winds, graphical and numeric wind
  • Suction (TE probe) or electronic (Pitot and Static) options ***
  • Pnematic TE Compensation with TE Probe
  • Electronic TE Compensation ***
  • In-flight adjustment of TE probe ***
    If the TE probe is under compensating it can be easily adjusted
  • Multi-coated low reflection window for maximum visibility
  • Easy update using USB Flash drive
  • 57 MM size
  • Easy to use
    One knob selects screens, the other screen values, graphical UI
  • PC utility
    Polar entry, netto or relative netto behavior, STF deadband etc can all be set using a configurator program. This program can also control which of many screens appear in flight, and the order in which they appear.
  • Upgradeable at any time to CNv Cross Country version
    You can purchase an upgrade that is tied to the serial number of the unit to upgrade it to a CNv Cross Country.
ClearNav Vario Comparison
The System
  CNv Club CNv Cross Country
Air Data Computer
Display and Controller
Profile Editor
Simple User Interface
ClearNav MFD (multi-function display) Integration
Features
  CNv Club CNv Cross Country
Total Energy
Speed-to-Fly
Wind
Get Home Navigation to take-off site
Pneumatic TE Compensation (with TE probe)
Electronic TE Compensation

Thermal Assistant (LCD display version only)


Secure Flight Recorder
Task Management
CAI Dataport (ability to send data out the serial port to a PDA)
In-Flight Information and Settings Screens
  CNv Club CNv Cross Country
Netto and Relative Netto
Voltmeter
MacCready Value
Volume (audio)
Ballast
Bugs
Speeds
Altitudes
Outside Air Temperature
Other Settings
  CNv Club CNv Cross Country
Time Constants
Dry Weight Adjust
Local Time
Polar
Backlight
Tools and Information
  CNv Club CNv Cross Country
Units
GPS
Flight Logs
Logbook
Pointer Zero
Software Updates
Other Features
  CNv Club CNv Cross Country
Cruise/Climb Switching
Alarms

Package Discount
Customers that buy the CNv Club Vario at the same time as a ClearNav MFD will receive the XC Upgrade (worth $500) for free.

It consists of 2 components:

  • Air Data Computer (ADC)
    Black box mounted to the back of the variometer or remotely mounted

  • Display
    Variometer display head mounted in the instrument panel.  The display can also be used as a 2nd-seat repeater.

Main Features

  • Flexible two-piece design with all sensors and most of the processing power in a formed aluminum enclosure (the Air Data Computer or ADC) and the display in a separate injection molded plastic enclosure. The two are connected with a CANbus cable, allowing the ADC to be mounted either on the rear of the display module, or wherever convenient.
  • State-of-the-art sensors:
  • pressure (pitot, static, and T.E.)
  • three-axis accelerometer
  • two axis rate sensor
  • three-axis magnetometer
  • five Hertz GPS receiver
  • High-visibility mechanical pointer driven by a stepper motor,
  • Dot-matrix LCD
  • 2 rotate/push control knobs
  • ADC and display software field-upgradeable.
  • Fully compatible with ClearNav.
  • The display module also acts as a repeater for two-seat installations.
    57 MM (2 ¼”) display size fits any panel.
    T.E. available either from a suction probe or using pitot and static.
  • In-flight fine tuning of T.E. suction compensation.
  • ADC is highly configurable and provides scalable capability from an entry level basic T.E. vario for club use to a fully featured racing vario including Speed-to-Fly, enhanced wind vector calculations, acceleration corrections to T.E., and a secure flight recorder.
  • Display module also highly configurable with in-flight user control of:
    • Time constants (LCD, pointer and audio)
    • Displayed parameters:
      • Netto
      • T.E. (total energy variometer)
      • Relative netto
      • Smart averager
      • bottom-to-now climb
    • Bugs,ballast, MC, volume
    • Profiles (set up profiles on the ground, instantly select one in flight)

Additional features

  • Smart gear and spoiler warning support
  • Emergency power connections
  • Configurable manual cruise climb switch
  • Automatic volume control

LCD Display Features

  • Graphical moving map display with waypoints and turn sectors *** Currently TP geometry is limited to FAI sectors and 0.5 km circles. Cylinders are not yet available for start, finish or turn areas. Airspace it not displayed. More turn area types and perhaps airspace will be added in the future.
  • Simple user-interface with 5 push-buttons
  • Super high-contrast reflective LCD display with low power consumption and wide operating temperature range
  • In climb mode the short-term variometer average (normally 2 to 3 seconds) is shown graphically using the triangle on the left side of the screen.
  • In climb mode the total average thermal climb rate (vertical bar) is displayed on the left side of the screen.
  • In climb mode the 20 second and thermal averages are displayed numerically in large fonts at the top center of the screen.
  • Graphical final glide is displayed on the right side of the screen in the cruise and climb screens
  • Speed-to-fly (push/pull) is displayed graphically on the left side of the screen in climb mode.
  • Final glide arrival altitude, distance to goal and turn arrows are displayed

LCD Display Specifications

  • Mounts in a standard 57 mm (2 1/4") instrument hole
  • 2.6 x 2.6 x 0.625" (66 x 66 x 16 mm)
  • Weight: 2.3 oz (65 g)
  • Screen Size: 2.7" (68 mm) diagonal
  • Resolution: 400 x 240 pixels
  • Operating Temperature: -20° to 70°C (-4° to 158°F)
  • Power: 70 mA typical

Connectivity

  • CANbus (2)
  • Serial (1)
  • USB host (1)


Manuals and Other Documents on ClearNav web site

NAV Display Online Manual
CNv Vario Online Manual
CNv XC Online Manual
CNv Vario Overview


ADC


Thermal Assistant
(XC Upgraded Version)


Climb Mode


Cruise Mode with STF at left


Waypoint Selection
(XC Upgraded Version)


Waypoint Selection
(XC Upgraded Version)


Menu


Task Selection
(XC Upgraded Version)


Task Edit
(XC Upgraded Version)


Moving Map
(XC Upgraded Version)


Moving Map
(XC Upgraded Version)


Moving Map with Task Visible
(zoomed way out)
(XC Upgraded Version)


Moving Map
with Details at right
(XC Upgraded Version)


Moving Map
with Map Orientation Selection
(XC Upgraded Version)


Moving Map
in Pan/Zoom Mode
(XC Upgraded Version)


XC Upgraded Version


CNi-0660: $1450

CNi-0669: $1950
(CNi-0660 vario
and CNi-0628
XC software upgrade)

In Stock


Club Vario with Digital Display
CNi-0660: $1450



XC Vario with Digital Display
CNi-0669: $1950

CNi-0628

ClearNav CNv Cross Country (XC) License Pack
Upgrade your ClearNav CNv or CNv Nav Vario to XC (Cross Country) functionality. Adds secure flight recorder and task declaration displays. Provides navigation displays and task editing and serial data out to drive external navigation displays.

Select "Free Shipping" at checkout

In addition to all the features found in the ClearNav CNv Club Vario, the XC Software offers the following features.

  • Secure GPS flight recorder to the highest IGC approval level
  • Thermal Assistant (LCD version only)
  • Cambridge Dataport
    To ensure easy and immediate compatibility with existing soaring flight software products, ClearNav is using the proven serial port data protocols developed for the Cambridge 302.  Therefore, all soaring flight software will work great with the CNv Cross Country by simply telling the soaring flight software that you are connected to a Cambridge 302.  This should work for exchanging MacCready, bugs and ballast data as well as task declaration uploads and flight log downloads.  This will make it an excellent "drop in" replacement for a 302.
  • ClearNav MFD Support
    The CNv Cross Country will be able to communicate with the ClearNav MFD over the high-speed CANbus port (eventually - serial port support at this time). This will allow data to be sent between the two units very quickly. Vario and airspeed and wind data will be sent from the vario to the display and MacCready, Bugs and Ballast will be exchanged in both directions.
  • Task Management
    - Completely autonomous operation provides a backup to allow task completion without the MFD if necessary

    - Task and active waypoint are synchronized with ClearNav MFD
  • Outside Air Temperature
  • GPS Ground Speed
  • Airspeed
  • True Airspeed
  • Altimeter

Package Discount
Customers that buy the ClearNav Vario at the same time as a ClearNav MFD will receive the XC Upgrade (worth $600) for free.

Manual
CNv XC Online Manual



$600 In Stock

AddToCartButton
CNi-0628
$600

CNi-0622

ClearNav Variometer Display with Analog Pointer and 2 Control Knobs
Variometer display for use with ClearNav variometer. This is a display only. Order it here if you are adding it to an existing variometer system. It is available above as part of a complete variometer system. Multiple displays can be connected to a single CNv variometer ADC unit.

Features

  • Stepper motor driven mechanical pointer
  • High-contract LCD display
  • 2 control knobs with rotate and push functionality

Specifications

  • Mounts in a standard 57 mm (2 1/4") instrument hole
  $650 In Stock
CNi-0625

ClearNav Variometer Display with Digital Pointer and 5 Push-buttons
Variometer display for use with CNv variometer. This is a display only. Order it here if you are adding it to an existing variometer system. It is available above as part of a complete variometer system. Multiple displays can be connected to a single CNv variometer ADC unit.

Note: This unit is not supplied with a mounting bracket for connection directly to an ADC unit. It is desinged for remote mounting. A mounting bracket for connection to an ADC unit is supplied when this display is ordered as part of a complete CNv variometer kit.

Features

  • Graphical moving map display with waypoints and turn sectors *** Currently TP geometry is limited to FAI sectors and 0.5 km circles. Cylinders are not yet available for start, finish or turn areas. Airspace it not displayed. More turn area types and perhaps airspace will be added in the future.
  • Simple user-interface with 5 push-buttons
  • Super high-contrast reflective LCD display with low power consumption and wide operating temperature range
  • In climb mode the short-term variometer average (normally 2 to 3 seconds) is shown graphically using the triangle on the left side of the screen.
  • In climb mode the total average thermal climb rate (vertical bar) is displayed on the left side of the screen.
  • In climb mode the 20 second and thermal averages are displayed numerically in large fonts at the top center of the screen.
  • Graphical final glide is displayed on the right side of the screen in the cruise and climb screens
  • Speed-to-fly (push/pull) is displayed graphically on the left side of the screen in climb mode.
  • Final glide arrival altitude, distance to goal and turn arrows are displayed

Specifications

  • Mounts in a standard 57 mm (2 1/4") instrument hole
  • 2.6 x 2.6 x 0.625" (66 x 66 x 16 mm)
  • Weight: 2.3 oz (65 g)
  • Screen Size: 2.7" (68 mm) diagonal
  • Resolution: 400 x 240 pixels
  • Operating Temperature: -20° to 70°C (-4° to 158°F)
  • Power: 70 mA typical

Manual
NAV Display Online Manual


XC Upgraded Version


XC Upgraded Version

$550 In Stock


CNi-0604

ClearNav II System Kit - Bezel Mount
The ClearNav MFD is a large, bright, color, navigation display that runs ClearNavigator soaring flight software. The system kit includes everything required for operation and mounting on the back of the instrument panel.

The instrument ships with the bezel bonded to the display and attaches to the panel with four M4 x 0.7 screws which engage in the tapped holes.

ClearNav II Soaring Flight Computer
Overview Video, by Paul Remde


ClearNav II Soaring Flight Computer
Duration: 20+ minutes
One of 80+ videos in the Soaring Product Training series
You can rent this video for 30 days for $3, or buy it for $10, or rent the entire Soaring Product Training series for $60 for one year.

Included

  • ClearNav II display unit with ClearNavigator Software
  • CNi-0610 - Handheld Remote Control
  • CNi-0640 - GPS antenna

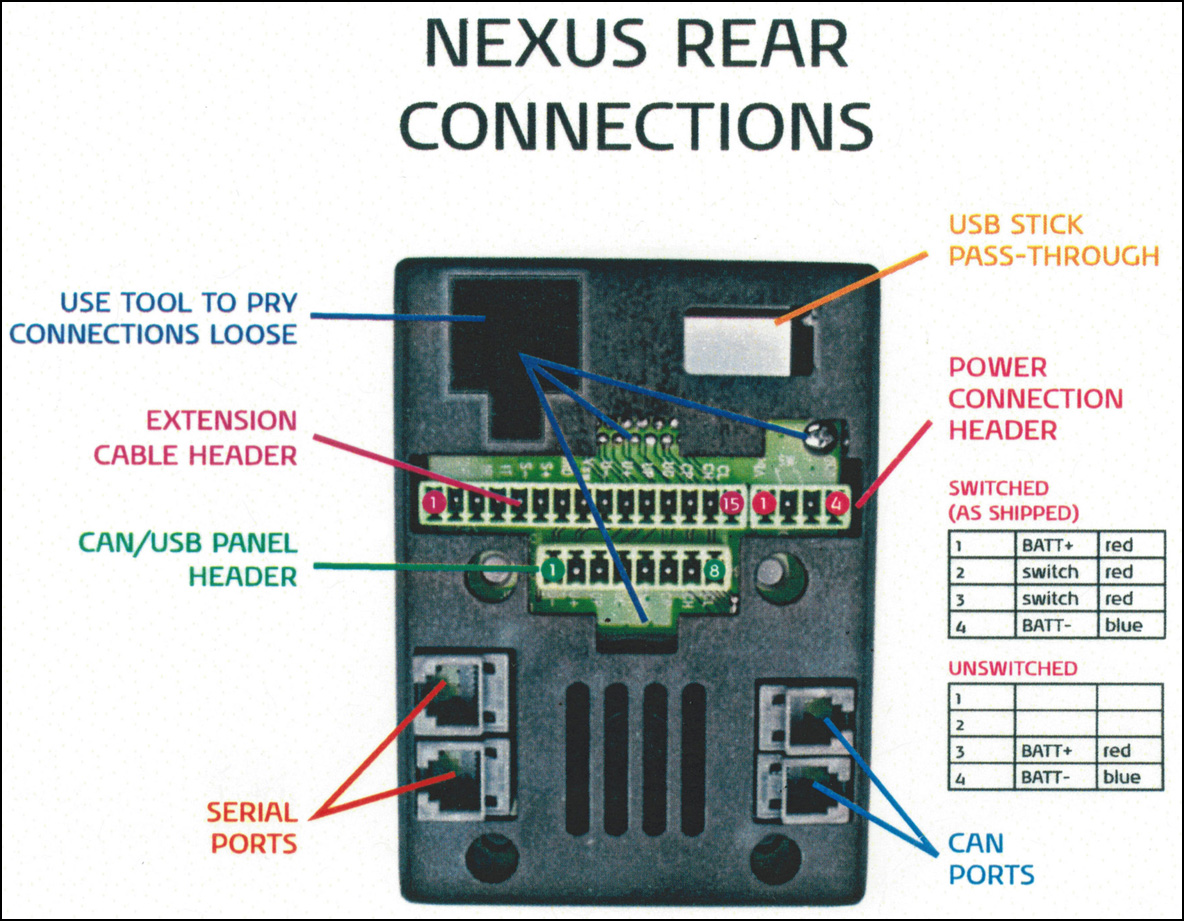

  • CNi-0641 - Nexus Junction Box and hookup wires

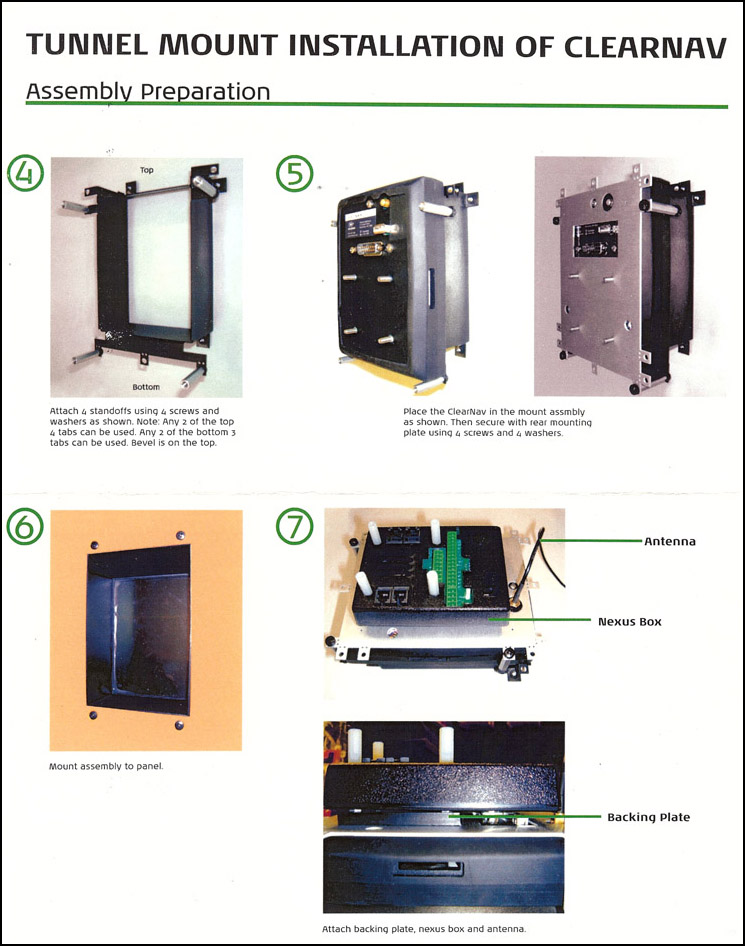

  • "Behind Panel" mounting hardware and instructions - For mounting the ClearNav so it is mounted on the back side of the instrument panel.

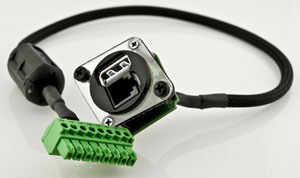

  • CNi-0651 - Panel Mounted USB/Remote Extension
  • USB Flash Drive
  • Quick-Reference Card
  • Calibration Data Sheet

This assembly is the one most customers will order. Even if you are planning to use the RAM mounting option, you will want to buy this kit.

The Online Manual is available here:

New ClearNav Quick Reference Cards
The new Quick Reference cards are available here:
http://www.clearnav.net/main/cn-downloads.html

New ClearNav Software and Firmware
You can download the latest ClearNav software and firmware here:
http://www.clearnav.net/main/cn-downloads.html

PC Simulator
The PC ClearNav Simulator makes it possible to try out the ClearNav on your computer.  It is also a great way to "brush up" on the ClearNav software over the winter - or before a flight.  However, although the PC ClearNav Simulator is very handy, it is much easier to use the ClearNav's handheld remote (connected to a ClearNav) than it is to use your PC keyboard and the PC ClearNav Simulator.  The buttons on the handheld remote are easy to identify and use with your thumb.  I recommend printing the image at right to use as a reference when using the simulator.  To print it: right click on it and select "Print Picture".  You can download the PC Simulator here:
http://www.clearnav.net/main/cn-simulator.html

Printable Manual
It was never quite finished, but the ClearNav Manual I wrote is still available.  It is a large document, but it is a handy reference and good learning tool. Section on flying turn area tasks is very informative. It is no longer available online but I can make it available to you using YouSendIt upon request.

Free Online Resource for Generating ClearNav .stx Waypoint Files
A year or 2 ago, Lynn Alley created his
US Aviation Information site.  It can be used to create waypoint and airspace files for any location in the U.S. It is also a fantastic resource.  He recently added to the site the ability to generate airport data files in the .stx format - as used by the NK ClearNav.  You can ask the site to generate a waypoint file centered around your favorite gliding site, and it will create a file that works great in your ClearNav.  The site also generates waypoint files in .cup (SeeYou), .ndb (ILEC SN10), .dat (Cambridge and Glide Navigator II and others) file formats.  This is fantastic news for NK ClearNav owners!  Thank you Lynn!  - http://www.xmission.com/~lalley/aviation





PDF

$2750 In Stock


CNi-0605

ClearNav II System Kit - Tunnel Mount - Popular
The ClearNav MFD is a large, bright, color, navigation display that runs ClearNavigator soaring flight software. The system kit includes everything required for operation and mounting with the "tunnel mount".

The instrument ships with the tunnel bonded to the display and attaches to the panel with four M4 x 0.7 screws which engage nuts fitted into the four mounting tabs.

This is an interesting and popular mounting option for the ClearNav.  A Powder-coated aluminum "tunnel" attaches to the rear of the panel to set the ClearNav unit 1.75" back from the panel surface. The cutout for this mount follows the perimeter of the ClearNav display window, and the recess allows installation of other instruments next to the panel cutout.  The additional shading provided by the recess also allows the use of a lower brightness setting, reducing power consumption.  Includes standoffs, support bracket and template.

ClearNav II Soaring Flight Computer
Overview Video, by Paul Remde


ClearNav II Soaring Flight Computer
Duration: 20+ minutes
One of 80+ videos in the Soaring Product Training series
You can rent this video for 30 days for $3, or buy it for $10, or rent the entire Soaring Product Training series for $60 for one year.

Included

  • ClearNav II display unit with ClearNavigator Software
  • CNi-0610 - Handheld Remote Control

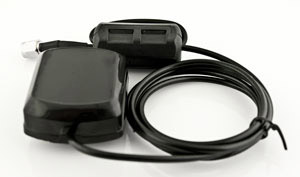

  • CNi-0640 - GPS antenna
  • CNi-0641 - Nexus Junction Box and hookup wires
  • Tunnel Mount mounting hardware and instructions - For mounting the ClearNav set back behind the panel. This is an nice option because the unit is in the shade so the backlight can be set to a lower setting - reducing power consumption. Also, the unit is back far enough to allow other instruments to be mounted closer to the unit that they would be otherwise.
  • CNi-0651 - Panel Mounted USB/Remote Extension
  • USB Flash Drive
  • Quick-Reference Card
  • Calibration Data Sheet

This assembly is the one most customers will order. Even if you are planning to use the RAM mounting option, you will want to buy this kit.

The Online Manual is available here:

New ClearNav Quick Reference Cards
The new Quick Reference cards are available here:
http://www.clearnav.net/main/cn-downloads.html

New ClearNav Software and Firmware
You can download the latest ClearNav software and firmware here:
http://www.clearnav.net/main/cn-downloads.html

PC Simulator
The PC ClearNav Simulator makes it possible to try out the ClearNav on your computer.  It is also a great way to "brush up" on the ClearNav software over the winter - or before a flight.  However, although the PC ClearNav Simulator is very handy, it is much easier to use the ClearNav's handheld remote (connected to a ClearNav) than it is to use your PC keyboard and the PC ClearNav Simulator.  The buttons on the handheld remote are easy to identify and use with your thumb.  I recommend printing the image at right to use as a reference when using the simulator.  To print it: right click on it and select "Print Picture".  You can download the PC Simulator here:
http://www.clearnav.net/main/cn-simulator.html

Printable Manual
It was never quite finished, but the ClearNav Manual I wrote is still available.  It is a large document, but it is a handy reference and good learning tool. Section on flying turn area tasks is very informative. It is no longer available online but I can make it available to you using YouSendIt upon request.

Free Online Resource for Generating ClearNav .stx Waypoint Files
A year or 2 ago, Lynn Alley created his
US Aviation Information site.  It can be used to create waypoint and airspace files for any location in the U.S. It is also a fantastic resource.  He recently added to the site the ability to generate airport data files in the .stx format - as used by the NK ClearNav.  You can ask the site to generate a waypoint file centered around your favorite gliding site, and it will create a file that works great in your ClearNav.  The site also generates waypoint files in .cup (SeeYou), .ndb (ILEC SN10), .dat (Cambridge and Glide Navigator II and others) file formats.  This is fantastic news for NK ClearNav owners!  Thank you Lynn!  - http://www.xmission.com/~lalley/aviation





PDF

$2750 In Stock
CNi-0607

ClearNav II System Kit - On-Panel Mount
The ClearNav MFD is a large, bright, color, navigation display that runs ClearNavigator soaring flight software. The system kit includes everything required for operation and mounting on the front (pilot side) of the instrument panel.

ClearNav II Soaring Flight Computer
Overview Video, by Paul Remde


ClearNav II Soaring Flight Computer
Duration: 20+ minutes
One of 80+ videos in the Soaring Product Training series
You can rent this video for 30 days for $3, or buy it for $10, or rent the entire Soaring Product Training series for $60 for one year.

Included

  • ClearNav II display unit with ClearNavigator Software
  • CNi-0610 - Handheld Remote Control
  • CNi-0640 - GPS antenna
  • CNi-0641 - Nexus Junction Box and hookup wires
  • CNi-0651 - Panel Mounted USB/Remote Extension
  • USB Flash Drive
  • Quick-Reference Card
  • Calibration Data Sheet

This assembly is the one most customers will order. Even if you are planning to use the RAM mounting option, you will want to buy this kit.

The Online Manual is available here:

New ClearNav Quick Reference Cards
The new Quick Reference cards are available here:
http://www.clearnav.net/main/cn-downloads.html

New ClearNav Software and Firmware
You can download the latest ClearNav software and firmware here:
http://www.clearnav.net/main/cn-downloads.html

PC Simulator
The PC ClearNav Simulator makes it possible to try out the ClearNav on your computer.  It is also a great way to "brush up" on the ClearNav software over the winter - or before a flight.  However, although the PC ClearNav Simulator is very handy, it is much easier to use the ClearNav's handheld remote (connected to a ClearNav) than it is to use your PC keyboard and the PC ClearNav Simulator.  The buttons on the handheld remote are easy to identify and use with your thumb.  I recommend printing the image at right to use as a reference when using the simulator.  To print it: right click on it and select "Print Picture".  You can download the PC Simulator here:
http://www.clearnav.net/main/cn-simulator.html

Printable Manual
It was never quite finished, but the ClearNav Manual I wrote is still available.  It is a large document, but it is a handy reference and good learning tool. Section on flying turn area tasks is very informative. It is no longer available online but I can make it available to you using YouSendIt upon request.

Free Online Resource for Generating ClearNav .stx Waypoint Files
A year or 2 ago, Lynn Alley created his
US Aviation Information site.  It can be used to create waypoint and airspace files for any location in the U.S. It is also a fantastic resource.  He recently added to the site the ability to generate airport data files in the .stx format - as used by the NK ClearNav.  You can ask the site to generate a waypoint file centered around your favorite gliding site, and it will create a file that works great in your ClearNav.  The site also generates waypoint files in .cup (SeeYou), .ndb (ILEC SN10), .dat (Cambridge and Glide Navigator II and others) file formats.  This is fantastic news for NK ClearNav owners!  Thank you Lynn!  - http://www.xmission.com/~lalley/aviation



$2660 In Stock
CNi-0612

ClearNav Stick Mounted Remote Control
These are extremely elegant stick-mounted remote control units for use with the ClearNav.  They are made of precision carved Teak wood.
The finish is just the natural wood, sanded to 320 grit and then buffed with a compound called White Diamond. The buffing compound has a wax feel and gives the grip a bit of shine but the color and grain remain natural. Retrofitting for the Stick Handle Remote is possible at any time after installing the ClearNav. Retaining the original handheld remote is recommended to enable use in other gliders or at home with the power adapter.

The 10-button remote control panel is mounted in top of handle for comfortable, ergonomic control of the ClearNav with the flying hand.  It includes all the same buttons in the same locations as on the standard handheld remote.  It includes a PTT (push-to-talk) button and wiring.  The hole for the stick is customized to the stick diameter.

Please specify the stick diameter when ordering.  Rather than assuming that the stick diameters below are correct - I highly recommend using a calipers to measure the exact diameter of the control stick in your sailplane. Also, please let me know the make and model of the radio in your sailplane. Different radios have different push-to-talk wiring circuits.

Radio Type
Different aviation radios have different circuitry for the push-to-talk switch. There are therefore 2 versions of this item available. One works with Becker AR6201, Filser, Microair and XCOM radios and the other version works with Becker AR4201 many other radio types. Please enter the make and model of your aircraft radio when ordering.

Installation Notes

Hole Sizes

  • DG (18 mm)
  • Schleicher (18mm stick diameter, Schleicher installs a special stick handle with the usual 24mm coming up until the trim, but then it slopes down to 18mm for the top part that goes into the wooden handle. This solution is very elegant, since now the handle fairs into the 24mm tube without any change in diameter.)
  • Schempp-Hirth (19mm stick diameter)
  • Glasflügel, LS (20mm stick diameter)



StickMountedRemote

$345 1 to 2
weeks
CNi-0615a

ClearNav Remote Control - Stick Module (stick not included) - for use with Becker AR4201 radios and radios other than Becker AR6201, Filser, Microair and XCOM
This module is designed for use by customers that want to build their own stick mounted remote.  The control stick is not included.  It includes leads for the push-to-talk button and the CANbus cable for connection to the ClearNav Nexus Board.  10-button remote control panel designed for comfortable, ergonomic control of ClearNav with flying hand.
It includes all the same buttons in the same locations as on the standard handheld remote.  It includes a PTT (push-to-talk) button and wiring.

Dimensions:
Width: 37 mm
Length: 39 mm
Depth (not including the buttons): 11 mm

$135 In Stock
CNi-0615b

ClearNav Remote Control - Stick Module (stick not included) - for use with Becker AR6201, Filser, Microair and XCOM radios
This module is designed for use by customers that want to build their own stick mounted remote.  The control stick is not included.  It includes leads for the push-to-talk button and the CANbus cable for connection to the ClearNav Nexus Board.  10-button remote control panel designed for comfortable, ergonomic control of ClearNav with flying hand.
It includes all the same buttons in the same locations as on the standard handheld remote.  It includes a PTT (push-to-talk) button and wiring.

Dimensions:
Width: 37 mm
Length: 39 mm
Depth (not including the buttons): 11 mm

$135 In Stock
CNi-0629

ClearNav Vario Temperature Probe
A remote temperature probe will allow the ClearNav Variometer to calculate more accurate true airspeed which leads to more accurate wind speed and vector calculations.

The temperature probe is not provided with the variometer because it was not considered necessary. However, due to customer requests it is now available.

The probe connects directly to Pins 7 and 8 (only). Pin 7 for Red wire ... Pin 8 for Black wire. Do not connect the probe to any of the other pins.

Cable Length: 6 feet (1.829 m)

$50 In Stock
CNi-0630 ClearNav Through-Panel Mounting Kit
Note: This Option is Probably Going To Fade Away in Favor of the Behind Panel Mounting Kit below.

Aluminum bezel, standoffs, support bracket and template for mounting ClearNav display recessed into the panel.  The ClearNav does not sit flush with the front of the panel - it stands out about 9 mm (0.35 in).  This is the most clean and elegant way to install the ClearNav.  One subtle advantage to this mounting technique is that the unit will be underneath the instrument panel cover overhang – which will reduce glare and make the unit even easier to read in sunlight than it already is by design.

In the photos at right I used the yellow template as a stand-in for the instrument panel - to clarify which parts are on each side of the panel.

Note: The SD card reader slot is mounted on the side of the ClearNav Display and is not accessible from the pilot side of the panel when the ClearNav In-Panel Mounting Kit is used. That should not be a problem because a USB Flash Drive can be used for transferring files through the panel mounted CAN/USB Extension cable.

Dimensions
Width of black bezel: 123 mm (4.84 in)
Height of black bezel: 162 mm (6.38 in)
Thickness of black bezel: 1 mm (0.04 in)
Distance ClearNav stands out on the pilot side of the panel: 9 mm (0.35 in)
Distance from the back of the black bezel to the back of the aluminum mounting plate: 21 mm (0.83 in)
Distance (approx.) from the back of the black bezel to the back of the Nexus Wiring Board's largest connector: 54 mm (2.13 in)

$60 1 week
CNi-0632 ClearNav RAM Mount Kit
In some gliders it is preferable to mount the display on a mounting arm that is attached to the instrument panel.  This is the case when there is not enough room in the panel to mount the unit on the panel.  When mounted on a mounting arm, the unit takes-up less panel real estate.  It is sometimes acceptable to partially block some instruments.  However, I think most customers will find that mounting the ClearNav directly on the instrument panel makes for a cleaner and classier installation than the RAM arm option, but those that prefer the RAM arm option will find that it is a rugged and reliable option.

A nice feature of the RAM Mount Kit is that the panel adapter is designed to fit the screw hole pattern for a standard small 57 mm (2 1/4 inch) instrument hole.  That makes it easy to attach through existing holes in a small panel hole, or to a hole reducer in a large 80 mm (3 1/8 in) hole.

The kit includes:

  • Short RAM "B" size arm
  • RAM-B-238 metal diamond base with 1” ball for use on instrument panel
  • RAM “B” size ball mounted to a square mounting base for use on back of the ClearNav
  • Mounting screws and nuts

The standard 1.75“ (44 mm) long arm plus the bases on both ends gives a total length of about 4 inches (102 mm) from base to base. If the standard short RAM arm is not long enough, you may want to add the optional 3 inch (76 mm) RAM-B-201 or 5.25 inch (133 mm) RAM-B-201-C arm.

Required Option

  • CNi-0645 DB15 Extension Cable - Length: 2 feet

$120 In Stock
CNi-0633 ClearNav Behind Panel Mounting Kit
This kit is designed to allow you to mount the ClearNav to the back of the instrument panel - while making the smallest hole in the panel possible.  The hole in the panel is the same size as the LCD screen.  That is much smaller than the hole that would be needed for the entire body of the ClearNav.   The body of the ClearNav is concealed behind the panel.
$45 In Stock
CNi-0634 ClearNav Tunnel Mount Kit
This is an interesting and popular mounting option for the ClearNav.  A Powder-coated aluminum "tunnel" attaches to the rear of the panel to set the ClearNav unit 1.75" back from the panel surface. The cutout for this mount follows the perimeter of the ClearNav display window, and the recess allows installation of other instruments next to the panel cutout.  The additional shading provided by the recess also allows the use of a lower brightness setting, reducing power consumption.  Includes standoffs, support bracket and template.


$135 In Stock
CNi-0643

ClearNav RS-232 Serial Data Cable
Length: 2 feet, For connecting the RS-232 serial ports on the ClearNav Vario and ClearNav Display's Nexus Board

$20 In Stock
CNi-0645 Cable, ClearNav DB15 Extension, Length: 2 feet

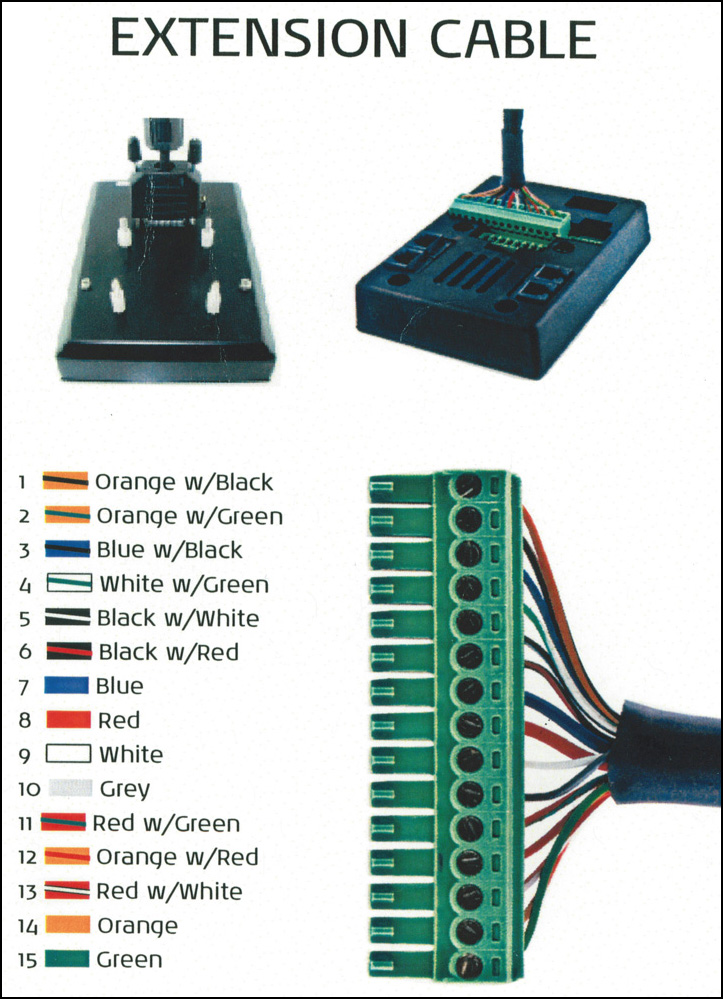

The ClearNav DB15 Extension cable is designed to connect a ClearNav display on a RAM mount to the Nexus Wiring Board that is installed behind the panel. The cable is a custom 14-conductor 2' cable with low-profile DB15f female connector. The cable is extremely flexible and has an abrasion resistant jacket. The cable is run through a rubber grommet which fits into a 7/16” (11 mm) hole in the panel. One end is connected to the DB-15 connector on the back of the ClearNav display and the other end connects to screw-terminals on the Nexus Board. The conductors are pre-stripped and tinned.  A rubber grommet is included on the cable for use in the panel hole.  A wiring diagram is included.
$95 In Stock
CNi-0646 Cable, Cambridge 302 to Nexus Board
DB9/RJ22 CAN bus cable to connect a Cambridge 302 to a ClearNav Nexus Board to provide airspeed data for maximum wind accuracy.
$30 In Stock
CAI-Pnl-0.5-ClearNav-1 Cable, CAI 302 to NK ClearNav Nexus Board and Panel Connector for PC or PDA
This cable makes it easy to send Cambridge 302 data to either the NK ClearNav or a panel mounted connector for a PC or PDA.  It is used for downloading flight logs from the 302 or uploading waypoint files to the 302.  Includes 1 m cable from Cambridge 302 to NK ClearNav Nexus Board, and 0.5 m cable from 302 to DB-9f panel mounted connector for PDA or PCDB-9m connector at 302 end and RJ22 connector at NK ClearNav end, The 302 data out line is always connected to both the NK ClearNav and the panel mounted PC/PDA connector.  Includes panel mounted "PDA / ClearNav" switch for selecting whether the 302's data input line is connected to the panel connector (for PDA or PC) or the NK ClearNav. 5 v power from the 302 is made available at the panel connector at all times. Made by Goddard
$95.00 In Stock
Cable-ClearNav-PFLARMDB9m-1

Cable, 1 m (3.281 feet), ClearNav Nexus Box to PowerFLARM Brick DB-9 connector and 12V Power
For connecting a ClearNav Nexus box to a PowerFLARM Brick's DB-9 connector. The cable has red and black power leads for supplying 12V power to the PowerFLARM Brick. A 6-conductor RJ connector plugs into the ClearNav's Nexus box and a DB-9m connector connects to the PowerFLARM Brick.

Be sure to power-up the FLARM before (or at the same time) you power-up the ClearNav so the ClearNav will see the data from the FLARM when it searches for data input.


$60 In Stock
Cable-ClearNav-PFLARMRJ45-1

Cable, 1 m (3.281 feet), ClearNav Nexus Box to PowerFLARM RJ45 connector and 12V Power
For connecting a ClearNav Nexus box to a PowerFLARM Brick or PowerFLARM Portable's RJ45 port. The cable has red and black power leads for supplying 12V power to the PowerFLARM. A 6-conductor RJ connector plugs into the ClearNav's Nexus box and an RJ45 connector connects to the PowerFLARM Brick or Portable.

Be sure to power-up the FLARM before (or at the same time) you power-up the ClearNav so the ClearNav will see the data from the FLARM when it searches for data input.


$60 In Stock
Cable-CNv-Oudie-0p1

Cable, 0.1 m (3.9 inches), ClearNav CNv Variometer to Oudie Power/Data Cable
For connecting a ClearNav CNv variometer to an Oudie power/data cable. RJ 6p6c connector at ClearNav vario and RJ45 connector for connection to Oudie power/data cable using an RJ45 coupler. An RJ45 Coupler is required and not included, but one is included in the box with the Oudie. This cable passes RS-232 serial data in both directions.


$45 In
Stock
Cable-CNv-Oudie-1

Cable, 1 m (3.281 feet), ClearNav CNv Variometer to Oudie Power/Data Cable
For connecting a ClearNav CNv variometer to an Oudie power/data cable. RJ 6p6c connector at ClearNav vario and RJ45 connector for connection to Oudie power/data cable using an RJ45 coupler. An RJ45 Coupler is required and not included, but one is included in the box with the Oudie. This cable passes RS-232 serial data in both directions.


$45 In
Stock
CNi-0647

Cable, FLARM to Nexus Board
RJ22 6-conductor serial cable to connect a FLARM unit to a ClearNav Nexus Board to provide FLARM data for alarms and location of alerts.

For connecting a ClearNav Nexus box to a PowerFLARM Brick or PowerFLARM Portable's RJ45 port. The cable has red and blue power leads for supplying 12V power to the PowerFLARM. A 6-conductor RJ connector plugs into the ClearNav's Nexus box and an RJ45 connector connects to the PowerFLARM Brick or Portable.

Be sure to power-up the FLARM before (or at the same time) you power-up the ClearNav so the ClearNav will see the data from the FLARM when it searches for data input.

$30 In Stock
CNi-0649 Cable, Front Seat Nexus Board to 2nd Seat Nexus Board
RJ22 CANbus cable to link two ClearNav systems and permit sharing of airspeed data from a CAI 302, and FLARM data.

Second Seat Installation
The same mounting options and components are used when installing the ClearNav in the second seat in a 2 -seat glider. Two ClearNav systems installed in one glider will operate completely independently as they each contain a GPS and full functionality. If one ClearNav is connected to a Cambridge 302 for airspeed data, and/or a FLARM device for traffic data, a CANbus extension cable may be used to connect the two Nexus Boards to enable sharing of the airspeed data and/or the FLARM data. Additional data and function sharing may be available in the future.

$10 In Stock
CNi-0652 ClearNav Portable Power Adapter

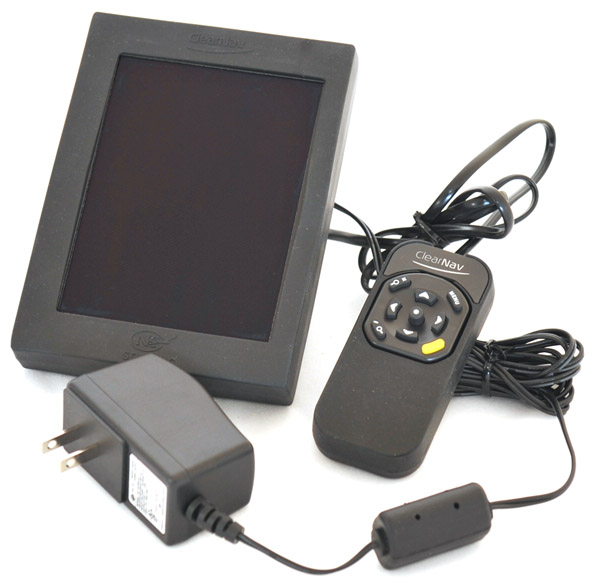

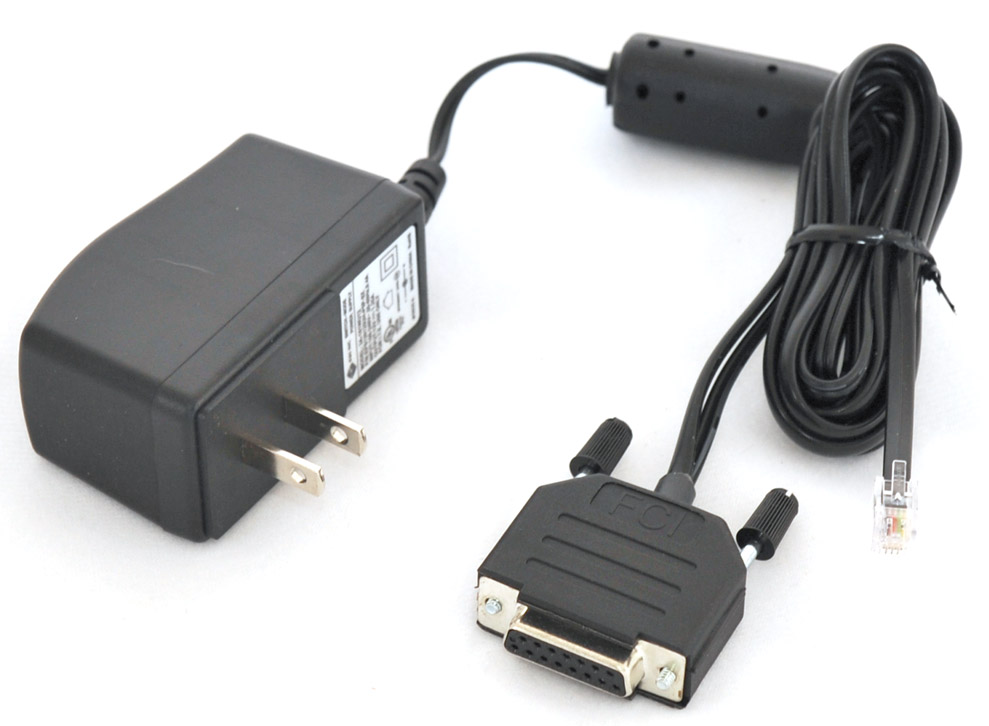

The Portable Power Adapter makes it easy to play with your ClearNav at home.  Just bring the ClearNav main display unit home along with the Handheld Remote and the Portable Power Adapter can be used to connect and power them.  It includes a wall charger which accepts 100 to 240VAC (50 or 60 Hz) and outputs 12VDC/1.25A. It also includes an RJ cable that plugs into the ClearNav handheld remote and a DB-15 connector that plugs into the back of the ClearNav. (ClearNav and Handheld Remote not included.)
$65 In Stock
CNi-0653 Remote Speaker for ClearNav Flight Computers
A remote speaker dramatically improves the clarity and volume of audio alerts (ex. "Target ... eleven o'clock high.") generated by ClearNav Flight Computers that are conected to a FLARM. This unit is very compact (3.25" x 3.25" x 2.25") and light (9 ounces) - allowing any number of creative mounting options in a tight cockpit. Unit comes with a removable mounting bracket, six feet of connecting wire, and a plug for connection to the Nexus board. See Tech Notes for important connection details.
$25 In Stock
System Components - Individual Components that are included in Complete ClearNav Systems

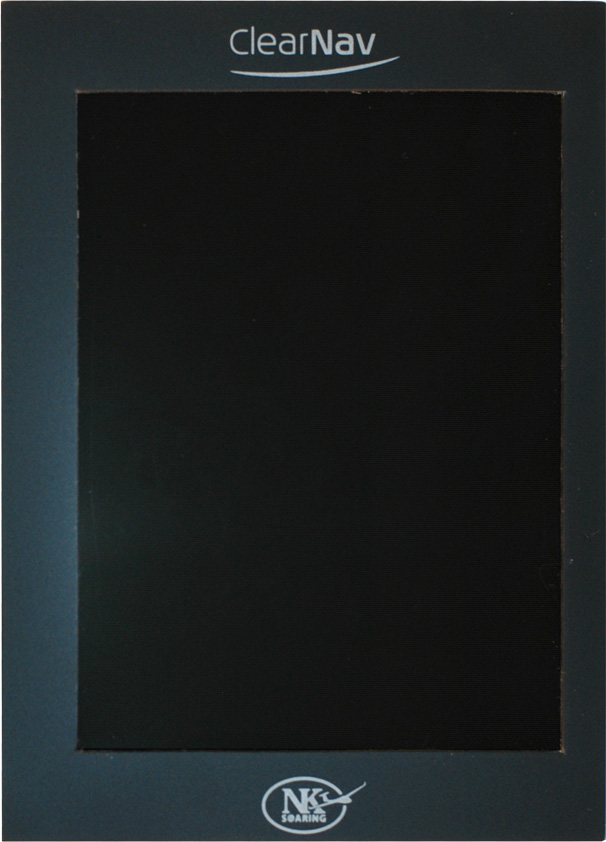

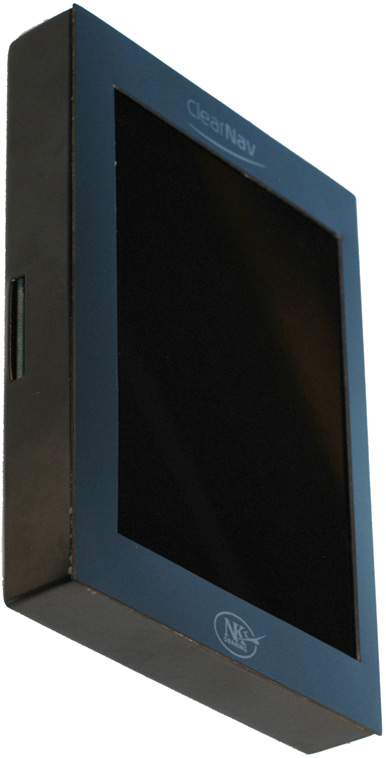

CNi-0602-UNIT ClearNav Flight Computer Display Unit Only, VGA (480 x 640 pixel) Display
Display Unit with box and instructions.  No remote, antenna, Nexus Wring Board, or panel extension included. To be used as part of an "a la carte" system.

Included

  • ClearNav display unit
  • "On Panel" mounting hardware and instructions - For mounting the ClearNav so it is mounted on the pilot side of the instrument panel (not recessed into the panel).  It is different from the CNi-0630 "In Panel" kit below.  This "On Panel" kit includes only a few mounting nuts and does not increase the cost of this package.
  • Quick-Reference Card
  • USB Flash Drive
$2450 1 Week
CNi-0610 Handheld Remote Control
Handheld 9-button wired remote control with RJ-22 connector. Slim, contoured and comfortable for use in non-flying hand. Recommended for backup and out-of-cockpit use even if installing stick remote.  This item is included in the standard ClearNav system kit.

  $125 In Stock
CNi-0640 GPS Antenna
The ClearNav has a built-in GPS engine but an external antenna is required. It is included in the standard ClearNav kit. It consists of an amplified external GPS antenna and Dual-Lock mounting strips. The connector attaches directly to the back of the ClearNav.  This item is included in the standard ClearNav system kit.
$45 In Stock

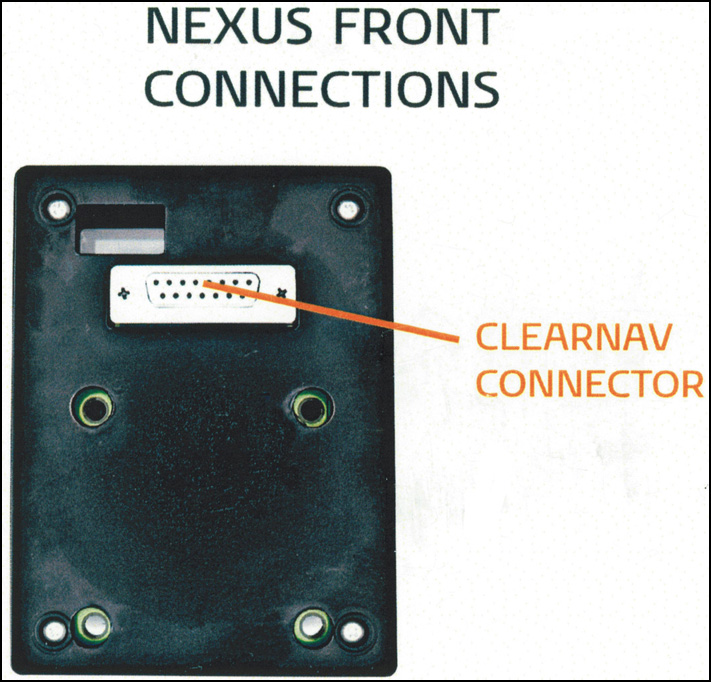

CNi-0641 ClearNav Nexus Junction Box
Compact junction box with speaker, CAN bus connectors, RJ22 connector, screw-terminal strip and power cable. Mount directly to DB15 on rear of ClearNav, or install anywhere behind panel and connect to ClearNav using CNi-0645 DB15 Extension cable.  This item is included in the standard ClearNav system kit.

Dimensions:
Height: 110 mm
Width: 82 mm
Thickness: 22 mm
$225 In Stock
CNi-0651 Panel Mounted CAN/USB Extension

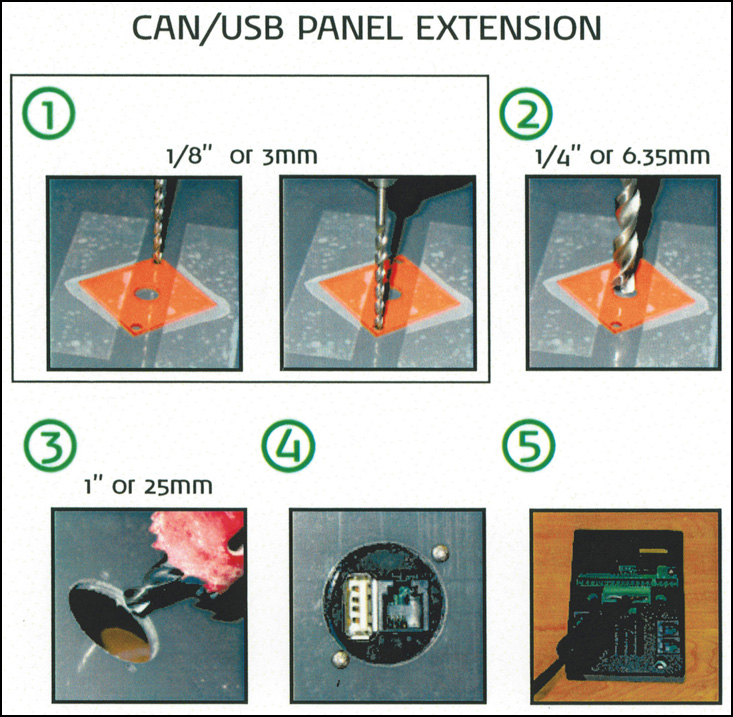

The Panel Mounted CAN/USB Extension brings USB and RJ-22 connectors out to a convenient panel mounted connector.  It fits into a 1" (25 mm) round hole in the panel. The USB connector is used as a receptacle for a USB Flash Drive for transferring flight logs from the ClearNav and uploading waypoint and airspace files and software updates to the ClearNav.  The RJ-22 connector is used by the Handheld Remote Control.  A template is included for making the required holes in the panel.  This item is included in the standard ClearNav system kit.

$105 In Stock


Cumulus Soaring, Inc.
Paul E. Remde

8661 Connelly Place
Savage, Minnesota 55378
USA


Home | Contact | Customer Service | How to Order | Privacy | Technical Support | View Cart


Phone: 1-952-445-9033
FAX: 1-952-445-8954
