Price

Models (select model when placing order):

• CAF 302E, DDV and Flight Recorder, Knots
• CAF 302M, DDV and Flight Recorder, Meters
• CAF 302E MG, DDV and Flight Recorder, Knots, with noise level recording for motorgliders, +$20
• CAF 302M MG, DDV and Flight Recorder, Meters, with noise level recording for motorgliders, +$20

The 302 Direct Digital Variometer with GPS and Flight Recorder comes complete with the following accessories:

• HA 435 GPS Antenna

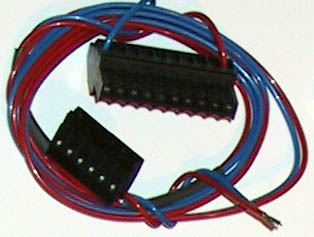

• CAA 114, Pre-wired power cable with 10 terminal power and input screw terminal and 6 terminal input ground screw terminal

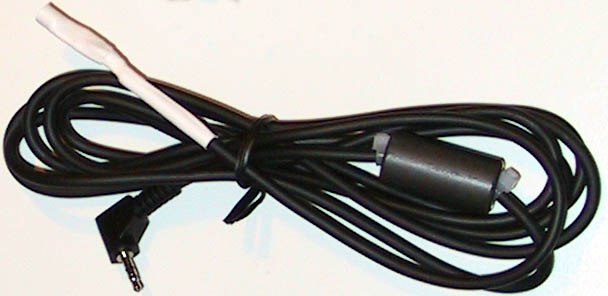

• CAA 115, Outside Air Temperature Probe

• CAA 116, Pre-wired power cable with 10 terminal power and input screw terminal

• HA 349, Serial Data Cable

• Accessory kit with:
  • TL 001 Screwdriver
  • HA 100, Three "tee" tubing connectors
  • HA 101, Three straight tubing connectors
  • 15 wire ties
• SA 044, 1 Meter of rubber instrument tubing
• MA 012, Laminated Operators Card
• MA 013, User's Guide Manual
• MA 014, Software CD
• Barograph calibration certificate
• CAF 031, Remote Speaker (for motorglider version only)

Options (select when placing order):

• Glide Navigator II Soaring Software for Pocket PC, $149
• CAF 303, 303 LCD Navigation Display with final glide, $395
• CAF 306, 306 Vario Repeater for Two-Seat Gliders, $525
• CAA 117, NIMH Reserve Battery, $95
• CAA 119, 80 mm Adapter Kit, Allows the installation of the 302 in an 80 mm Panel cut-out, $22

If you are using 2 of the CAF-303 LCD Navigation Display units you will also need 2 of the CO-119 adapters and 2 of the CAA-134-1m RJ cables.  The cable that is included with the CAF-306 will be used between the 2 CO-119 units and the 2 CAA-134-1m cables that are included with the CAF-303 units will be used to connect the CAF-303 units to the 2 CO-119 adapters.  The 2 extra CAA-134-1m cables will be used to connect the CAF-302 and CAF-306 to the 2 CO-119 adapters.  See the connection diagram below.

Note: After the upgrade the unit can no longer be used with a GPS-NAV.


System with 302, 306 and 2 303s
If you are using 2 of the CAF-303 LCD Navigation Display units along with a CAF-302 and CAF-306 you will also need 2 of these CO-119 adapters and 2 of the CAA-134-1m RJ cables.  The cable that is included with the CAF-306 will be used between the 2 CO-119 units and the 2 CAA-134-1m cables that are included with the CAF-303 units will be used to connect the CAF-303 units to the 2 CO-119 adapters.  The 2 extra CAA-134-1m cables will be used to connect the CAF-302 and CAF-306 to the 2 CO-119 adapters.

System with 302A and 2 303s
Two CAF-303 LCD Navigation Display units can be connected to a single 302A.  You would need a single CO-119 splitter.  Each 303 comes with a CAA-134-1m cable that is 1 m long.  You will probably need a much longer cable to go from the splitter to the remote 303.  3 m should do it.  I can make a 3 m long CAA-134-1m upon request for $30.

 - 1 m (39.4 in)
 - 3 m feet (9.84)

You can select the desired cable length when you order.

The 302A comes complete with the following accessories:

• HA 435 GPS Antenna

• HA 349, Serial Data Cable

• 2 x CAA 116, Power Cable with connector

• Accessory Kit with:
  • TL 001 Screwdriver
  • 6 wire ties
• MA 013, 302A User's Guide Manual
• MA 014, Software CD

Options (select when placing order):

• Glide Navigator II Soaring Software for Pocket PC, $149
• 303 LCD Navigation Display, $395
• CAA-117, NIMH Reserve Battery, $90
• CAA-119, 80 mm Adapter Kit, $21

System with 302, 306 and 2 303s
If you are using 2 of the CAF-303 LCD Navigation Display units along with a CAF-302 and CAF-306 you will also need 2 of these CO-119 adapters and 2 of the CAA-134-1m RJ cables.  The cable that is included with the CAF-306 will be used between the 2 CO-119 units and the 2 CAA-134-1m cables that are included with the CAF-303 units will be used to connect the CAF-303 units to the 2 CO-119 adapters.  The 2 extra CAA-134-1m cables will be used to connect the CAF-302 and CAF-306 to the 2 CO-119 adapters.

System with 302A and 2 303s
Two CAF-303 LCD Navigation Display units can be connected to a single 302A.  You would need a single CO-119 splitter.  Each 303 comes with a CAA-134-1m cable that is 1 m long.  You will probably need a much longer cable to go from the splitter to the remote 303.  3 m should do it.  I can make a 3 m long CAA-134-1m upon request for $30.

 - 1 m (39.4 in)
 - 3 m feet (9.84)

You can select the desired cable length when you order.

Models (select one when ordering)

• CAF 016S, GPS-NAV Model 20 Logger with built-in antenna, $1560
• CAF 017S, GPS-NAV Model 25 Logger, with CAA-074 GPS antenna, $1625

The GPS-NAV System comes complete with the following accessories:

• CAF 013, LCD Navigation Display (English, French, Deutsch or Italian)
• Charger
  • HA 333, Input: 120 V, 60 Hz, Output: 12 V, 500 mA
  • HA 334, 220 V
• CAA 074, GPS Antenna (Model 25)
• HA 349, Serial Data Cable
• MA 008, GPS-NAV Manual and Software
• Kit of modular cables, RFI filters, and mounting hardware

Optional (select when placing order):

• CAA 064, GPS-NAV External Power Pack, battery and cable, 12V, 2 AH, $80

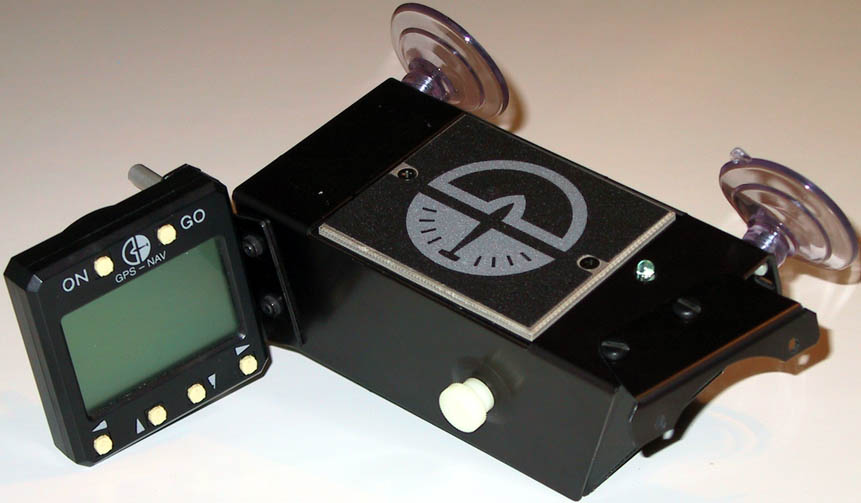

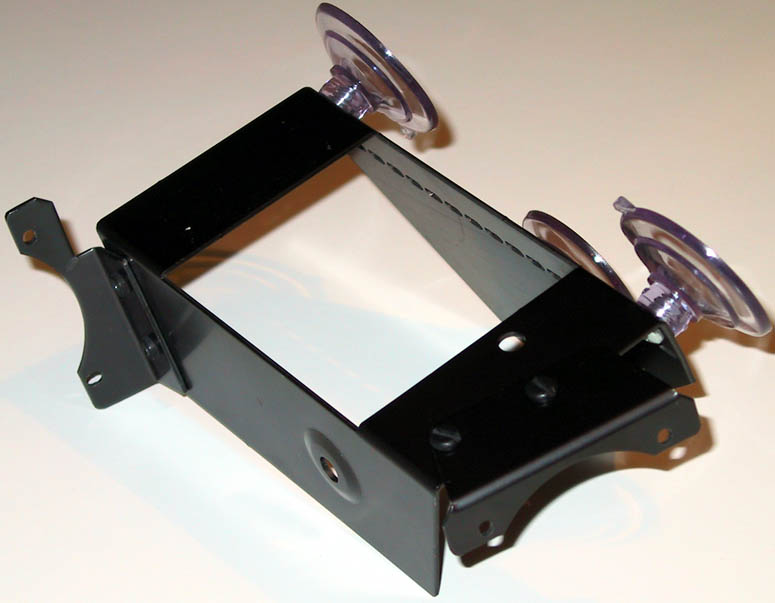

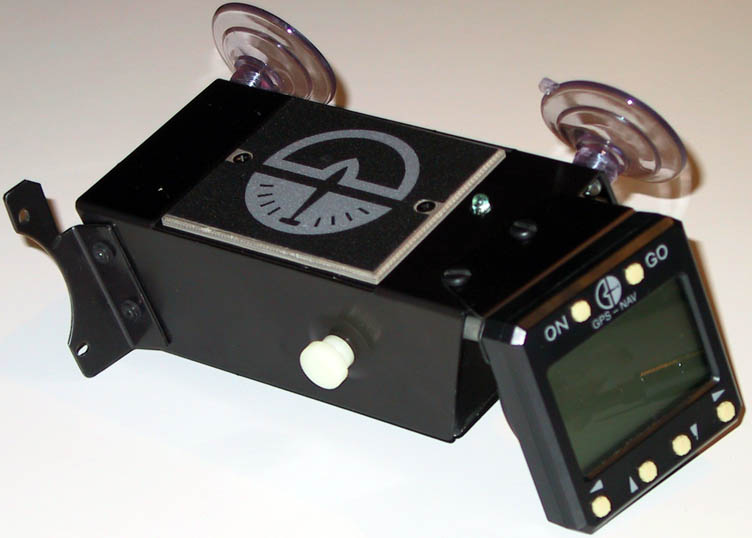

• CAA 065, Canopy Quick Mount for GPS-NAV Model 20/25, suction cup mount, $80

Models (select one when ordering)

• CAF 016, GPS-NAV Model 20 Logger with built-in antenna, $1220
• CAF 017, GPS-NAV Model 25 Logger, with CAA-074 GPS antenna, $1294

The GPS-NAV comes complete with the following accessories:

• CAA 074, GPS Antenna (Model 25)
• MA 008, GPS-NAV Manual and DOS Software on Floppy Disks
• Kit of modular cables, RFI filters, and mounting hardware

Optional (select when placing order):

• Charger (Highly Recommended Option)
  • HA 333, Input: 120 V, 60 Hz, Output: 12 V, 500 mA, $11
  • HA 334, 220 V, $32
• HA 349, Serial Data Cable, $11, (Highly Recommended Option)
• CAA 064, GPS-NAV External Power Pack, battery and cable, 12V, 2 AH, $80
• CAA 065, Canopy Quick Mount for GPS-NAV Model 20/25, suction cup mount, $80

Language Options (Select when placing order):

• English - Add "E" to model number in place of "x".
• French - Add "F" to model number in place of "x".
• Deutsche - Add "D" to model number in place of "x".
• Italian - Add "I" to model number in place of "x".


• 0.3 m (11.8 inches), $19.95
• 0.5 m (19.7 inches), $19.95
• 1 m (39.4 inches), $19.95
• 2 m (6.56 feet), $24.95
• 3 m (9.84 feet), $29.95

Available Lengths:

• 0.3 m (11.8 inches), $19.95
• 0.5 m (19.7 inches), $19.95
• 1 m (39.4 inches), $19.95
• 2 m (6.56 feet), $24.95
• 3 m (9.84 feet), $29.95

Includes:

• Slim, 12V, 2 AH lead-acid rechargeable battery, Dimensions: 0.787 x 3.543 x 6.417" (20 x 90 x 163 mm)
• Power cable to connect battery to the GPS-NAV. Male plug for battery to RJ connector for GPS-NAV.

The cradle can be mounted in the glider using either a gooseneck or a RAM articulated arm.  For panel mounting, most pilots prefer the gooseneck because it is easier to adjust in flight.  Some prefer the the RAM articulated arms for their stiffness, but they require 2 hands to adjust.  RAM arms are great for mounting on the cockpit sidewall or canopy rail.  Goosenecks are not designed for 90 bends while supporting a load.  You may use any RAM arm option from the RAM web page. Any RAM diamond shaped mounting plate (such as the RAM-A-238 (included in the RAM-A-101 assembly), RAM-B-238, or RAP-B-238) can be mounted to the back of the cradle.  The GnBase2 was designed to mount the GNeck2 gooseneck to this cradle.  RAM arms will not mount on the CAA-127 adapter plate, so you will probably want a 048-0103-ND RJ adapter

Gooseneck Kit Option
When placing the order you can select the optional gooseneck assembly for $264.85 (including cradle). It includes everything you need to mount the cradle and connect it to your GPS-NAV, 302, or 302A.  You can select from 3 in (7.6 cm), 6 in (15.2 cm) or 9 in (22.9 cm) gooseneck lengths.  It is assembled before it ships.  Below is a list of the items included in the kit.

• CAA-128 cradle
• GNeck2 Gooseneck, 3 in (7.6 cm), 6 in (15.2 cm) or 9 in (22.9 cm)
• 2 x GnBase2 adapter plates
• CAA-127 adapter plate with RJ connector
• CAA-098 cable

RAM Articulated Arm Kit Option
When placing the order you can select the optional RAM-A-101 arm assembly for $225.90 (including cradle).  It includes everything you need to mount the cradle and connect it to your GPS-NAV, 302, or 302A.   It is assembled before it ships.  Below is a list of the items included in the kit.

• CAA-128 cradle
• RAM-A-101 articulated arm
• CAA-098 cable
• 048-0103-ND RJ adapter

• GNeck-3in: 1.4 oz (40 g)
• GNeck-6in: 2.5 oz (71 g)
• GNeck-9in: 3.3 oz (94 g)

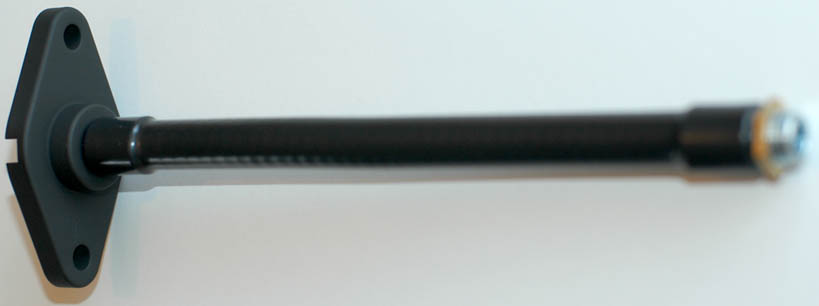

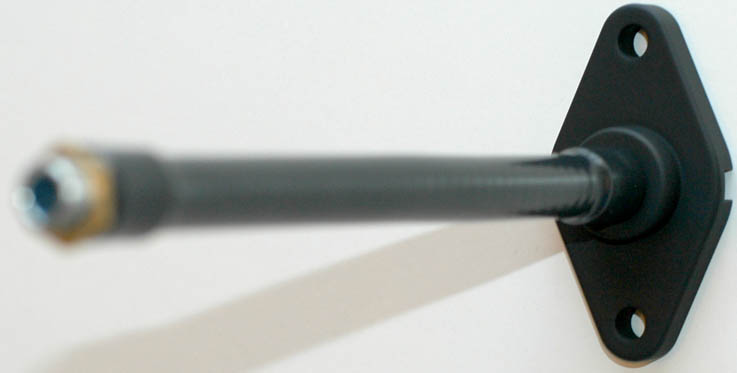

• RAM-GN3-238: 0.7 oz (20 g)
• GnBase2: 0.4 oz (11 g)

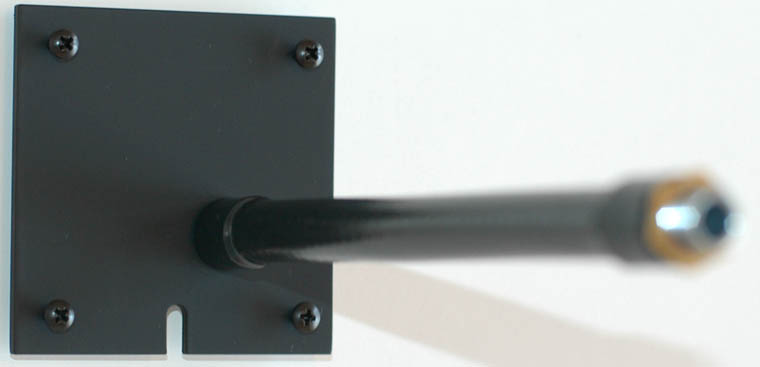

• Gn57mmPlate2: 0.7 oz (20 g)

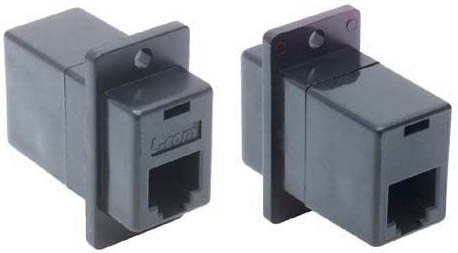

Contacts have 30 microinches of gold plating for durability and the black plastic shell is UL94V-0 rated.

Detailed Drawing: RJ-Adapter-Panel-dwg.pdf
