Overview

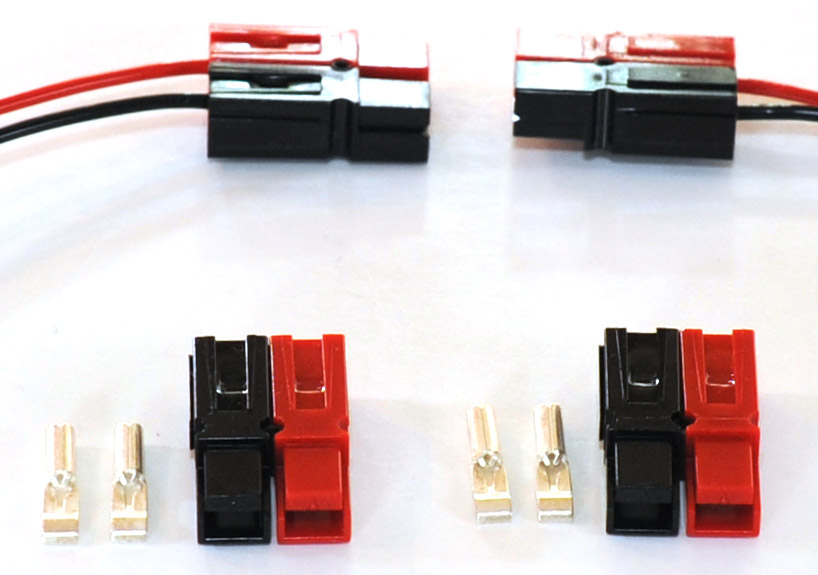

Anderson Power Products' Powerpole connectors are elegantly designed little connectors.  They are designed so that they are color-coded (Red for +, Black for -) and they are symmetrical in such a way that the same connector type can be used on both sides of the connection.  There really is no "male" or "female" connector.  Only one connector does it all.  Also, it is impossible to connect them incorrectly. They only connect one way.  Also, they are inexpensive - which is nice!

I stock only one size of the Powerpole connectors.  It is rated at 15 Amps - which is plenty for all electronics in sailplanes.

Data Sheets and Drawings
PP15-Data-Sheet.pdf
AndersonPowerpole-Housing-Dwg.pdf
AndersonPowerpole-Contact-Dwg.pdf

Assembly Instructions
I recommend printing out both of the instructions documents below.
PowerpoleAssemblyInstructions-Overview.pdf
PowerpoleAssemblyInstructions-Detailed.pdf


How to Order
To order a product, click on the
button next to the product.
When you are ready to complete your order, click on the
button.
Click on the small images to view larger versions.

Part # Description Photo
Click on image to view larger version

Price

Lead-time

Powerpole-Kit Anderson Powerpole Connector Kit, 2 Contact, 15 Amp
Kit includes all the parts for one red and black 2-conductor connector as shown in the photo at right.  You will need at least 2 of these for all applications.  For example, you may want one on your glider battery, one for connecting the glider electrical system to the battery, and another one for the battery charger.

Included:

  • Housing (red and black housings mated together and secured with a "roll pin")
  • 2 x metal contacts (crimp style)

Specifications
Maximum Current Rating: 15 A
Recommended Wire Gauge: 16 to 18 AWG
Dimensions: 0.31 x 0.31 x 0.97 inches (7.9 x 7.9 x 24.6 mm)
Length of assembled pair: 1.62 inches (41.2 mm)

Data Sheets and Drawings
PP15-Data-Sheet.pdf
AndersonPowerpole-Housing-Dwg.pdf
AndersonPowerpole-Contact-Dwg.pdf

Assembly Instructions
I recommend printing out both of the instructions documents below.
PowerpoleAssemblyInstructions-Overview.pdf
PowerpoleAssemblyInstructions-Detailed.pdf

$1.95 In Stock
Powerpole-Contact Anderson Powerpole Contact - Single
Two of these metal contacts are included with the kit above.  However, you may need extra contacts if you want to re-wire something.  The contacts are crimp-style contacts they are not re-usable.
$0.40 In Stock
