Home > Batteries / Miscellaneous > Amp

On This Page


How to Order
To order a product, click on the
button next to the product.
When you are ready to complete your order, click on the
button.
Click on the small images to view larger versions.

Part # Description Photo
Click on image to view larger version

Price

Lead-time

FASTON

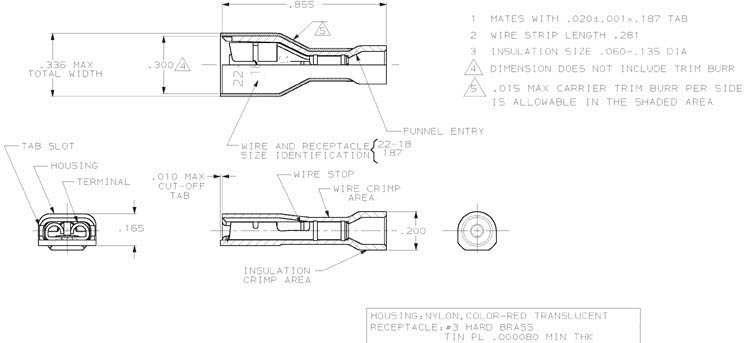

FASTON-187 AMP FASTON 0.187" x 0.020", Female
Small size fully insulated quick disconnect receptacle for connecting to battery terminals.  Crimp on.  Wire gauge: 22-18
$0.95 In Stock

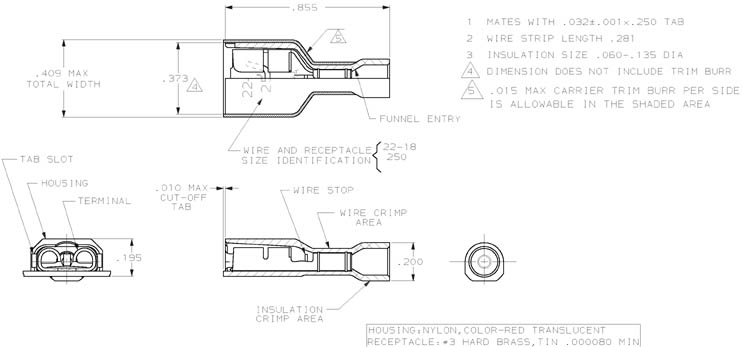

FASTON-250 AMP FASTON 0.250" x 0.032", Female
Small size fully insulated quick disconnect receptacle for connecting to battery terminals.  Works with FASTON-250-Male.  Crimp on.  Wire gauge: 22-18
$0.95 In Stock

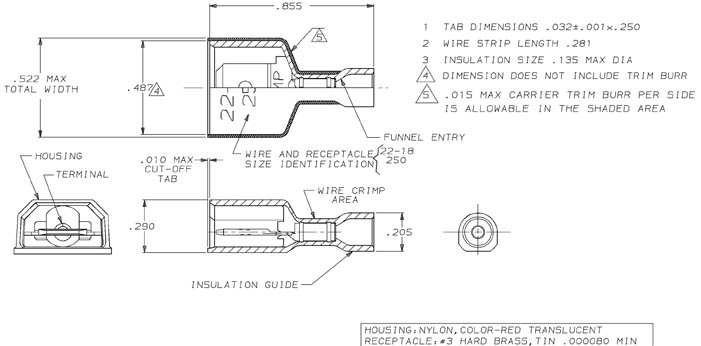

FASTON-250-Male AMP FASTON 0.250" x 0.032", Male
Small size fully insulated quick disconnect tab for connecting to battery terminal connectors. Works with the FASTON-250. Crimp on.  Wire gauge: 22-18
$0.95 In Stock
TQD
TQD (T-Shaped Quick-Disconnect) Connectors, 2-conductor
These are the same connectors found in many gliders as they are delivered from the factory.  They are used as battery connectors.  They have a positive "click" when connected and are easy to disconnect by hand without the need for any special tools.  I sell the components - unassembled and without wire.

Wiring Standard?
Below is a description of how at least one Germany glider factory uses this connector.  You may want to follow the standard.

  • The connector in the top (cross part) of the "T" was used for the common (black wire).
  • The connector in the base (vertical part) of the "T" was used for +12V power (red wire).

Assembly Instructions

  • Crimp and solder metal tabs onto the wire.  The metal tabs on the end of the connector are to be crimped onto the wire insulation. See assembly diagram below.
  • Insert the connector into the back of the housing until it clicks into place.
TQD Connectors
TQD-F-Kit includes
1 x TQD-F-Housing
2 x TQD-F-Connector
TQD-M-Kit includes
1 x TQD-M-Housing
2 x TQD-M-Connector

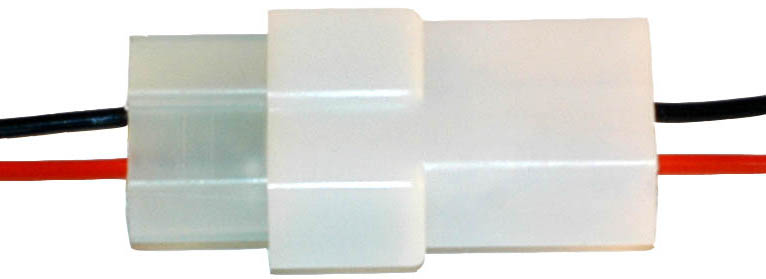

Connected



TQD-Kit TQD (T-Shaped Quick-Disconnect) Connector Kit
This kit is delivered unassembled and without wire.  It includes the parts for one male and one female connector.
Included:

Not Included:

  • Wires

$3.50 In Stock
TQD-F-Kit TQD (T-Shaped Quick-Disconnect) Connector Kit - Female
This kit is delivered unassembled and without wire.
Included:

Not Included:

  • Wires
  • Mating connector
$1.75 In Stock

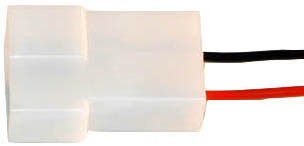

TQD-M-Kit TQD (T-Shaped Quick-Disconnect) Connector Kit - Male
This kit is delivered unassembled and without wire.
Included:

Not Included:

  • Wires
  • Mating connector
$1.75 In Stock
TQD-F-Housing TQD (T-Shaped Quick-Disconnect) Connector Housing - Female
To be used with 2 TQD-F-Connector parts (not included)
Dimensions
Length: 23 mm (0.90 inches)
Width (top of "T"): 10 mm (0.39 inches)
Width (base of "T"): 7.5 mm (0.30 inches)
Height: 17 mm (0.67 inches)
$0.95 In Stock
TQD-F-Connector TQD (T-Shaped Quick-Disconnect) Connector Connector - Female
To be used with TQD-F-Housing (not included)
Dimensions
Length: 19 mm (0.75 inches)
Width: 7.4 mm (0.29 inches)
$0.40 In Stock

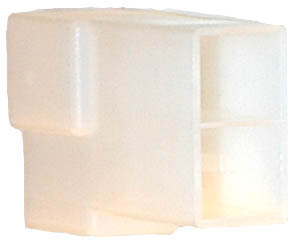

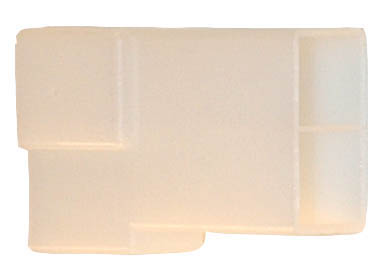

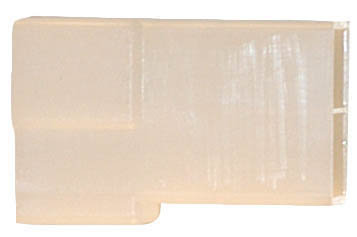

TQD-M-Housing TQD (T-Shaped Quick-Disconnect) Connector Housing - Male
To be used with 2 TQD-M-Connector parts (not included)
Dimensions
Length: 31 mm (1.22 inches)
Width (top of "T"): 12.5 mm (0.49 inches)
Width (base of "T"): 9.7 mm (0.38 inches)
Height: 20 mm (0.79 inches)
$0.95 In Stock
TQD-M-Connector TQD (T-Shaped Quick-Disconnect) Connector Connector - Male
To be used with 2 TQD-M-Housing (not included)
Dimensions
Length: 29 mm (1.14 inches)
Width: 6 mm (0.24 inches)
$0.40 In Stock
