Home > Transponders / ELTs > ACK Technologies, Inc.


How to Order
To order a product, click on the
button next to the product.
When you are ready to complete your order, click on the
button.
Click on the small images to view larger versions.

Part # Description Photo
(Click on images below to view large versions)

Price

Lead-time

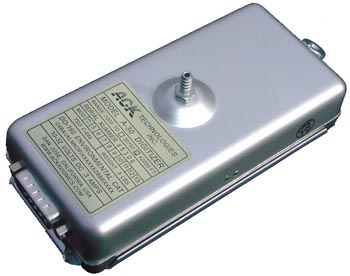

ACK-A-30-5 A30.4 Altitude Encoder
The ACK A30.5 is an excellent partner for any transponder.  An optional Becker 1K440 wiring harness connects this unit directly to any Becker transponder.
  • Add Mode C capability the most cost effective way
  • Latest solid state electronics for high reliability
  • The smallest, lightest, highest quality encoder available
  • Quick and easy installation
  • Compatible with most transponders in use today
  • Code compatible with all classes of Mode S transponders
  • FAA TSO-C88a Approved

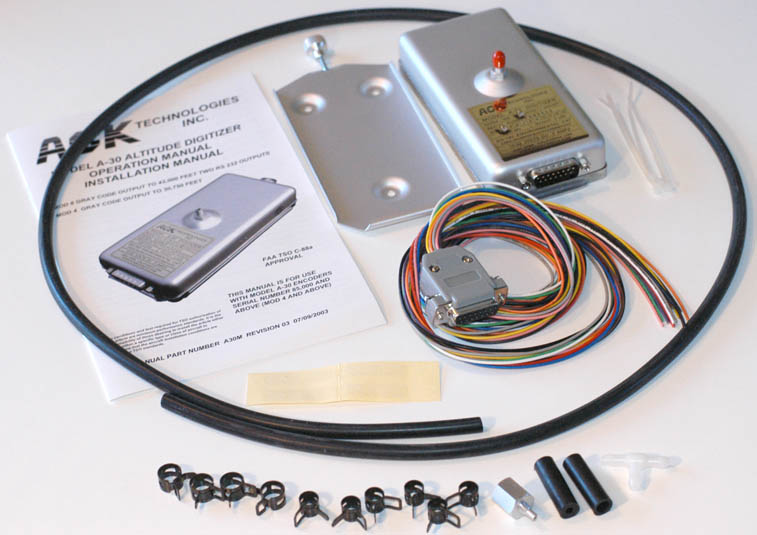

INCLUDES:

  • Quick release mounting tray
  • 4 foot color coded wiring harness with pre-wired jack
  • Static line and fittings for installation in any aircraft
  • Installation manual with transponder pin outs
  • Three Year Warranty
Approvals: FAA TSO C-88a German LBA 10.221/4
Range: A-30.5 -950 to 30,750
Accuracy: Typical: 20 feet
Maximum: 50 feet
Size: 6 x 2.65 x 1.3 inches (152 x 67.5 x 33 mm)
Weight: 5.1 oz (144 grams)
Operating voltage: 10 to 32 volts DC
Operating current: 160 mA typical
Operating temperature: -4 to 131 F (-20 to +55 C)
DO-160B Environmental categories: C4BA/JKLMNOPS/XXXXXXZZBBBXXXX
Compatibility 4096 code transponders: Yes
Mode S compatibility: Yes/All classes
Shipping size: 9 x 6 x 4 inches
Shipping weight: 1 lb., 4 oz.
$250 In Stock
ACK-E-04 E-04 406/121.5 MHz ELT - with GPS Input Capability
The E-04 is a direct replacement for the 62,000 model E-01 ELTs produced by ACK.  The E-04 fit directly into current E-01 mounting trays, and uses the same remote control panel indicator.  The E-04 external antenna will utilize your current antenna mounting and wiring installations.
  • Accepts GPS position input data from Bendix/King, Garmin, or NMEA 0183 GPS (GPS not included)
  • New antenna is swept back 20 degrees, and features a molded plastic base
  • 5 watts @ 406 MHz for 24 hours, and 100 Mw @ 121.5 MHz for 48 hours
  • New simple plug in audible alert indicator
  • New lithium battery pack offers a 5-year battery life, and make it substantially lighter
  • Can use AmeriKing remote panel indicator

Included in complete install kit:

  • Transmitter
  • Lithium battery pack
  • External Antenna
  • Remote Control
  • Mounting Tray
  • Retaining Straps
  • Plug in Audible Alert
  • Remote Cable
  • Coax Cable for antenna
  • Installation Manual
$695 In Stock
ACK-E-04R E-04 406/121.5 MHz ELT - with GPS Input Capability - Retrofit Kit
The E-04 is a direct replacement for the 62,000 model E-01 ELTs produced by ACK.  The E-04 fit directly into current E-01 mounting trays, and uses the same remote control panel indicator.  The E-04 external antenna will utilize your current antenna mounting and wiring installations.

This is a retrofit version which requires that you use your installed mounting tray, remote control, remote control cable, and antenna coax.

  • Accepts GPS position input data from Bendix/King, Garmin, or NMEA 0183 GPS (GPS not included)
  • New antenna is swept back 20 degrees, and features a molded plastic base
  • 5 watts @ 406 MHz for 24 hours, and 100 Mw @ 121.5 MHz for 48 hours
  • New simple plug in audible alert indicator
  • New lithium battery pack offers a 5-year battery life, and make it substantially lighter

Included in install kit:

  • Transmitter
  • Lithium battery pack
  • External Antenna
  • Plug in Audible Alert
  • Installation Manual
$620 In Stock
Cable-E04-DB9m-LED-12V-0.3 Cable, 0.3m, Cable for GPS data and 12V power for ACK E-04 ELT, By Goddard
The ACK E-04 can accept GPS data though its mini-DIN connector.  It can also accept 12V power through the same connector.  However, since the E-04 has no user-interface, the manual recommends using an external LED to verify that the E-04 is receiving GPS data.  This cable is designed to allow the connection of GPS data and 12V power to the E-04 and it also includes a "GPS Status" LED built into the DB-9m connector. It has a female Mini-DIN connector for connection to the E-04's GPS/power connector.  It also has a DB-9m connector for connection to a cable to go to a GPS.  The pin connections on the DB-9m GPS connector are the same as the GPS side of a Goddard PS-5a power converter.  The cable also has 12V power leads for providing power to the E-04 and also providing 12V power to pins on the DB-9m connector for powering the GPS (if necessary).

If you don't already have a GPS to connect to the E-04, the Garmin GPS 16x-HVS would work great with the E-04 and this cable.  This cable would power the GPS 16x-HVS with 12V.  Be sure to order the Garmin GPS 16x-HVS with a DB-9f connector.

  $75 In Stock
